6C–10

ENGINE FUEL

Assembling Advice

Application of engine oil or light oil to the pipe facilitates
connecting work. The work should be started immediately
after lubrication, since dust may stick to the pipe surface
to cause poor sealability if a long time passes after
lubrication.
Test/Inspection After Assembling

1. Reconnect the battery negative cable.
2. Turn the ignition key to the “ON” position and check

pump startup sound. As the pump is actuated to raise
fuel pressure, check and see fuel leak from the piping
system.

3. Make sure of no fuel leakage by conducting the above

fuel leak check a few times.

4. Start the engine and make sure of stable idling speed

and normal vehicle run.The entry of dust during the
work may sometimes affect the fuel injection system.

6C–11

ENGINE FUEL

Fuel Gauge Unit

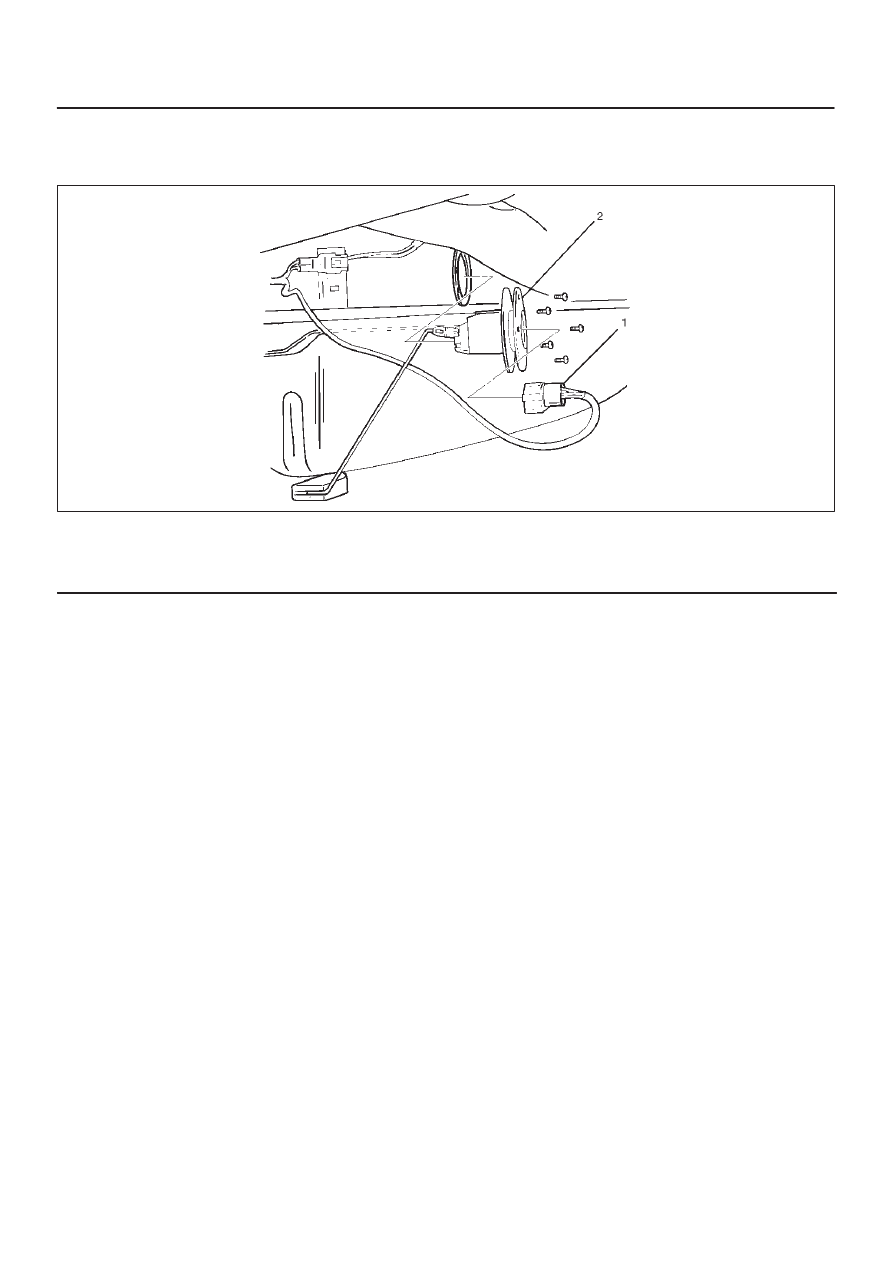

Fuel Gauge Unit and Associated Parts

140RS004

Legend

(1) Wiring Connector
(2) Fuel Gauge Unit

Removal

CAUTION: When repair to the fuel system has been
completed, start engine and check the fuel system
for loose connection or leakage. For the fuel system
diagnosis, see Section “Driveability and Emission”.

1. Disconnect battery ground cable.
2. Loosen fuel filler cap.
3. Drain fuel.

Tighten drain plug to the specified torque after
draining fuel.

Torque: 20 N·m (14 lb ft) — M8

4. Wiring connector

D

Disconnect wiring connector(1) from the unit.

5. Fuel gauge unit

D

Remove the fixing screws, then the fuel gauge
unit(2).

NOTE: After removing fuel gauge unit, cover fuel tank to
prevent any dust entering

Installation

1. Fuel gauge unit(2).
2. Wiring connector(1).

D

Connect the wiring connector to the fuel gauge unit.

D

Fill the tank with fuel and tighten fuel filler cap.

D

Connect battery ground cable.

6C–12

ENGINE FUEL

Fuel Filler Cap

General Description

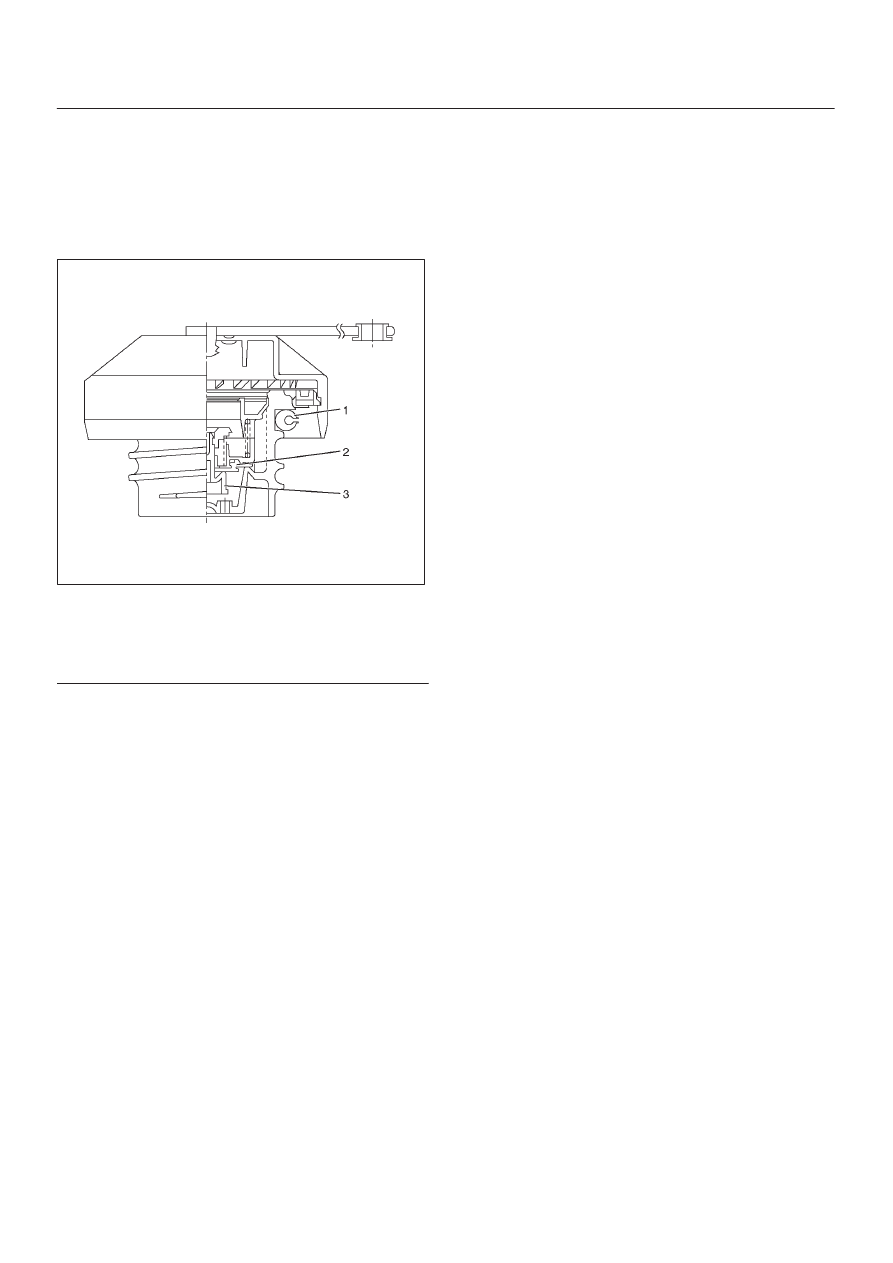

Fuel filler cap includes vacuum valve and pressure valve.
In case any high vacuum and any high pressure happen in
tank, each valve works to adjust the pressure to prevent
the tank from being damaged.

140R200028

Legend

(1) Vacuum Valve
(2) Pressure Valve
(3) Seal Ring

Inspection

Check the seal ring in the filler cap for presence of any
abnormality and for seal condition.
Replace the filler cap, if abnormal.

CAUTION: The fuel filler cap valves have
characteristics.
A defective valve, no valve at all or a valve with the
wrong characteristics will do a lot of harm to engine
operating characteristics; be sure to use the same
fuel filler cap as installed in this vehicle.

6C–13

ENGINE FUEL

Main Data and Specifications

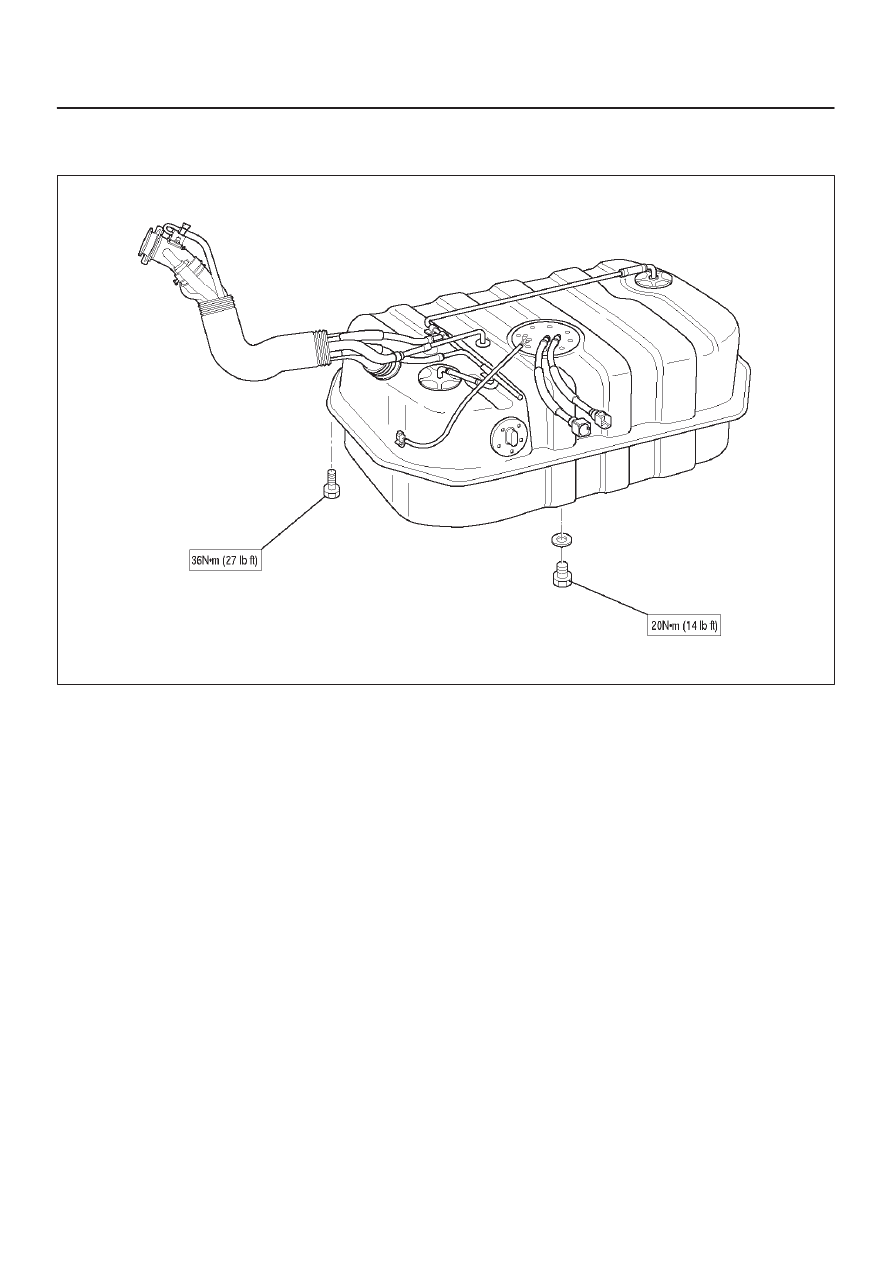

Torque Specification

035RW031
