6A–89

ENGINE MECHANICAL

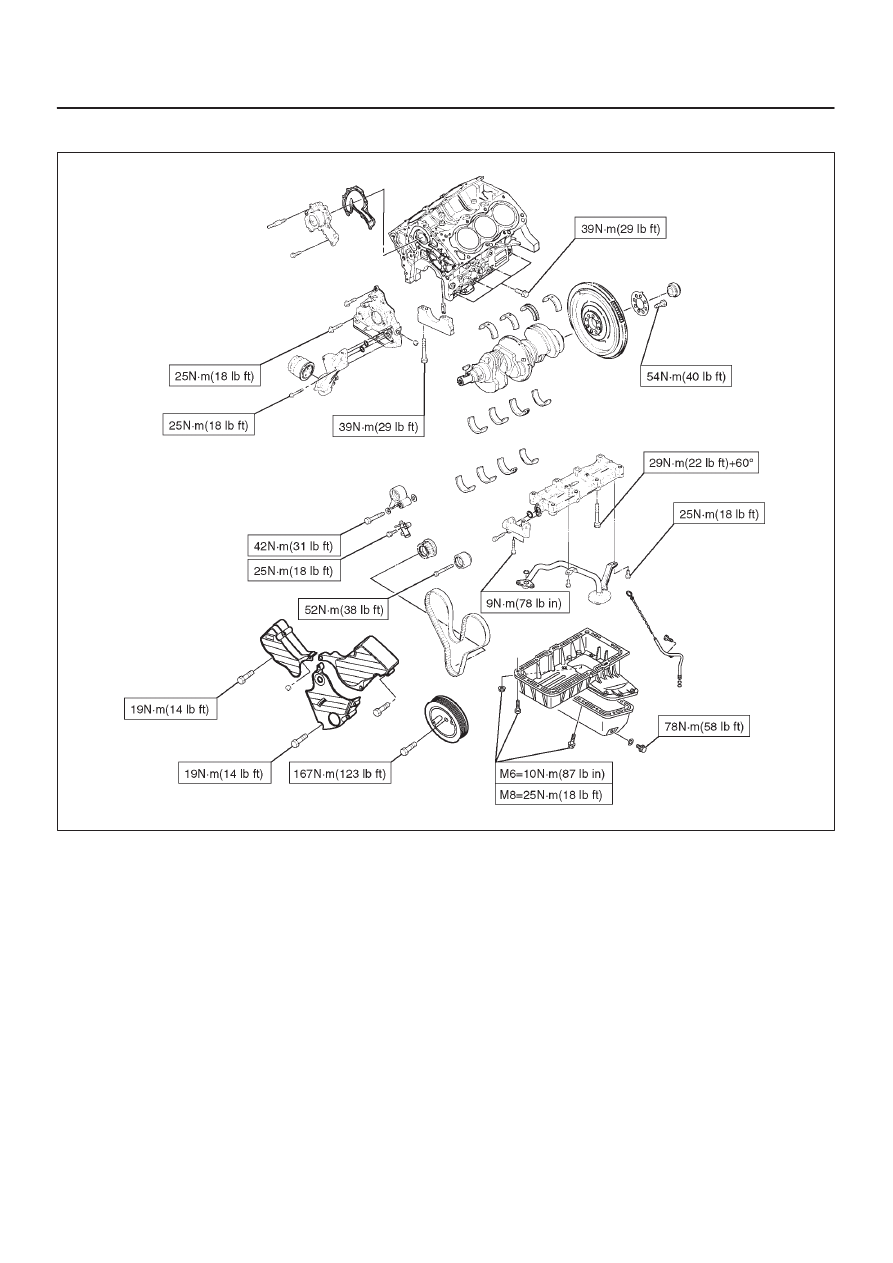

Crankshaft main bearing, Flywheel, Crankcase, Oil pan, Timing belt tensioner, Timing pulley, Timing belt
cover, Oil pump, Oil gallery, Oil strainer and Water pump

E06R200010

6A–90

ENGINE MECHANICAL

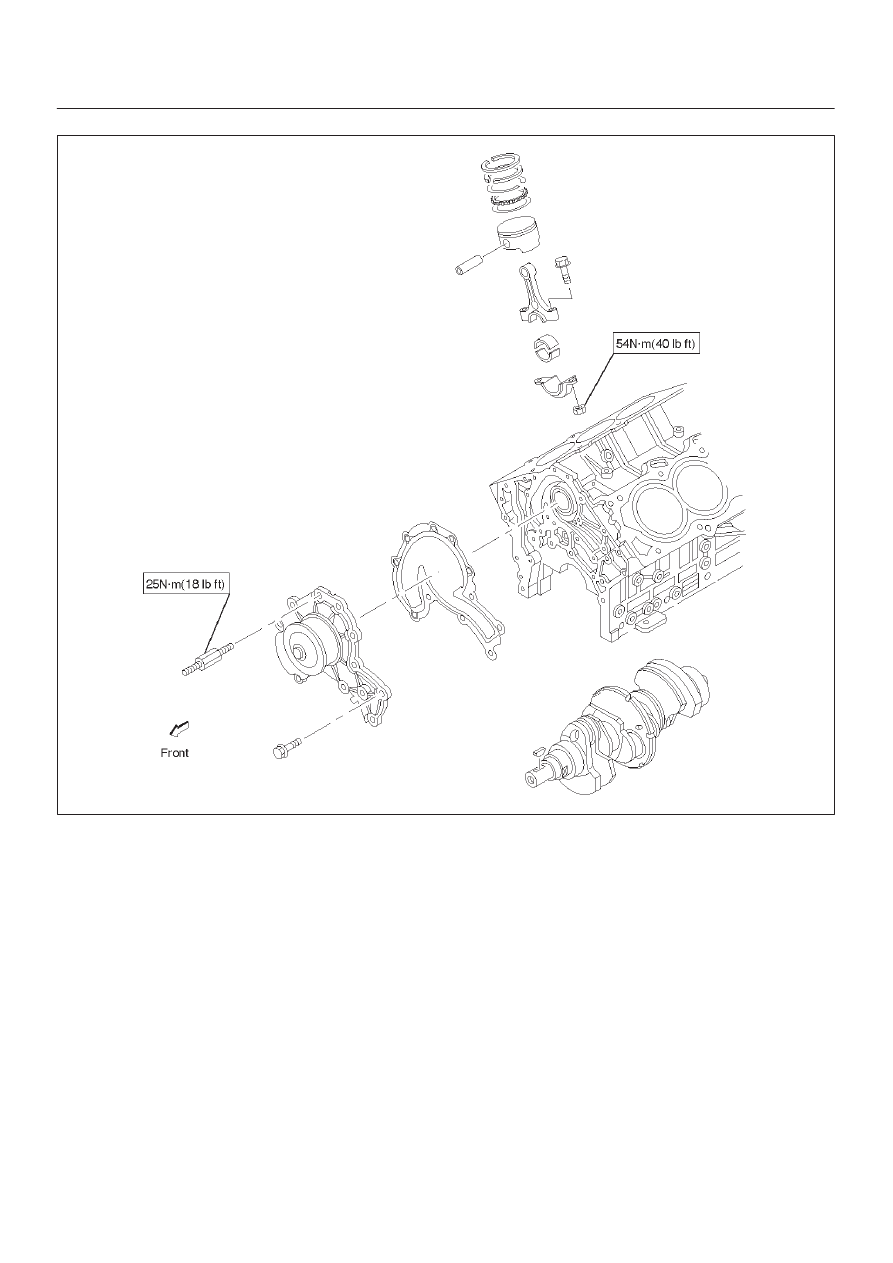

Connecting rod and Water pump

E06RW011

6A–91

ENGINE MECHANICAL

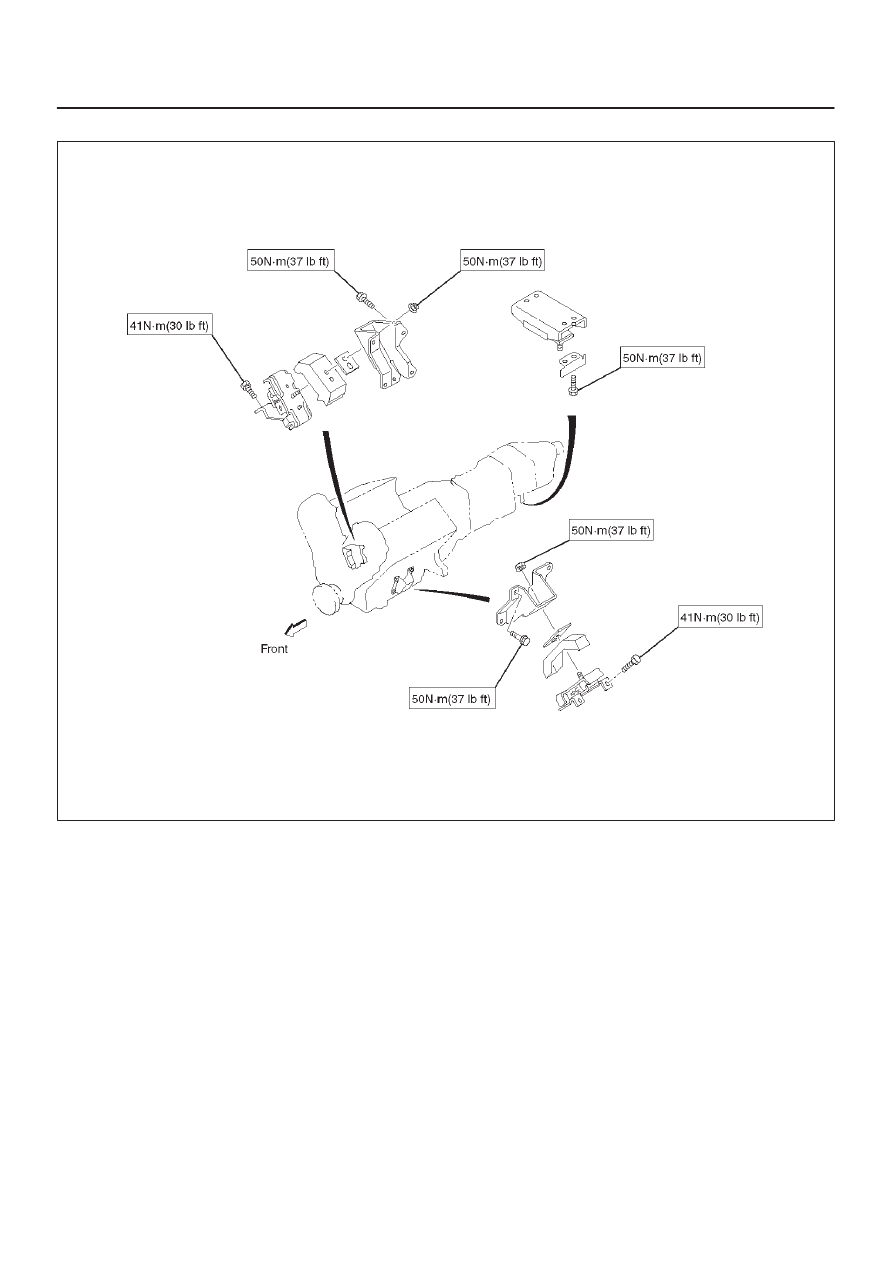

Engine mount

E06RW003

6A–92

ENGINE MECHANICAL

Special Tool

ILLUSTRATION

TOOL NO.

TOOL NAME

J–21687–02

Remover; tie rod end

J–8062

Compressor; Valve

spring (1)

J–42898

Adapter; Compressor,

Valve spring (2)

J–37281

Remover; Oil controller

J–38537

Installer; Oil controller

J–42985

Installer; Camshaft oil

seal

J–39206

Installer; Pilot bearing

ILLUSTRATION

TOOL NO.

TOOL NAME

J–8614–01

Holder; Crankshaft

J–37228

Seal cutter

J–39201

Installer; Real oil seal

J–24239–1

Cylinder head bolt

wrench

J–42899

Replacer; Valve guide

(1, 2)

J–42687

Installer; Valve guide (1)

J–37985–1

Remover; Valve guide

(2)

J–42689

Adjusting Tool: Valve

clearance
