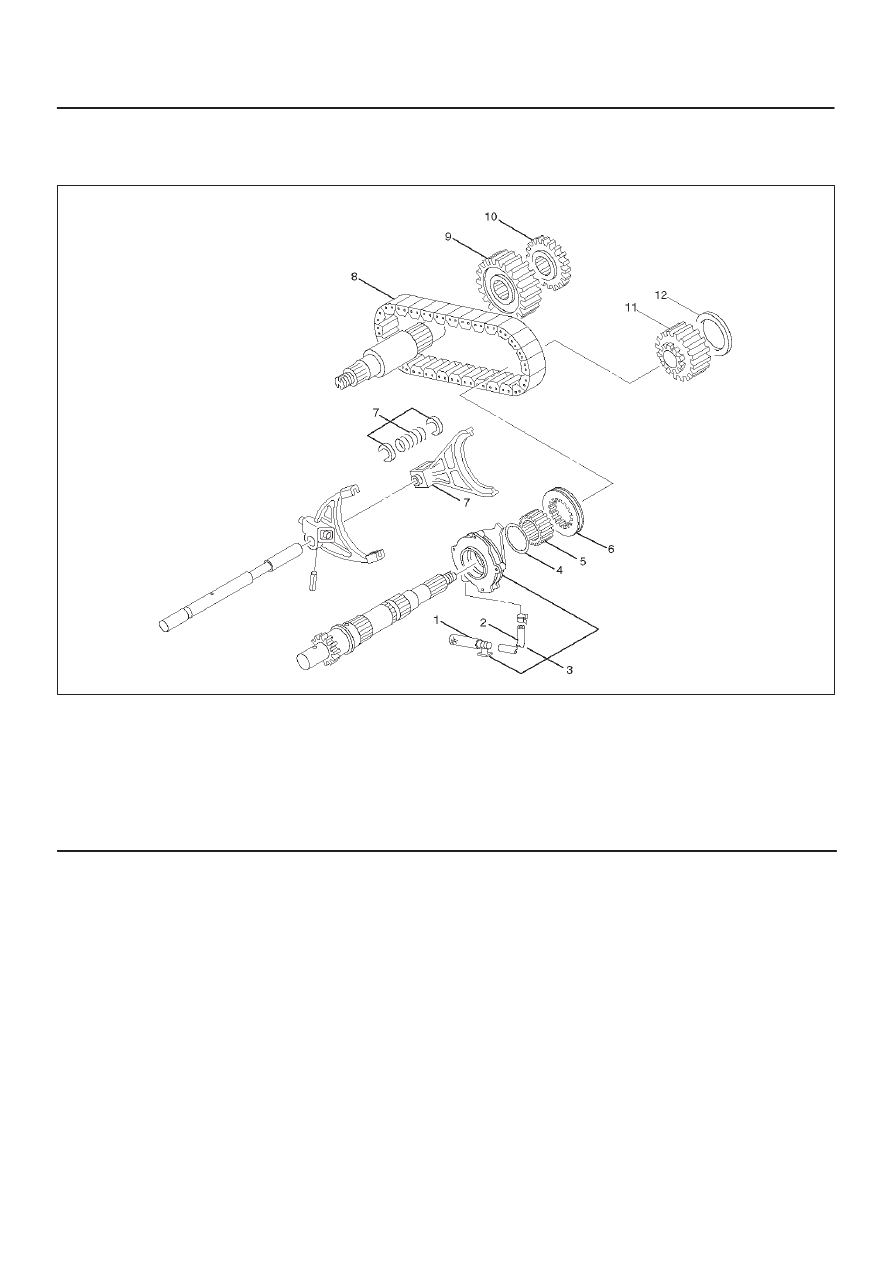

TRANSFER CASE (TOD) 4D2–35 Reassembly 1. Apply ATF to the inside of the ball bearing for the front output shaft. 2. Mount the front output shaft to the transfer case. 266RW012 3. Mount the shifter lever shaft in the transfer case assembly. 4. Install the snap ring to the shifter lever shaft. lever shaft and fix the assembly with the snap ring. 261RW021 6. Mount the cam to the cam pilot block. washer with the snap ring. 261RW029 8. Mount the reduction fork to the lock-up shaft. shaft. 261RW020 |
