DRIVE LINE CONTROL SYSTEM (TOD)

4B2–56

Trouble Diagnosis Depending on The
Status of TOD Indicator

Functional check with TOD indicator light is conducted
prior to check on Charts A–H.

D

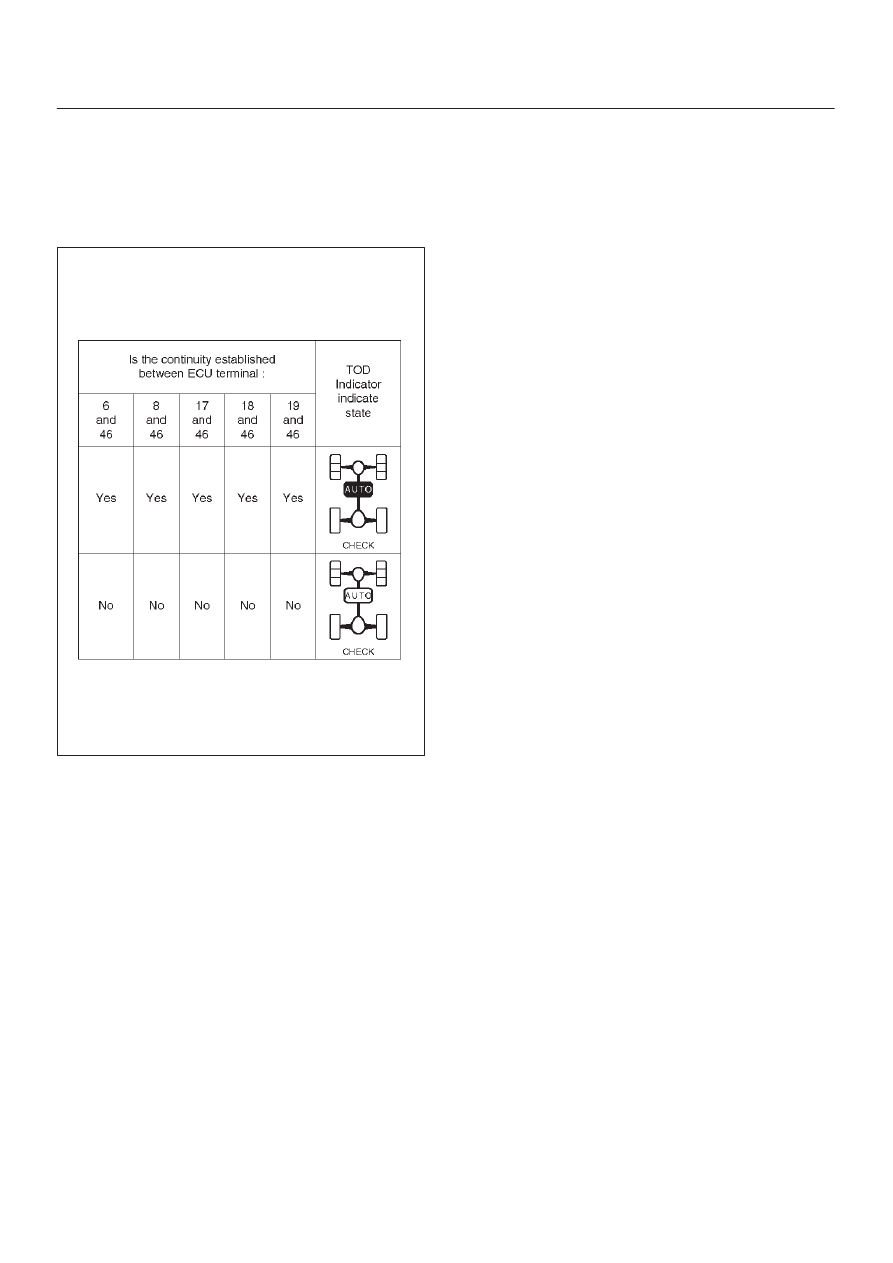

After the starter is switched on, check and see if the
status has become as tabulated below.

C07RY00019

D

If the status is as tabulated above, there is no
problem.  If not as tabulated above, inspect the
harness.

4B2–57

DRIVE LINE CONTROL SYSTEM (TOD)

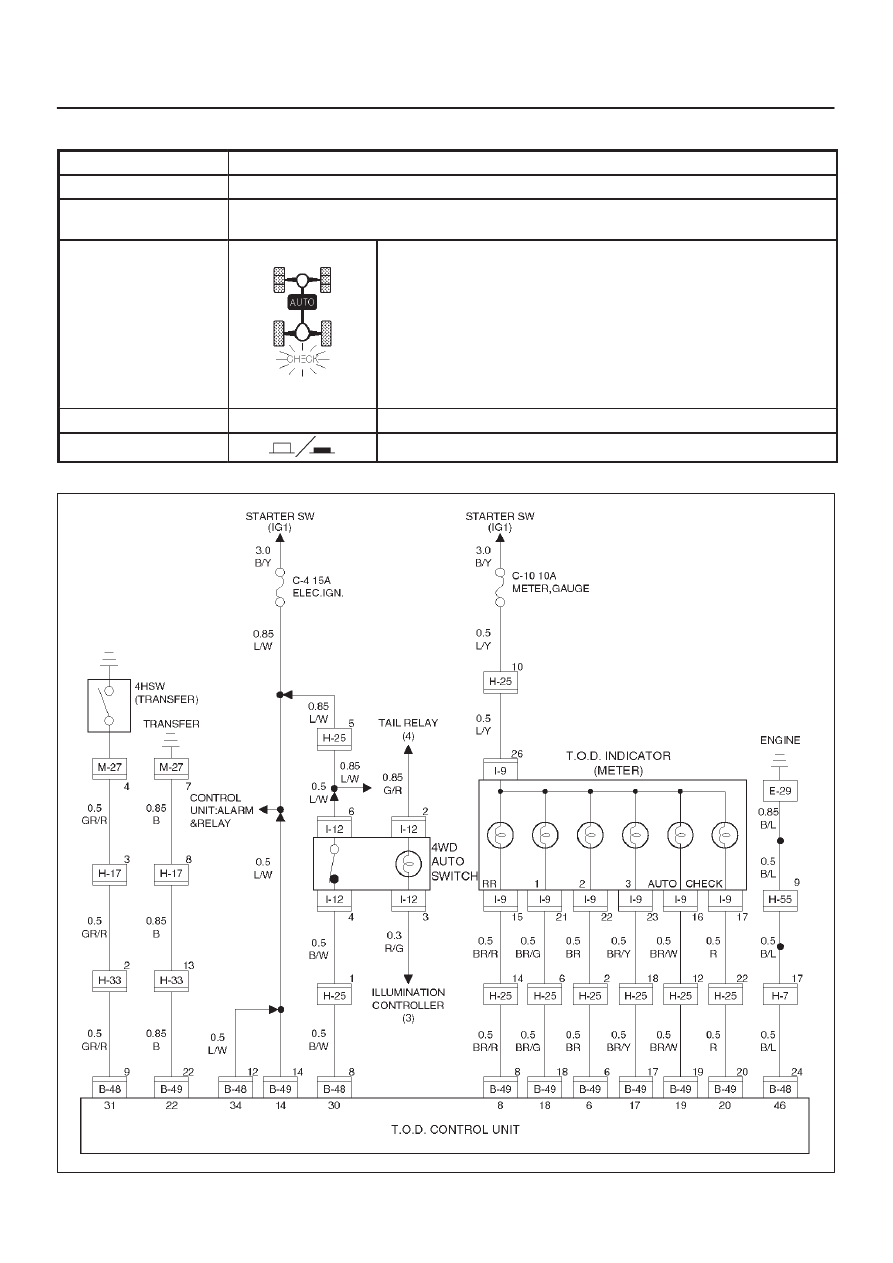

Chart A

Indicator drive circuit

Function of circuit

The circuit informs the indicator of the working condition of the ECU.

Fail condition

All the TOD indicator lamps and CHECK lamp are lit, and go off momentarily at an inter-

val of about two seconds.

Indicator lamp status

—

Transfer lever position

High/4L

—

4WD Auto Switch

—

D04RY00015

DRIVE LINE CONTROL SYSTEM (TOD)

4B2–58

Step

Action

Yes

No

1

Turn on the starter switch.

Is the battery voltage observed between terminals 14 and 46 or 34
and 46?

The ECU has

failed. Replace

the ECU.

Go to Step 2

Check the battery

circuit.

Go to Step 2

2

Check that all the parts are mounted.

Is this step complete?

Repeat the

“Diagnosis Flow”.

Return to Step 2

4B2–59

DRIVE LINE CONTROL SYSTEM (TOD)

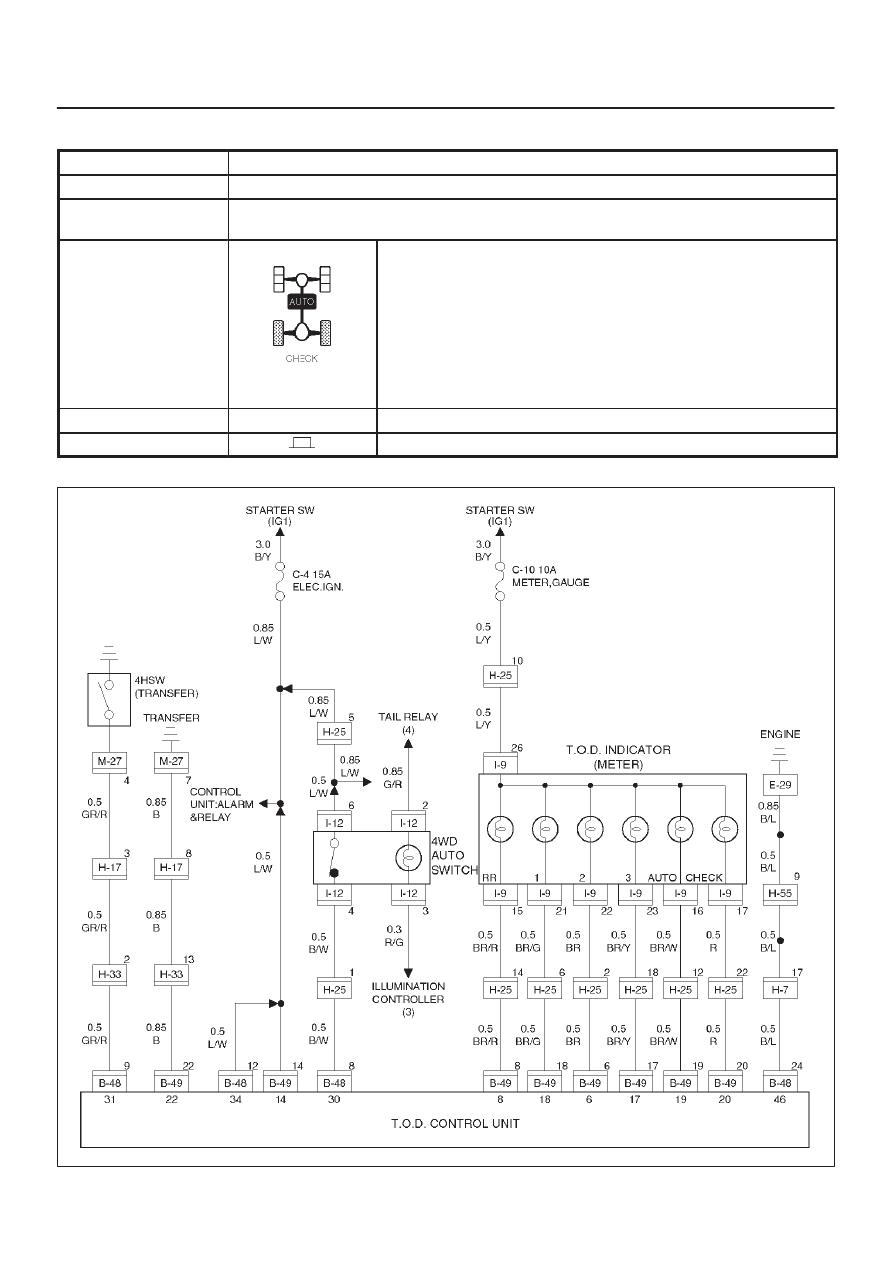

Chart B–1

The 4WD switch circuit wires are broken or short-circuited to the GND

Function of circuit

—

Fail condition

Even after the transfer position is select from TOD to 2H, the indicator lamp status is not

changed.

Indicator lamp status

—

Transfer lever position

High

—

4WD Auto Switch

—

D04RY00015
