4A2–34 DIFFERENTIAL (REAR)

27. Check the operation.

D

Measure the starting torque using the side gear
holder.

Starting torque:

29 – 45 N·m (3.0 – 4.6 kg·m/ 22 – 33Ib ft)

425RW065

Legend

(1) Side Gear Holder : J–44450

DIFFERENTIAL (REAR)

4A2–35

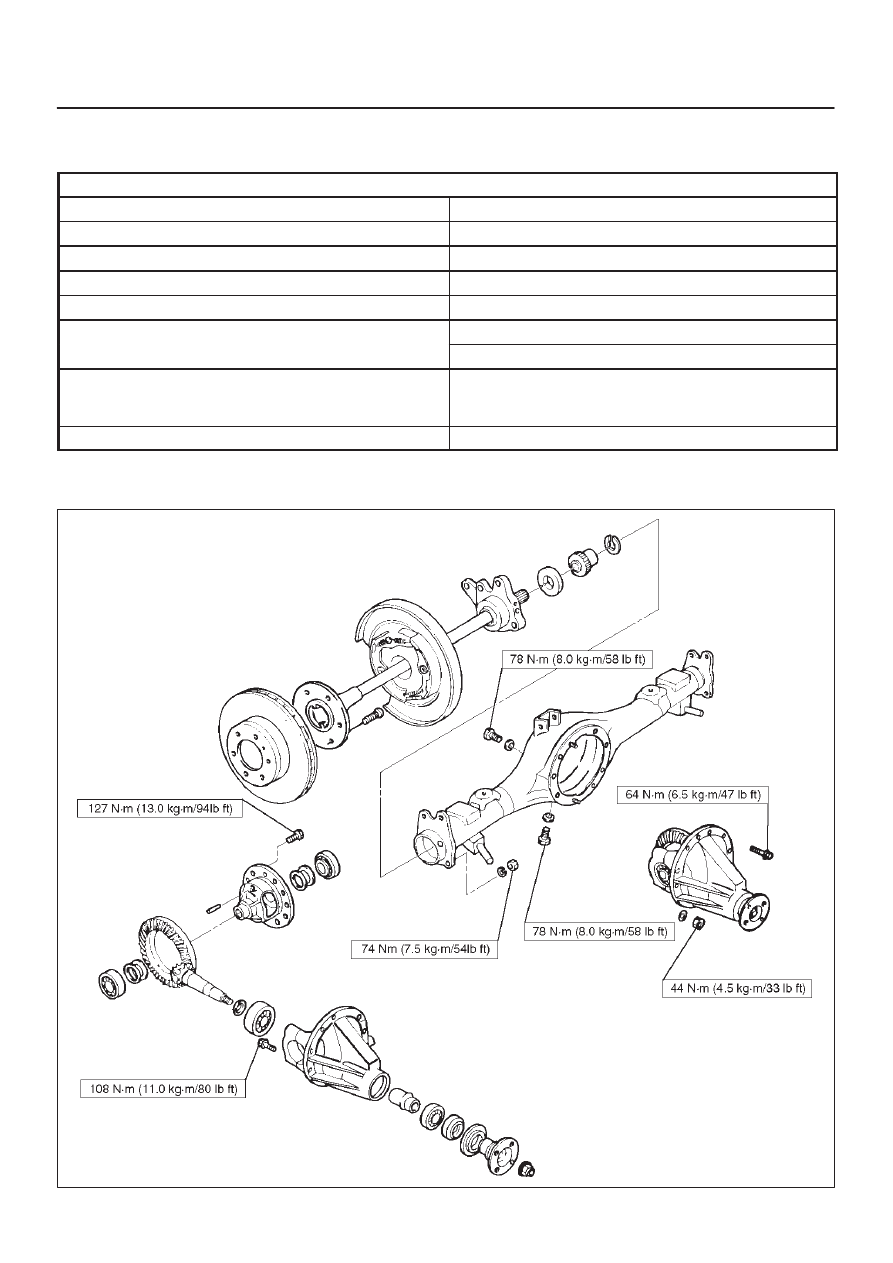

Main Data and Specifications

General Specifications

Rear axle

Type

Banjo, Semi–floating

Rear axle Size

244 mm (9.61 in)

Gear type

Hypoid

Gear ratio  (to 1)

4.300

Differential type

Two pinion

Lubricant Grade

GL–5: (Standard differential)

GL–5, LSD: (Limited slip differential)

Locking Differential Lubricant

80W90 GL–5
(USE Limited Slip Differential Gear Lubricant or Friction
Modifier Organic Additive)

Capacity

3.0 liter (3.2 US qt)

Torque Specifications

420RY00002

4A2–36 DIFFERENTIAL (REAR)

Special Tools

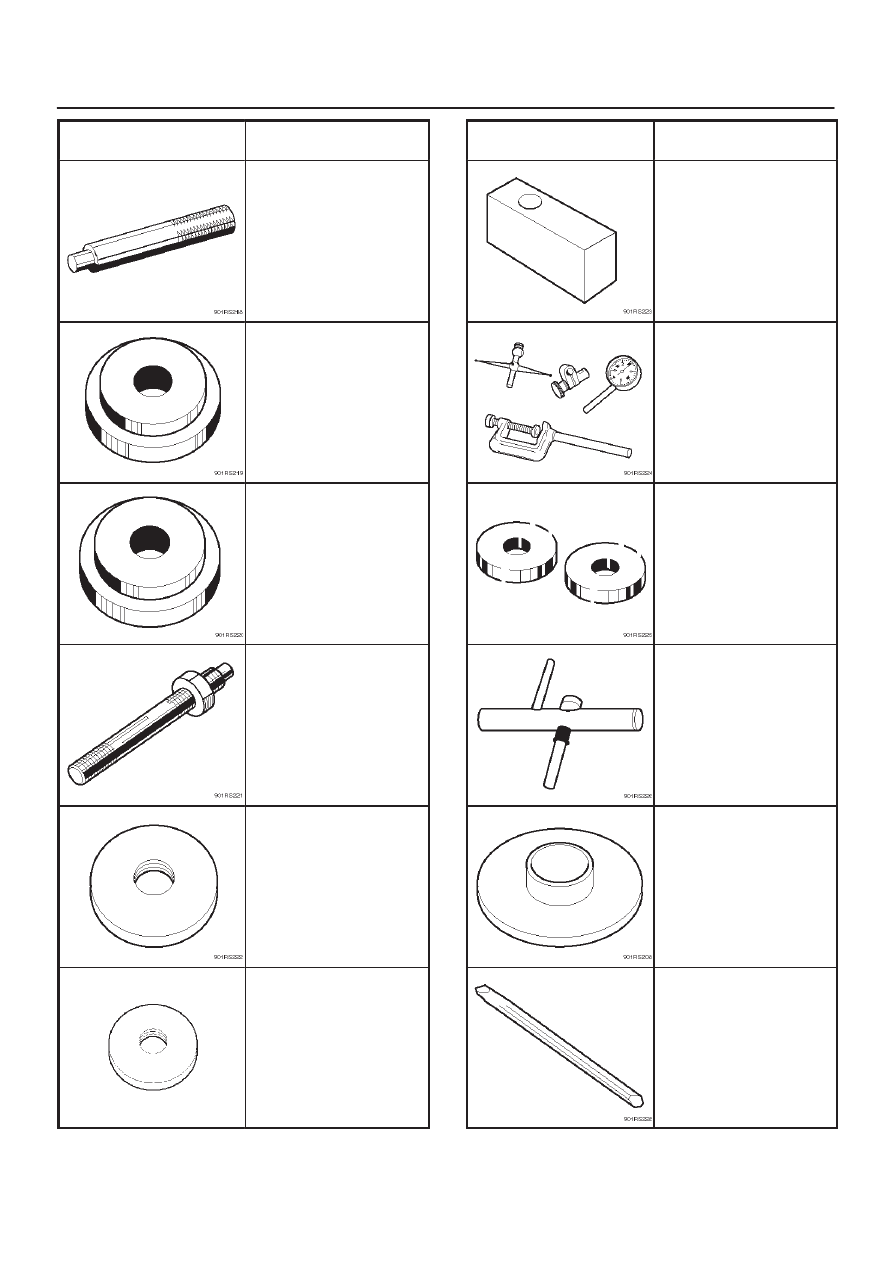

ILLUSTRATION

TOOL NO.

TOOL NAME

J–39210

Installer; Axle shaft inner

seal

J–6627–A

Wheel pin remover

J–39211

Remover; Axle shaft

bearing

J–39212

Installer; Axle shaft

bearing

J–39379

Installer; Outer axle seal

J–8614–01

Pinion flange holder

ILLUSTRATION

TOOL NO.

TOOL NAME

J–37263

Installer; Pinion oil seal

J–42832

Holding fixture

J–3289–20

Holding fixture base

J–42379

Remover; Bearing

J–8107–3

Adapter; Side bearing

plug

J–44461

Installer; Outer bearing

outer race

DIFFERENTIAL (REAR)

4A2–37

ILLUSTRATION

TOOL NO.

TOOL NAME

J–8092

Grip

J–44462

Installer; Inner bearing

outer race

J–42824

Pilot;Outer

J–21777–43

Nut & Stud

J–44453

Pilot;Inner

J–44449

Pilot;Outer bearing

ILLUSTRATION

TOOL NO.

TOOL NAME

J–44451

Gage plate

J–8001

Dial indicator

J–44452

Disc (2 required)

J–23597–1

Arbor

J–42828

Installer; Pinion bearing

J–39209

Punch; End nut lock
