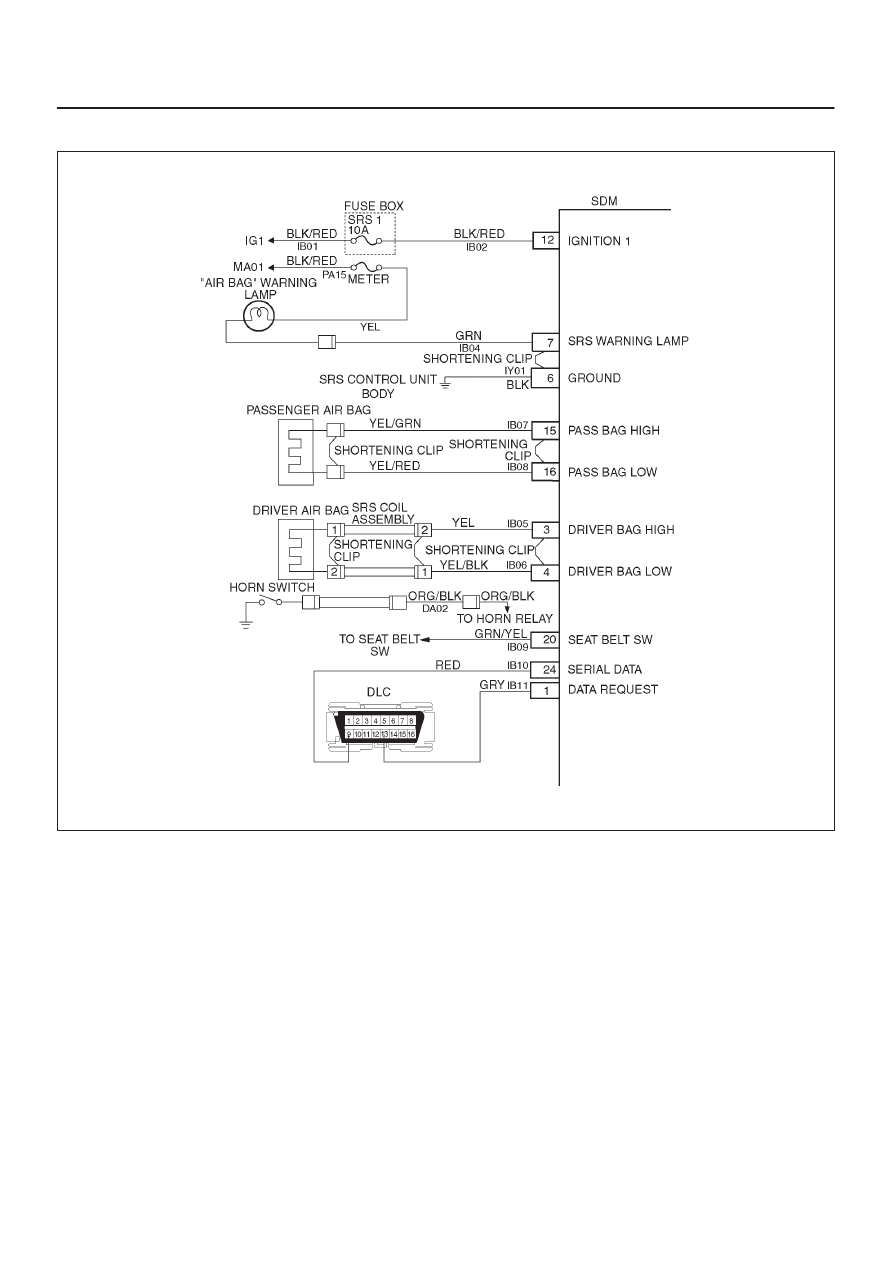

9J1–23 RESTRAINT CONTROL SYSTEM DTC 19 Passenger Deployment Loop Short To Voltage D09R200001 Circuit Description: When the ignition switch is turned “ON”, the SDM will DTC Will Set When: “Ignition 1” is within the normal operating voltage range. Action Taken: SDM turns “ON” the “AIR BAG” warning lamp and sets DTC Will Clear When: The SDM is replaced. DTC Chart Test Description: Number(s) below refer to step number(s) on the the SDM. 3. This test isolates the malfunction to one side of the passenger air bag assembly yellow 2–pin connector 4. This test determines whether the malfunction is in CKT IB07–YEL/GRN. |
