Body Mounting

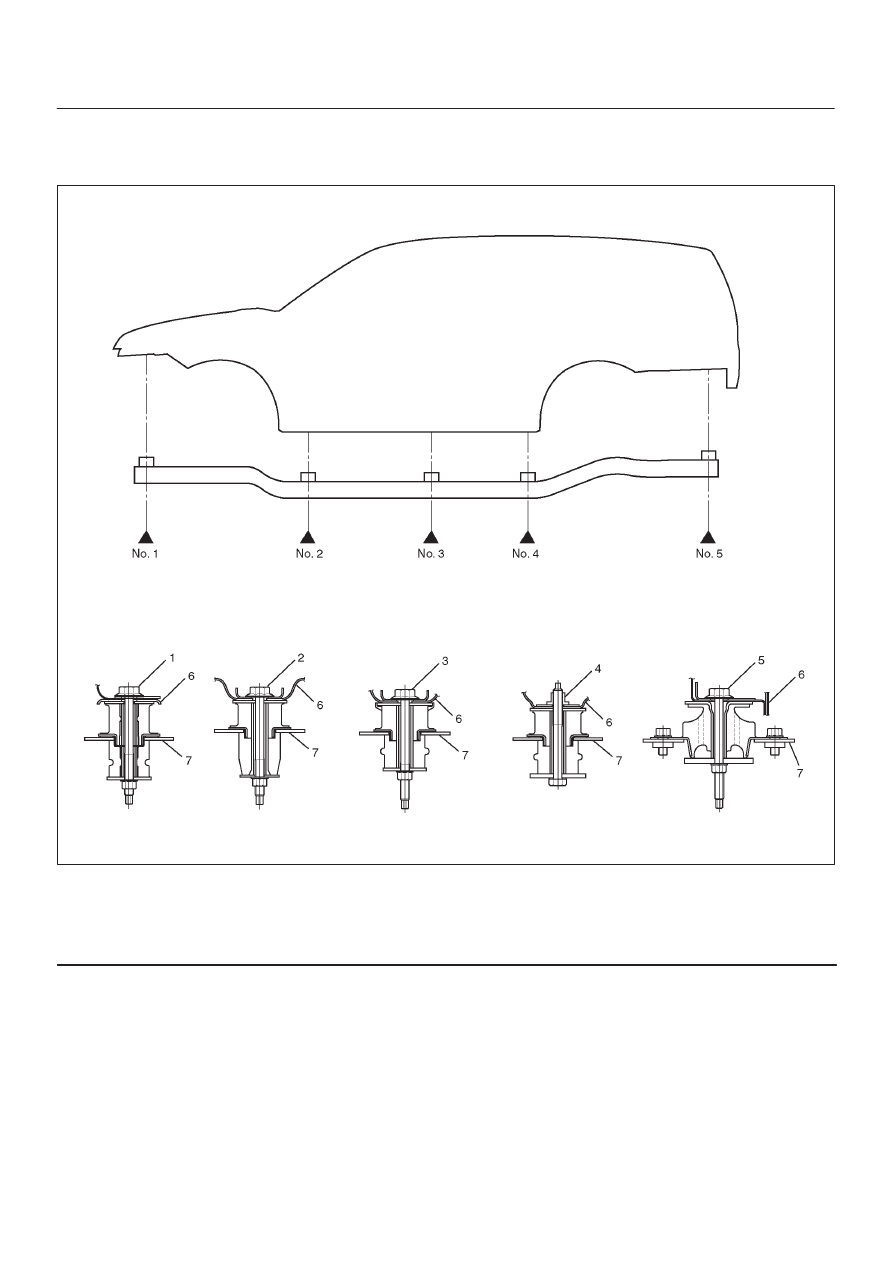

Parts Location

501R200002

Legend

(1) No.1 Body Mounting
(2) No.2 Body Mounting
(3) No.3 Body Mounting

(4) No.4 Body Mounting
(5) No.5 Body Mounting
(6) Body Side Mounting Bracket
(7) Frame Side Mounting Bracket

Tightening Torque

1. Tighten the body mounting bolts to specified torque.

Torque : 50 N·m (41 lb ft)

8F–19

BODY STRUCTURE

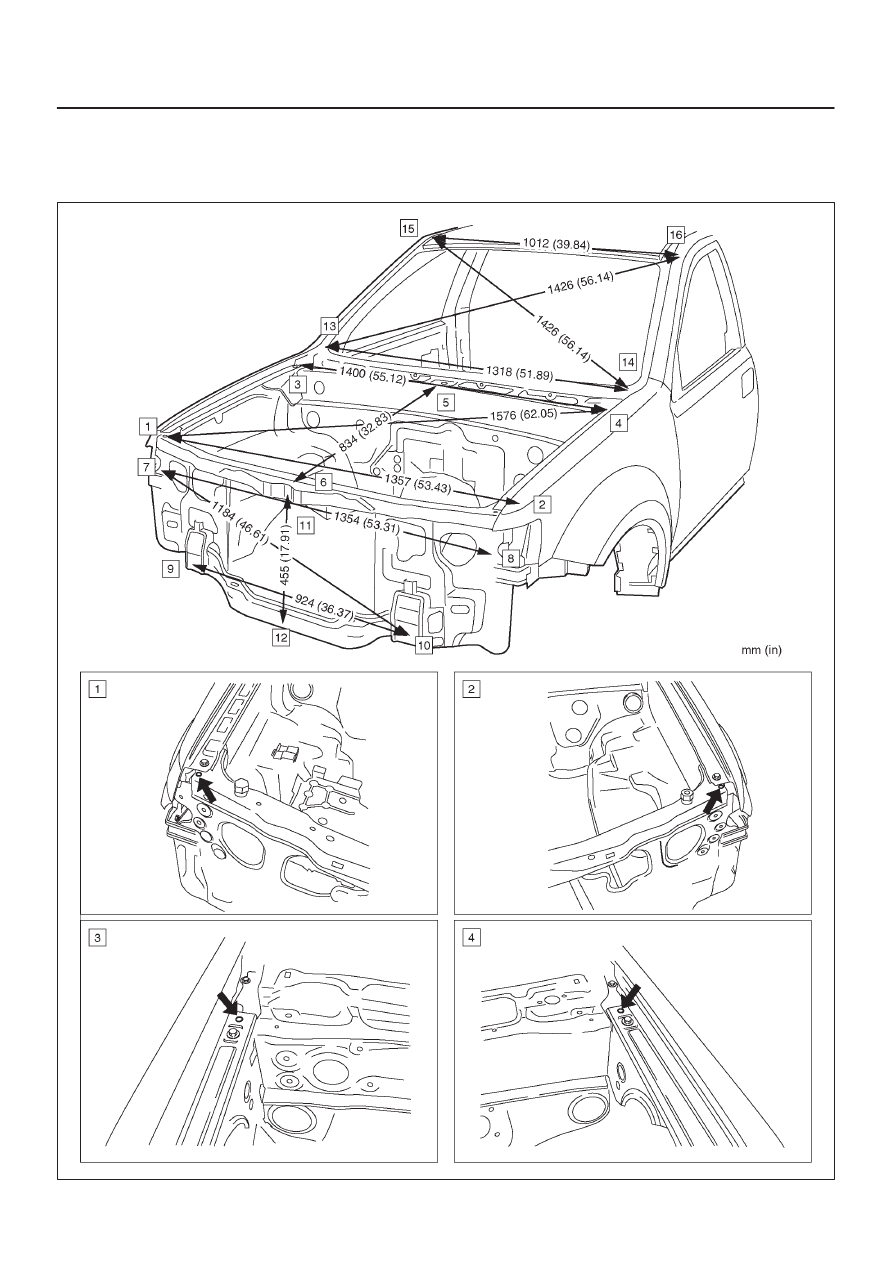

Body Dimension

Front Section

A10R200015

8F–20

BODY STRUCTURE

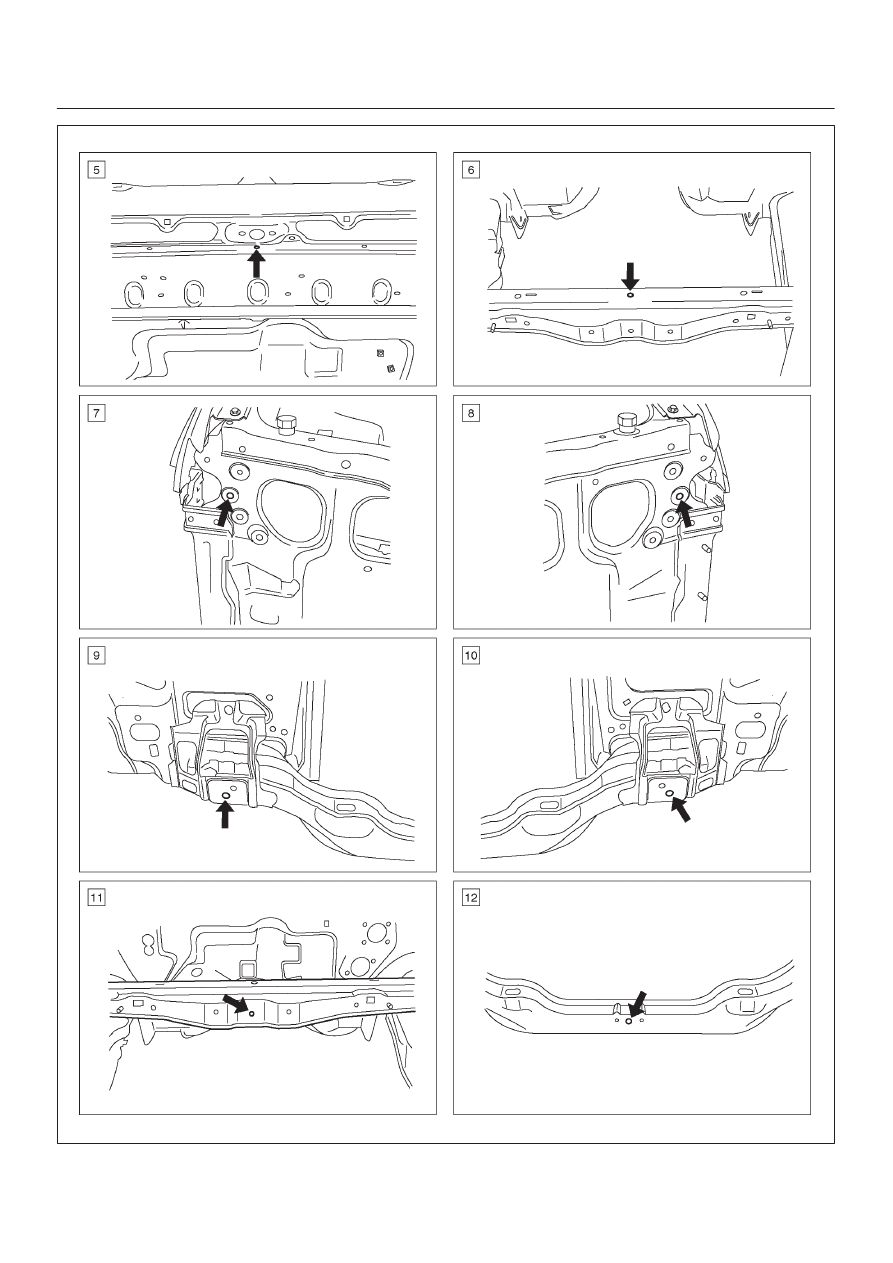

A10R200002
