7A–25

AUTOMATIC TRANSMISSION (4L30–E)

“Power mode”

Upshift

Range

Throttle

opening

1

→

 2

(First Gear) (Second Gear)

km/h (mph)

2

→

 3

(Second Gear) (Third Gear)

km/h (mph)

3

→

 4

(Third Gear) (Fourth Gear)

km/h (mph)

D

Fully opened

53

∼

 59 (33

∼

 37)

110

∼

 116 (68

∼

 72)

174

∼

 180 (108

∼

 112)

(Drive)

Half throttle

41

∼

 47 (25

∼

 29)

84

∼

 90 (52

∼

 56)

136

∼

 142 (84

∼

 88)

3

Fully opened

53

∼

 59 (33

∼

 37)

110

∼

 116 (68

∼

 72)

—

(Third)

Half throttle

41

∼

 47 (25

∼

 29)

84

∼

 90 (52

∼

 56)

—

2

Fully opened

53

∼

 59 (33

∼

 37)

—

—

(Second)

Half throttle

41

∼

 47 (25

∼

 29)

—

—

Downshift

Range

Throttle

opening

1

←

 2

(First Gear) (Second Gear)

km/h (mph)

2

←

 3

(Second Gear) (Third Gear)

km/h (mph)

3

←

 4

(Third Gear) (Fourth Gear)

km/h (mph)

D

Fully opened

45

∼

 51 (28

∼

 32)

104

∼

 110 (65

∼

 68)

163

∼

 169 (101

∼

 105)

D

(Drive)

Half throttle

22

∼

 28 (14

∼

 17)

57

∼

 63 (35

∼

 39)

108

∼

 114 (67

∼

 71)

(Drive)

Fully closed

13

∼

 19 (8

∼

 12)

23

∼

 29 (14

∼

 18)

46

∼

 52 (29

∼

 32)

3

Fully opened

45

∼

 51 (28

∼

 32)

104

∼

 110 (65

∼

 68)

—

3

(Third)

Half throttle

22

∼

 28 (14

∼

 17)

57

∼

 63 (35

∼

 39)

—

(Third)

Fully closed

13

∼

 19 (8

∼

 12)

23

∼

 29 (14

∼

 18)

—

2

Fully opened

45

∼

 51 (28

∼

 32)

92

∼

 98 (57

∼

 61)

—

2

(Second)

Half throttle

22

∼

 28 (14

∼

 17)

92

∼

 98 (57

∼

 61)

—

(Second)

Fully closed

13

∼

 19 (8

∼

 12)

92

∼

 98 (57

∼

 61)

—

L

(First)

—

48

∼

 54 (30

∼

 34)

—

—

“Winter mode”

D range, winter mode ON

→

 OFF

31

∼

 37 km/h (19

∼

 23 mph)

7A–26

AUTOMATIC TRANSMISSION (4L30–E)

Lockup Speed Chart

Transfer gear ratio

High: 1.000

Rear axle ratio

4.300

ECCC Apply

ECCC Release

D range Throttle

i

6%

Mode

2nd

Km/h

(mph)

3rd

Km/h

(mph)

4th

Km/h

(mph)

2nd

Km/h

(mph)

3rd

Km/h

(mph)

4th

Km/h

(mph)

opening 6%

Normal

57

∼

 63

(35

∼

 39)

42

∼

 48

(26

∼

 30)

43

∼

 49

(27

∼

 31)

52

∼

 58

(32

∼

 36)

32

∼

 38

(20

∼

 24)

41

∼

 47

(25

∼

 29)

Power

57

∼

 63

(35

∼

 39)

67

∼

 73

(42

∼

 45)

57

∼

 63

(35

∼

 39)

52

∼

 58

(32

∼

 36)

32

∼

 38

(20

∼

 24)

49

∼

 55

(30

∼

 34)

7A–27

AUTOMATIC TRANSMISSION (4L30–E)

Changing Transmission Fluid

There is no need to change the transmission fluid unless
the transmission is used under one or more of the
following heavy duty conditions.
A. Repeated short trips
B. Driving on rough roads
C. Driving on dusty roads
D. Towing a trailer
If the vehicle is used under these conditions, change the
fluid every 20,000 miles (32,000 km).

1. Place a large drain pan under the oil pan.
2. Remove the transmission oil drain screw (2) and drain

fluid.

3. Tighten drain screw (2).

Torque: 38 N

•

m (28 lb ft)

4. Remove the transmission overfill screw (1) and fill

transmission through overfill screw opening, using
DEXRON



–III ATF.

NOTE: Add transmission fluid until it flows out over the
overfill screw opening.

5. Let engine idle until a fluid temperature between 32

°

C

(90

°

F) and 57

°

C (135

°

F) is reached.

6. Add transmission fluid until it flows out over the overfill

screw opening, then close the overfill screw (1).

Torque: 38 N

•

m (28 lb ft)

NOTE: To prevent fluid leaks, the overfill screw and oil
drain screws gasket must be replaced each time these
screws are removed.

NOTE: Check transmission fluid temperature with scan
tool.

7. Reset “Oil Life Monitor” data by using Tech 2.

Refer to

Tech 2 OBD II Connection in Transmission

Control System (4L30-E) section.

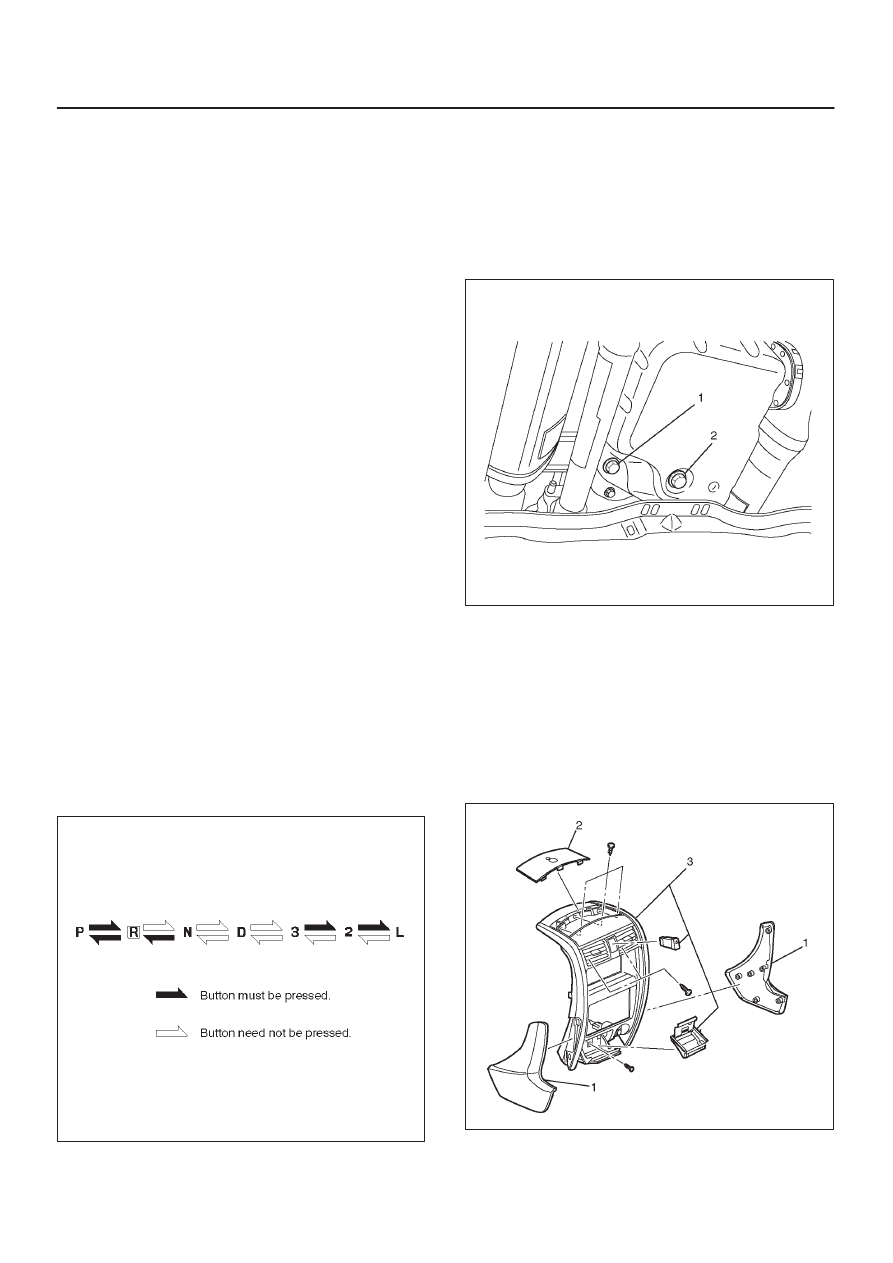

242R200001

Selector Lever

Inspection

1. Make sure that when the selector lever is shifted from

“P” to “L”, a “clicking” can be felt at each shift position.
Make sure that the gear corresponds to that of the
position plate indicator.

2. Check to see if the selector lever can be shifted as

shown in illustration.

C07RW009

Removal

1. Disconnect battery ground cable.
2. Set ignition Key in “LOCK” position and selector lever

in ”P” position.

3. Remove knee pads (1), cluster upper cover (2) and

center cluster assembly (3).

740R200021

7A–28

AUTOMATIC TRANSMISSION (4L30–E)

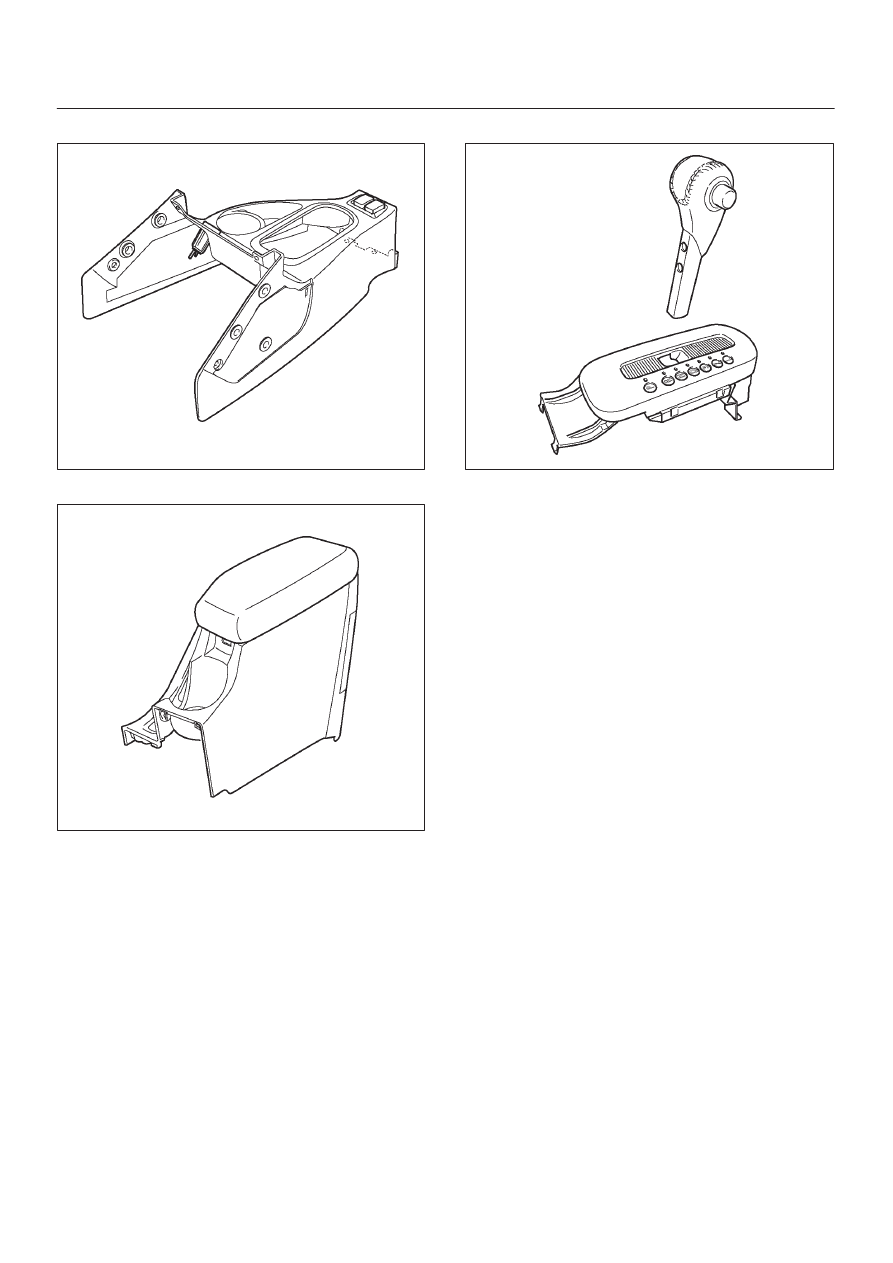

4. Remove rear console.

745R200003

5. Remove front console.

745R200004

6. Remove selector lever knob and cover assembly.

256R200001

7. Disconnect select cable.

D

Refer to

Select Cable in this section.

8. Disconnect shift lock cable.

D

Refer to

Shift Lock Cable in this section.

9. Disconnect harness connector.
