SUN ROOF/CONVERTIBLE TOP

8I–9

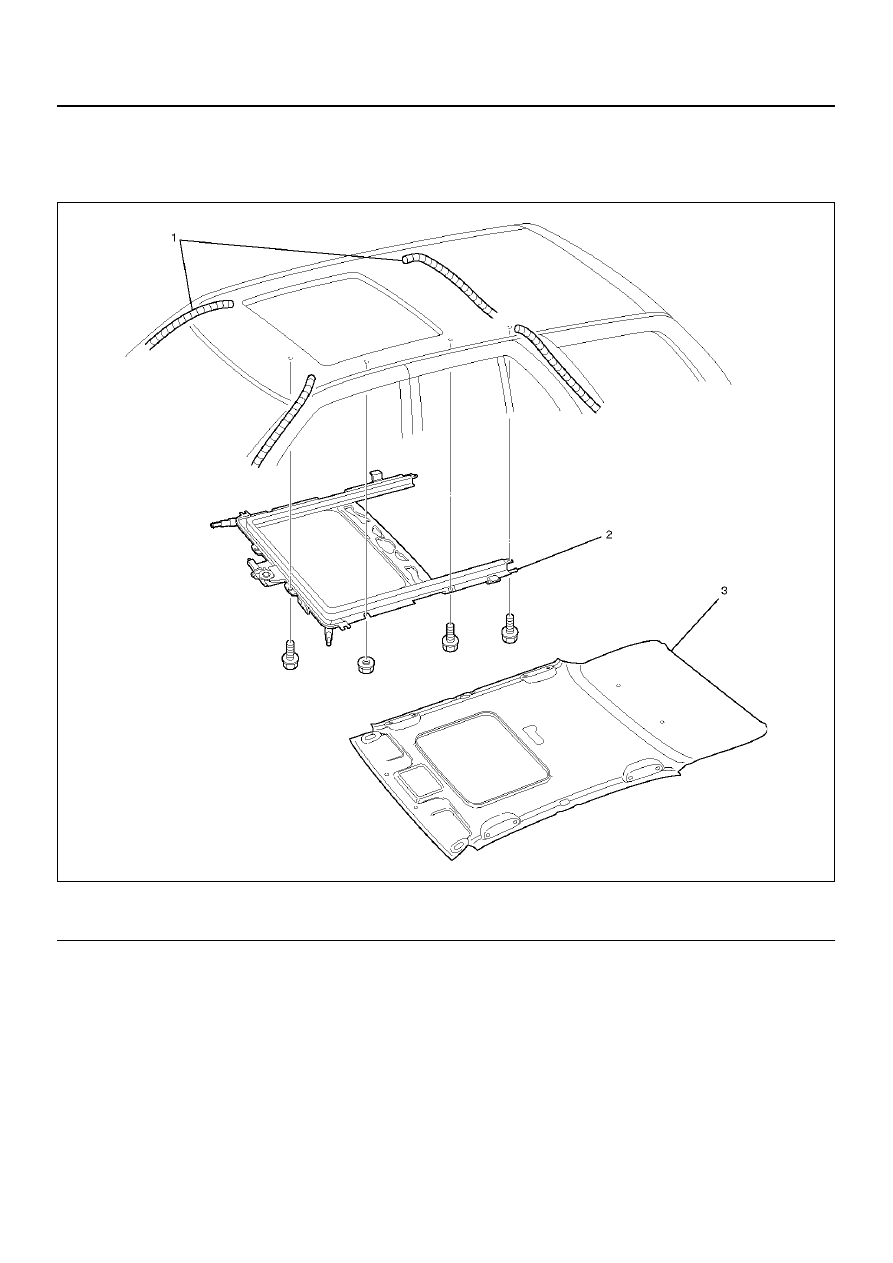

Sunroof Frame Complete Assembly (LWB)

Sunroof Frame Complete Assembly and Associated Parts

665RW005

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the headlining.

• Refer to Headlining in Exterior/Interior Trim

section.

Legend

(1) Sunroof Drain Hose

(2) Sunroof Frame Complete Assembly
(3) Headlining

8I–10

SUN ROOF/CONVERTIBLE TOP

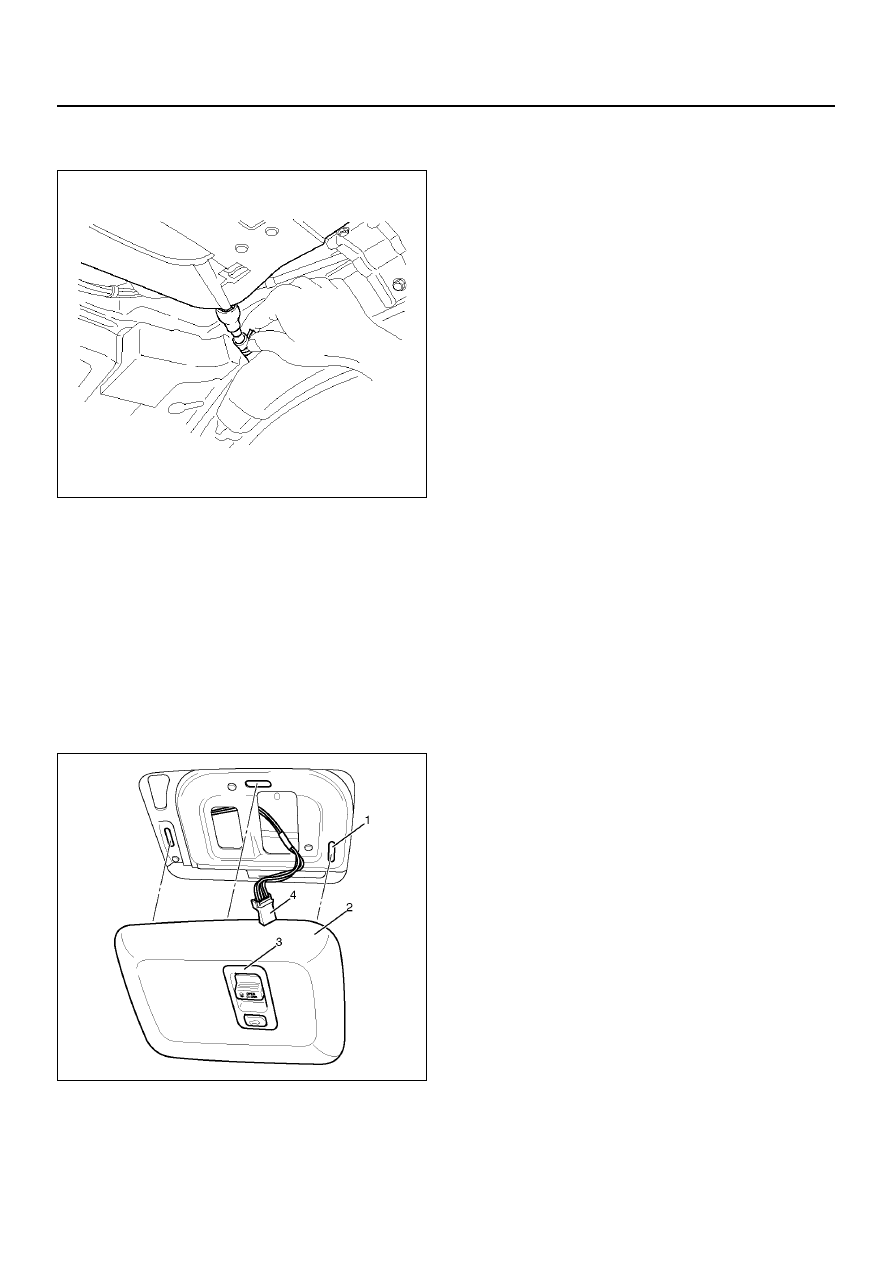

3. Disconnect the sunroof drain hose at the sunroof

frame side as shown in the figure.

665RW010

4. Disconnect the sunroof harness connection.

5. Remove two sunroof frame assembly fixing nuts

(front side) and six fixing bolts from the frame
complete assembly, and then remove the sunroof
frame complete assembly.

NOTE:  Be sure to remove the frame assembly while
supporting it.

Installation

1. Install the sunroof frame assembly.

2. After installing the frame assembly, loosen the

sunroof glass fixing nuts and adjust the sunroof
glass setting position.

• Refer to Sunroof Glass in this section.

3. Install the sunroof drain hose.

4. Install the headlining.

• Refer to Headlining in Exterior/Interior Trim

section.

Sunroof Switch

Removal

1. Disconnect the battery ground cable.

2. Remove the sunroof switch (3).

• Pull out the cover (2) at the three clpe positions

(1) and push out the switch from the back side of
the cover.

• Disconnect the switch connector (4).

825R200073

Installation

To install, follow the removal steps in the reverse order.

SUN ROOF/CONVERTIBLE TOP

8I–11

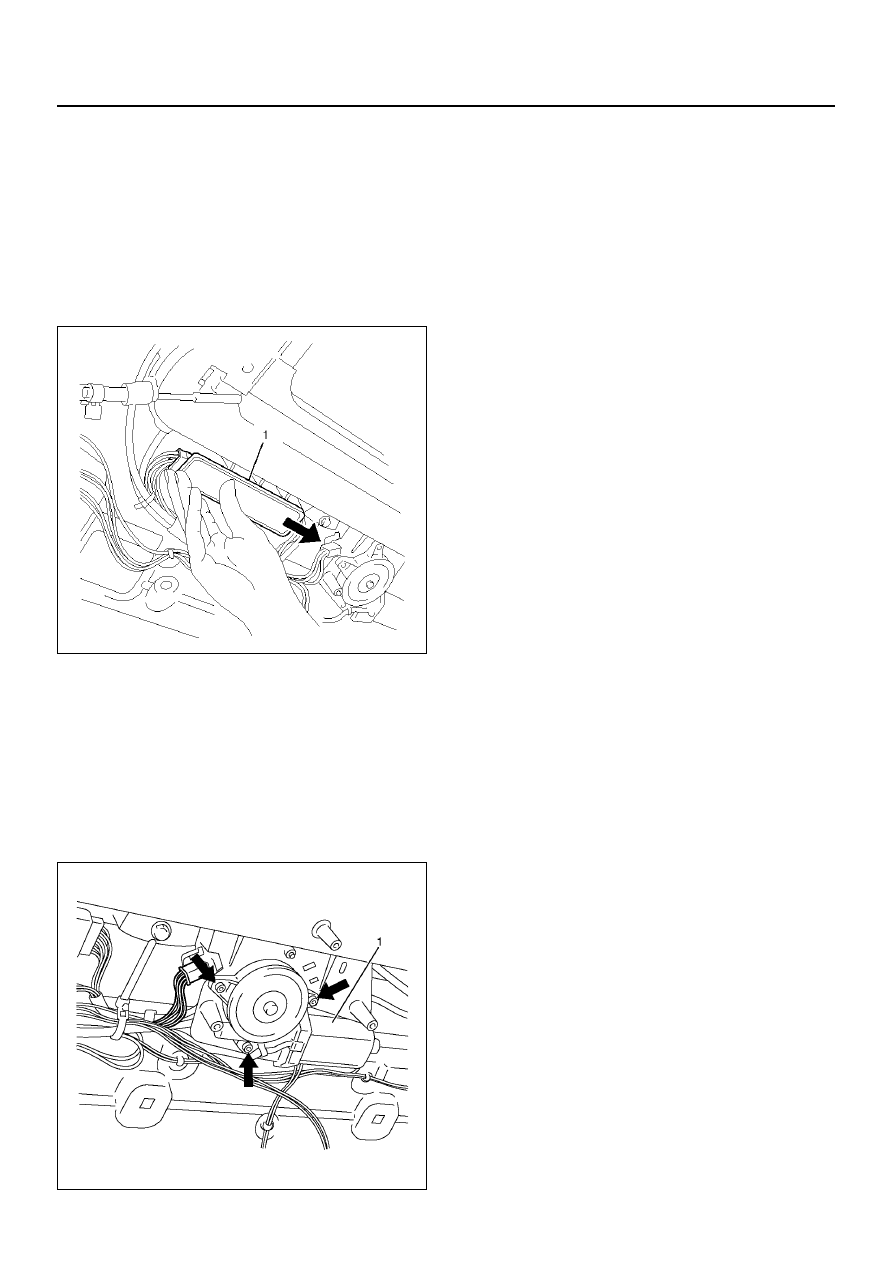

Sunroof Control Unit

Removal

1. Disconnect the battery ground cable.

2. Remove the headlining (2).

• Refer to Headlining in Exterior/Interior Trim

section.

3. Remove the sunroof control unit (1).

• Disconnectors two connectors.

• Remove the control unit after making it slide in

the direction of an arrow.

665RW013

Installation

To install, follow the removal steps in the reverse order.

Sunroof Motor

Removal

1. Disconnect the battery ground cable.

2. Remove the headlining (2).

• Refer to Headlining in Exterior/Interior Trim

section.

3. Remove the sunroof motor (1).

• Disconnect the connector.

• Remove the three screws.

665R200007

Installation

To install, follow the removal steps in the reverse order.

8I–12

SUN ROOF/CONVERTIBLE TOP

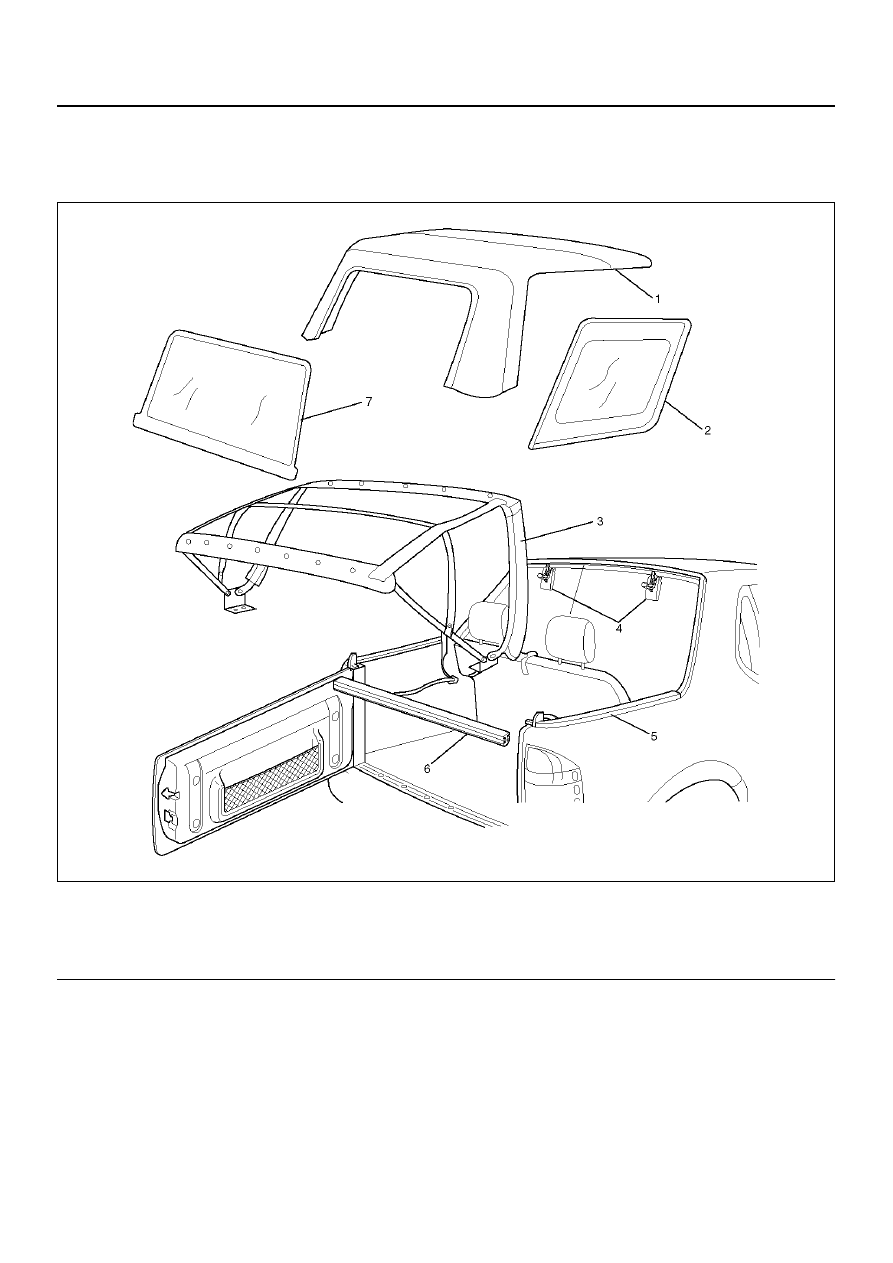

Soft Top Assembly

Soft Top Assembly and Associated Parts

688RY00003

EndOFCallout

Legend

(1) Tarpaulin Assembly
(2) Quarter Window Assembly
(3) Tarpaulin Frame Assembly

(4) Soft Top Latch Assembly
(5) Quarter Moulding Assembly
(6) Support Bar Assembly
(7) Back Window Assembly
