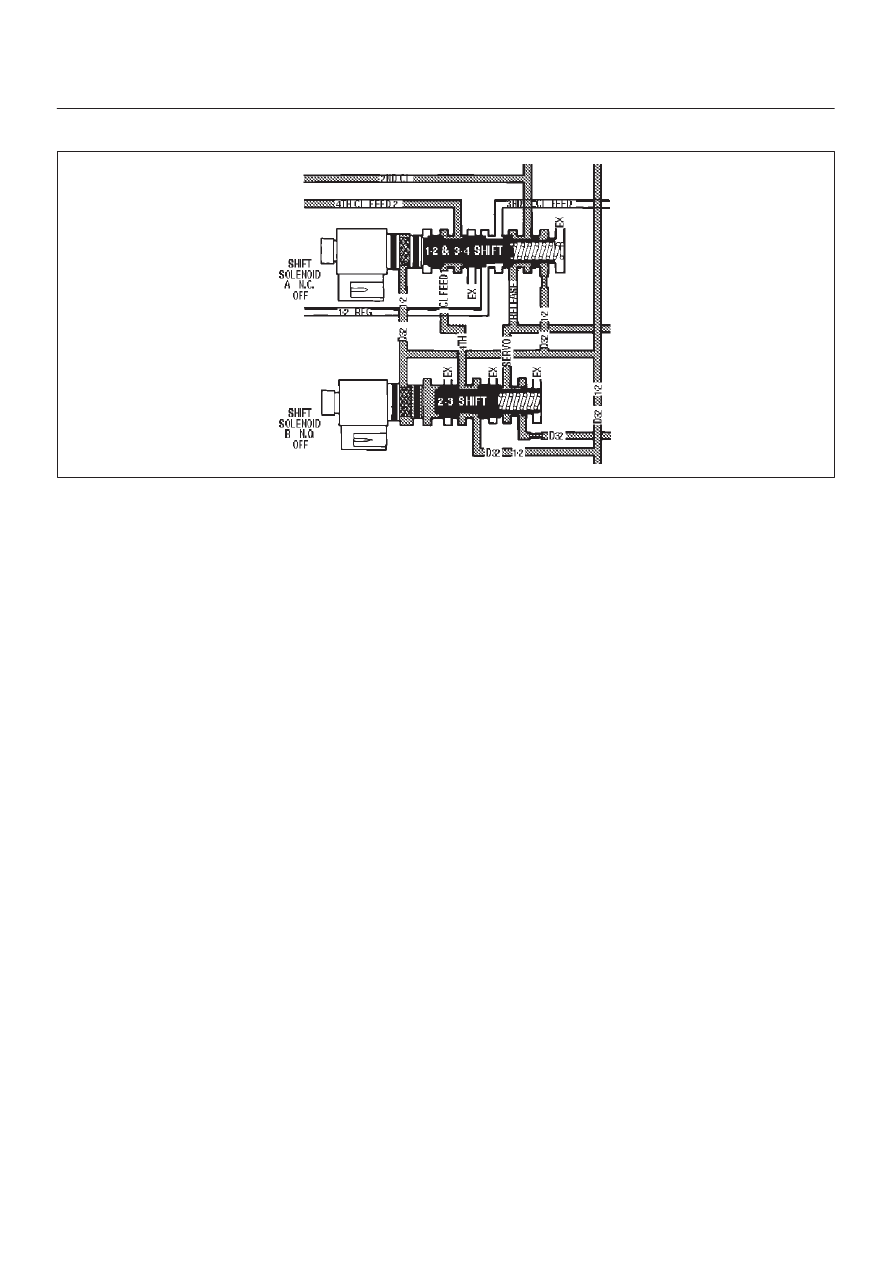

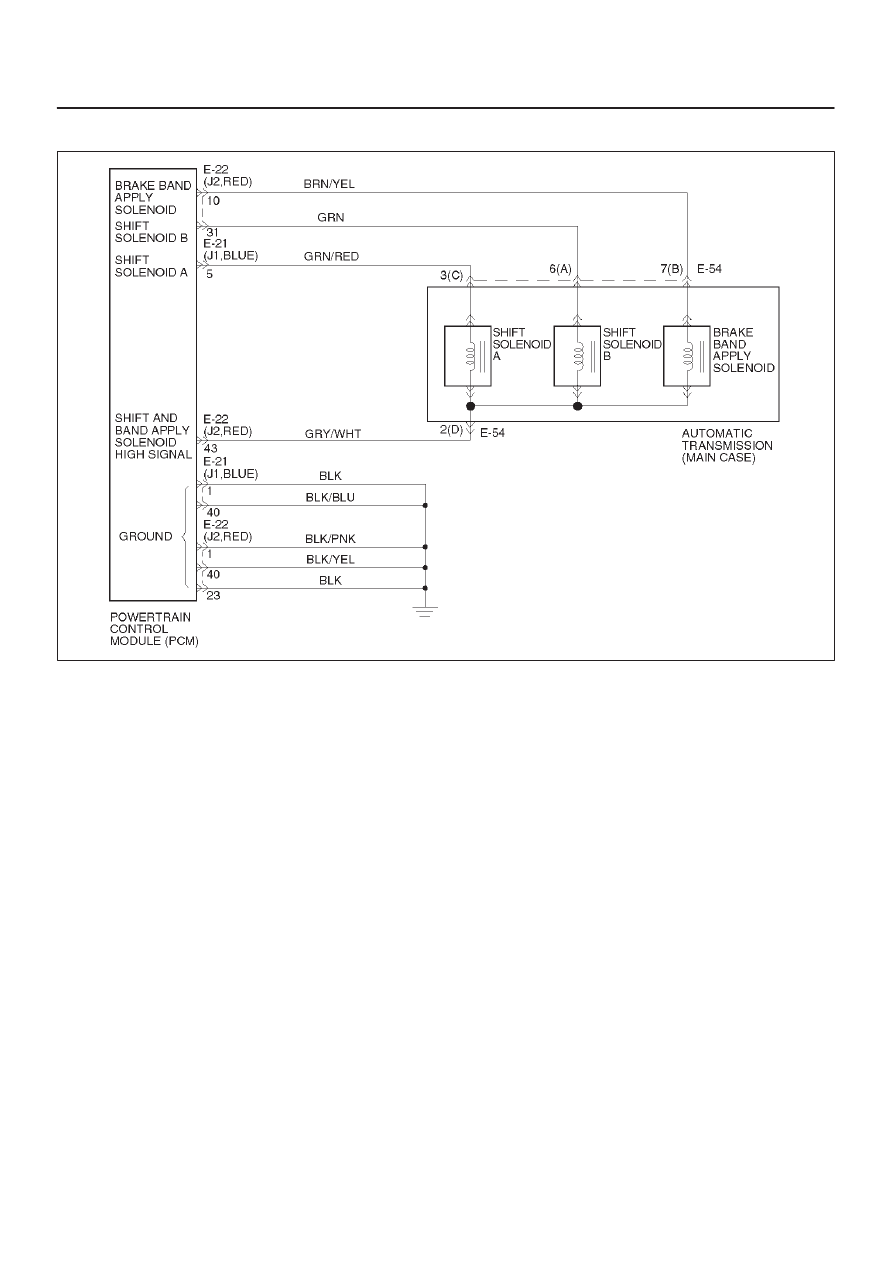

TRANSMISSION CONTROL SYSTEM (4L30–E) 7A1–65 DTC P0753 Shift Solenoid A Electrical D07RY00035 Circuit Description D The shift solenoid A is a simple on/off solenoid D The solenoid is activated by a current. This current is D The High Side Driver (HSD) is a circuit of the PCM This DTC detects a continuous open or short to ground in Conditions For Setting The DTC D Ignition is “on”, Engine “run”. D Battery voltage is between 10 and 16 volts. D The PCM commands the solenoid “on” and the D All conditions met for 0.84 – 1.0 seconds. Action Taken When The DTC Sets D Maximum line pressure. D Immediate landing to 4th gear. D Inhibit TCC engagement. D For lamp illuminate refer to DTC type definition (type Conditions For Clearing The MIL/DTC D The PCM will turn off the MIL and CHECK TRANS D The DTC can be cleared from the PCM history by D The DTC will be cleared from history when the vehicle D The PCM will cancel the DTC default actions when Diagnostic Aids D Inspect the wiring for poor electrical connection at the |
