6E2–551

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

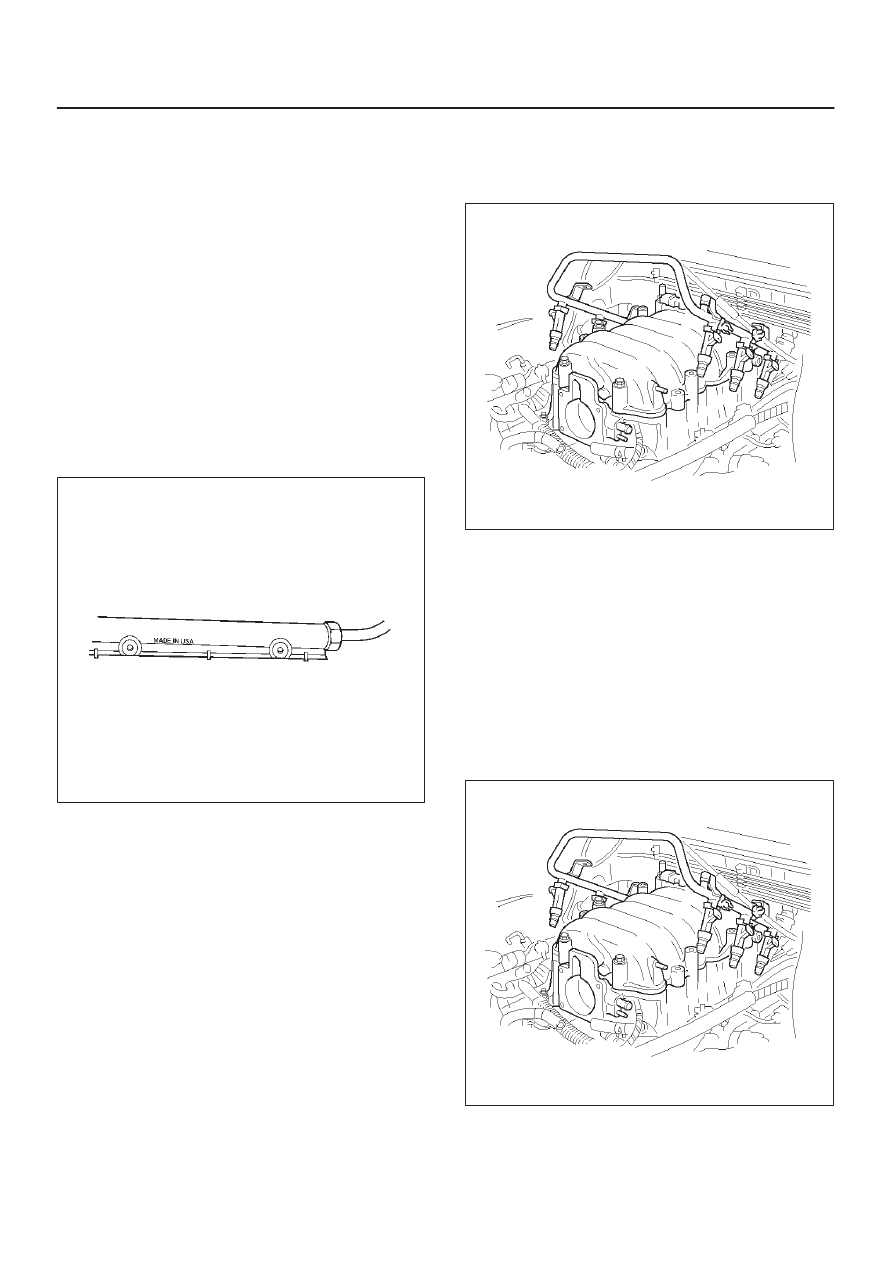

Fuel Rail Assembly

Removal Procedure

NOTE:

D

Do not attempt to remove the fuel inlet fitting on the
fuel rail.  It is staked in place.  Removing the fuel inlet
fitting will result in damage to the fuel rail or the
internal O-ring seal.

D

Use care when removing the fuel rail assembly in
order to prevent damage to the injector electrical
connector terminals and the injector spray tips.

D

Fittings should be capped and holes plugged during
servicing to prevent dirt and other contaminants from
entering open lines and passages.

IMPORTANT:

An eight-digit identification number is

stamped on the side of the fuel rail.  Refer to this number
when you service the fuel rail or when a replacement part
is required.

014RY00008

Before removal, the fuel rail assembly may be cleaned
with a spray type engine cleaner.  Follow the spray
package instructions.  Do not immerse the fuel rails in
liquid cleaning solvent.

1. Depressurize the fuel system. Refer to Fuel Pressure

Relief Procedure in this Section.

2. Disconnect the negative battery cable.
3. Remove the engine cover.
4. Disconnect the throttle position sensor electrical

connector from throttle body.

5. Disconnect the connectors from manifold absolute

pressure sensor, solenoid valve, electric vacuum
sensing valve.

6. Disconnect the vacuum hose on canister VSV and

positive crankcase ventilation hose.

7. Remove the common chamber. Refer to the common

chamber in Engine Mechanical section.
1. Lift up carefully on the fuel injectors. Do not

separate the fuel injectors from the fuel rail.

2. If an injector becomes separated from the fuel

rail, the infector O-ring seals and the retainer clip
must be replaced.

3. Drain residual fuel into an approved container.

014RW164

8. If removal of the fuel pressure regulator is necessary,

refer to

 Fuel Pressure Regulator section.

9. If removal of the fuel injectors is necessary, refer to

Fuel Injectors section.

Installation Procedure

1. If the fuel injectors were removed, install them.  Refer

to

Fuel Injectors section.

2. If the fuel pressure regulator was removed, install it.

Refer to

Fuel Pressure Regulator section.

3. Install the common chamber. Refer to common

chamber in engine Mechanical section.

014RW164

4. Connect the vacuum hose on Canister VSV and

positive crankcase ventilation hose.

6E2–552

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

5. Connect the connectors to manifold absolute

pressure sensor, solenoid valve, electric vacuum
sensing valve.

6. Connect the throttle position sensor electrical

connector to throttle body.

7. Install the engine cover.
8. Connect the negative battery cable.
9. Crank the engine until it starts.  Cranking the engine

may take longer than usual due to trapped air in the
fuel rail and in the injectors.

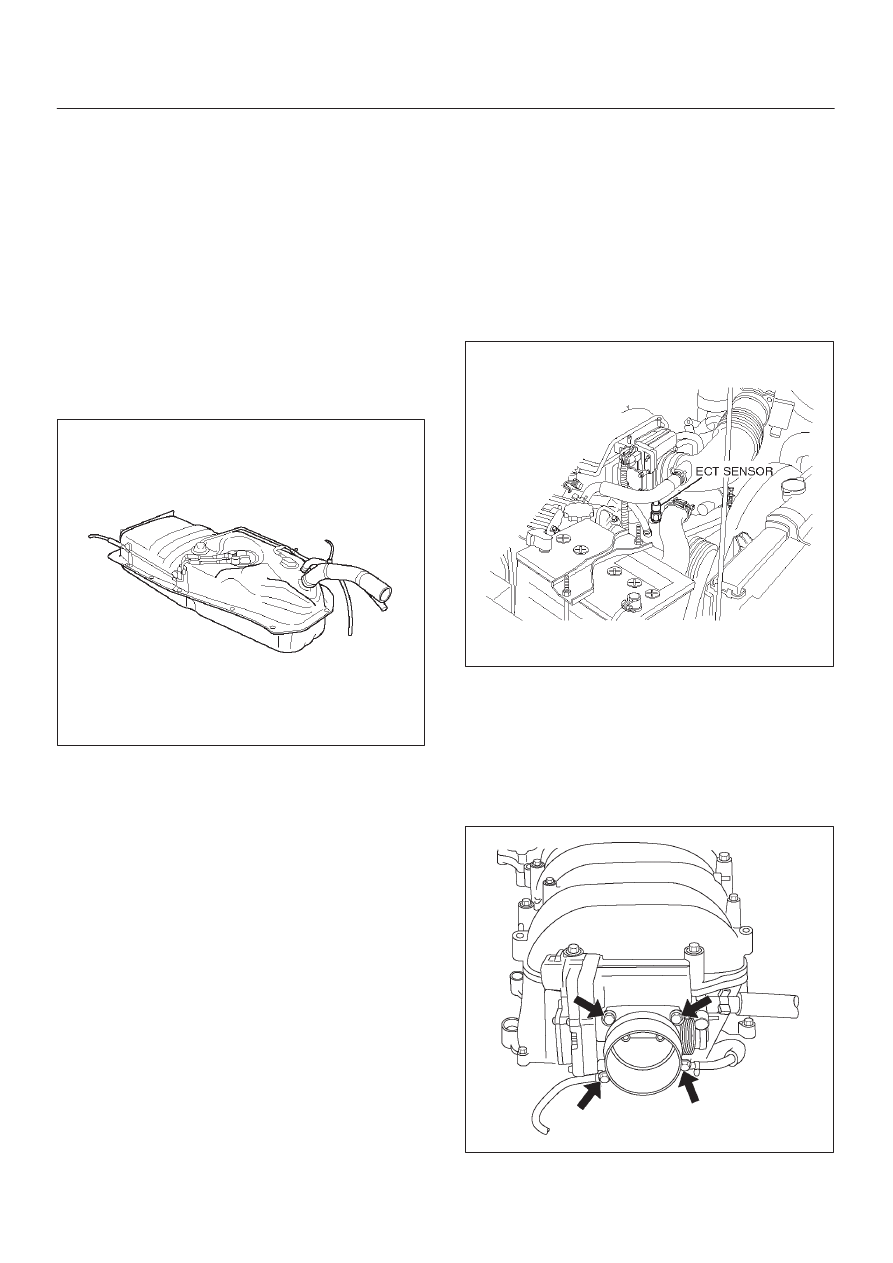

Fuel Tank

Removal Procedure

Refer to

Fuel Tank In Fuel Pump Relay

014RW134

Throttle Body (TB)

Removal Procedure

1. Disconnect the negative battery cable.
2. Drain the cooling system.  Refer to

Cooling System

section.

3. Disconnect the electrical connectors:

D

Throttle position (TP) sensor.

D

Intake air temperature (IAT) sensor.  Refer to

Intake

Air Temperature Sensor section.

060RY00014

4. Disconnect the vacuum hose below the air horn.
5. Remove the intake air duct clamp.
6. Disconnect the intake air duct.
7. Disconnect the coolant lines from the throttle body.
8. Remove the bolts from the common chamber.
9. Remove the throttle body from the common chamber.

10. Remove the gasket from the common chamber.

060R200183

11. Remove the TP sensor.  Refer to

Throttle Position

(TP) Sensor section.

6E2–553

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

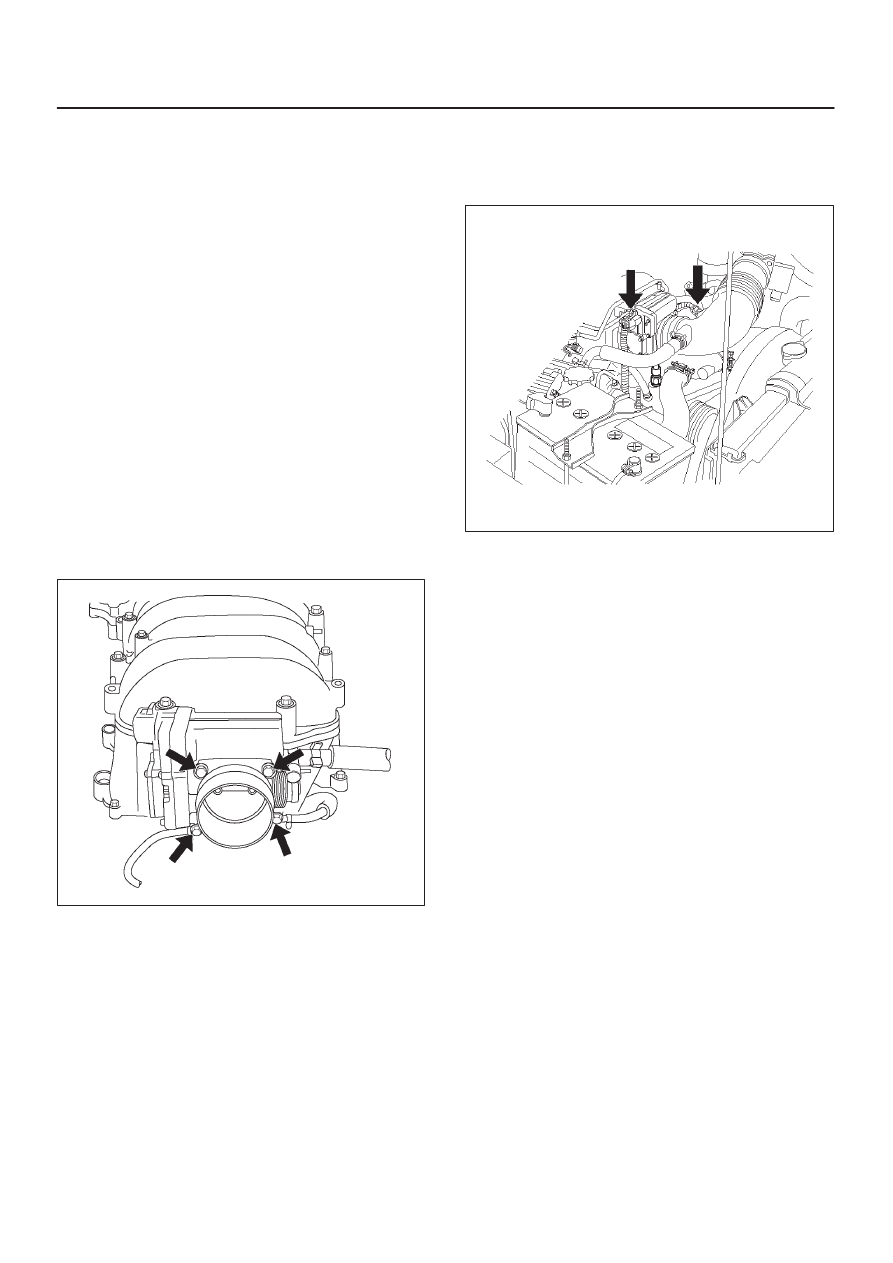

Inspection Procedure

NOTE: Do not use solvent of any type when you clean the
gasket surfaces on the intake manifold and the throttle
body assembly.  The gasket surfaces and the throttle
body assembly may be damaged as a result.

D

If the throttle body gasket needs to be replaced,
remove any gasket material that may be stuck to the
mating surfaces of the manifold.

D

Do not leave any scratches in the aluminum casting.

Installation Procedure

1. Install the TP sensor.  Refer to

Throttle Position (TP)

Sensor section.

2. Install the gasket on the common chamber.
3. Install the throttle body on the common chamber.
4. Secure the gasket and the throttle body with the four

bolts.

D

The vacuum lines must be properly routed under
the throttle body before tightening the mounting
bolts.

Tighten

D

Tighten the throttle body mounting bolts to 10
N·m (87 lb in).

060R200183

5. Install the coolant lines.
6. Connect all the vacuum lines.
7. Install the intake air duct.
8. Tighten the intake air duct clamp.

9. Connect all the electrical connectors:

D

Throttle position (TP) sensor.

D

Intake air temperature (IAT) sensor.  Refer to

Intake

Air Temperature Sensor section.

060RY00020

10. Install the accelerator cable assembly.  Refer to

Accelerator Cable in Engine Speed Control System
section.

11. Fill the cooling system.  Refer to

Cooling System

section.

12. Install the negative battery cable.

6E2–554

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

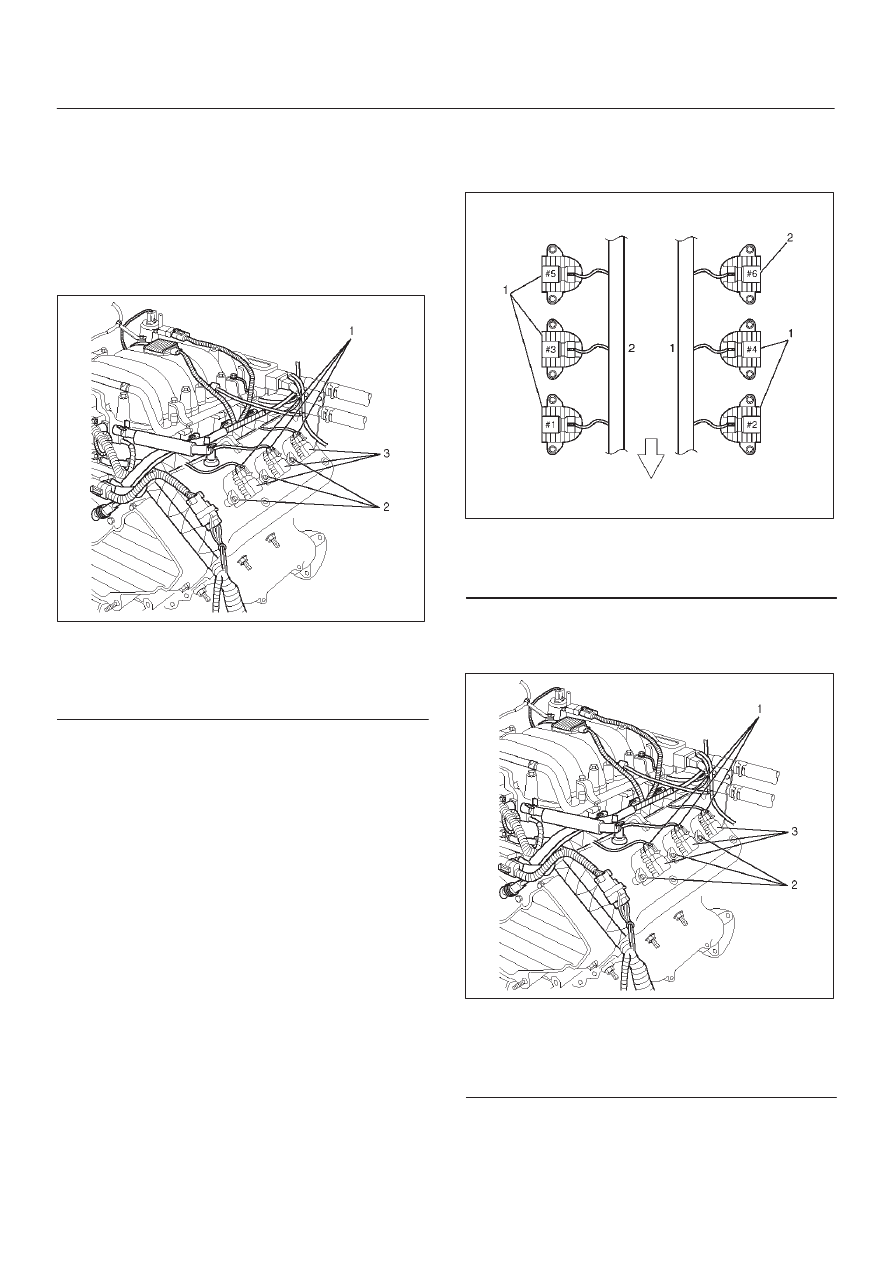

Electronic Ignition System

Removal Procedure

1. Disconnect the negative battery cable.
2. Disconnect the ignition coil connector at the ignition

coil assemblies.

3. Remove the two screws that secure the ignition coil

assemblies to the rocker cover.

060RY022

Legend

(1) Ignition Coil Connectors
(2) Bolts
(3) Ignition Coil Assemblies

4. Remove the ignition coil assemblies and the spark

plug boot from the spark plug.

D

Twist the ignition coil assemblies while pulling it
straight up.

5. Use the appropriate spark plug socket in order to

remove the spark plug from the engine.

Installation Procedure

NOTE: The plug must thread smoothly into the cylinder
head and be fully seated.  Use a thread chaser if
necessary to clean the threads in the cylinder head.
Cross-threading or failure to fully seat the spark plug can
cause plug overheating, exhaust blow-by gases, or
thread damage.  Do not overtighten the spark plugs.  Over
tightening can cause aluminum threads to strip.

1. Install the spark plug in the engine.  Use the

appropriate spark plug socket.

Tighten

D

Tighten the spark plug to 18 N·m (13 lb ft.).

2. Install the ignition coil assemblies and spark plug boot

over the spark plug.

CAUTION: Ignition coil assembly #6 is different
from ignition coil assembly #1 to #5. Ignition coil
assemblies #6 is short type. Be careful it when
installing ignition coil assembly of #6.

060RY00002

Legend

(1) Long Type Ignition Coil Assemblies (#1

∼

 #5)

(2) Short Type Ignition Coil Assembly (#6)

3. Install ignition coil assemblies and tighten the fixing

bolts to the specified torque.

Torque: 4 N·m (35.4 Ib in)

060RY022

Legend

(1) Ignition Coil Connectors
(2) Bolts
(3) Ignition Coil Assemblies

4. Connect the ignition coil connector at the ignition coil

assemblies.

5. Connect the negative battery cable.
