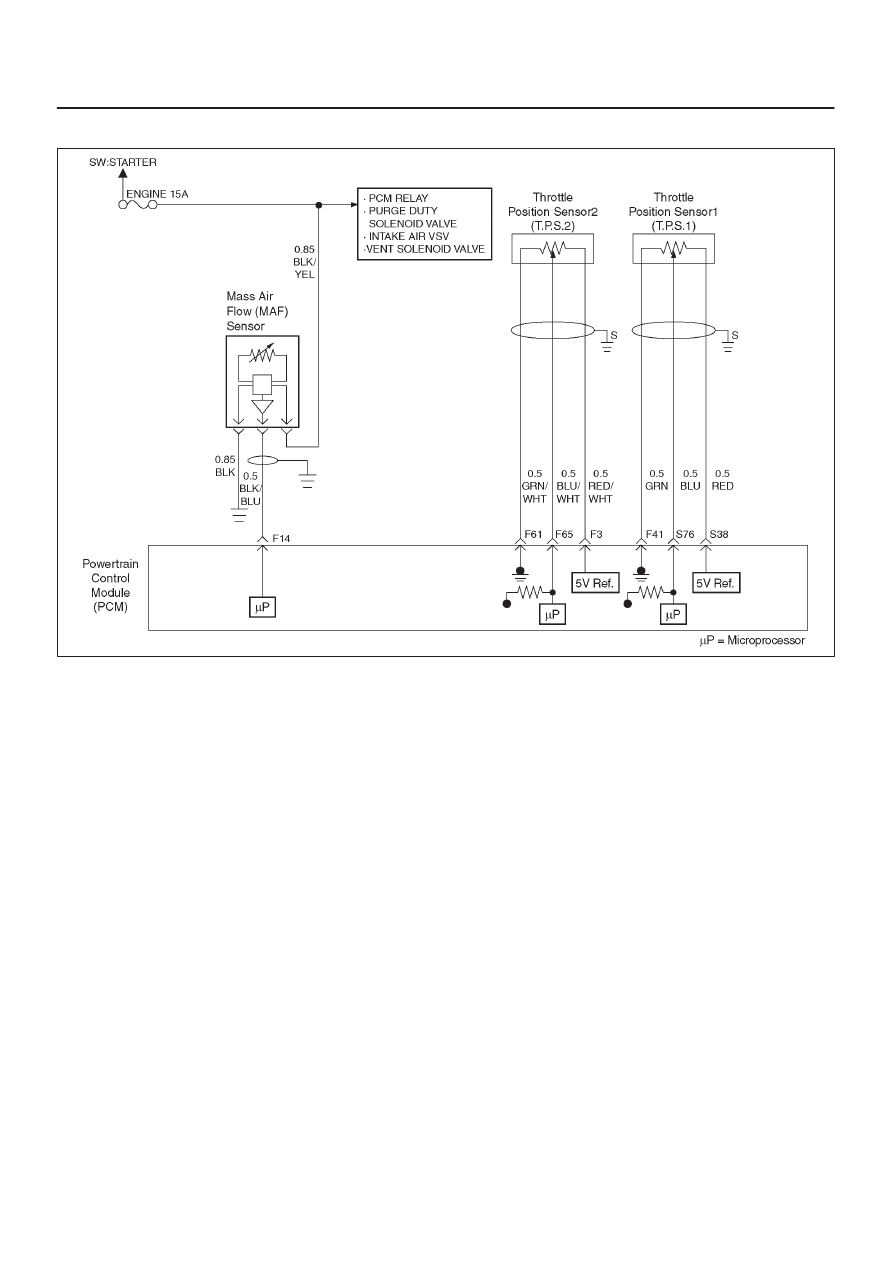

6E2–475 RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS Diagnostic Trouble Code (DTC) P1514 TPS - MAF Correlation Error 060R200061 Circuit Description D The throttle position (TP) sensor circuit provides a D The mass air flow (MAF) sensor measures the amount The MAF sensor produces a frequency signal which Conditions for setting the DTC D The engine is running. D No MAF sensor DTCs are set. D Throttle actuation mode is not off. D MAF reading-ETC estimated air flow is less than 40g/s Action Taken When the DTC Sets D The PCM will illuminate the malfunction indicator lamp D The PCM calculates an air flow value based on idle air D The PCM will store condition which were present when Conditions for Clearing the MIL/DTC D The PCM will turn the MIL “OFF” on the third D A history DTC P1514 will clear after 40 cosecutive trip D DTC P1514 can be cleared using the Tech 2 “Clear Diagnostic Aids An intermittent may be caused by the following: D Poor connectons. D Mis routed harness. D Rubbed through wire insulation. D Broken wire inside the insulation. Check for the following conditions: D Poor connection at PCM - Inspect harness connectors D Damaged harness - Inspect the wiring harness for |
