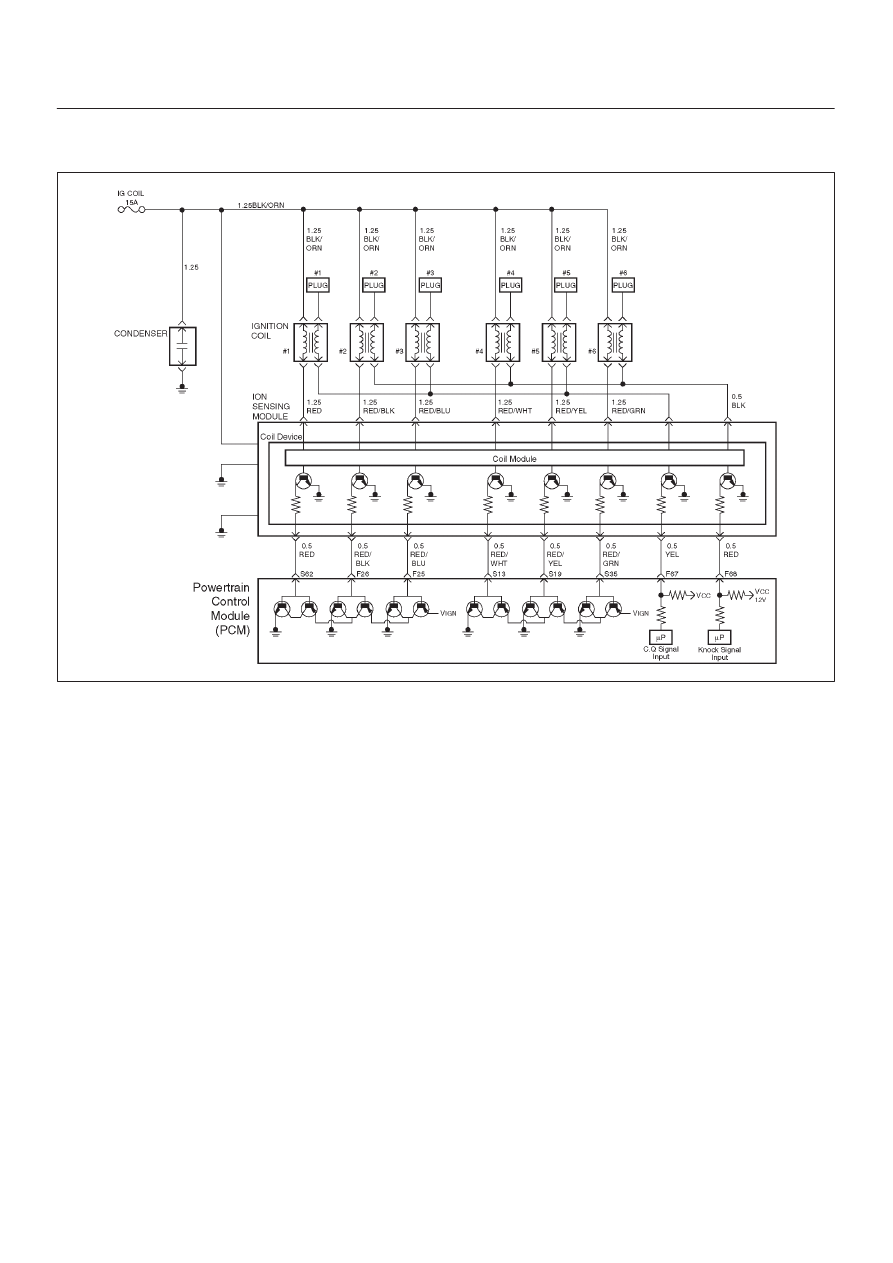

6E2–463 RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS Diagnostic Trouble Code (DTC) P1326 ION Sensing Module Combustion Quality Input Circuit Fault 060R200068 Circuit Description The Power Control Module (PCM) checks the validity of D The test is performed to evacuate the Combustion Conditions for setting the DTC D Ignition voltage is between 10volt and 16 volts. D No Crank DTCs set. D No cylinder ID DTCs set. Action Taken When the DTC Sets D The PCM will illuminate the malfunction indicator lamp D The PCM calculates an air flow value based on idle air D The PCM will store conditions which were present Conditions for Clearing the MIL/DTC D The PCM will turn the MIL “OFF” on the third D A history DTC P1326 will clear after 40 consecutive trip D DTC P1326 can be cleared using the Tech 2 “Clear Diagnostic Aids An intermittent may be caused by the following: D Poor connections. D Misrouted harness. D Rubbed through wire insulation. D Broken wire inside the insulation. Check for the following conditions: D Poor connection at PCM-Inspect harness connectors D Damaged harness-Inspect the wiring harness for |
