RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

TP sensor 1, TP sensor 2 display on the Tech 2 while
moving connectors and wiring harnesses related to the
sensor.
A change in the display will indicate the location of
the fault.If DTC P1295 cannot be duplicated, the
information included in the Faillure Records data can

be useful in determined vehicle mileage since the
DTC was last set.

If it is determined that the DTC occurs intermittently,
performing the DTC

P1295 Diagnostic Chart may isolate the cause of the
fault.

DTC P1295 - Power Management Mode

Step

Action

Value(s)

Yes

Was the “On-Board (OBD) System Check” performed?

—

Go to

Step 2

Go to

OBD

System

Check

Was the “Electric Throttle Control (ETC) System
Check” performed?

—

Go to

Step 3

Go to

ETC

System

Check

1. Obsarve the TP angle reading on the Tech 2 while

slowly operating the acceleration pedal.

Does the TP angle increase steadily and eventry from
the closed throttle value to the wide open throttle
value?

Closed

throttle TPS1

= 8

∼

13%

TPS2 =

∼

13% Wide

Open Throttle

TPS1 =

∼

97%

TPS2 =

∼

97%

Go to

Step 4

Go to

Step 5

Was the DTC P1295 stored?

—

Go to

Step 10

Refer to

Diagnostic

Aids

1. Check the curcuit between the PCM and each

terminal of TP1 and TP2 sensor.

Was the curcuit open or shorted?

—

Verify repair

Go to

Step 7

1. Repair the faulty wiring harness.

Was a problem corrected?

—

Verify repair

Go to

Step 7

1. Ignition “On”, engine “Off”.
2. Operate the throttle lever by hand (Don’t operate

the acceleration pedal ).

Was the DTC P1515 or P1516 stored?

—

Go to

Step 9

Go to

Step 8

1. Replace the TP sensor.

Was a problem corrected?

—

Verify repair

Go to

Step 9

Replace the PCM.

IMPORTANT: The replacement PCM must be
programmed.

Refer to ON–Vehicle Service in Power Control Module
and Sensors for procedures.

And also refer to latest Service Bulletin. Check to see
if the latest software is released or not.

And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.

Is the adtion complete?

—

Varify repair

—

6E2–452

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

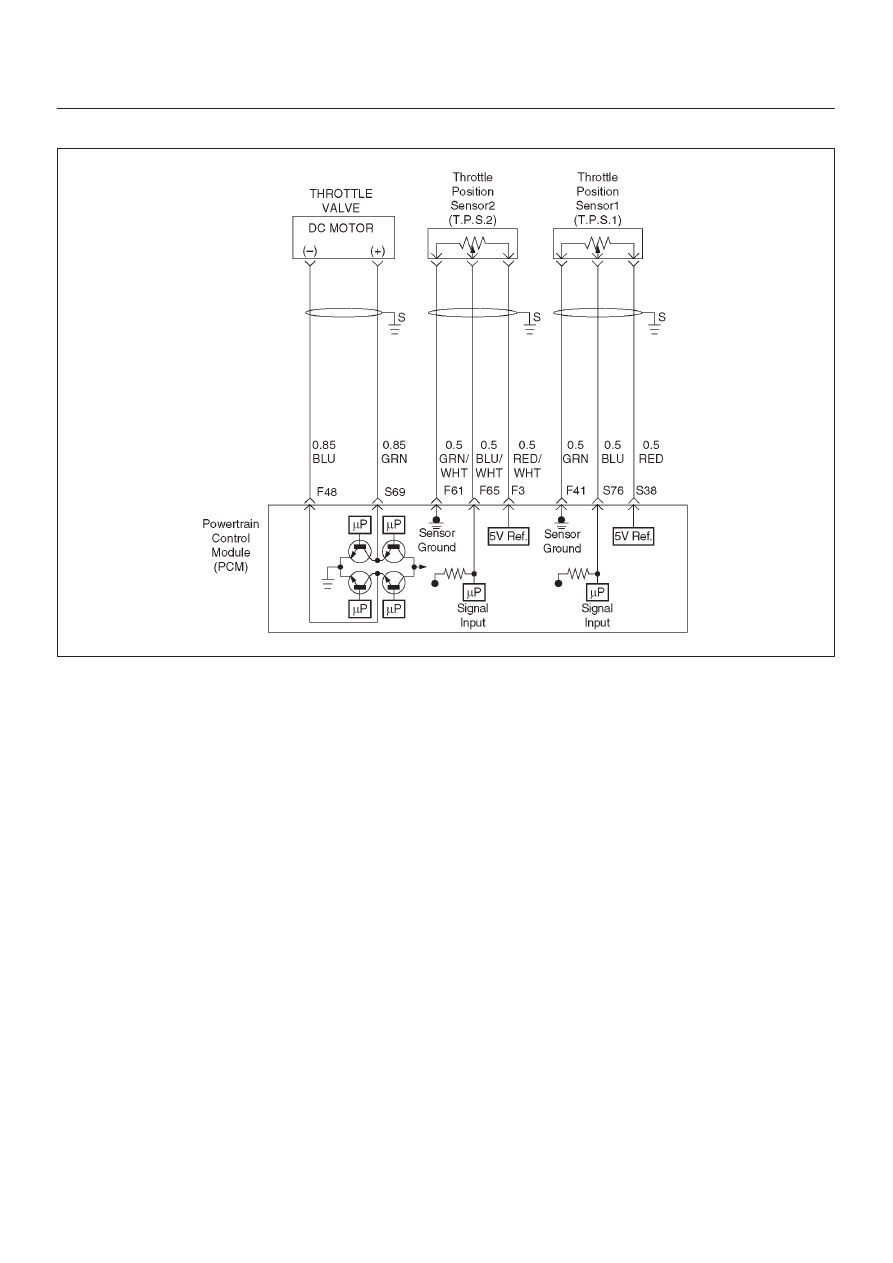

Diagnostic Trouble Code (DTC) P1299 ETC Forced Engine Shutdown Mode

D06RY00111

Circuit Description

The throttle position sensor circuit provides a voltage
signal relative to throttle position (blade angle).
The throttle blade angle will vary about 8% at closed
throttle to about 92% at wide open throttle(WOT).

The DC motor circuit provides a voltage signal relative
to command throttle position (blade angle).

The mass air flow (MAF) sensor measures the amount
of air which passes through it into the engine during a
given time. The powertrain Control Module (PCM)
uses the mass air flow information to monitor engine
operating conditions for fuel delivery calculations. A
laege quantitiy of air entering the engine indicates an
accleration or high load situation, while a small quantity
or air indicates deceleration or idle.
The MAF sensor produces a frequency signal which
can be monitored using a Tech 2. The frequency will
vary within a range of around 4 to 7g/s at idle to
around 25 to 40g/s at maximum engine load.

This DTC ditects if the system is in ECT Forced Engine
Shutdown Mode.(Fail safe Mode)

Conditions for setting the DTC

The ignition is “ON”.

ECT Forced Engine Shutdown Mode is active. (Fail
safe Mode)

Action Taken When the DTC Sets

The PCM will store condition which were present when
the DTC was set as Freeze Frame and in the Failure
Records data.

Conditions for Clearing the MIL/DTC

The PCM will turn the MIL “OFF” on the third
consecutive trip cycle during which the diagnostic has
been run and the fault condtion is no longer present.

A history DTC P1299 will clear after 40 cosecutive trip
cycle during which the warm up cycles have occurred
without a fault.

DTC P1299 can be cleared using the Tech 2 “Clear
Info” function or by disconnecting the PCM battery
feed.

Diagnostic Aids

An intermittent may be caused by the following:

Poor connections.

Mis routed harness.

Rubbed through wire insulation.

Broken wire inside the insulation.

Check for the following conditions:

Poor connection at PCM-Inspect harness connectors
for backed out terminals, improper mating, broken
locks, improperly formed or damaged terminals,and
poor terminal to wire connection.

Damaged harness-Inspect the wiring harness for
damage. If the harness appears to be OK, observe the
TP sensor 1, TP sensor 2 display on the Tech 2 while

6E2–453

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

moving connectors and wiring harnesses related to the
sensor.
A change in the display will indicate the location of
the fault. If DTC P1299 cannot be duplicated, the
information included in the Faillure Records data can

be useful in determined vehicle mileage since the
DTC was last set.

If it is determined that the DTC occurs intermittently,
performing the DTC P1299 Diagnostic Chart may
isolate the cause of the fault.

DTC P1299 - ETC Forced Engine Shutdown Mode

Step

Action

Value(s)

Yes

Was the “On-Board (OBD) System Check” performed?

—

Go to

Step 2

Go to

OBD

System

Check

Was the “Electric Throttle Control (ETC) System
Check” performed?

—

Go to

Step 3

Go to

ETC

System

Check

1. Obsarve the TP angle reading on the Tech 2 while

slowly operating the acceleration pedal.

Does the TP angle increase steadily and eventry from
the closed throttle value to the wide open throttle
value?

Closed

throttle TPS1

= 8

∼

13%

TPS2 =

∼

13% Wide

Open Throttle

TPS1 =

∼

97%

TPS2 =

∼

97%

Go to

Step 4

Go to

Step 5

Was the DTC P1299 stored?

—

Go to

Step 10

Refer to

Diagnostic

Aids

1. Check the curcuit between the PCM and each

terminal of TP1 and TP2 sensor.

Was the curcuit open or shorted?

—

Verify repair

Go to

Step 7

1. Repair the faulty wiring harness.

Was a problem corrected?

—

Verify repair

Go to

Step 7

1. Ignition “On”, engine “Off”.
2. Operate the throttle lever by hand (Don’t operate

the acceleration pedal ).

Was the DTC P1515 or P1516 stored?

—

Go to

Step 9

Go to

Step 8

1. Replace the TP sensor.

Was a problem corrected?

—

Verify repair

Go to

Step 9

Replace the PCM.

IMPORTANT: The replacement PCM must be
programmed.

Refer to ON–Vehicle Service in Power Control Module
and Sensors for procedures.

And also refer to latest Service Bulletin. Check to see
if the latest software is released or not.

And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.

Is the adtion complete?

—

Varify repair

—

6E2–454

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

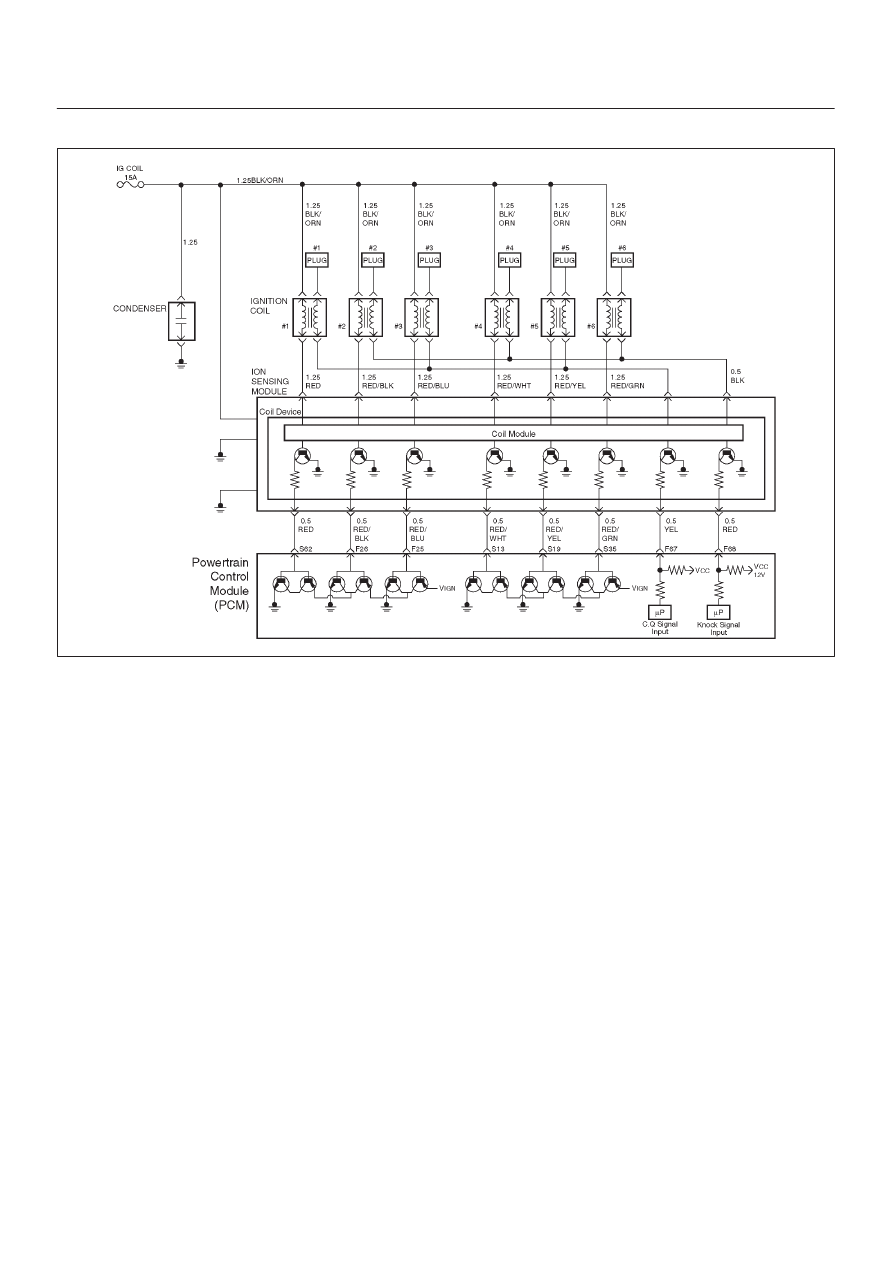

Diagnostic Trouble Code (DTC) P1310 ION Sensing Module Diagnosis

060R200068

Circuit Description

The Power Control Module (PCM) checks the validity of
the signals used in the ION Sensing module at the
following engine operating conditions.

The Deceleration Fuel Cut Off (DFCO) test is
performed to evaluate the Combustion Quality (CQ)
signal pulse width

If it is below a predetermined value, the value it is
expected to be during DFCO conditions. If the CQ
signal pulse width is above the predetermined
threshold, the fail counter will be incremented. If the
failure counter exceeds the calibration, then the test is
complete and a failure will be reported.

The Power Enrichment (PE) test is performed to
evaluate the Combustion Quality (CQ) signal pulse
width

If it is below a predetermined value, the value is
expected to be during PE conditions.
If the CQ signal pulse width is above the
predetermined threshold, the fail counter will be
incremented. If the failure counter exceeds the
calibration, then the test is complete and a failure will
be reported.

The Combustion Quality (CQ) test is performed to
check if inappropriate (CQ) signal status were
detected. If missing CQ pulses or multiple CQ pulses
or CQ pulse width calculation errors were detected, the
fail counter will be incremented. If the failure counter
exceeds the calibration, then the test is complete and
a failure will be reported.

Conditions for setting the DTC

Ignition voltage is between 10volt and 16 volts.

MAP sensor signal is between 26kPa and 100 kPa.

Fuel level is more than 19%.

Engine speed is between 650rpm and 6500rpm.

No Crank DTCs set.

No System voltage DTCs set.

Action Taken When the DTC Sets

The PCM will illuminate the malfunction indicator lamp
(MIL) the first time the fault is detected.

The PCM calculates an air flow value based on idle air
control valve position, throttle position, RPM and
barometric pressure.

The PCM will store conditions which were present
when the DTC was set as Freeze Frame and in the
Failure Records data.

Conditions for Clearing the MIL/DTC

The PCM will turn the MIL “OFF” on the third
consecutive trip cycle during which the diagnostic has
been run and the fault condition is no longer present.

A history DTC P1310 will clear after 40 consecutive trip
cycle during which the warm up cycles have occurred
without a fault.

DTC P1310 can be cleared using the Tech 2 “Clear
Info” function or by disconnecting the PCM battery
feed.
