4C–68

DRIVE SHAFT SYSTEM

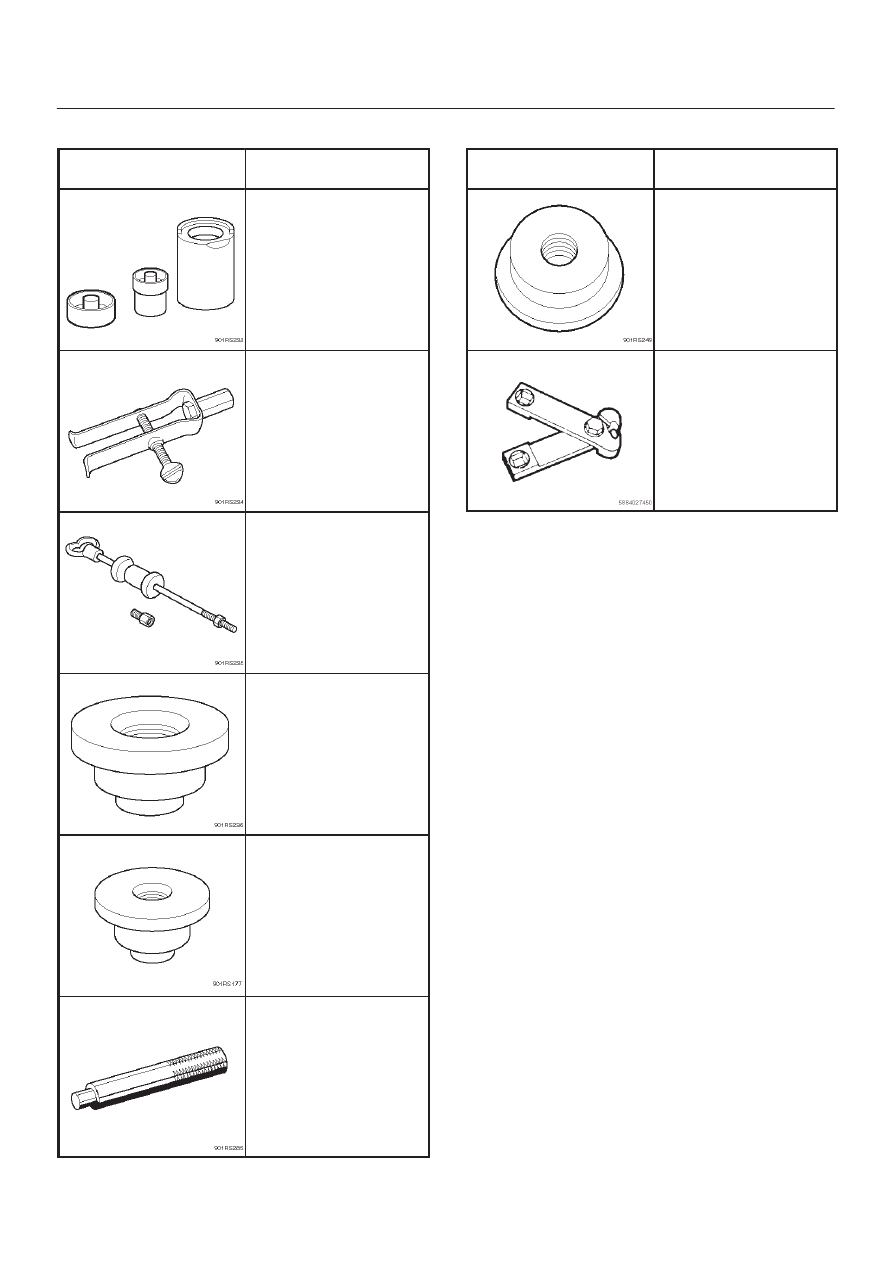

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

J–39378

Remover and Installer;

Front Axle mount

bushing

J– 26941

Remover; Bearing

needle

J–2619–01

Hammer; Sliding

J–41693

Installer; Oil seal

J–41694

Installer; Bearing needle

J–8092

Grip

ILLUSTRATION

TOOL NO.

TOOL NAME

J–36830

Installer; Oil seal

J–35910

Pliers; Band bellows,

drive shaft

4C–69

DRIVE SHAFT SYSTEM

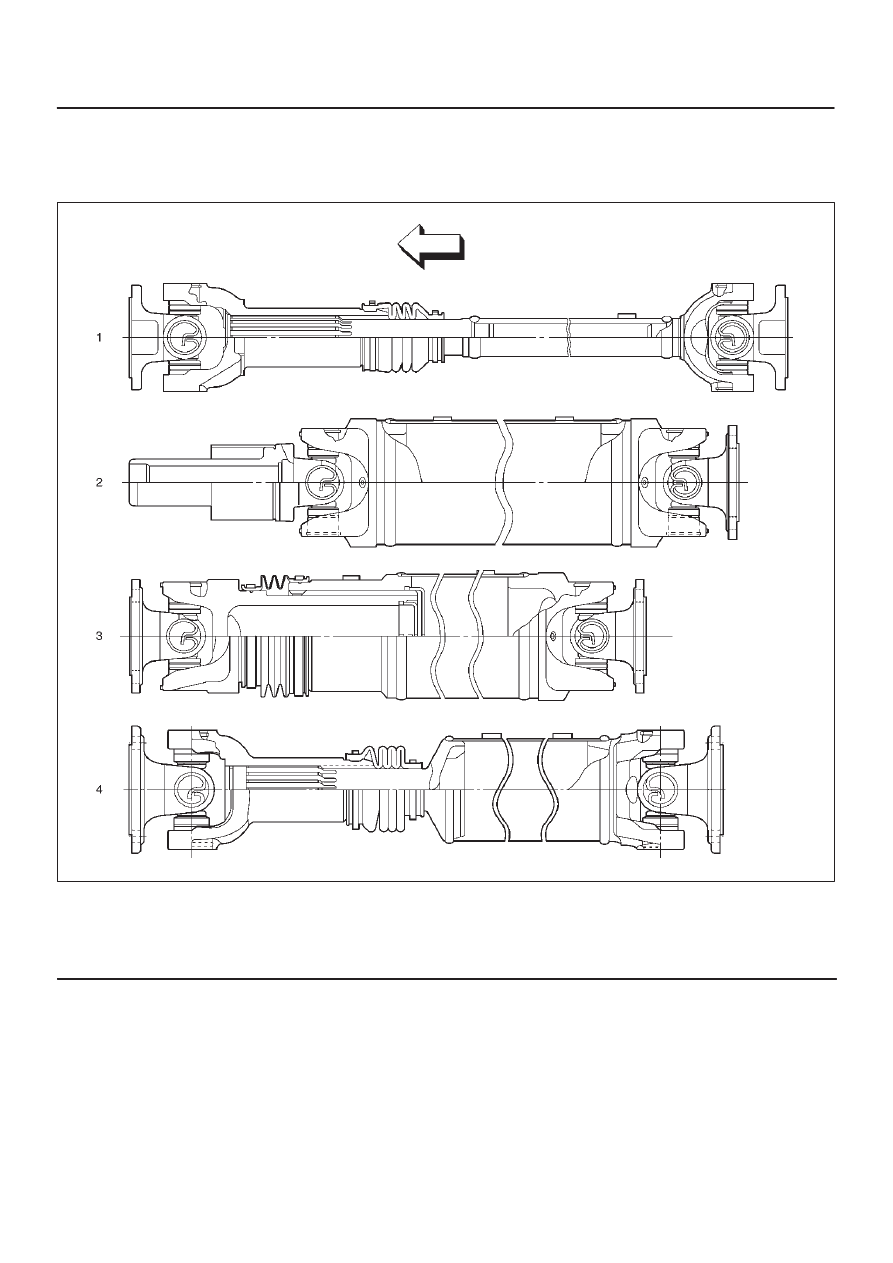

Propeller Shaft

General Description

401RX002

Legend

(1) Front Propeller Shaft
(2) Rear Propeller Shaft;

Aluminum Tube with Spline Yoke Type

(3) Rear Propeller Shaft;

Aluminum Tube with Flange Yoke Type

(4) Rear Propeller Shaft;

Steel Tube Type (for 4

×

4, 6VD1, A/T model)

Torque is transmitted from the transmission to the axle
through the propeller shaft and universal joint assembles.
All propeller shafts are the balanced tubular type. A
splined slip joint is provided in some drivelines.

D

Since the propeller shaft is balanced carefully,
welding or any other modification is not permitted.

D

Alignment marks should be applied to each propeller
shaft before removal.

D

Park, turn the engine off and apply the parking brake
to secure the vehicle.

D

Carefully attach the propeller shaft to the vise, do not
overtighten the vise when securing the propeller
shaft, this may cause deformation.

4C–70

DRIVE SHAFT SYSTEM

Phasing
The propeller shaft is designed and built with the yoke
lugs (ears) in line with each other. This design produces
the smoothest running shaft possible, called
phasing.Vibration can be caused by an out–of–phase
propeller shaft.The propeller shaft will absorb vibrations
from speeding up and slowing down each time the
universal joint spins.This vibration would be the same as
a person snapping a rope and watching the ”wave”
reaction flow to the end.A propeller shaft working in phase
would be similar to two persons snapping a rope at the
same time, and watching the ”waves” meet and cancel
each other out.In comparison, this would be the same as
the universal joints on a propeller shaft.A total
cancellation of vibration produces a smooth flow of power
in the driveline.It is very important to apply a reference
mark to the propeller shaft before removal, to assure
installation alignment.

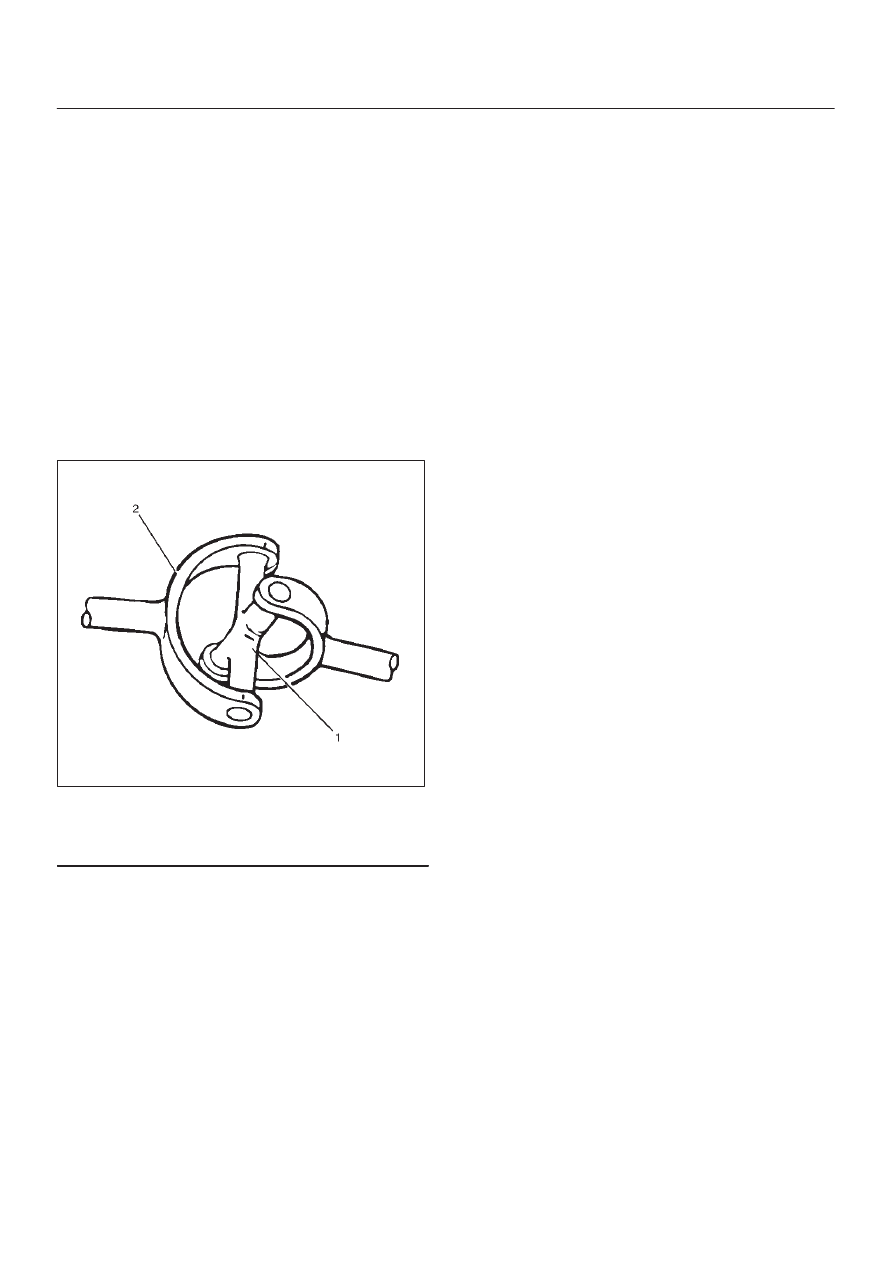

Universal Joint

401RW015

Legend

(1) Spider
(2) Yoke

A universal joint consists of two Y-shaped yokes
connected by a crossmember called a spider.
The spider is shaped like a cross. Universal joints are
designed to handle the effects of various loadings and
front or rear axle windup during acceleration. Within the
designed angle variations, the universal joint will operate
efficiently and safely. When the design angle is changed
or exceeded the operational life of the joint may decrease.
The bearings used in universal joints are of the needle
roller type. The needle rollers are held in place on the
trunnions by round bearing cups. The bearing cups are
held in the yokes by snap rings.

4C–71

DRIVE SHAFT SYSTEM

Diagnosis of Propeller Shaft and
Universal Joint

Condition

Possible cause

Correction

Universal Joint Noise.

Worn universal joint bearings.

Replace.

Improper lubrication.

Lubricate as directed.

Loose flange bolts.

Tighten to specifications.

Ping, Snap, or Click in Drive Line
(Usually Heard on Initial Load after
the Transmission is in Forward or
Reverse Gear)

Loose bushing bolts on the rear
springs or upper and lower control
arms.

Tighten the bolts to specified torque.

Reverse Gear)

Loose or out-of-phase end yoke.

Remove end yoke, turn 180 degrees
from its original position, lubricate the
splines and reinstall. Tighten the
bolts and pinion nut to specified
torque.

Knocking or Clanking Noise in the
Driveline when in High or Neutral
Gear at 16km/h(10mph)

Worn or damaged universal joint

Replace the universal joint.

Squeak

Lack of lubricant.

Lubricate joints and splines. Also
check for worn or brinelled parts.

Shudder on Acceleration (Low
Speed)

Loose or missing bolts at the flanges.

Replace or tighten bolts to specified
torque.

Incorrectly set front joint angle.

Install shim under the transmission
support mount to change the front
joint angle.

Worn universal joint.

Replace.

Vibration

Incorrect shaft runout.

Replace.

Shaft out of balance.

Adjust.

Transmission rear housing bushing,
transfer case housing bushing worn.

Replace.

Yoke spline jammed.

Replace.

Excessive Leak at the Front Spline
Yoke of Rear Propeller Shaft

Rough surface on splined yoke;
burred nicked or worn.

Replace the seal. Minor burrs can be
Smoothed by careful use of crocus
cloth or fine stone honing. Replace
the yoke if badly burred.

Defective transmission rear oil seal.

Replace the transmission rear oil
seal and replenish the transmission
oil.
