6E2–27

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

Component Locators

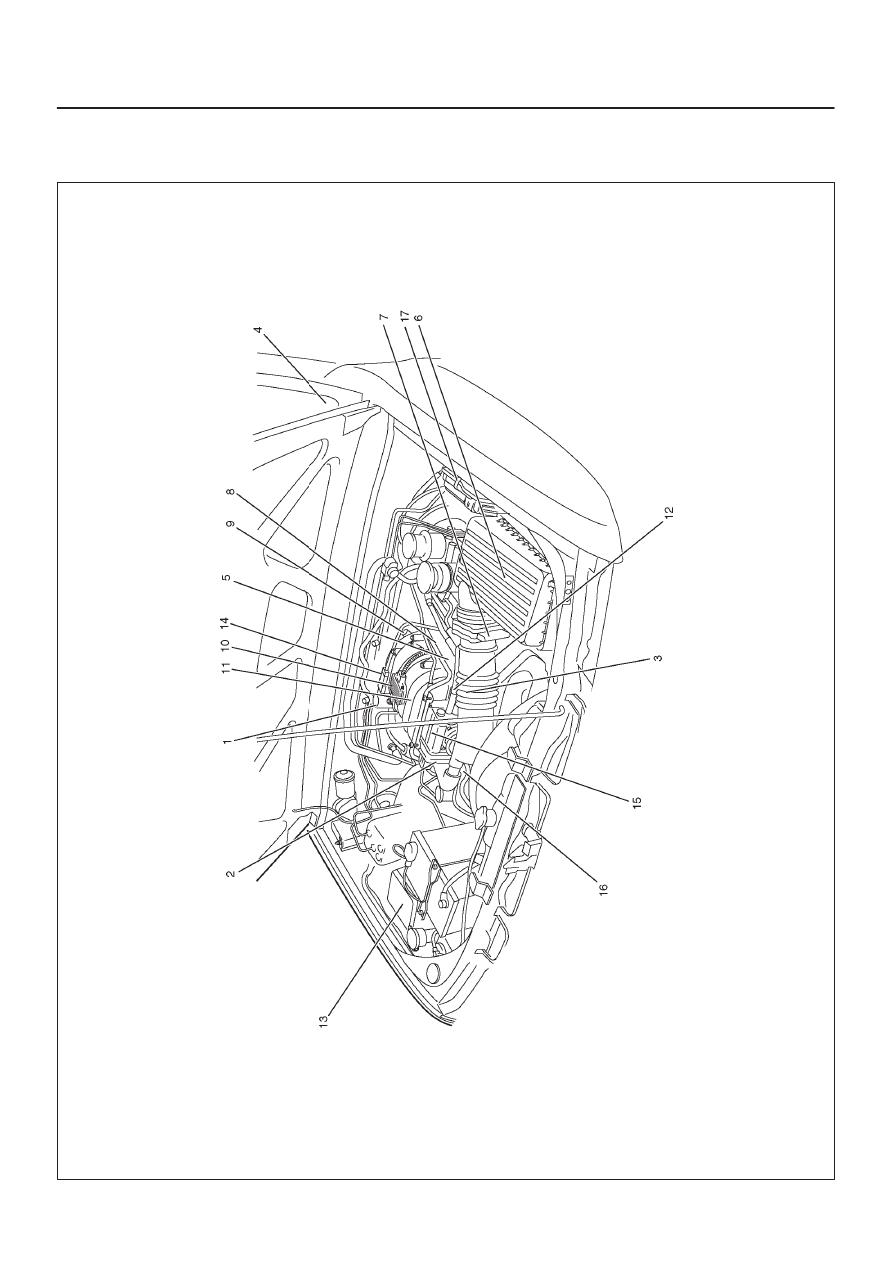

Engine Component Locator

060R200040

6E2–28

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

Engine Component Locator Table

Number

Name

Location

1

Linear Exhaust Gas Recirculation (EGR) Valve

Rear right side of the engine

2

Throttle Position (TP) Sensor

On the throttle body

3

Intake Air Temperature (IAT) Sensor

On the intake air duct near the throttle body

4

Check Engine (MIL) Light

On the instrument panel beneath the
tachometer

5

Positive Crankcase Ventilation (PCV) Valve

On the left of the cylinder head cover

6

Air Cleaner

Left front of the engine bay

7

Mass Air Flow (MAF) Sensor

Attached to the air filter box

8

Fuel Rail

On the Common Chamber

9

Fuel Pressure Regulator

Rear side of the engine

10

ION Sensing module

Bolted to the top of the Common Chamber

11

Common Chamber

Top of the engine

12

EVAP Duty Solenoid Valve

Bolted to the front of the coolant pipe

13

Fuse/Relay Box

Along the inside of the right fender

14

Manifold Absolute Pressure (MAP) Sensor

Bolted to the top of the Common Chamber

15

Throttle Body

Between the intake air duct and the Common
Chamber

16

Engine Coolant Temperature Sensor

On the coolant crossover pipe at the front of
the engine, near the throttle body

17

Power Train Control Module (PCM)

Along the inside of the left fender

6E2–29

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

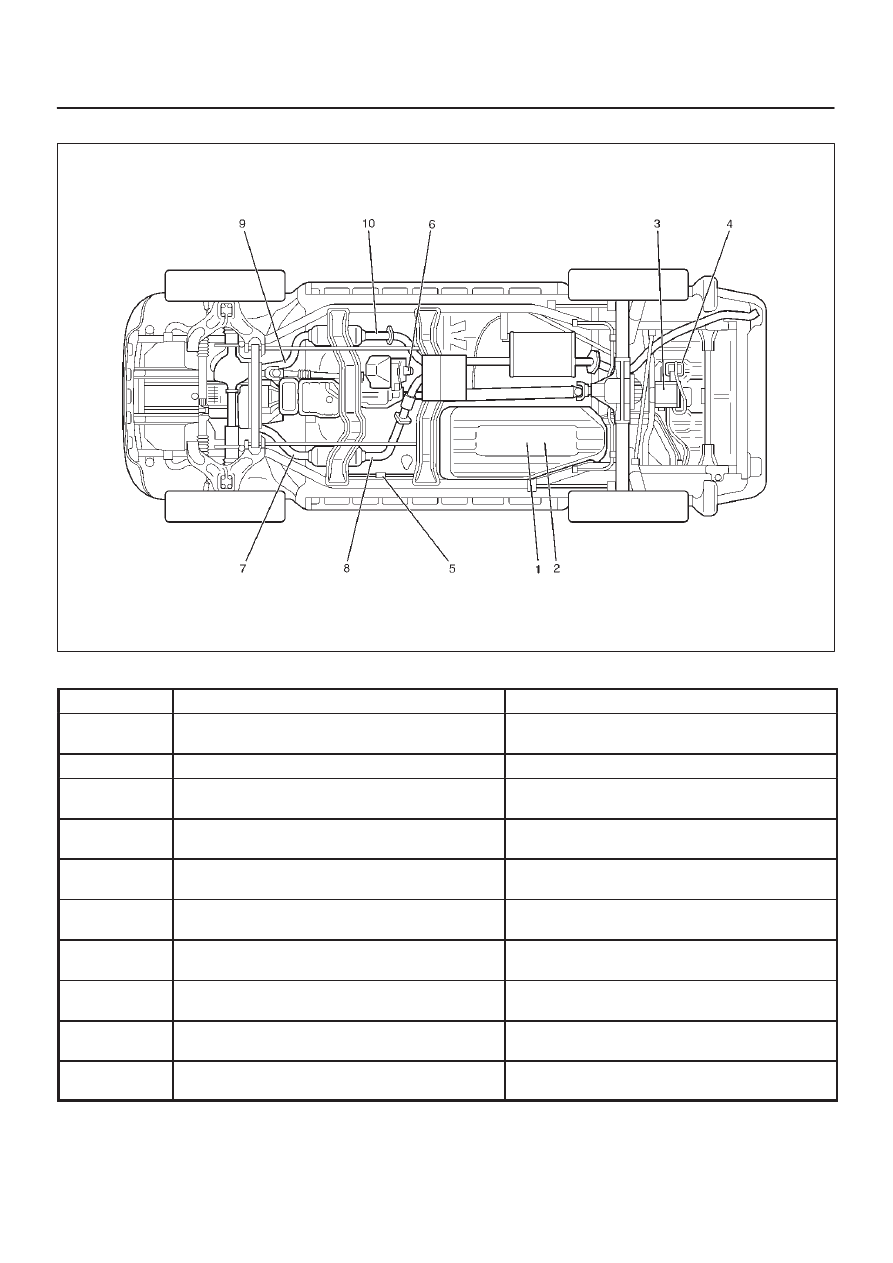

Undercarriage Component Locator

014RW142

Undercarriage Component Locator Table

Number

Name

Location

1

Fuel Pump Assembly and Vapor Pressure
(Fuel Tank Pressure) Sensor

Installed in the top of the fuel tank

2

Fuel Gauge Unit

Installed in the top of the fuel tank

3

Evaporative (EVAP) Canister

On the top of the bracket that is located behind
the cross member

4

Vent Solenoid (EVAP Canister)

On the top of the bracket that is located behind
the cross member

5

Fuel Filter

Located along the inside of the right frame rail,
ahead of the fuel tank

6

Vehicle Speed Sensor (VSS)

Protrudes from the transmission housing, just
ahead of the propeller shaft

7

Heated Oxygen Sensor (Bank 1, HO2S 1)

Threaded into the exhaust pipe behind the
right-hand catalytic converter

8

Heated Oxygen Sensor (Bank 1, HO2S 2)

Threaded into the exhaust pipe ahead of the
right-hand catalytic converter

9

Heated Oxygen Sensor (Bank 2, HO2S 1)

Threaded into the exhaust pipe ahead of the
left-hand catalytic converter

10

Heated Oxygen Sensor (Bank 2, HO2S 2)

Threaded into the exhaust pipe behind the
left-hand catalytic converter

6E2–30

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

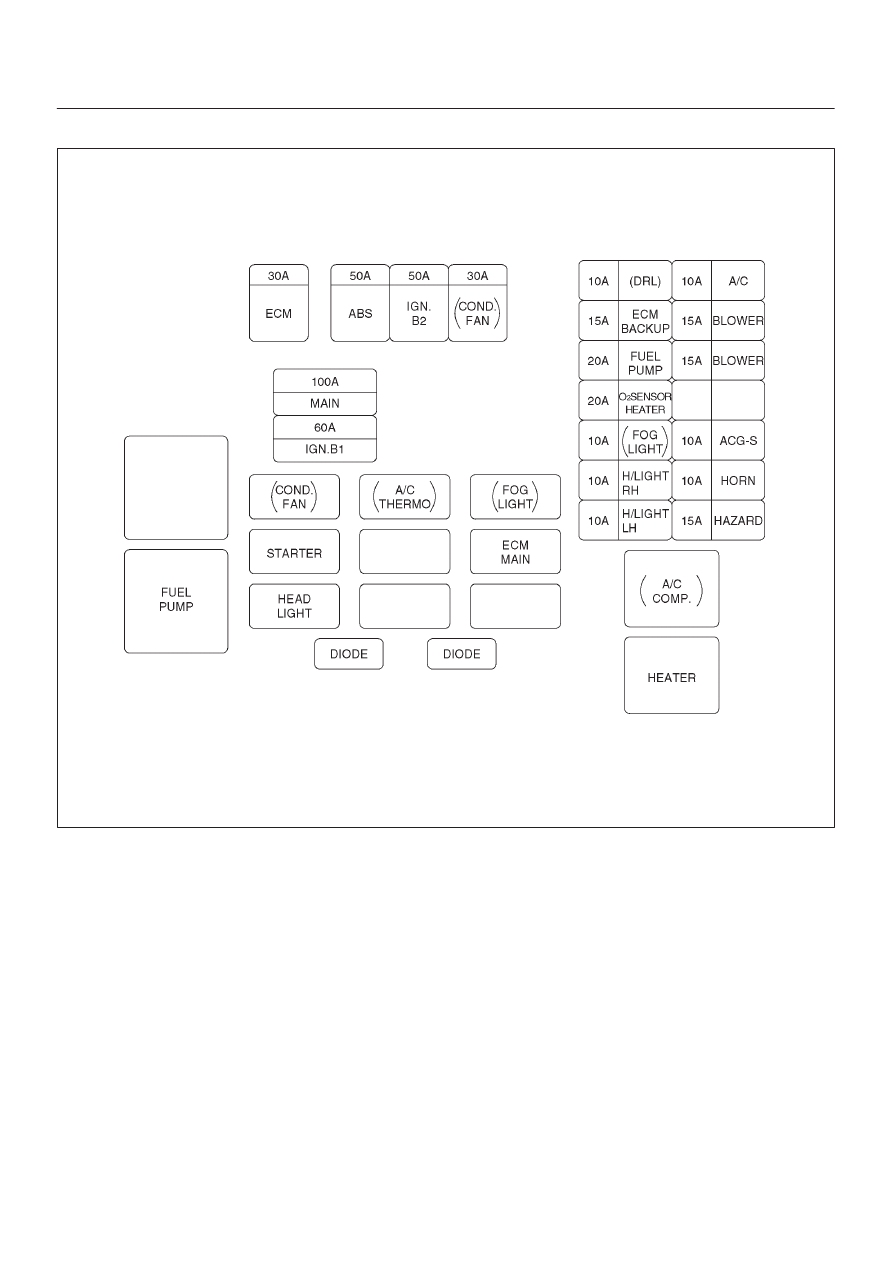

Fuse and Relay Panel (Underhood Electrical Center)

065RY00002
