4C–48

DRIVE SHAFT SYSTEM

Reassembly

1. Install wheel pin.

411RS005

D

Place hub on a wood workbench or a block of wood
approx.  6” by 6” to protect the wheel stud ends and
threads.

D

Install wheel stud, using a hammer.

NOTE: Be sure wheel stud is started squarely and seats
completely.

2. Install the hub unit bearing to the knuckle.

Tighten the bolts to the specified torque.

Hub unit bearing bolt

Torque: 103

±

10 N·m (10.5

±

 1 kg·m)

If there is rust on the bearing and knuckle contact
surfaces, use sandpaper to remove it before installation.

3. Install the ABS sensor connector.
4. Install the disc rotor.
5. Install the brake caliper to the bracket.

Refer to

Front disc caliper assembly in Section 5C of this

Manual.

4C–49

DRIVE SHAFT SYSTEM

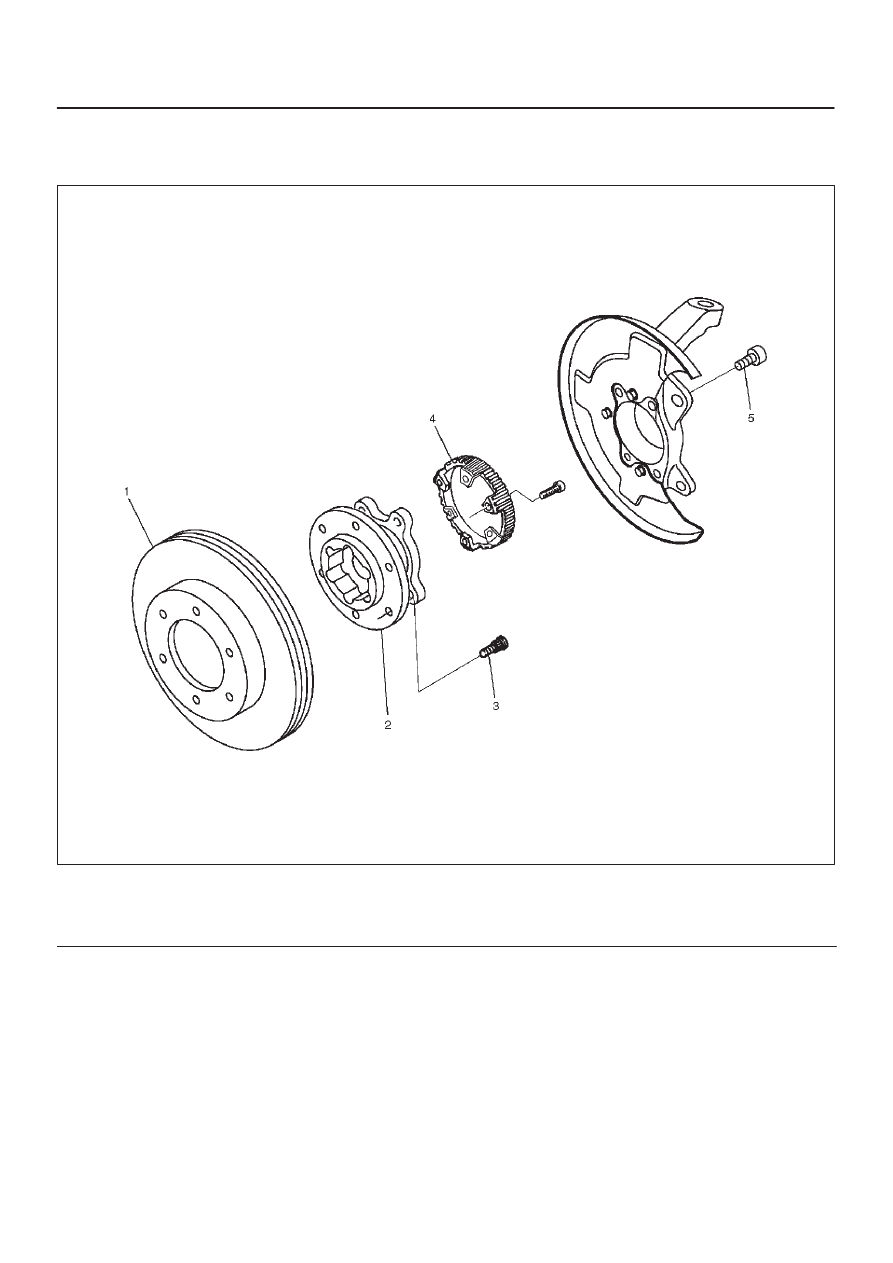

Front Hub and Disc (4WD Model)

Disassembled View

411R200010

Legend

(1) Disc Rotor
(2) Hub Unit, Bearing

(3) Wheel Pin
(4) ABS Sensor Ring
(5) Bolt

Disassembly

1. Move the transfer case lever to the 2WD position.
2. Raise the vehicle with a jack. Support the frame with

chassis stands.

3. Remove the brake caliper from the bracket. Secure

the caliper with a wire that it does not interfare with the
work process.

Refer to

Front disc caliper assembly in Section 5C of this

Manual.

4. Remove the disk rotor.

Apply penetrating oil to the bearing and disc rotor contact
surfaces if the surfaces are stuck together because of
rust.

5. Inspect the hub unit bearing. Refer to

inspection

below.

4C–50

DRIVE SHAFT SYSTEM

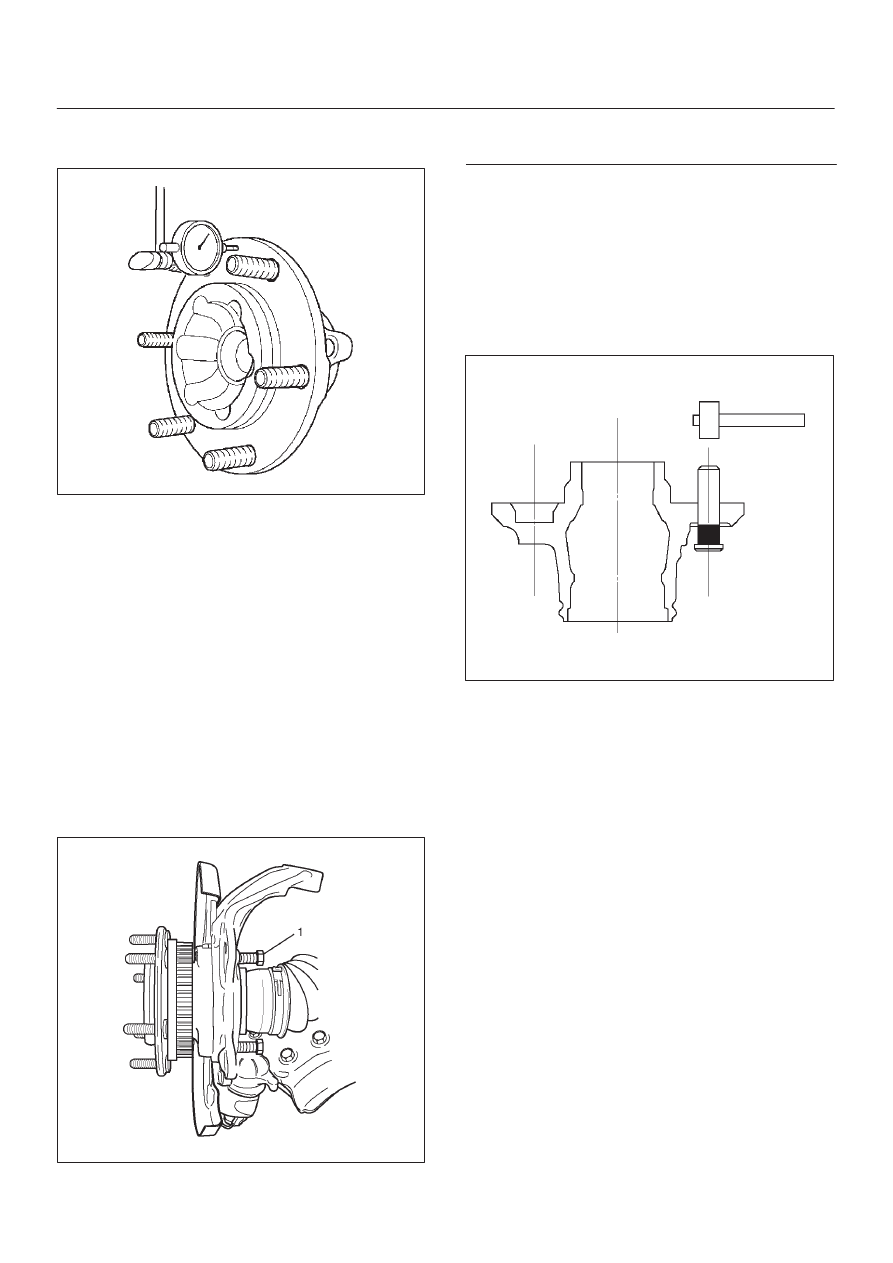

6. Use a dial gauge to measure the bearing axial rattle.

Bearing axial rattle: 0.05 mm max

411R200002

If abnormal conditins are discovered during
inspection, go to Step 7. If there are no abnormal
conditions, reassemble the front discrotor and
caliper.

NOTE: Hub, wheel bearing and spindle is integrated to
the hub unit bearing so it must not be disassembled. If it
has abnormal rattle or noize, replace the hub unit bearing.

7. Loosen the caulking around the front drive shaft nuts.
8. Remove the nuts and discard them (they cannot be

reused).

9. Remove the 4 bolts fixing the hub unit bearing to the

knuckle.

Apply penetrating oil to the bearing and knuckle contact
surfaces if the surfaces are stuck together because of
rust.

10. Temporarily install long bolts to 2 of the fixing bolt

holes (the bolts must have the same diameter and
thread width).

411R200012

Legend

(1) Bolt

11. Strike the long bolts with a hammer to loosen and

remove the hub unit bearing from the knuckle.

D

Take care not to strike the front drive shaft.

D

Take care not to drop the bearing.

12. Remove the ABS rotor sensor from the bearing.
13. If necessary, replace the wheel pin in the following

manner.

D

Place hub on a suitable work surface and remove
wheel studs, as required, using a hammer.

411RS004

Inspection

Inspect the parts listed below for abrasion, breakage, and
other abnormal conditions.
Repair or replace the parts as required.

D

Disc

D

Caliper

D

Drive shaft oil seal

D

ABS sensor rotor

D

Wheel pin

D

Hub unit bearing

4C–51

DRIVE SHAFT SYSTEM

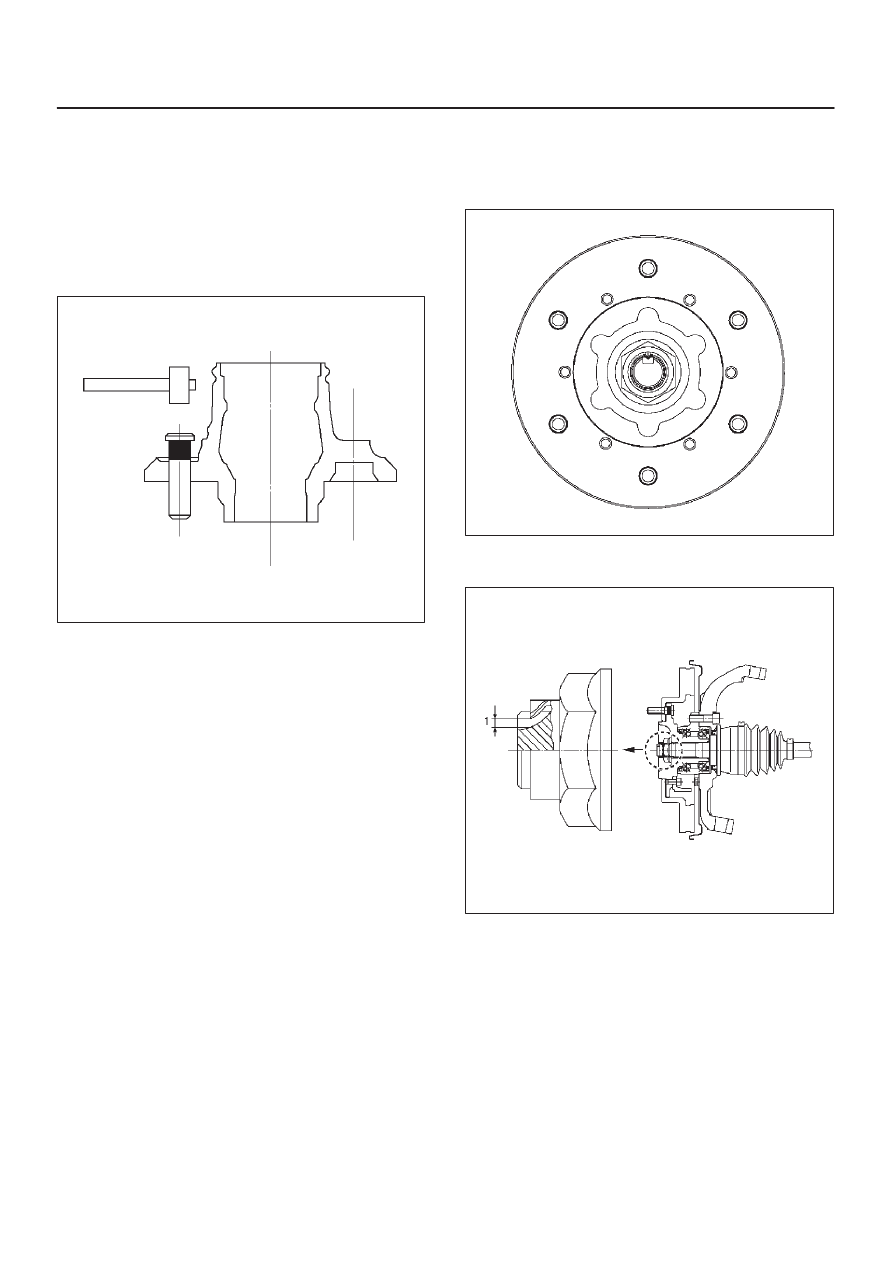

Reassembly

1. Install the wheel pin.

D

Place hub on a wood workbench or a block of wood
approx. 6” by 6” to protect the wheel stud ends and
threads.

D

Install the wheel stud, using a hammer.

NOTE: Be sure wheel stud is started squarely and seats
completely.

411RS005

2. Install the ABS rotor sensor to the hub unit bearing.

Tighten the bolts to the specified torque.

ABS rotor sensor bolt

Torque: 18.7

±

5 N·m (1.9

±

0.5 kg·m)

3. Install the hub unit bearing to the knuckle. Tighten the

bolts to the specified torque.

Hub unit bearing bolt

Torque: 103

±

10 N·m (10.5

±

1 kg·m)

If there is rust on the bearing and knuckle contact
surfaces, use sandpaper to remove it before installation.
Take care not to push the front drive shaft and oil seal out
of position.

4. Hand tighten the front drive shaft nuts.

Use new nuts.

5. Install the disc rotor.
6. Install the brake caliper to the bracket.

Refer to

Front disc caliper assembly in Section 5C of this

Manual.

7. Tighten the front drive shaft nuts to the specified

torque.

Front drive shaft nut

Torque: 245

±

19.6 N·m (25

±

2 kg·m)

411R200005

8. Caulk the front drive shaft nuts.

The caulking must be free of cracks.

411R200006
