RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

type spark plug with the same physical dimensions as the
original equipment spark plug.

3. Check the gaskets for damage and replace if

necessary.

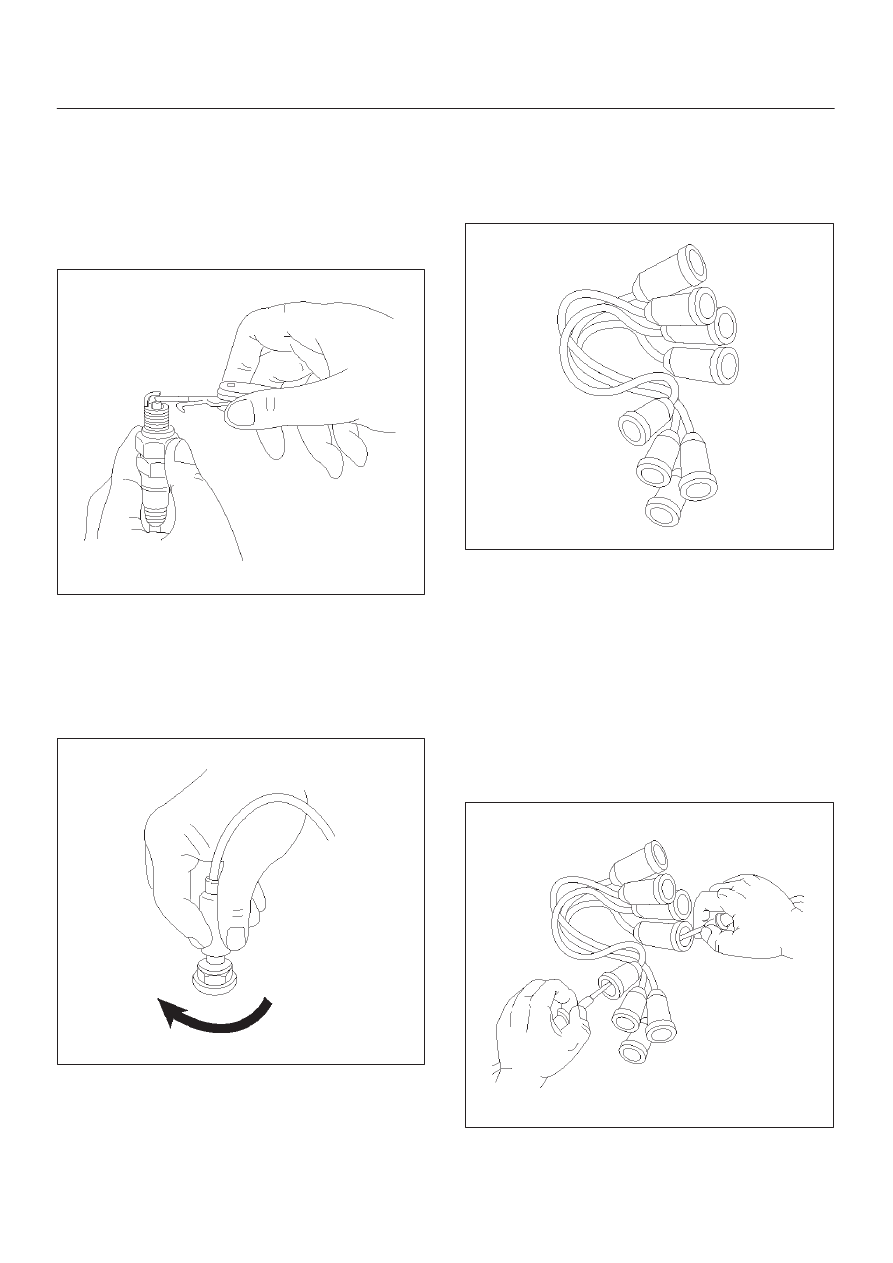

4. Measure the spark plug gap. The specification is 1.05

mm (0.040”).

5. Adjust the spark gap by bending the grounded

electrode.

014RX048

Installation Procedure

1. Tighten the spark plug to the 25 Nm (18 lb ft).
2. Push the spark plug cable in until it snaps in.
3. Install spark plug cover onto valve cover and secure it

with four retaining bolts.

014RX049

Spark Plug Cables

Spark Plug Cables

The cable contains a synthetic conductor which is easily
damaged. Never stretch or kink the cable. Disconnect the
cable from spark plug and the ignition coil.

The original equipment cables and the ignition coil are
marked to show correct location of the cables. If spark
plug cables or the ignition coil are replaced previously,
before cables are removed from the ignition coil, mark the
cables and the coil so they can be reconnected in the
same position.

014RX050

Inspection Procedure

NOTE: Never puncture the spark plug cable’s insulation
with a needle or the pointed end of a probe into the cable.
An increase in resistance would be created which would
cause the cable to become defective.

1. If the cable has broken or cracked insulation, it must

be replaced.

2. If the terminals are corroded or loose, the cable must

be replaced.

3. Check that the cable resistance does not exceed 10 k

W

 per foot.

014RX051

6E1–429

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

EMISSIONS  Catalytic Converter

Catalytic Converter

Refer to Engine Exhaust.

Air Conditioning Relay

Removal Procedure

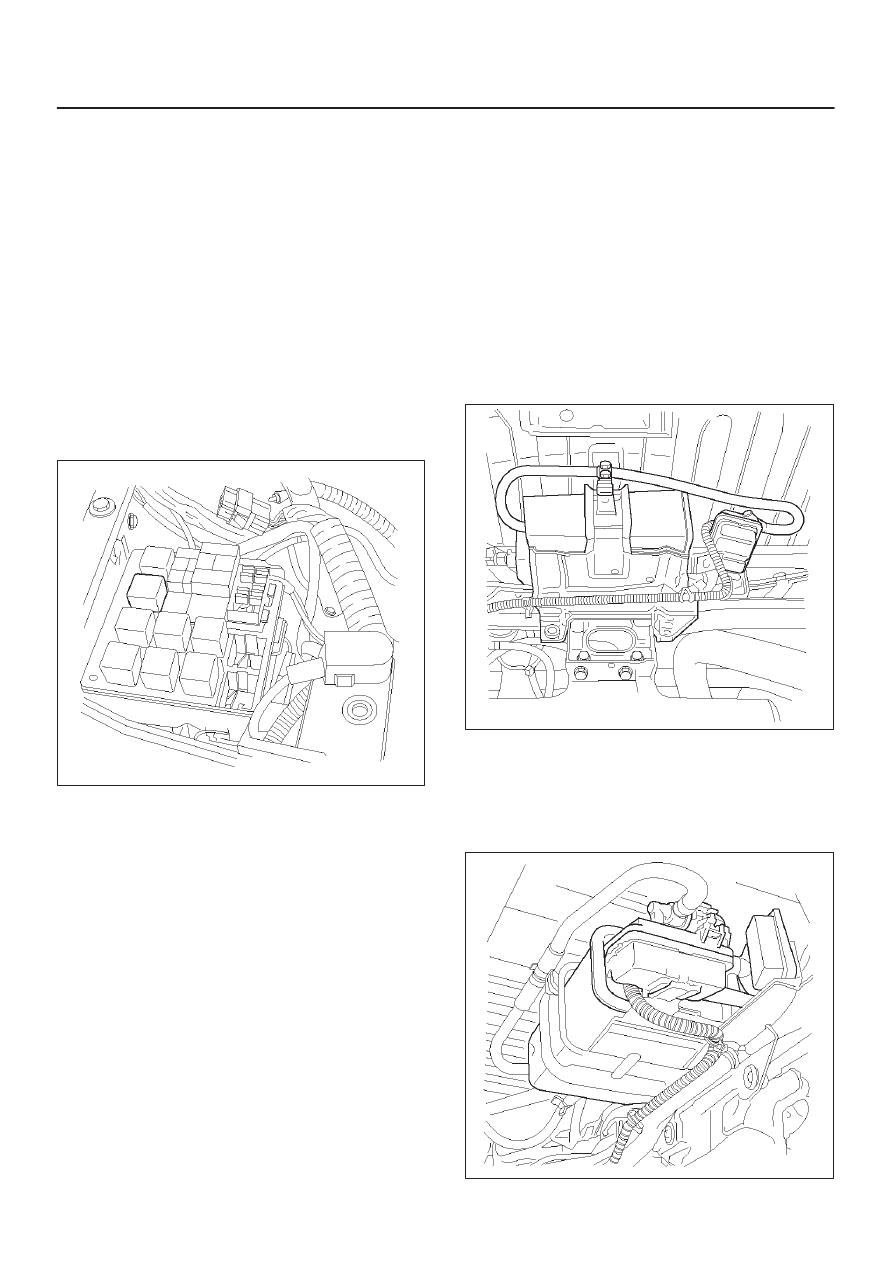

1. Remove the fuse and relay box cover at right side of

engine room.

2. Refer to the diagram on the cover to determine which

is the correct relay.

3. Insert small screwdriver or use thumb pressure to

release the retainer of the relay.

4. Pull the relay straight up and out of the fuse and relay

box.

014RX052

Installation Procedure

1. Insert the relay into the correct place in the fuse and

relay box with the catch slot aligned to retainer.

2. Press down until the catch of retainer engages.
3. Install fuse and relay box cover.

Ignition Timing Adjustment

Ignition Timing Adjustment

There is no timing adjustment. The timing signal is
furnished by the CKP and the CMP signal. PCM control
the ignition timing.

EVAP Canister Hoses

EVAP Canister Hoses

To see the routing of the EVAP canister hoses, refer to
Vehicle Emission Control Information in Diagnosis or

Emission Label located bottom side ofthe hood. Use
6148M or equivalent when you replace the EVAP canister
hoses.

EVAP Canister

Removal Procedure

1. Disconnect all hoses.
2. Remove two mounting bracket nuts.

Inspection Procedure

1. Inspect the hoses for cracks, damage and leaks.
2. Inspect the canister for damages.

014RX001

Installation Procedure

1. Install EVAP canister onto crossmember with two

mounting bolts.

2. Connect all hoses and secure them with clamps.

014RX054

6E1–430

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

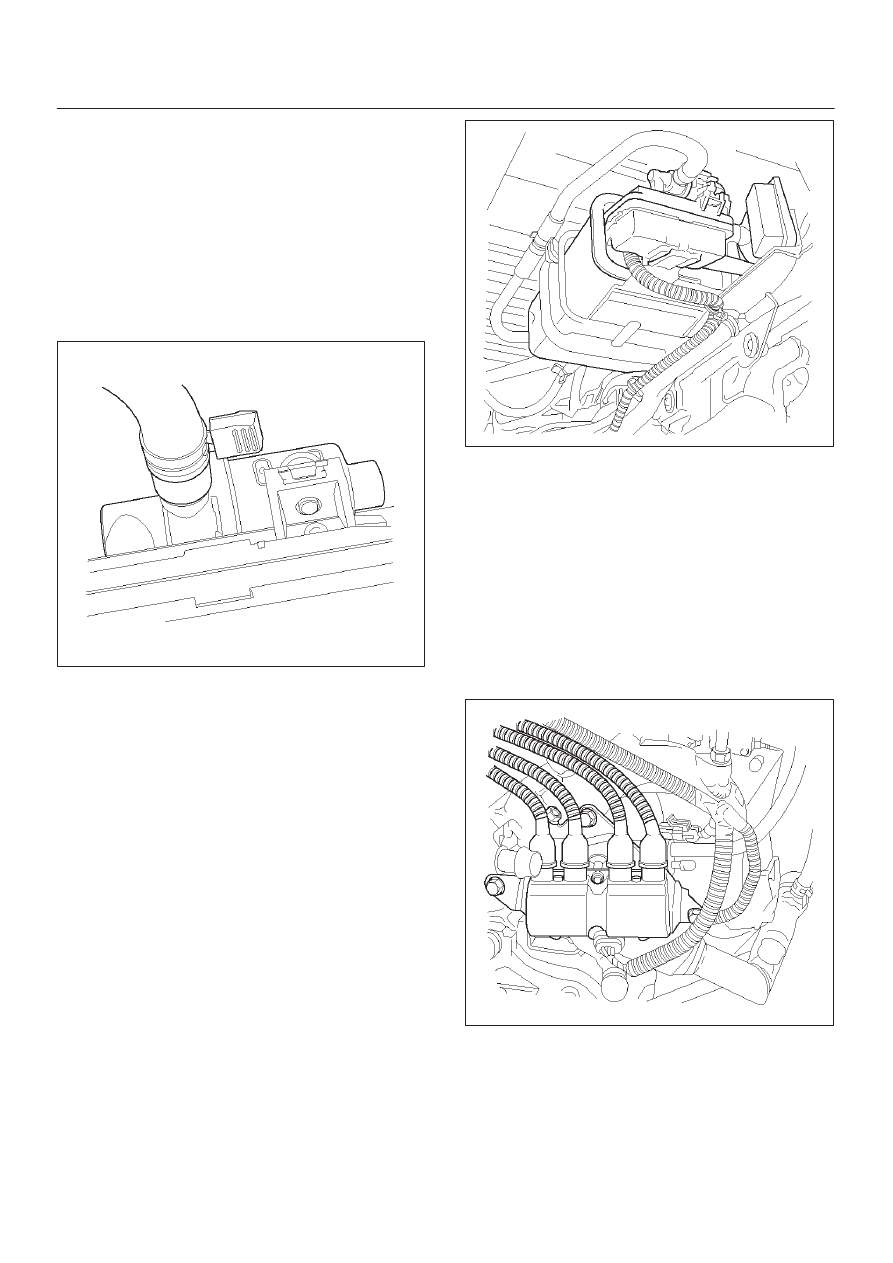

EVAP Canister Vent Solenoid

Removal Procedure

1. Disconnect the negative battery cable.
2. Disconnect electrical connector at the vent valve.
3. Disconnect vent hoses from the solenoid valve.
4. Remove the filter and vent valve solenoid assembly

by pulling it out from bracket.

5. Remove a screw holding the solenoid.
6. Remove vent valve solenoid from filter.

014RX055

Installation Procedure

1. Install the vent valve solenoid to the filter and secure it

witha screw.

2. Insert the vent valve assembly onto EVAP canister

bracket.

3. Connect all hoses and secure them with clamps.
4. Connect electrical connector at vent valve solenoid.
5. Connect the negative battery cable.

014RX054

EVAP Canister Purge Valve

Solenoid

Removal Procedure

1. Disconnect the negative battery cable.
2. Disconnect electrical connector from EVAP purge

solenoid located just front of the ignition coil.

3. Disconnect the vacuum hoses from the solenoid.
4. Remove the ignition coil. Refer toIgnition Coil

Removal Procedure.

014RX044

6E1–431

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

5. Remove the three bolts holding the ignition coil

bracket.

6. Remove the ignition coil bracket with the purge

solenoid still attached to it.

7. Insert small screw driver into the catch from the

bottom hole to release the catch.

8. Slide EVAP purge solenoid out form the ignition

bracket.

014RX042

Installation Procedure

1. Insert EVAP purge solenoid valve onto the ignition

coil bracket.

2. Install the ignition coil bracket to back of intake

manifold.

3. Install the ignition coil. Refer to Ignition Coil

Installation Procedure.

4. Connect vacuum hoses and electrical connector at

the purge valve.

014RX044

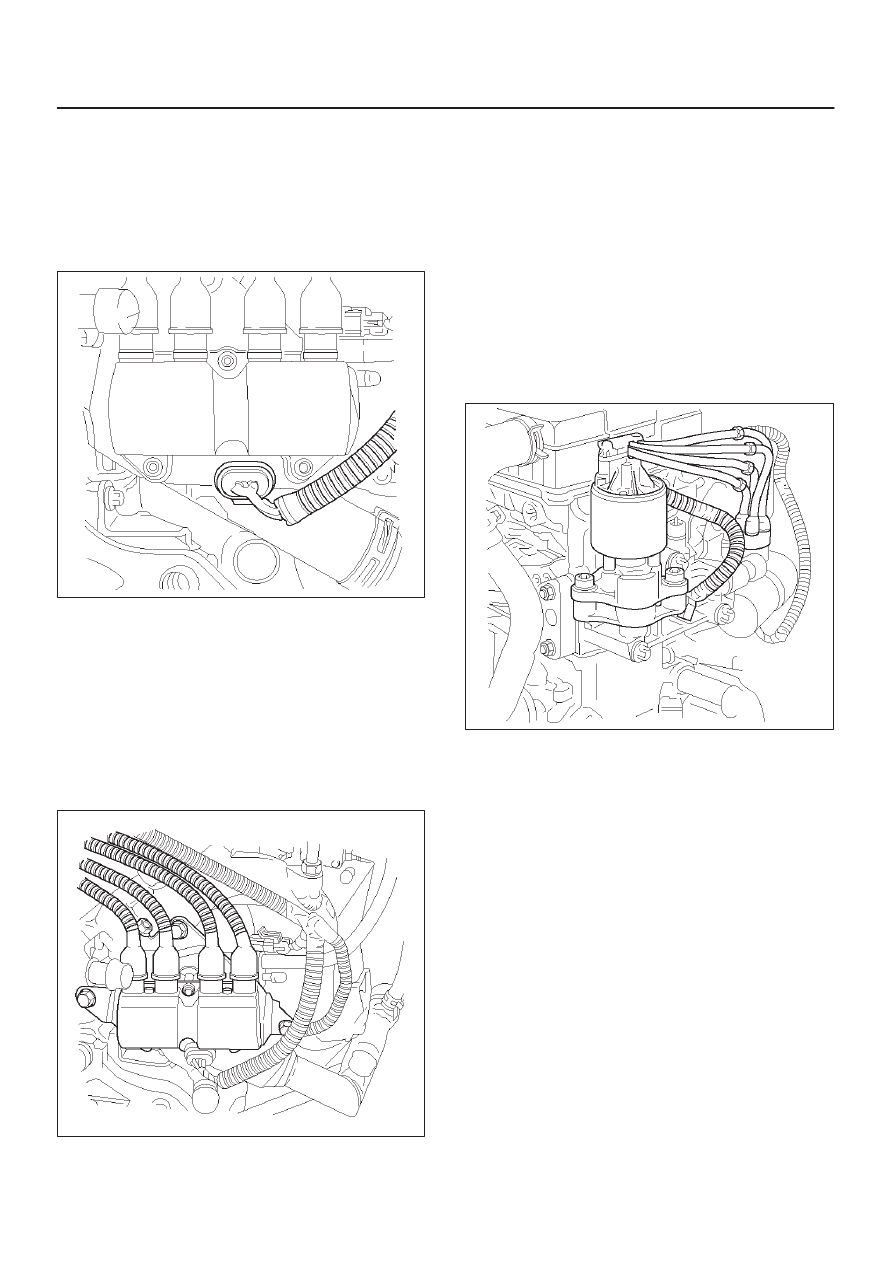

Linear Exhaust Gas

Recirculation (EGR) Valve

Removal Procedure

1. Disconnect the negative battery cable.
2. Disconnect electrical connector at EGR valve.
3. Disconnect the electrical connector at Intake Air

Temperature Sensor.

4. Remove air intake duct. Refer to Air Intake Duct

Removal Procedure.

5. Remove crankshaft breather hose.
6. Remove two bolts holding EGR valve.
7. Remove EGR valve and gasket from the manifold.

057RX001

Inspection Procedure

1. Inspect the air passage for a restrtiction. If there is

restriction, remove the object. Do not use any type of
solvent, it may damage electrical system of EGR
valve.
