RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

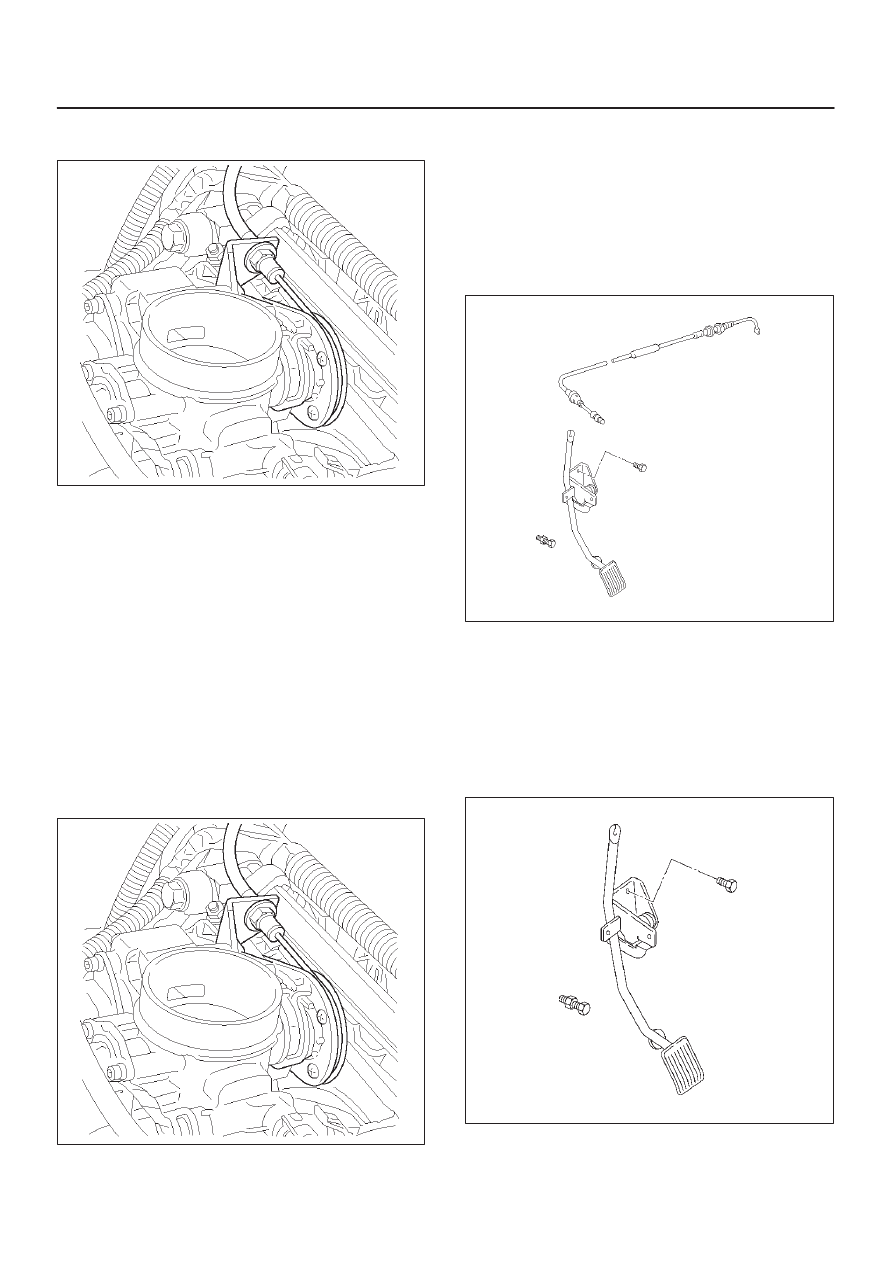

3. Remove accelerator control cable (on the throttle

valve end).

101RW006

4. Remove the accelerator control cable (on the

accelerator pedal end).

5. Remove the grommet.
6. Remove the accelerator control cable.

Inspection Procedure

Check the following items, and replace the control cable if
any abnormality is found:

D

The control cable should move smoothly.

D

The control cable should not be bent or kinked.

D

The control cable should be free of damage and
corrosion.

014RX032

Installation Procedure

1. Install the accelerator control cable.
2. Install the grommet.
3. Install the accelerator control cable on the accelerator

pedal.

014RX032

4. Install the accelerator control cable on the throttle

valve.

101RW006

5. Install the cable clip to the holding bracket.

6E1–413

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

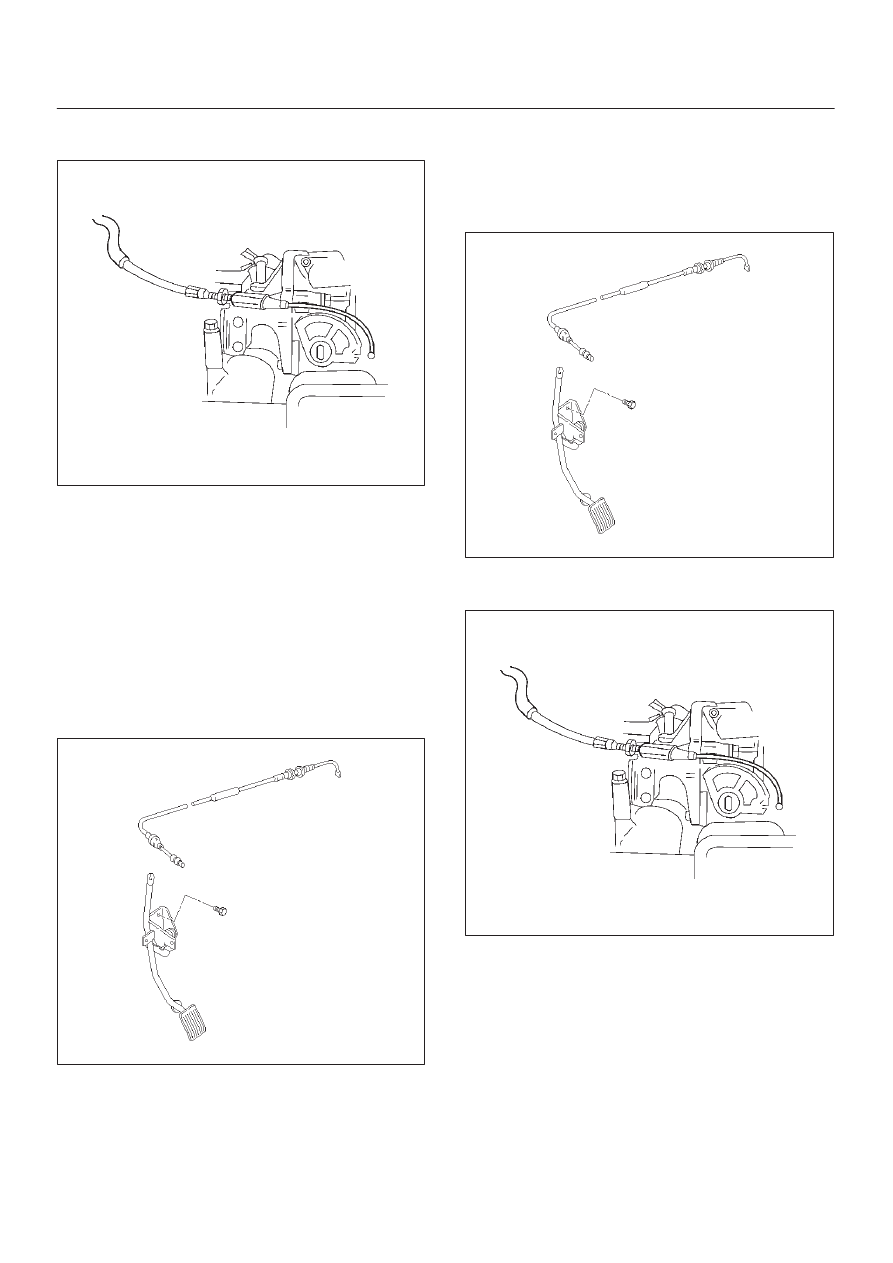

6. Adjust the accelerator cable. Refer to Accelerator

Cable Adjustment Section.

014RX026

Accelerator Cable  Adjustment

Adjustment Procedure

1. Loosen the adjusting nut.
2. Loosen the jam nut.
3. Pull the outer cable while fully closing the throttle

valve.

4. Tighten the adjusting nut.
5. Tighten the jam nut.
6. Loosen the adjusting nut by three turns.
7. Tighten the jam nut again.
8. Manually operate valve.

IMPORTANT:

 The valve lever must return up to the

stopper screw.  If the valve lever does not reach the
stopper screw, repeat the procedure again from Step 1.

014RX026

Accelerator Pedal Replacement

Removal Procedure

1. Disconnect the accelerator pedal control cable from

the acceleratorpedal assembly.

2. Remove the two screws retaining the accelerator

pedal to the bulkhead.

3. Remove the accelerator pedal from the bulkhead.

014RX033

Installation Procedure

1. Install the accelerator pedal assembly to the

bulkhead with two screws.

2. Connect the accelerator control cable to the

accelerator pedal assembly.

3. Adjust accelerator cable if necessary. Refer to

Accelerator Cable Adjustment Section.

014RX034

6E1–414

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

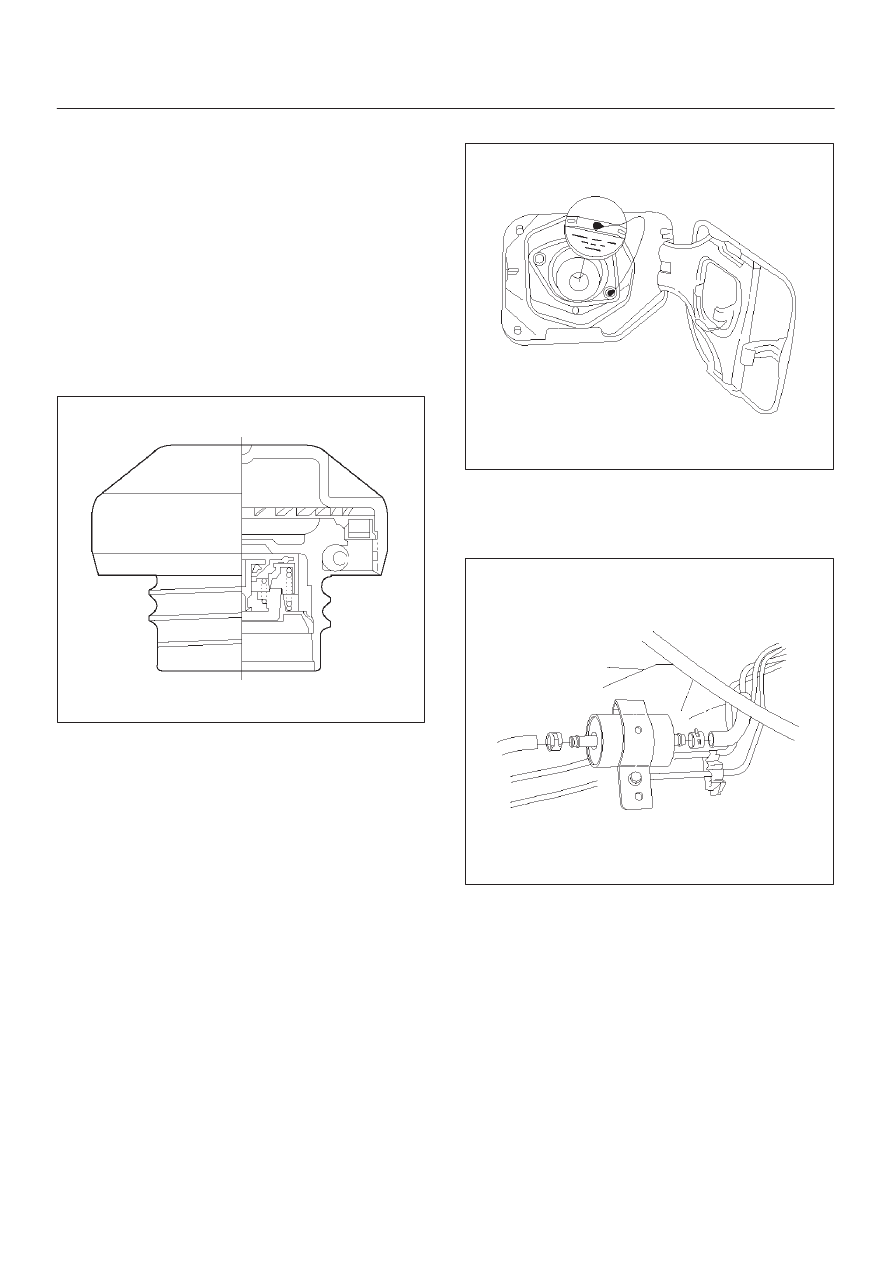

Fuel Filler Cap

Fuel Filler Cap

The Fuel filter cap includes a vacuum valve and a
pressure valve. If high vacuum or pressure occurs in the
fuel tank, each valve works to adjust the pressure in order
to prevent damage to the tank at the EGR valve.

Inspection Procedure

NOTE: Replace the fuel filler cap with the same typeof
filler cap that was originally installed on the vehicle.

D

Check the seal ring in the filler cap for any abnormality
and for seal condition.

D

Replace the filler cap if any abnormality is found.

TS23767

Fuel Filter

Removal Procedure

1. Disconnect the negative battery cable.

2. Remove the fuel filler cap.

041RW005

3. Disconnect the fuel lines from the fuel filter on the

engine side.

4. Disconnect the fuel line from the fuel filter on the fuel

tank side.

041RW006

5. Remove the bolt on the fuel filter holder.

6E1–415

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

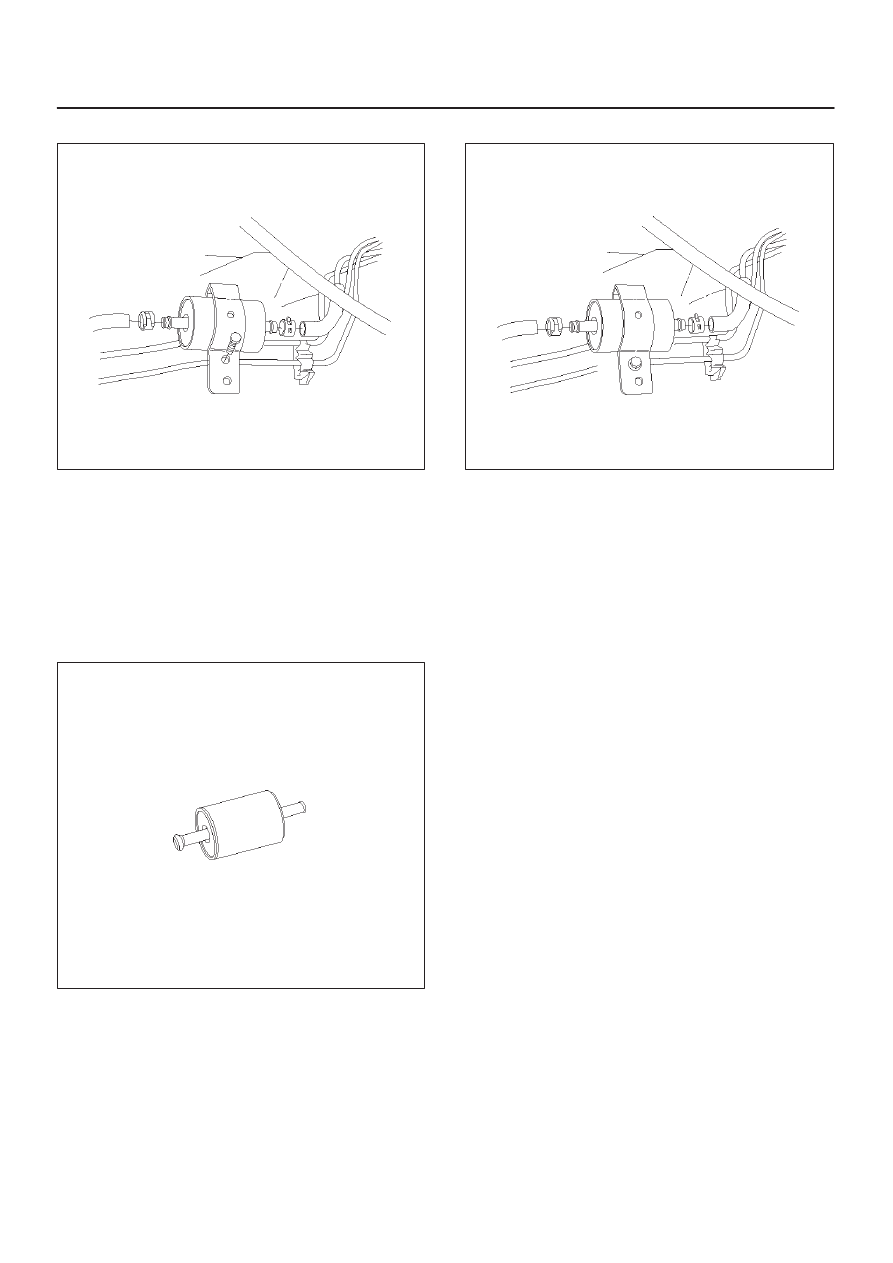

6. Remove the fuel filter.

041RW007

Inspection Procedure

1. Replace the fuel filter when the following occur:

D

Fuel leaks from the fuel filter body

D

The fuel filter body is damaged

D

The fuel filter is clogged with dust or sediment

2. If the drain hole is clogged at filler neck is clogged with

dust, clean the drain hole with air.

041RW008

Installation Procedure

1. Install the fuel filter in the correct direction.
2. Install the bolt on the fuel filter holder.
3. Connect the fuel line on the engine side.
4. Connect the fuel line on the fuel tank side.
5. Install the fuel filler cap.

6. Connect the negative battery cable.

041RW006
