6D3–10 STARTING AND CHARGING SYSTEM (Y22SE 2.2L)

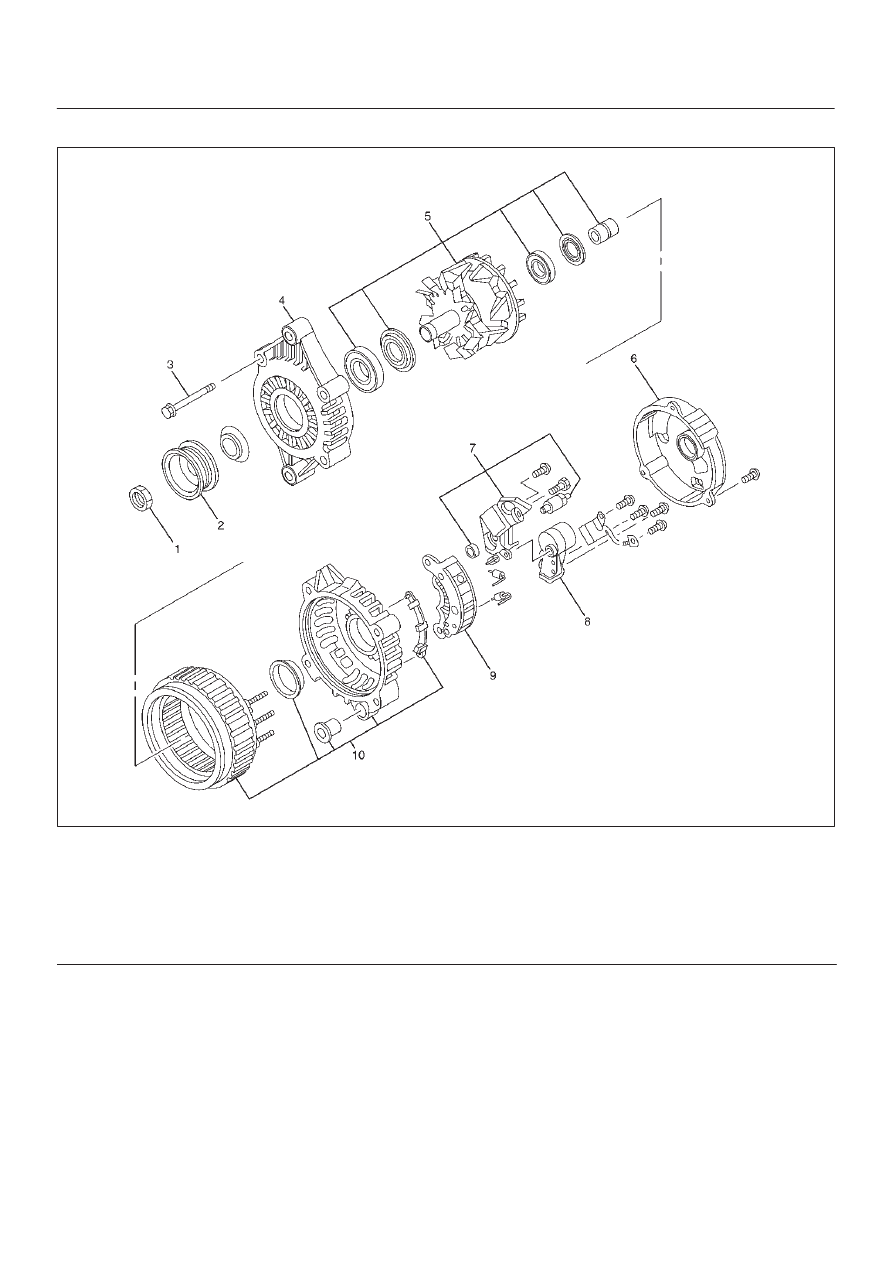

Disassembled View

066R100003

Legend

(1) Pulley Nut
(2) Pulley
(3) Through Bolt
(4) Front Cover Assembly
(5) Rotor Assembly

(6) Cover
(7) Regulator Assembly
(8) Brush Holder Assembly
(9) Rectifire

(10) Rear Cover Assembly

6D3–11

STARTING AND CHARGING SYSTEM (Y22SE 2.2L)

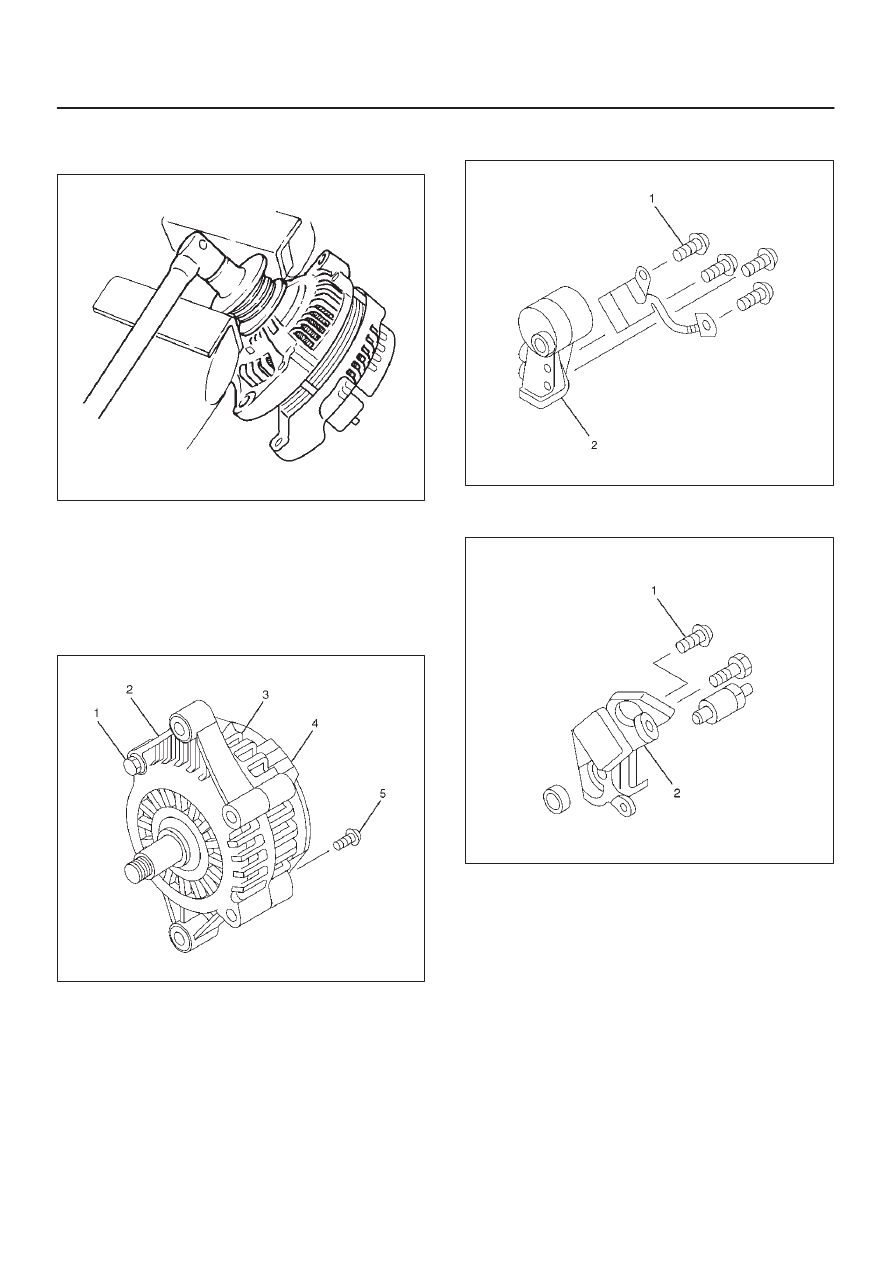

Disassembly

1. Belt pulley nut.

066R100004

2. Remove the four through bolts (1).
3. Remove the front cover (2).
4. Remove the three cover fixing bolts (5), regulator

terminal nut and battery terminal nut.

5. Remove the cover (4).
6. Remove the rotor assembly.
7. Remove the rear cover assembly (3).

066R100005

8. Remove the four brush holder fixing bolts and brush

holder assembly.

066R100006

9. Remove the two regulator fixing bolts and regulator

assembly.

066R100007

6D3–12 STARTING AND CHARGING SYSTEM (Y22SE 2.2L)

Inspection and Repair

Repair or replace necessary parts if extreme wear or
damage is found during inspection.

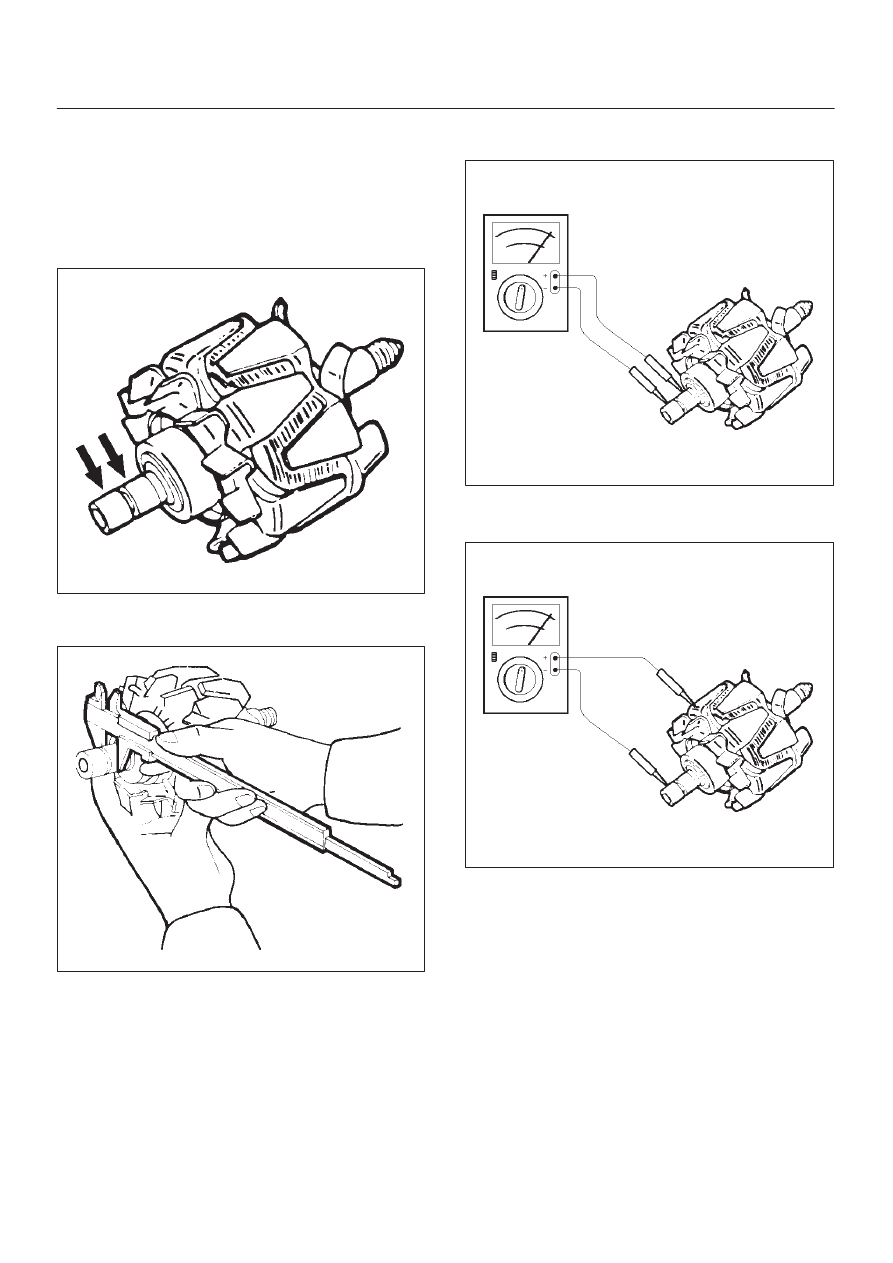

Rotor Assembly

1. Check the rotor slip ring surfaces for contamination

and roughness. If rough, polish with #500–600
sandpaper.

066RS014

2. Measure the slip ring diameter, and replace if it

exceeds the limit.

066RS015

3. Check continuity between slip rings, and replace if

there is no continuity.

066RS016

4. Check for continuity between slip ring and rotor core.

In case of continuity, replace the generator assembly.

066RS017

6D3–13

STARTING AND CHARGING SYSTEM (Y22SE 2.2L)

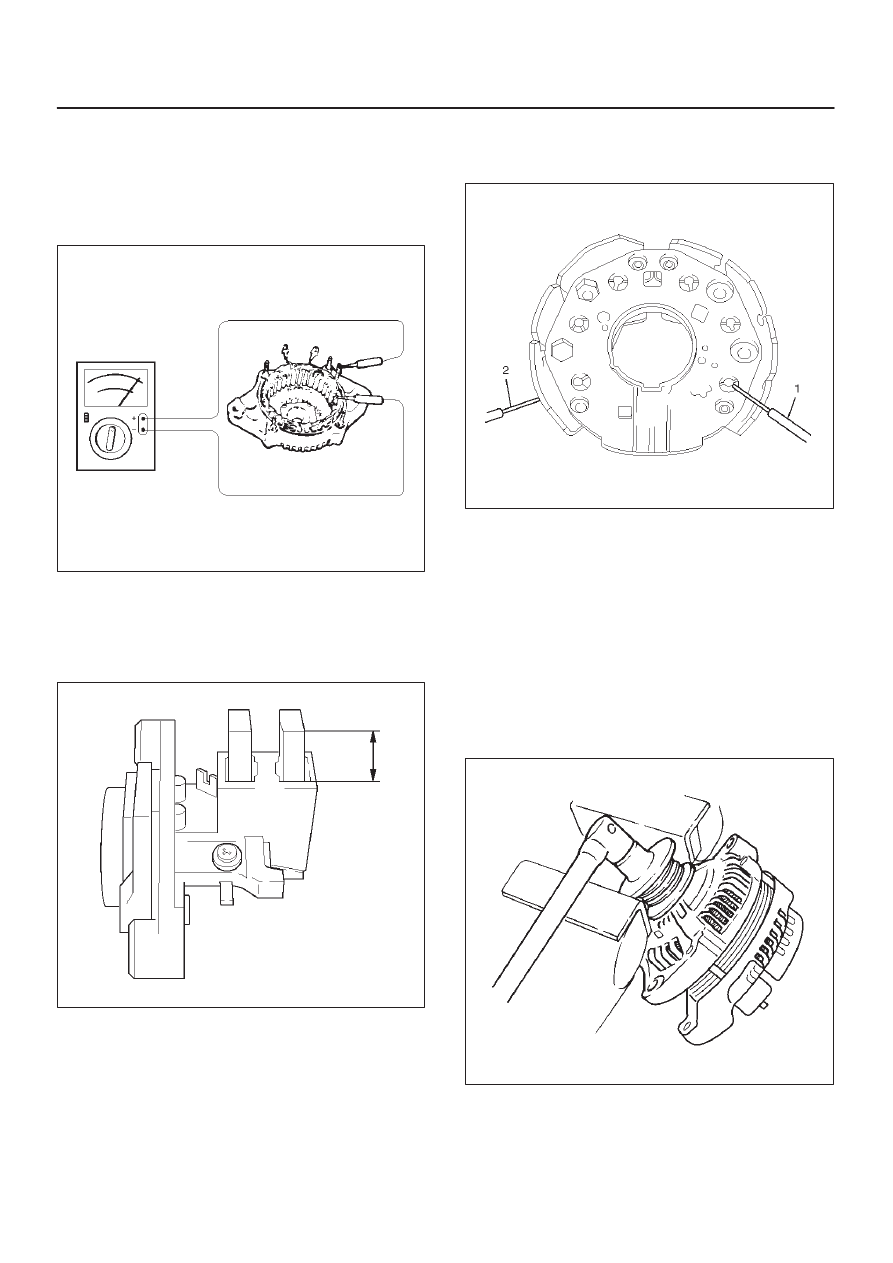

Stator Coil

1. Measure resistance between respective phases.
2. Measure insulation resistance between stator coil

and core with a mega–ohmmeter.
If less than standard, replace the generator
assembly.

066RS018

Brush

Measure the brush length.
If more than limit, replace the brush.

Standard: 5 mm (0.20 in)

066RW009

Rectifier Assembly

Check for continuity across “1” and “2” in the

×

 100W

range of multimeter.

066RW011

Change polarity, and make sure that there is continuity in
one direction, and not in the reverse direction.  In case of
continuity in both directions, replace the rectifier
assembly.

Reassembly

To reassemble, follow the disassembly steps in the
reverse order, noting the following points:

1. Install pulley on the rotor shaft.

Clamp pulley to the vise, and tighten nut to the
specified torque.

Torque: 40 N·m (30 lb ft)

066R100004
