3F–6

INTELLIGENT SUSPENSION

F03RY00004

EndOFCallout

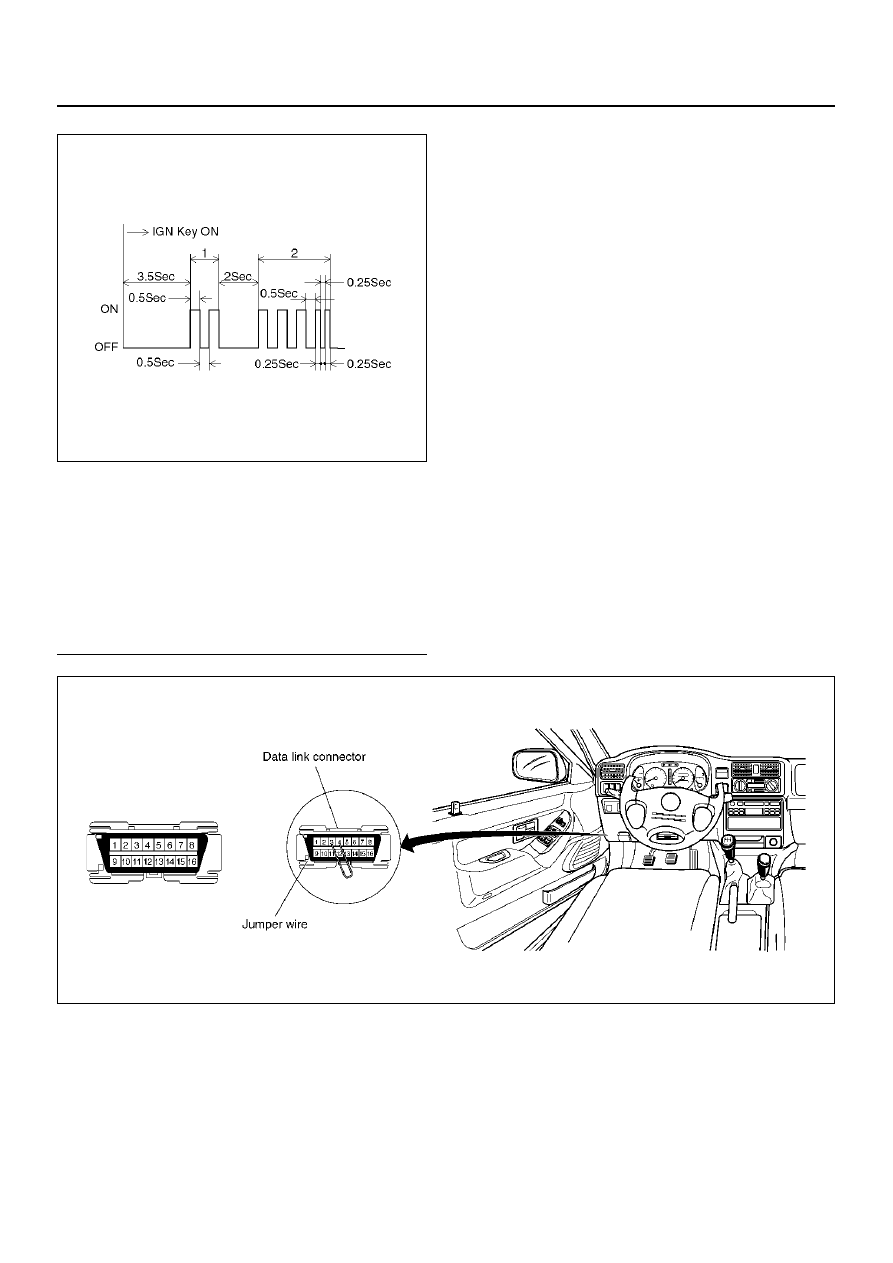

2 After this, the warning lamp will be OFF for 3.5

seconds and then will flash each DTC.

1 When there are more than 9 flashes this

means that the indicator is constantly
flashing, OFF for 4 seconds ON for 0.5
seconds. In this case there is no DTC stored
in memory.

2 When there are less than 9 flashes you will

see DTC codes in ascending order.

CLEAR DTC

Any deleted DTCs (Diagnostic Trouble Code) can no
longer be accessed. However, the DTC can be
reproduced (which may involve a test drive or simply
turning on the ignintion depending on the fault) if the
fault needs to be studied or was deleted by mistake.

1. Short the Data Link Connector C-34 terminal 3 to

terminal 4 or 5 (ground).

• If it is flashing and the flash is 0.5 seconds ON and 4

seconds OFF without interruption, this means that
there is no DTC. The DTCs are already cleared.

350R100002

2. Wait until the lamp is flashing.

3. Press on the brake pedal every two seconds six or

more times.

Legend

(1) Diagnostic Trouble Code 2
(2) Diagnostic Trouble Code 3 + Position Code 2

Position Code

1: Actuator Front RH, G-sensor Front RH
2: Actuator Front LH, G-sensor Front LH
3: Actuator Rear RH, G-sensor Rear
4: Actuator Rear LH, Lateral G-sensor

INTELLIGENT SUSPENSION

3F–7

INTERMITTENT CONDITIONS

If the Warning Lamp flashes a diagnostic trouble code
as intermittent, or if after a test drive a DTC does not
reappear though the detection conditions for this DTC
are present: the problem is most likely a faulty electrical
connection or loose wiring. Terminals and grounds
should always be the prime suspect. Intermittents rarely
occur inside sophisticated electronic components such
as the Control Unit.
Use the DTC information to understand which wires and
sensors are involved.
When an intermittent problem is encountered, check
suspect circuits for:

1. Poor terminal to wire connection.

2. Terminals not fully seated in the connector body

(backed out).

3. Improperly formed or damaged terminals.

4. Loose, dirty, or corroded ground connections:

HINT: Any time you have an intermittent in more
than one circuit, check whether the circuits share a
common ground connection.

5. Pinched or damaged wires.

6. Electro-Magnetic Interference (EMI):

HINT: Check that all wires are properly routed away
from spark plug wires, distributor wires, coil, and
generator. Also check for improperly installed
electrical options, such as lights, 2-way radios, etc.

BULB CHECK

When the starter switch is turned on in the normal state,
the Control Unit turns on the Warning Lamp to check the
bulb. After the engine starts, the Warning Lamp turns
off.

F03RY00003

DTC CHECK

1. Diagnostic Trouble Codes (DTC) have been

identified by FLASHING CODES.

2. List the DTCs. Normally one or two DTCs may

appear for every fault.

3. The DTCs appear in ascending order.

DIAGNOSTIC TROUBLE CODES.

3F–8

INTELLIGENT SUSPENSION

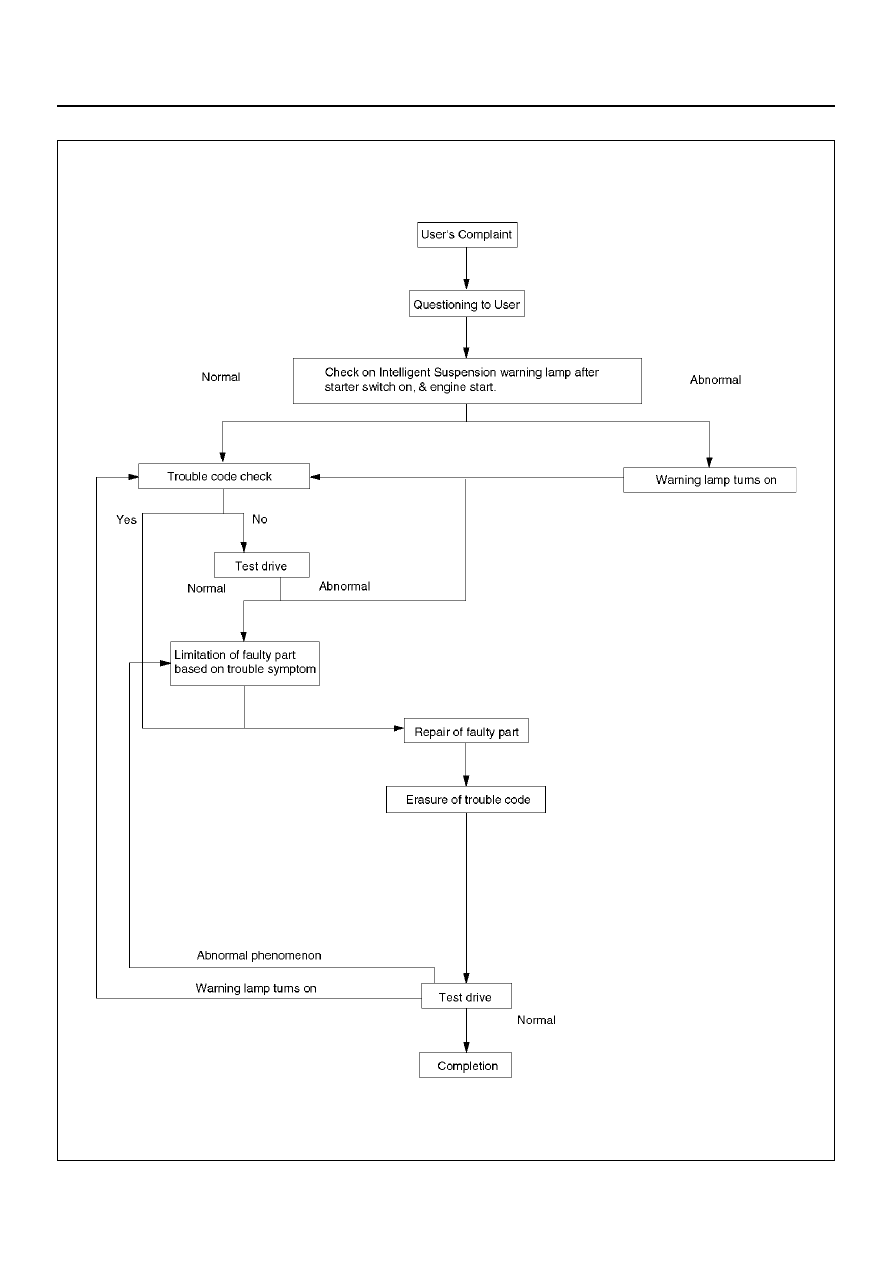

Basic Diagnosis Flow

C07RY00022

INTELLIGENT SUSPENSION

3F–9

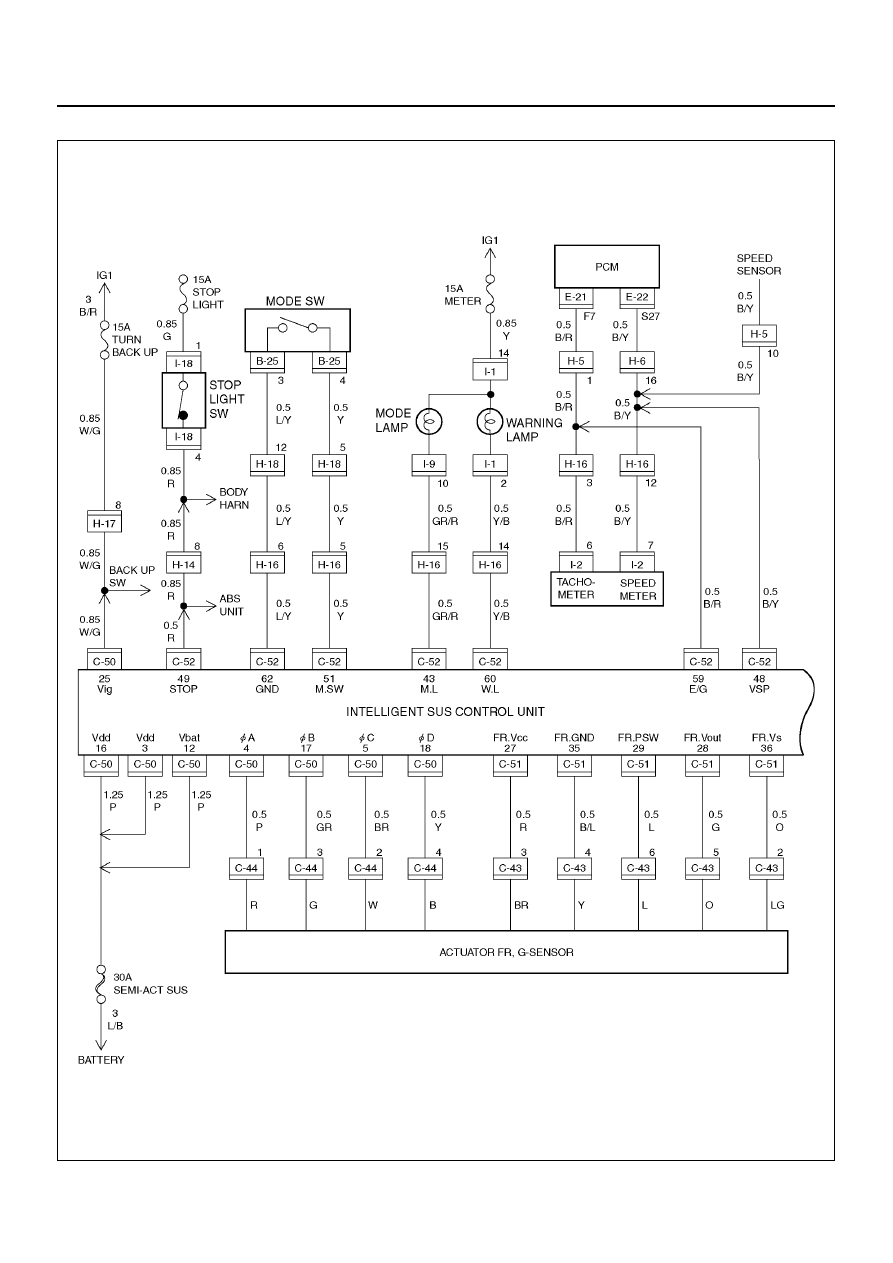

Circuit Diagram

826R200026
