3E–8

WHEEL AND TIRE SYSTEM

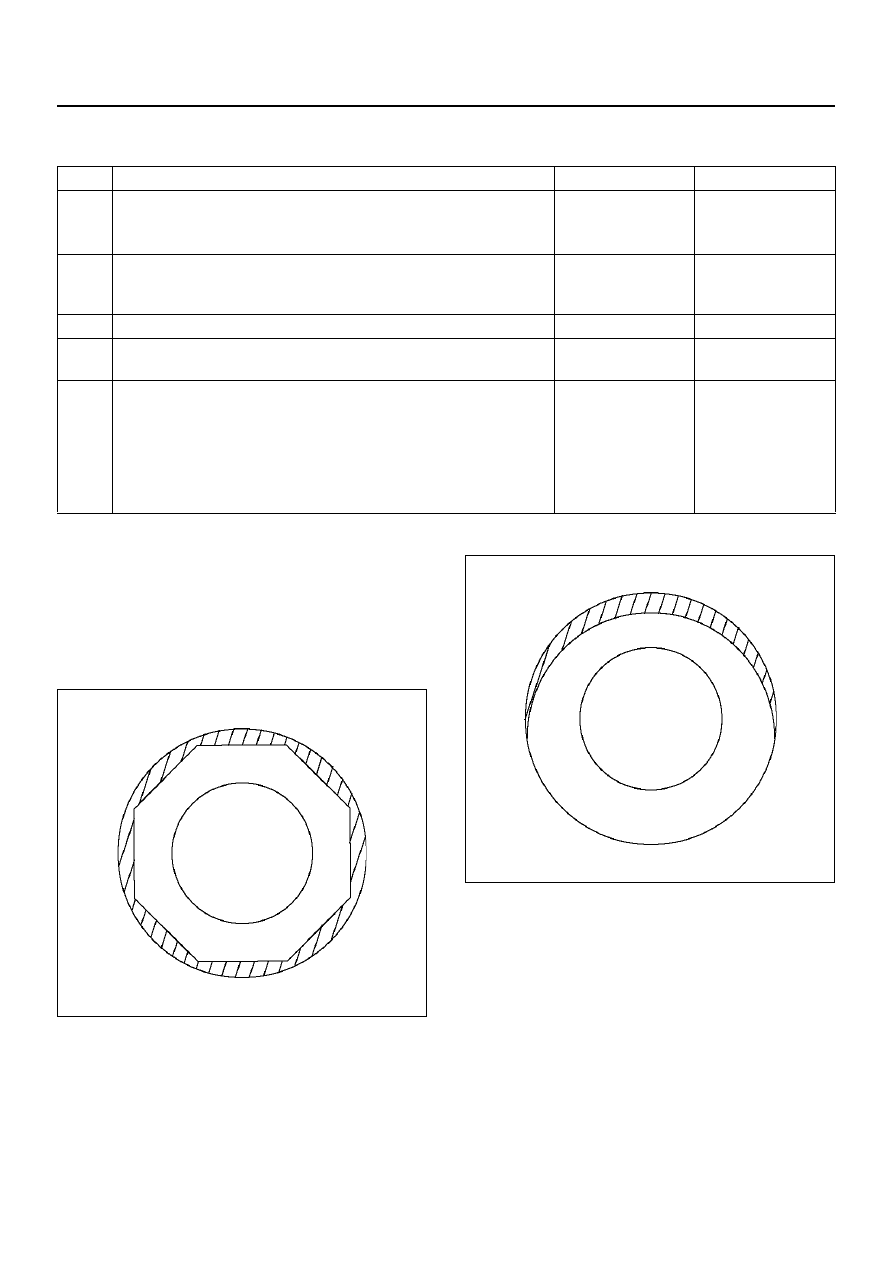

Radial Tire Lead/Pull Correction Chart

Typical examples of abnormal tire ahead wear and
major causes:

CAUTION:  Similar wear patterns can be caused by
worn suspension parts, misalignment of wheels and
tires, and other suspension related problems.
Spotty wear – wear localized on shoulder sections, and
in an extreme cases, the tire becomes polygonal in
shape.

480RW002

1. Tire or wheel out of round or distorted.

2. Hub or knuckle out of round or distorted.

3. Play in hub bearings or ball joint.

4. Rotating parts out of balance.

Tread wear one-sided.

480RW003

1. Rotating parts out of balance.

2. Tire or wheel out of round.

3. Hub or knuckle out of round or distorted.

Step

Action

Yes

No

1

1. Inflate tires to recommended pressure.

2. Road test vehicle on level uncrowned road.

Was a problem corrected?

End.

Go to Step 2

2

Switch front tires side to side and road test again.
Was a problem corrected?

If roughness

results,replace

tires.

Go to Step 3

3

Did the vehicle lead in same direction?

Go to Step 4

Go to Step 5

4

Put tires back in original position and check alignment.
Was a problem corrected?

End.

Go to Step 5

5

Install known good tire on one front side.
Was a problem corrected?

Replace tire.

Install a known

good tire in

place of other

front tire.

If lead

corrected,

replace tire.

WHEEL AND TIRE SYSTEM

3E–9

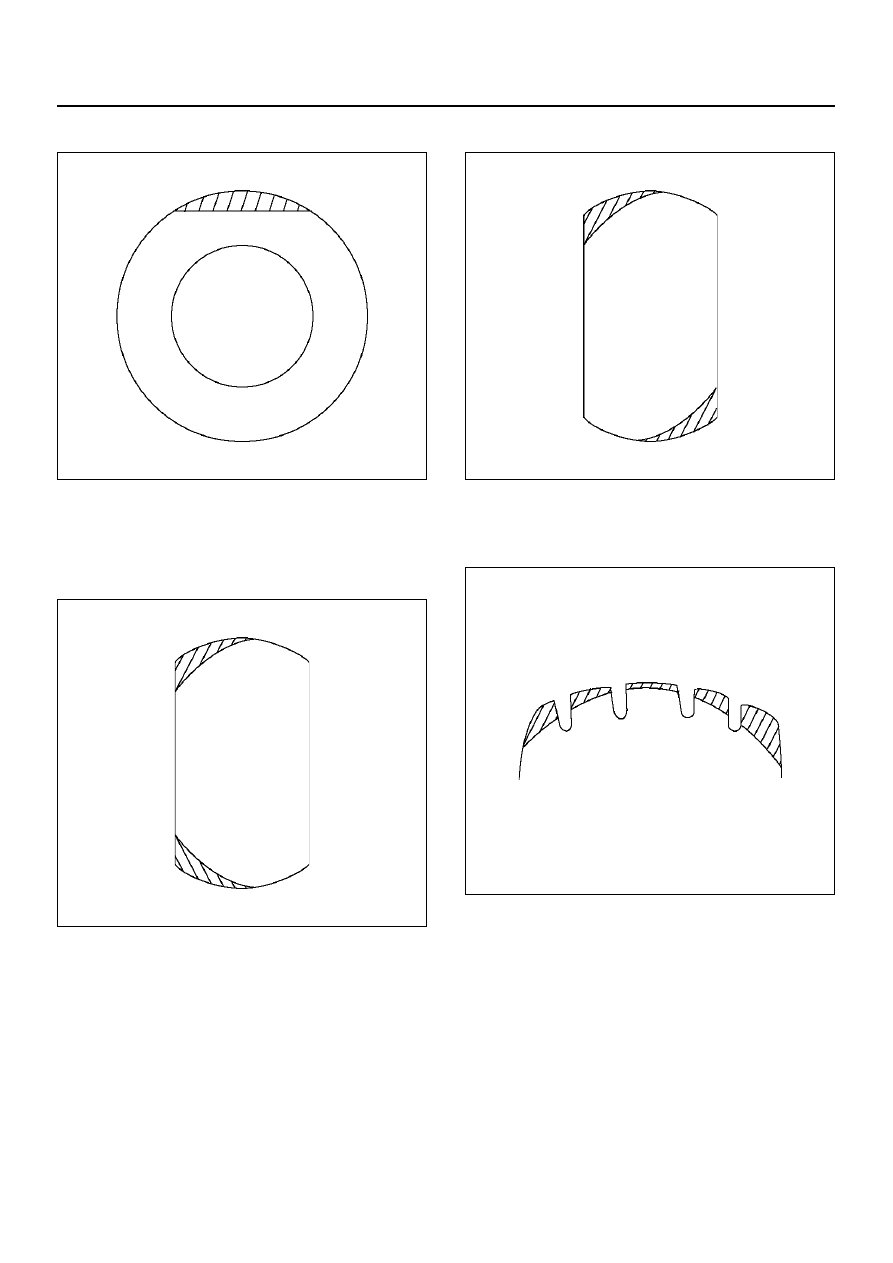

Localized tread wear.

480RW004

1. Once spotty wear develops in tread due to hard

braking or abrupt starting, localized wear tends to
be promoted.

Shoulder wear (generally wear develops in outer
shoulder):

480RW005

1. Camber or toe-in incorrect.

2. Shoulder wear caused by repeated hard-cornering.

Wear in shoulders at points opposed to each other.

480RW006

1. Tire or wheel out of round or distorted.

2. Play in bearings or ball joint.

Premature wear in shoulders.

480RW007

1. Flexing of tire excessive due to under-inflation.

3E–10

WHEEL AND TIRE SYSTEM

One sided feather edging.

480RW008

1. Wear caused by repeated hard cornering.

2. Camber or toe-in incorrect.

WHEEL AND TIRE SYSTEM

3E–11

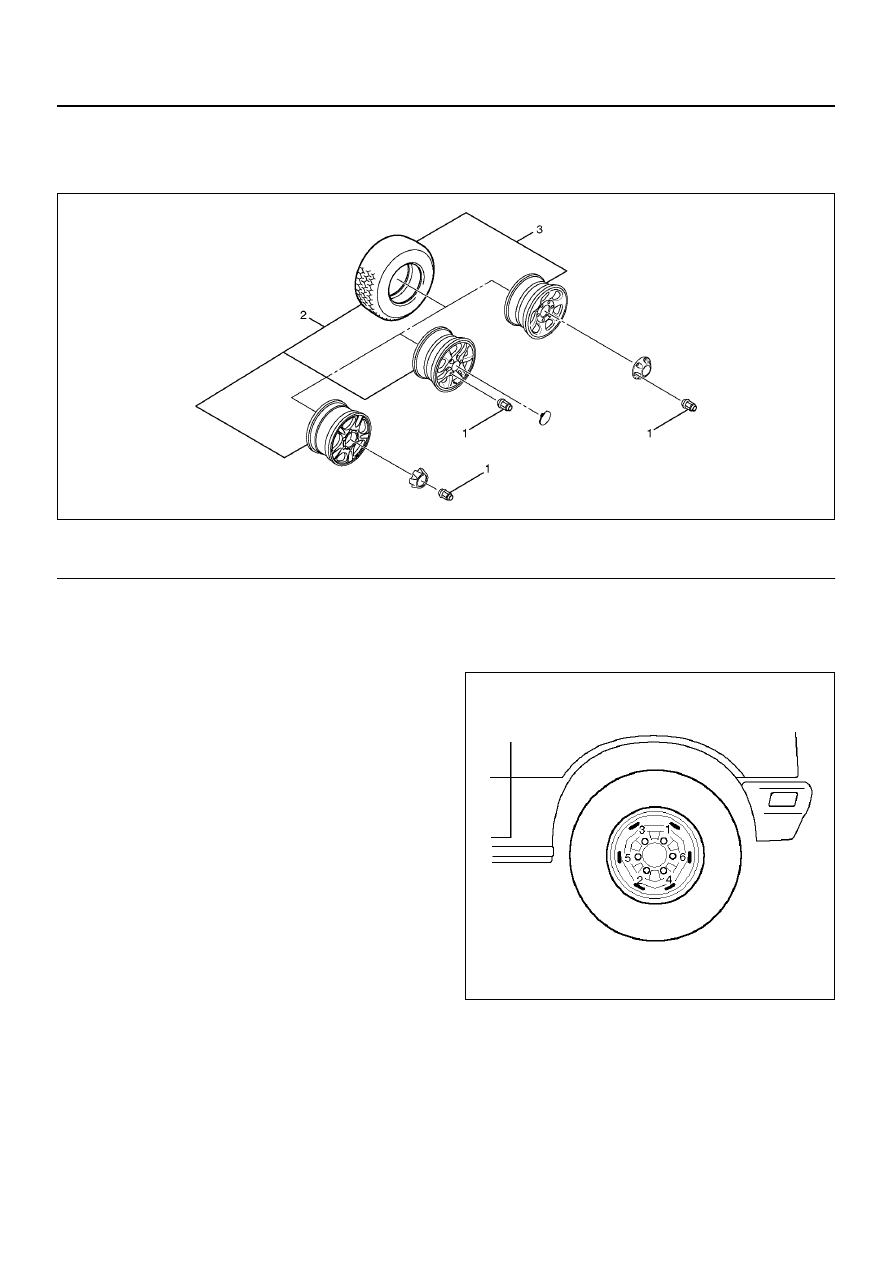

Wheel

Wheel and Associated Parts

480R200009

EndOFCallout

Removal

1. Loosen wheel lug nuts by half a turn, then raise the

vehicle and remove the nuts.

2. Remove wheel and tire.

NOTE:  Never use heat to loosen a tight wheel lug nut.
The application of heat to the hub can shorten the life of
the wheel and may cause damage to wheel bearings.

Installation

1. Install wheel and tire.

2. Install wheel lug nut, and lower the vehicle. Tighten

the wheel lug nuts to the specified torque in the
sequence described in the figure.

Torque: 118 N·m (87lb ft)

CAUTION:  Before installing wheels, remove any
build-up of corrosion on the wheel mounting
surface and brake disc mounting surface by
scraping and wire brushing.  Installing wheels
without good metal-to-metal contact at mounting
surfaces can cause wheel nuts to loosen, which can
later allow a wheel to come off while the vehicle is
moving.

NOTE:  Valve caps should be on the valve stems to
keep dust and water out.

480RS020

Legend

(1) Wheel Lug Nut

(2) Alumi Wheel and Tire
(3) Steel Wheel and Tire
