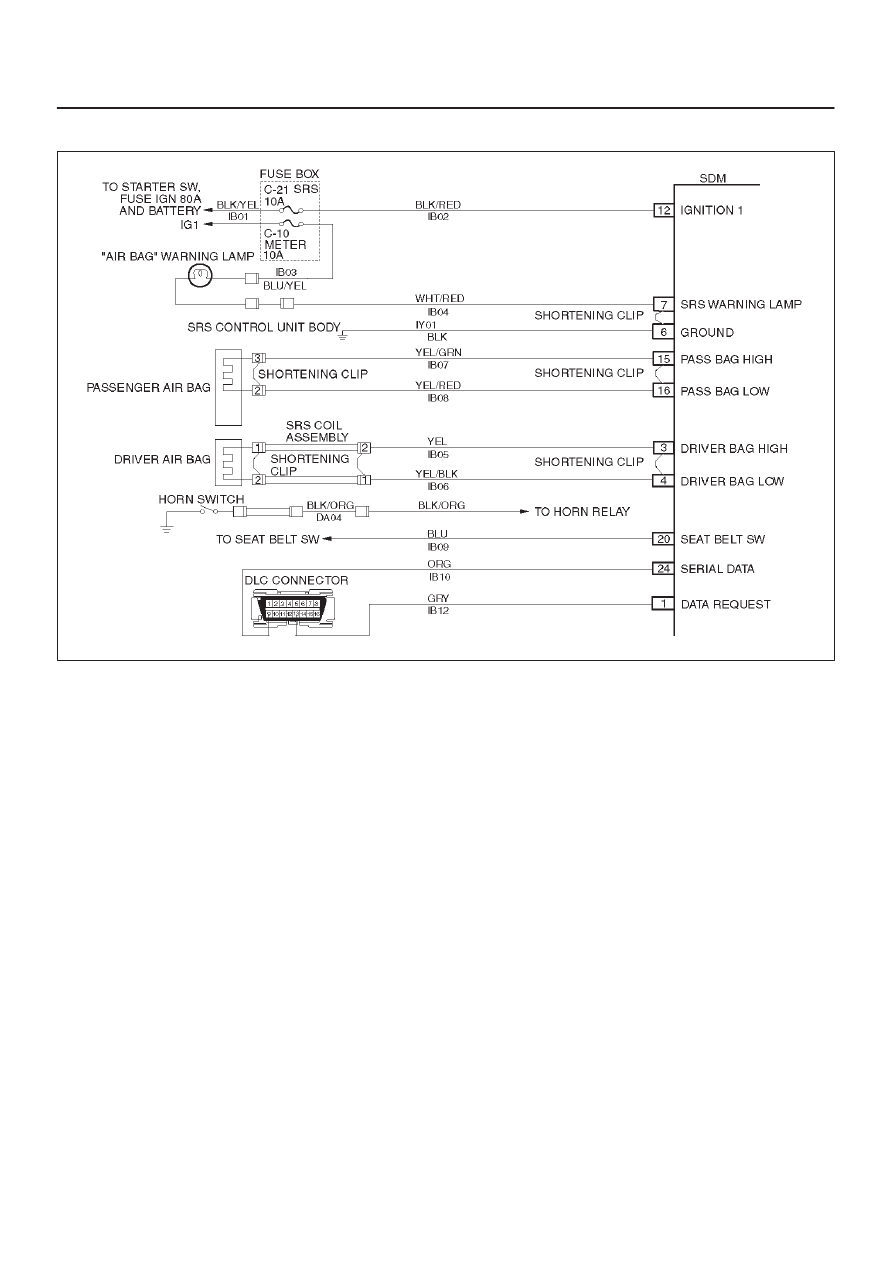

9J1–15 RESTRAINT CONTROL SYSTEM DTC 16 Passenger Deployment loop Resistance Low D09RW001 Circuit Description: When the ignition switch is turned “ON”, the SDM will DTC Will Set When: The combined resistance of the passenger air bag 1. No “higher priority faults” are detected during “Turn–ON”, 2. “Ignition 1” voltage is in the specified value. Action Taken: SDM turns “ON” the “AIR BAG” warning lamp and sets a DTC Will Clear When: The ignition switch is turned “OFF.” DTC Chart Test Description: Number(s) below refer to step number(s) on the the SDM. 3. This test verifies connection of the yellow 2–pin connector. 4. This test cheeks for proper operation of the shorting clip in the yellow 2–pin connector. 5. The test checks for a malfunction passenger air bag assembly. 6. This test determines whether the malfunctioning is due to shortening in the wiring. Diagnostic Aids: An intermittent condition is likely to be caused by a short |
