INTELLIGENT SUSPENSION

3F–13

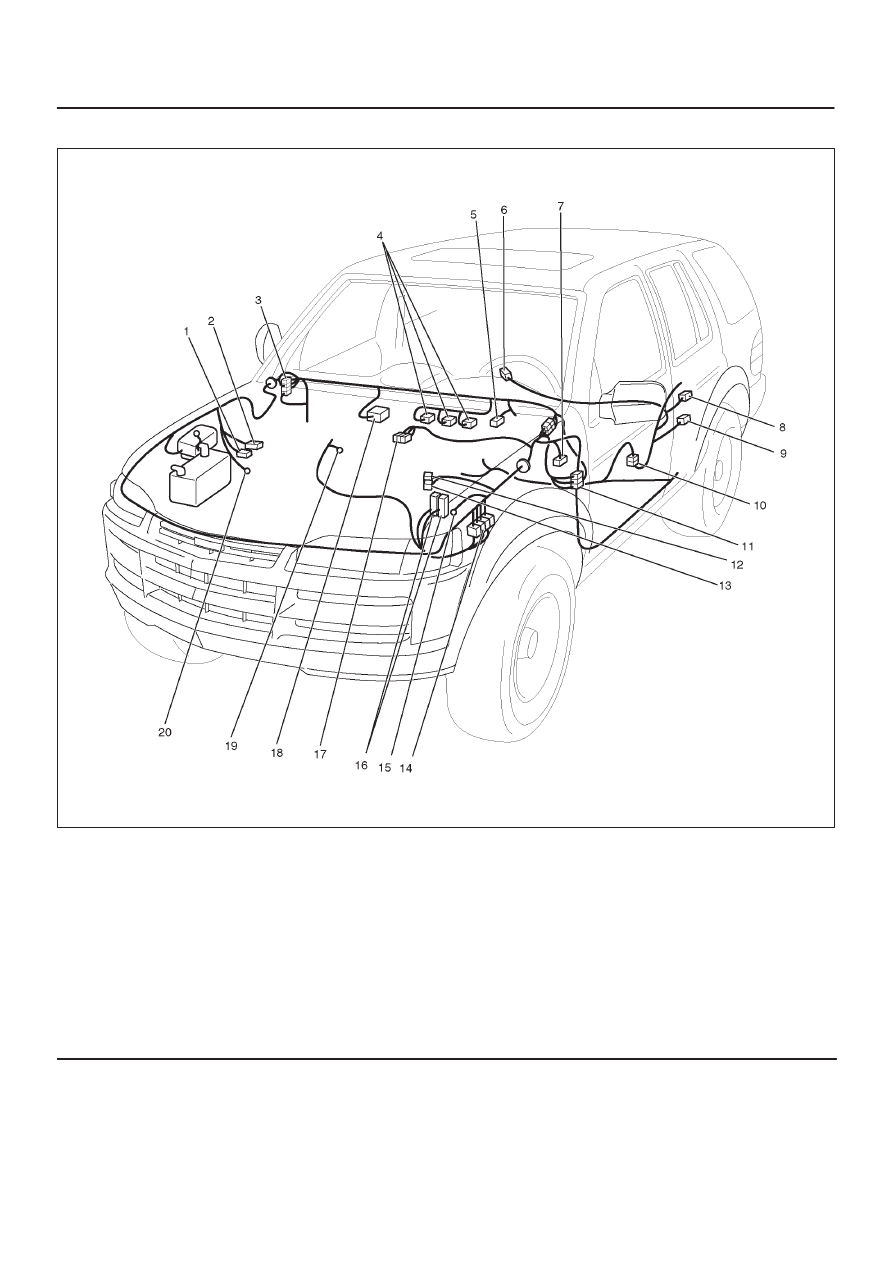

Parts Location

810R200001

Legend

(1) C–9
(2) C–8
(3) H–8, H–11, H–14
(4) I–24, I–23 , I–22
(5) I–31
(6) F–7
(7) C–39
(8) F–8
(9) F–6

(10) H–19

(11) H–9, H–10

(12) C–30
(13) C–31
(14) H–5, H–6
(15) C–26
(16) E–34, E–35
(17) C–46, C–45, C–44
(18) I–10
(19) E–23
(20) C–10

3F–14

INTELLIGENT SUSPENSION

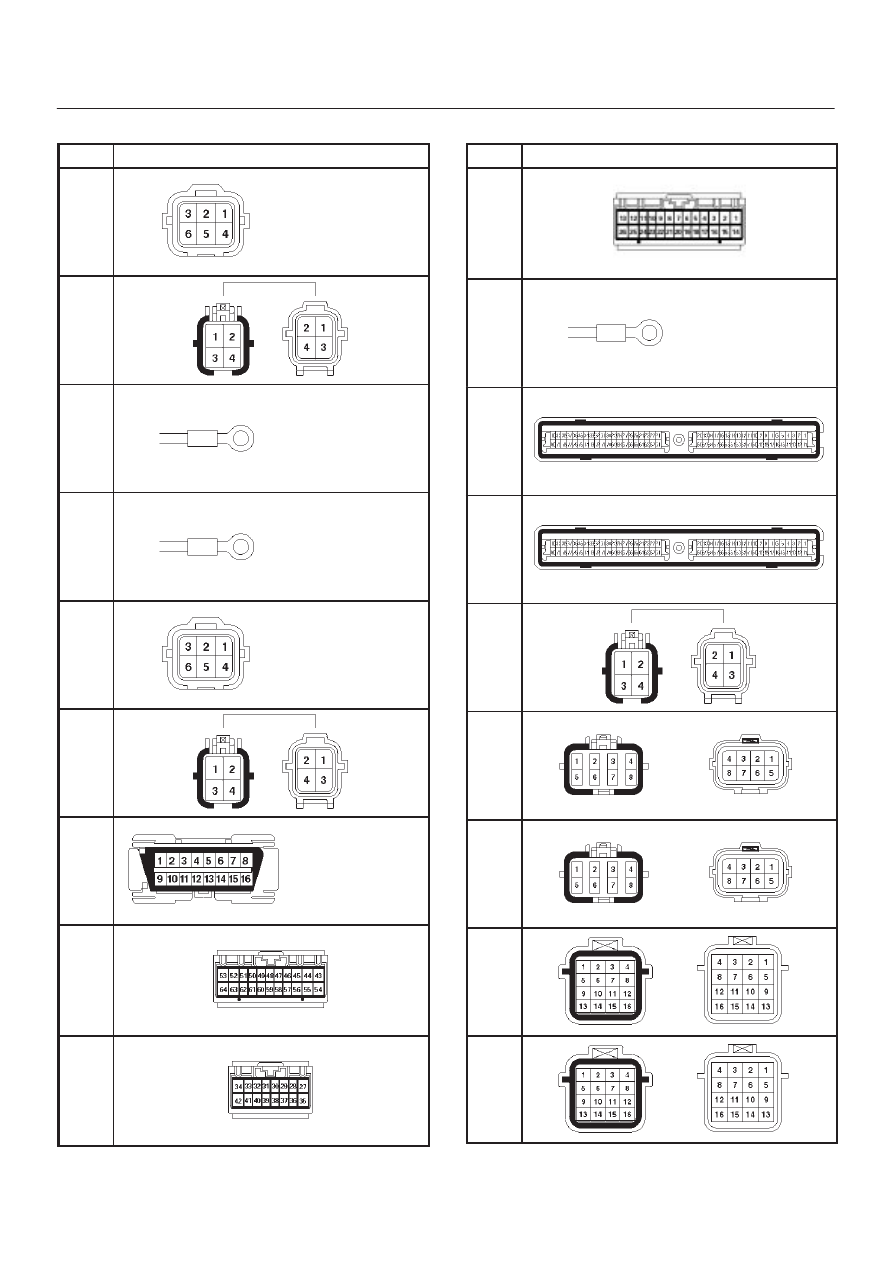

Connector List

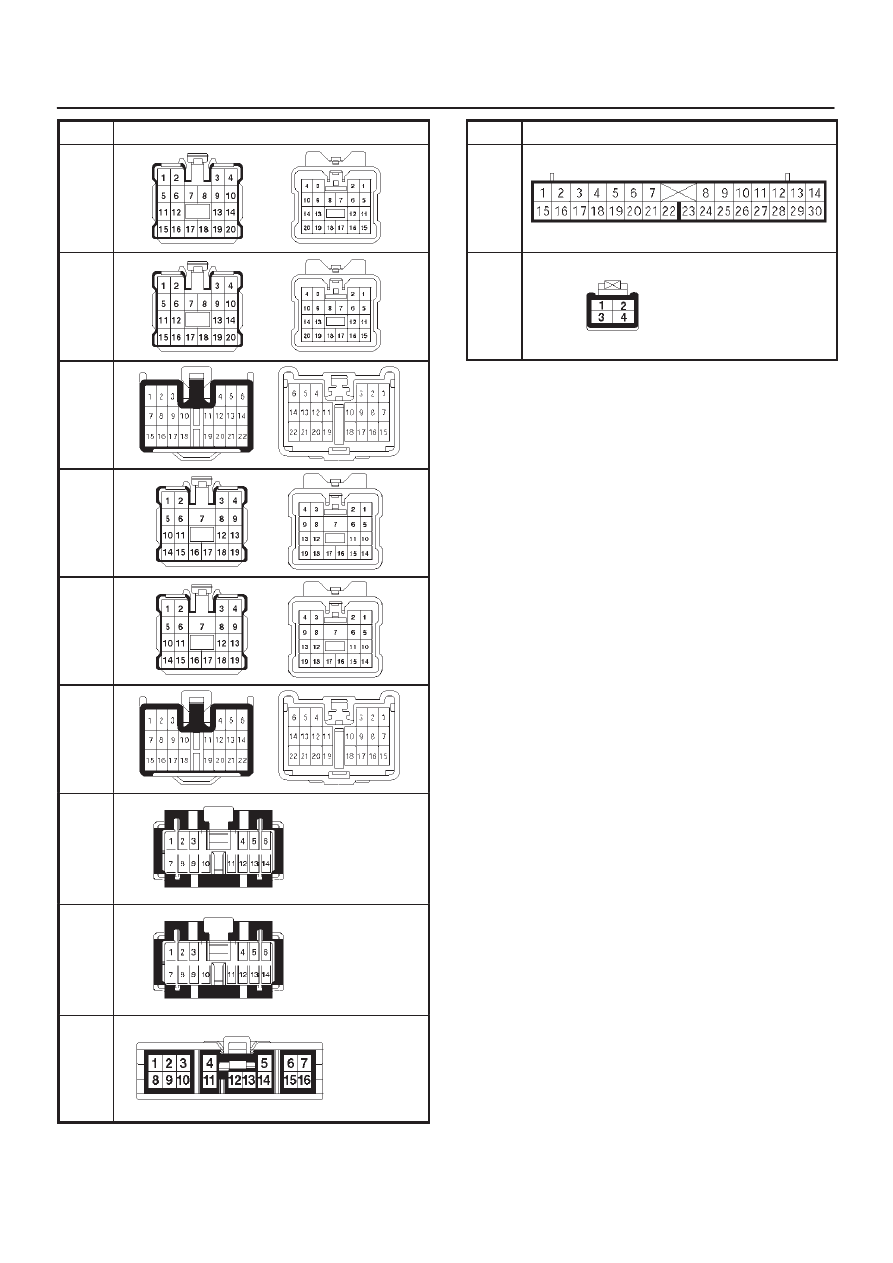

No.

Connector face

C–8

C–9

C–10

C–26

C–30

C–31

C–39

C–44

C–45

No.

Connector face

C–46

E–23

E–34

E–35

F–6

F–7

F–8

H–5

H–6

INTELLIGENT SUSPENSION

3F–15

No.

Connector face

H–8

H–9

H–10

H–11

H–14

H–19

I–10

I–22

I–23

No.

Connector face

I–24

I–31

3F–16

INTELLIGENT SUSPENSION

Diagnostic Trouble Code (DTC)
Identification

DTC No.

DTC NAME

CODE

MEMORY

WARNING

LAMP

2

Actuator Coil Over Current

Yes

OFF

3

Actuator Coil/Position Sensor Open Circuit or Short

Yes

ON

4

G–Sensor Open Circuit or Short

Yes

ON

5

Vehicle Speed Sensor Open Circuit or Short

Yes

OFF

6

Stop Lamp Switch Open Circuit, Short or Contact Point Trouble

Yes

OFF

7

Engine Speed Signal Open Circuit or Short

Yes

OFF

9

Control Unit Abnormality

Yes

OFF
