2A–14 POWER–ASSISTED STEERING SYSTEM

1. Check and adjust the tire inflation pressures.
2. Park the vehicle on a level ground and move the front

of the vehicle up and down several times to settle the
suspension.

3. Make necessary adjustment with the adjusting bolt on

the height control arms.

Trim height: 119

±

 5 mm (4.69

±

 0.2 in)

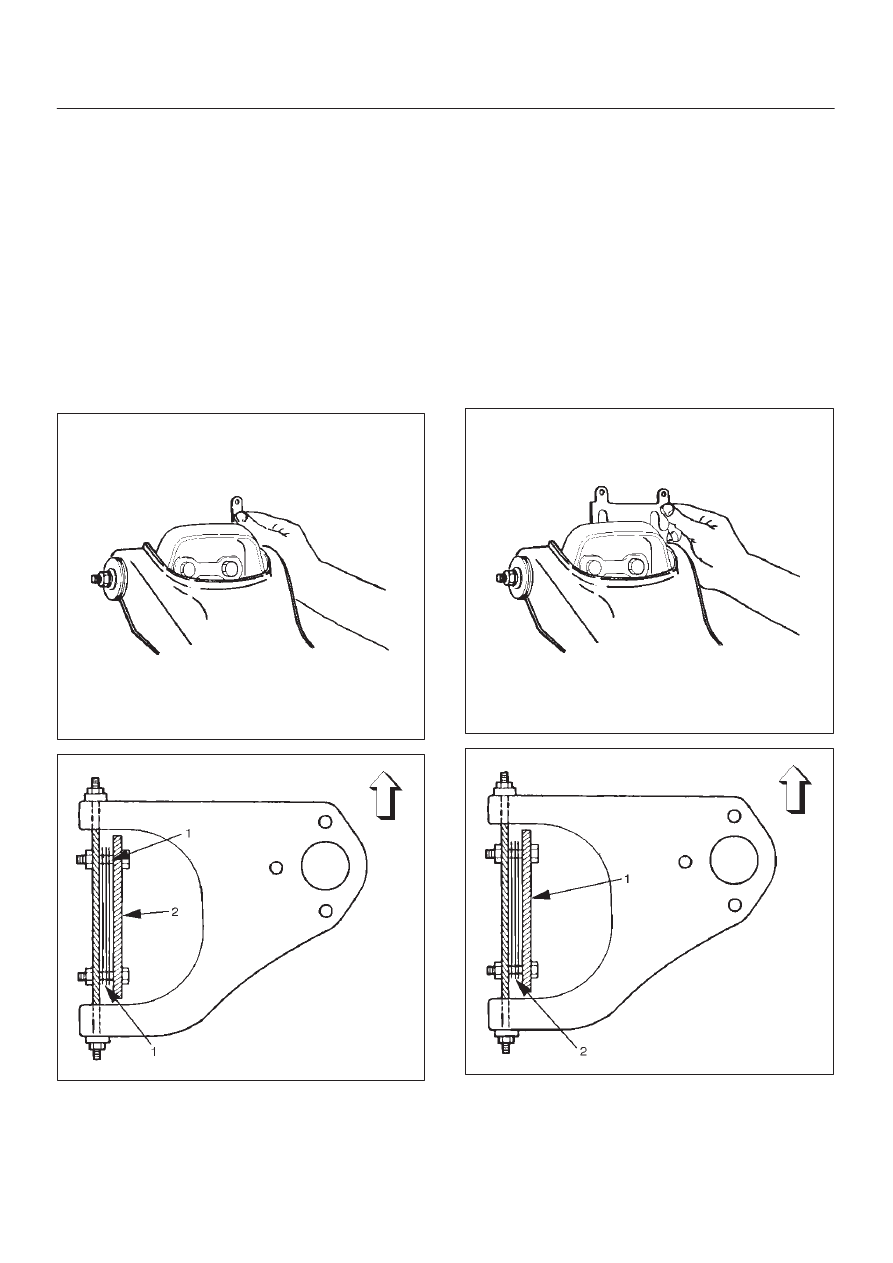

Caster Adjustment

The caster angle can be adjusted by means of the caster
shims (1) installed between the chassis frame (2) and
fulcrum pins.

Caster angle: 2

°

30’

±

 1

°

CAUTION: Left and right side must be equal within
30’.

450RW006

450RS002

NOTE: Difference of the caster shim front/rear thickness
should be 3.6 mm (0.142 in) or less. Overall thickness of
caster shim and camber shim should be 10.8 mm
(0.425 in) or less.
Tighten the fulcrum pin bolt to the specified torque.

Torque: 152 N·m 112 ( lb ft)

Camber Adjustment

The camber angle can be adjusted by means of the
camber shims (2) installed in position between the
chassis frame (1) and fulcrum pins

Camber angle: 0

°



±

 30’

King pin inclination: 12

°

30’

±

 30’

CAUTION: Left and right side must be equal within
30’.

450RW007

450RS005

POWER–ASSISTED STEERING SYSTEM

2A–15

NOTE: Overall thickness of caster shim and camber
shim should be 10.8 mm (0.425 in) or less.
Tighten the fulcrum pin bolt to the specified torque.

Torque: 152 N·m (112 lb ft)

Position of shims

Camber angle

Caster angle

Front side

Rear side

Camber angle

Caster angle

When added

When removed

Decreases

Decreases

Caster shim

When removed

When added

Increases

Increases

Caster shim

When removed

Unchanged

Decreases

When added

Unchanged

Increases

Camber shim

When added

Decreases

Unchanged

Camber shim

When removed

Increases

Unchanged

Toe-in Adjustment

1. To adjust the toe-in angle, loosen the lock nuts (2) on

the tie rod (1) and turn the tie rod. Turn both rods the
same amount, to keep the steering wheel centered .

Toe-in: 0 to +2 mm (0 to +0.08 in)

433RW003

2. Tighten the lock nut to the specified torque.

Torque: 98 N·m (72 lb ft)

2A–16 POWER–ASSISTED STEERING SYSTEM

Main Data and Specifications

General Specification

Caster

2

°

30’

±

 1

°

Camber

0

°



±

 30’

King pin inclination

12

°

30’

±

 30’

Toe-in

0 to +2 mm (0 to +0.08 in)

Max. steering angle

inside

32.6

°

 (+0

°

30’ to –2

°

30’ )

outside

31.8

°

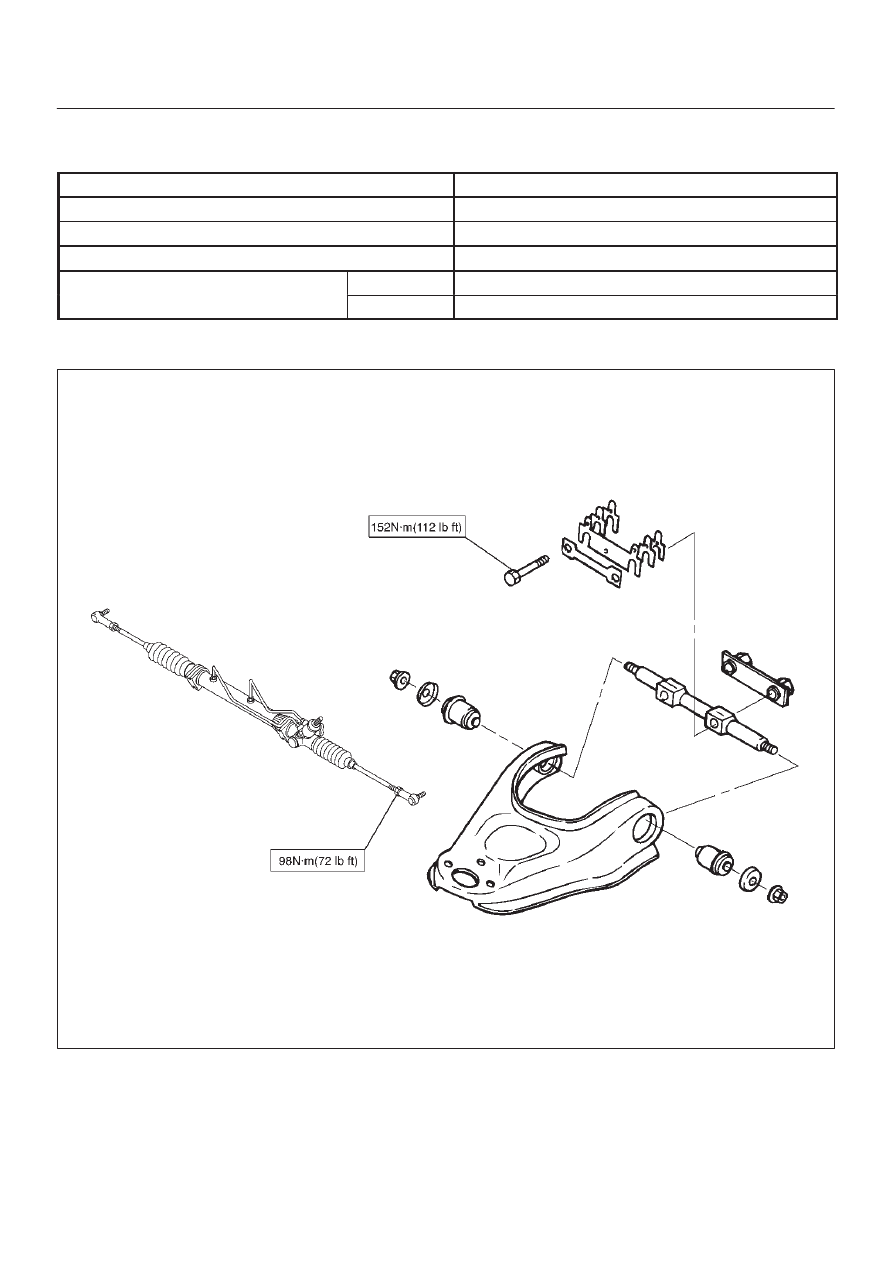

Torque Specification

E02RX001

POWER–ASSISTED STEERING SYSTEM

2A–17

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

J–29877–A

Tester;

Power steering

J–39213

Adapter;

Power steering tester
