HEATING, VENTILATION AND AIR CONDITIONING (HVAC) 1A–123

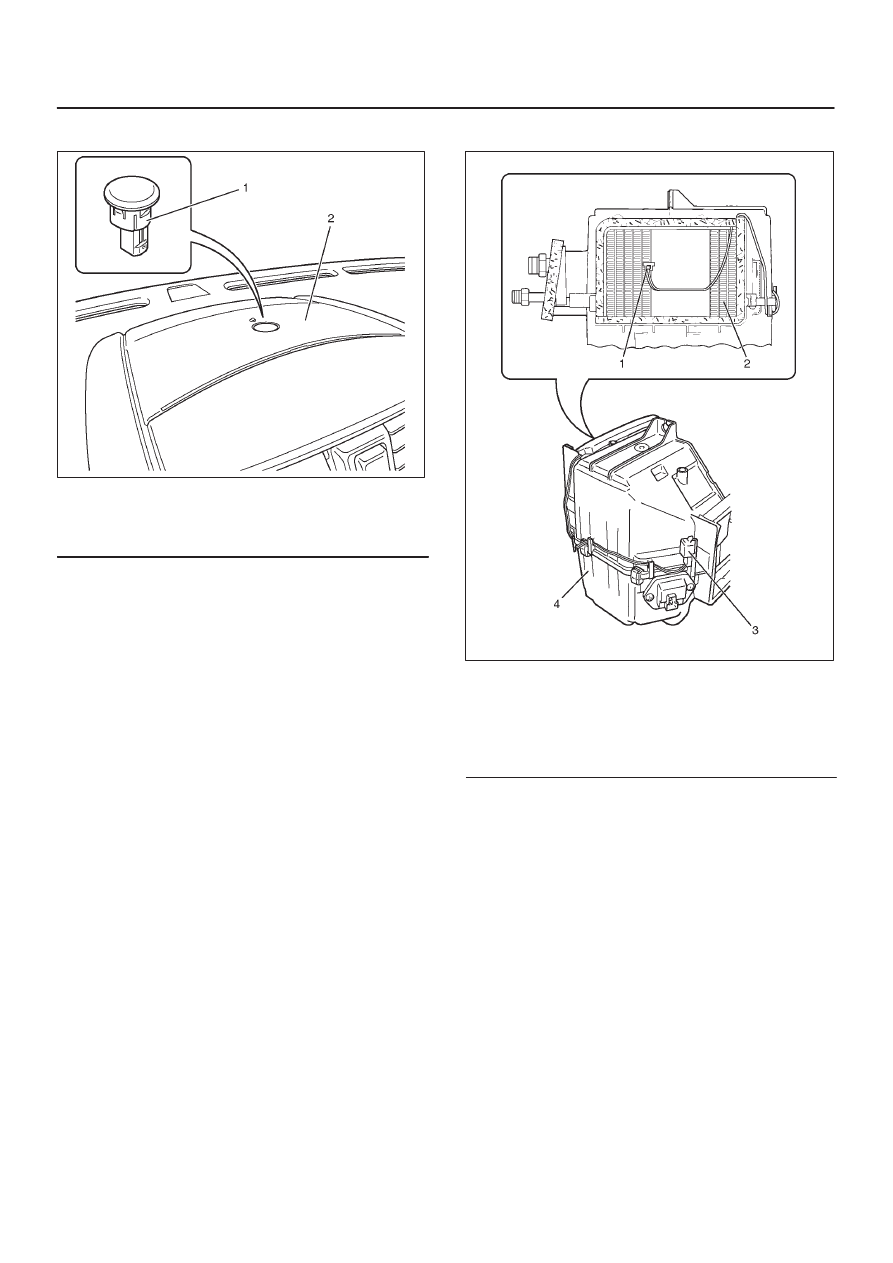

Sun Sensor

865R200002

Legend

(1) Sun Sensor
(2) Center Cluster Upper

Removal

1. Disconnect the battery ground cable.
2. Remove the center cluster upper.
3. Disconnect the sun sensor connector.
4. Remove the sun sensor.

Installation

To install, follow the removal step in the reverse order.

Duct Sensor

874R200010

Legend

(1) Sensor Part
(2) Evaporator Core
(3) Duct Sensor Assembly
(4) Evaporator Assembly

Removal

1. Disconnect the battery ground cable.
2. Remove the evaporator assembly.

D

Refer to

evaporator assembly in this section.

3. Remove the duct sensor assembly.

Installation

To install, follow the removal step in the reverse order.

1A–124 HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

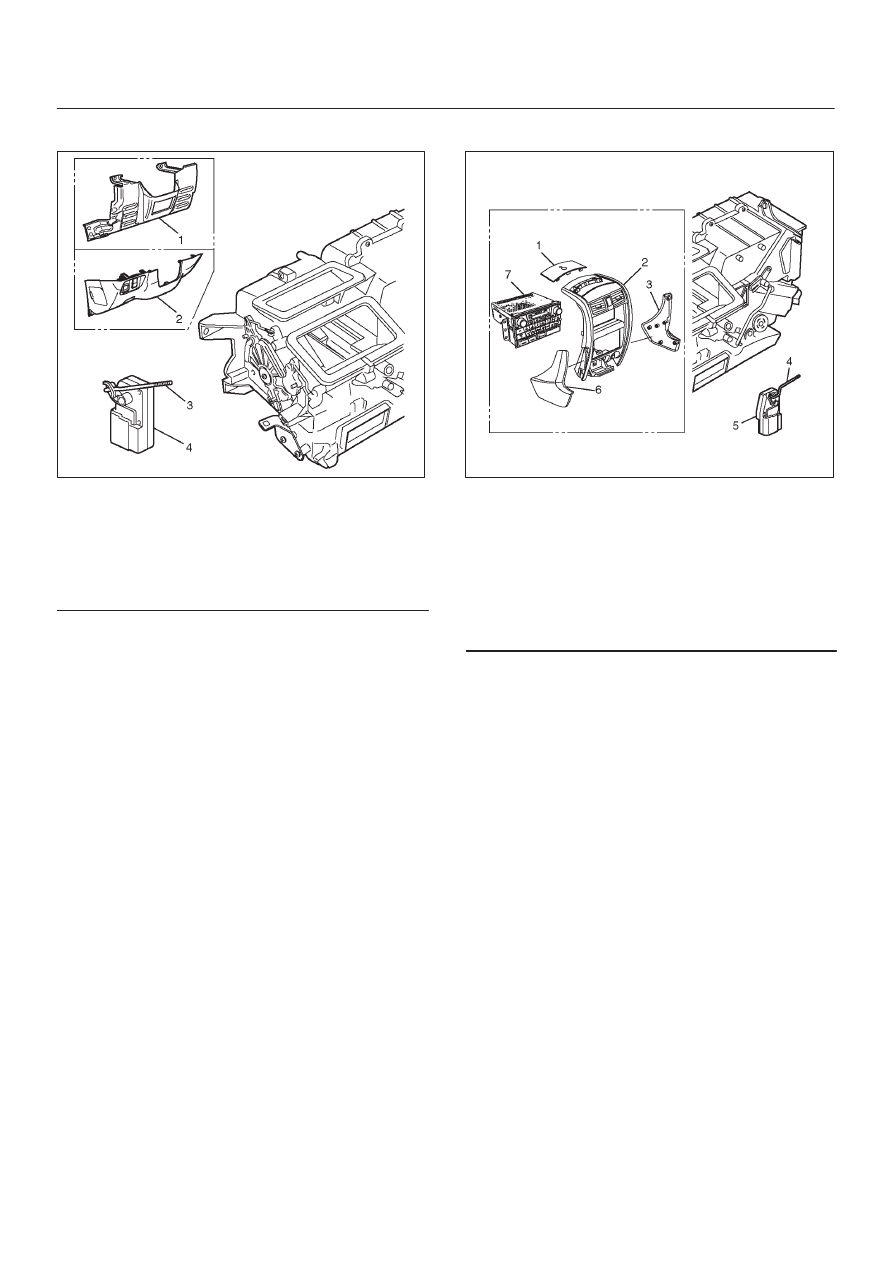

Mode Actuator

840R200005

Legend

(1) Driver Knee Bolster Assembly
(2) Instrument Panel Driver Lower Cover

Assembly

(3) Actuator Rod
(4) Mode Actuator

Removal

1. Disconnect the battery ground cable.
2. Remove the instrument panel driver lower cover

assembly.

3. Remove the driver knee bolster assembly.

D

Refer to the

Instrument Panel Assembly in Body

Structure section.

4. Remove the actuator rod.
5. Remove the mode actuator.

Installation

To install, follow the remove step in the reverse order.

Mix Actuator

840R200006

Legend

(1) Center Cluster Upper
(2) Center Cluster
(3) Knee Pad (RH)
(4) Actuator Rod
(5) Mix Actuator
(6) Knee Pad (LH)
(7) Audio & Switch Assembly

Removal

1. Disconnect the battery ground cable.
2. Remove the knee pad (R/RH).
3. Remove the center cluster upper.
4. Remove the center cluster.

D

Refer to the

Instrument Panel Assembly in Body

Structure section.

5. Disconnect the six connectors.
6. Remove the Audio & Switch Assembly.
7. Remove the actuator rod.
8. Remove the mix actuator.

Installation

To install, follow the remove step in the reverse order.

HEATING, VENTILATION AND AIR CONDITIONING (HVAC) 1A–125

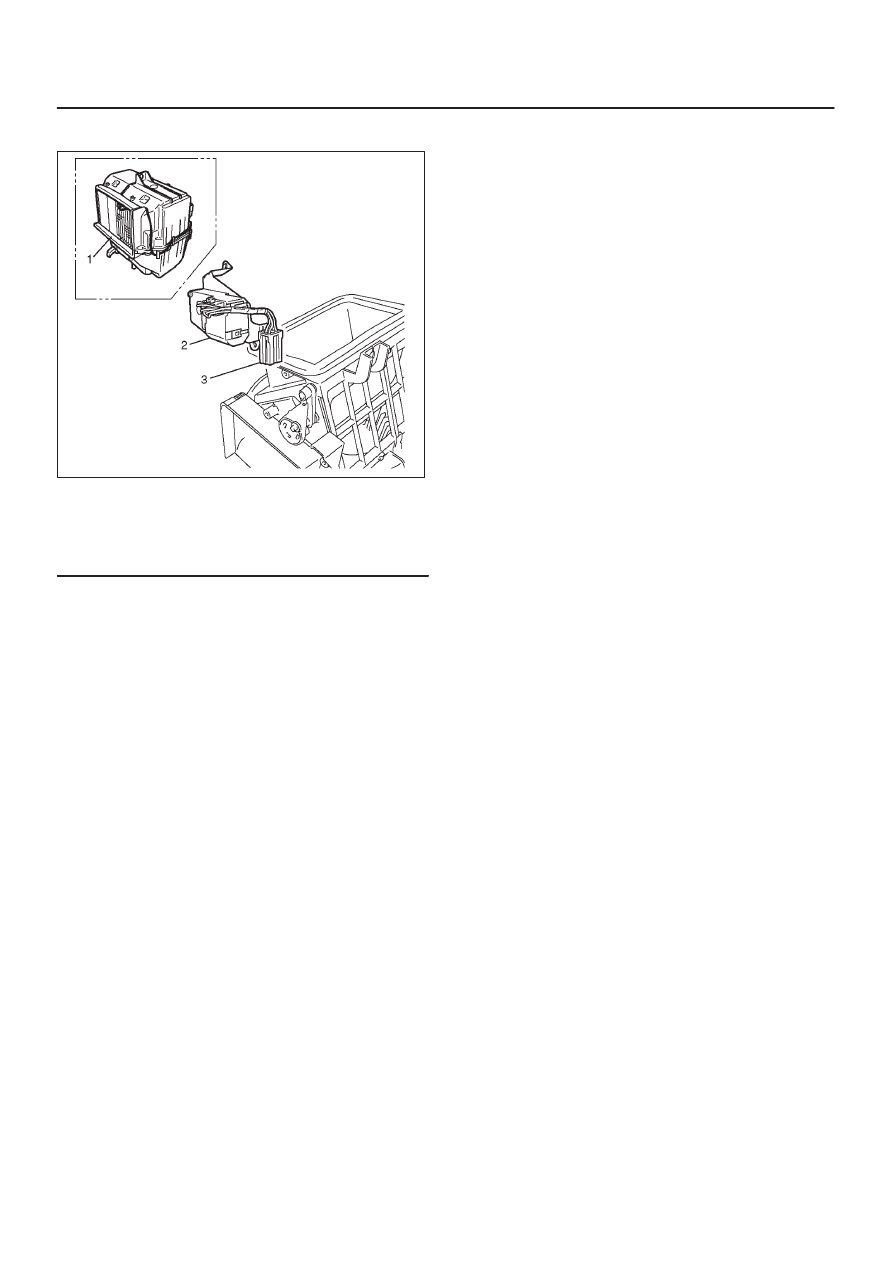

Intake Actuator

873R200003

Legend

(1) Evaporator Assembly
(2) Intake Actuator
(3) Intake Actuator Connector

Removal

1. Disconnect the battery ground cable.
2. Discharge and recover refrigerant.

D

Refer to

Refrigerant Recovery in this section.

3. Remove the evaporator assembly.

D

Refer to

Evaporator Assembly section.

4. Disconnect the intake actuator connector.
5. Remove the intake actuator.

Installation

To install, follow the remove step in the reverse order.
