Isuzu Trooper (1998-2002 year). Manual - part 953
8D–346
WIRING SYSTEM

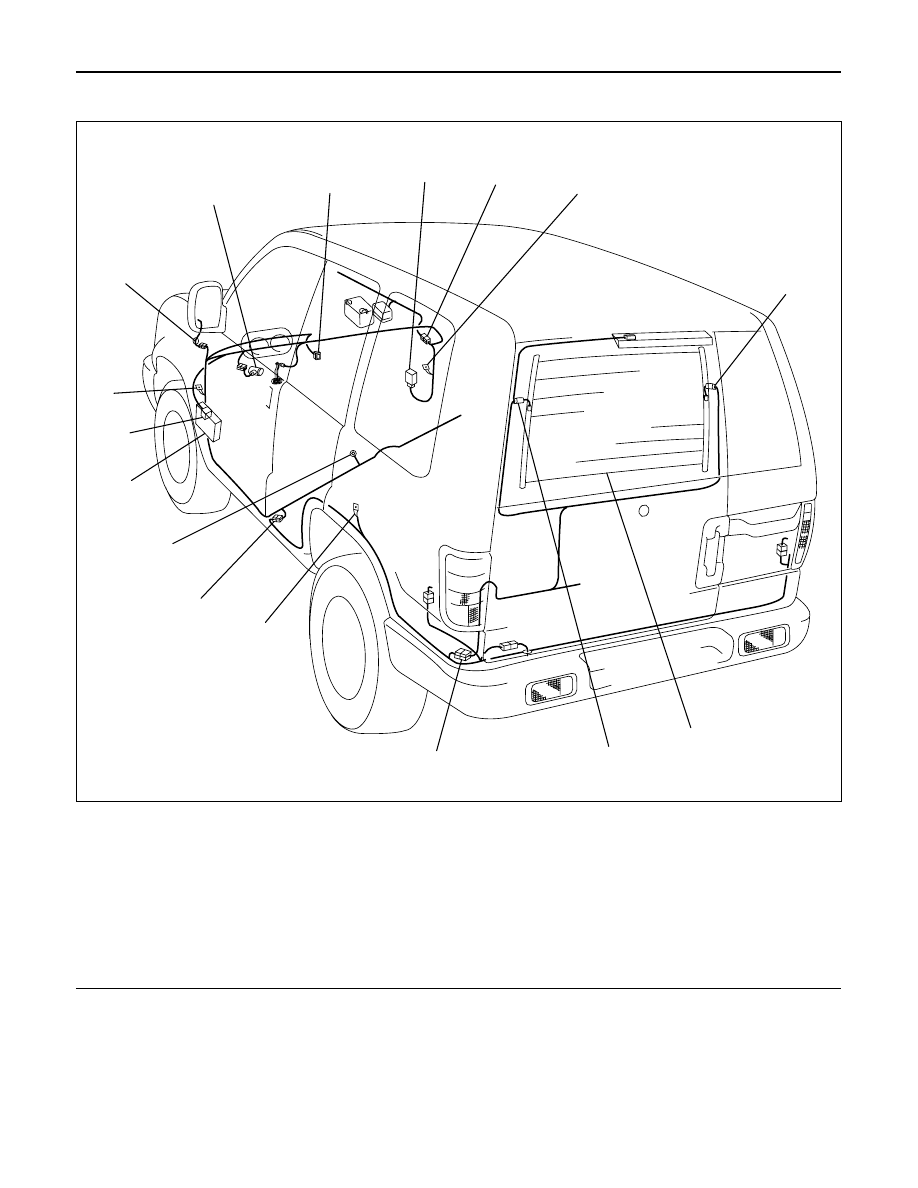

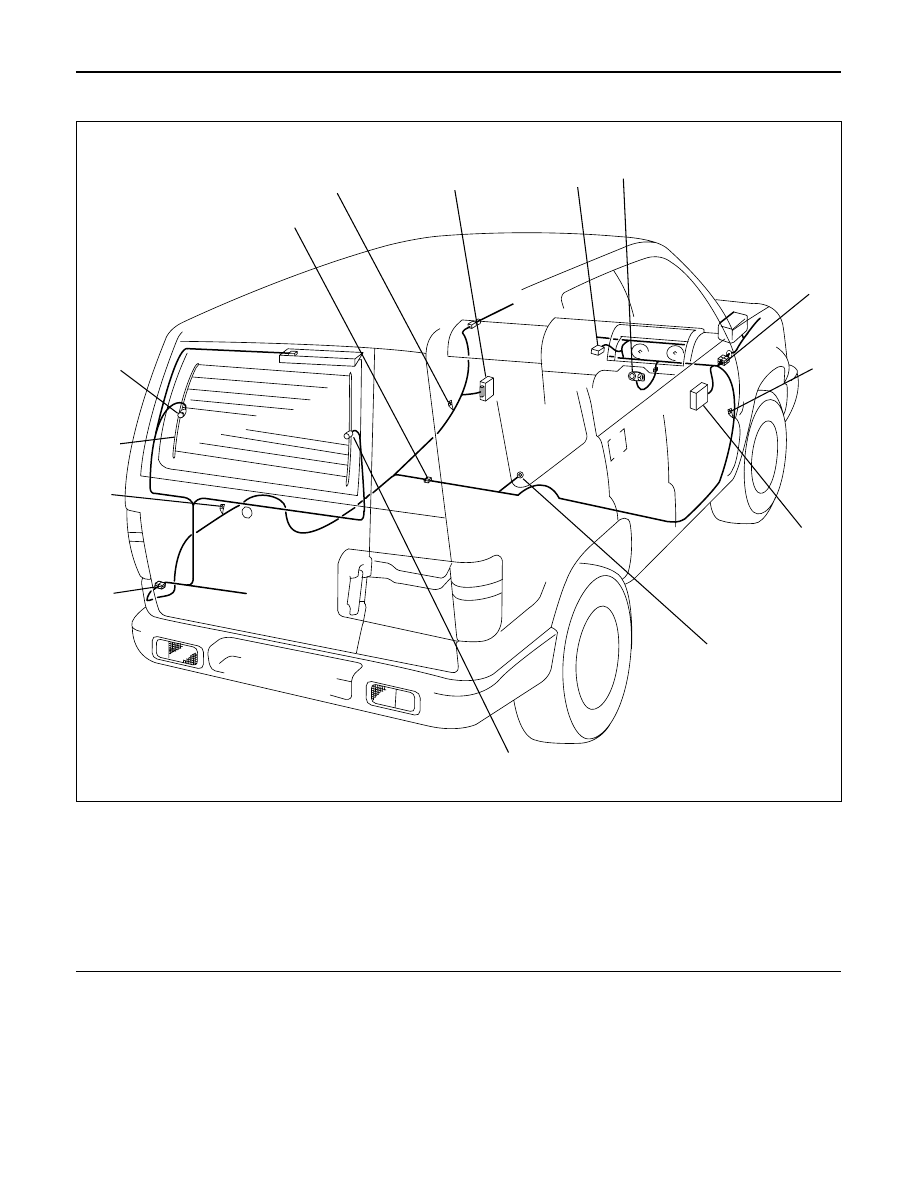

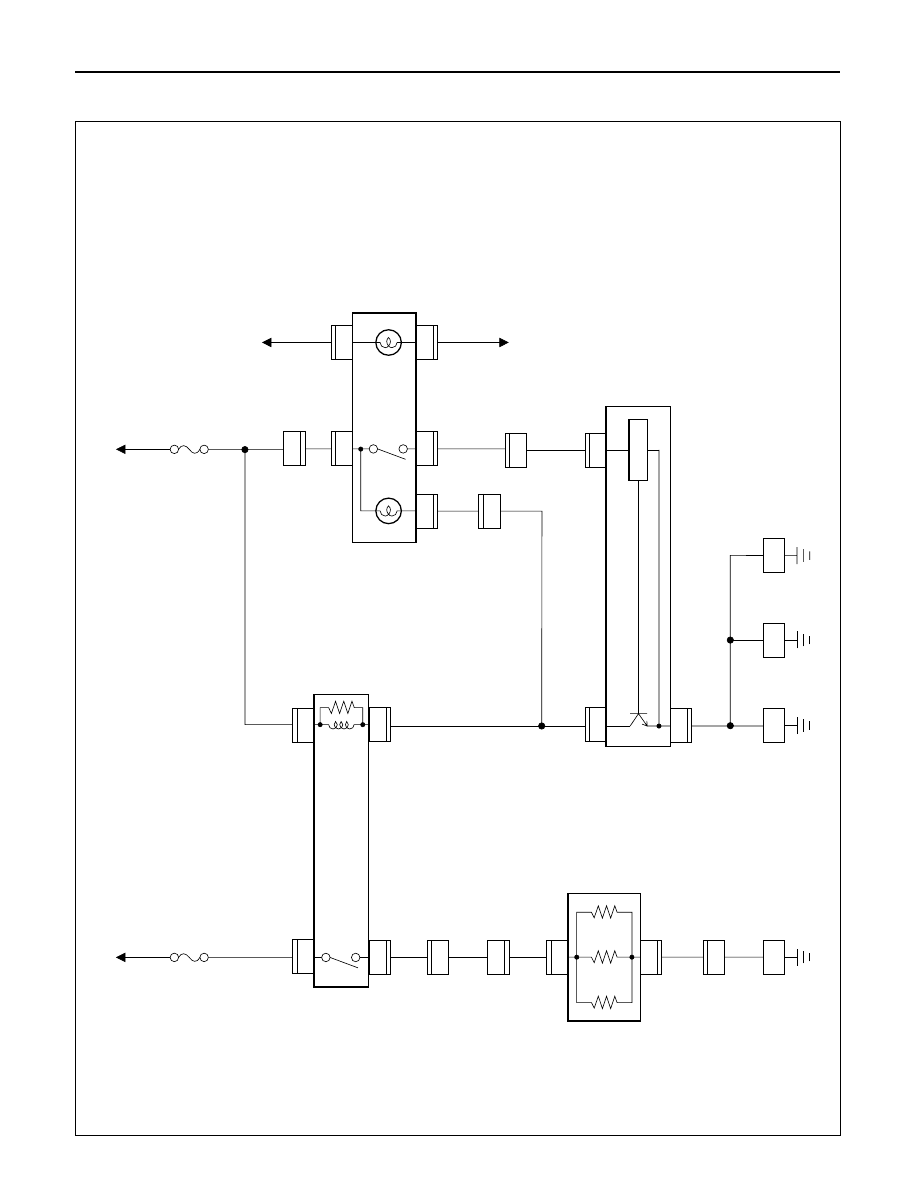

Parts Location (RHD)
8
9
10
11
12
13
14
1
2
3
4
5
6
7
D08RW811
Legend
(1) I-17 (Rear Defogger Switch)(2) Starter Switch(3) H-25, H-26(4) B-19(5) Fuse Box (B-38)(6) B-26(7) G-7
(8) H-37(9) R-3
(10) Rear Defogger(11) G-3(12) H-31(13) B-2(14) B-6, B-7 (Alarm and Relay Control Unit)
