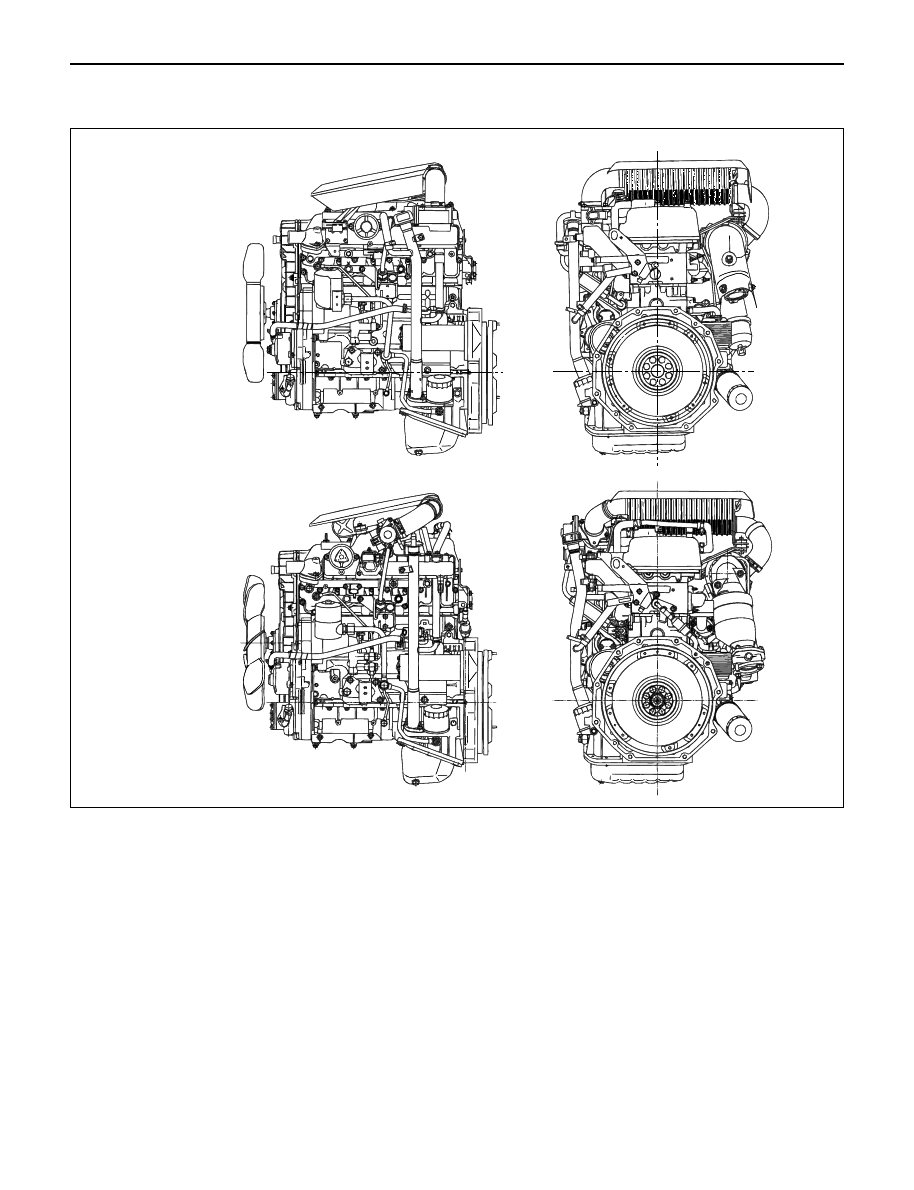

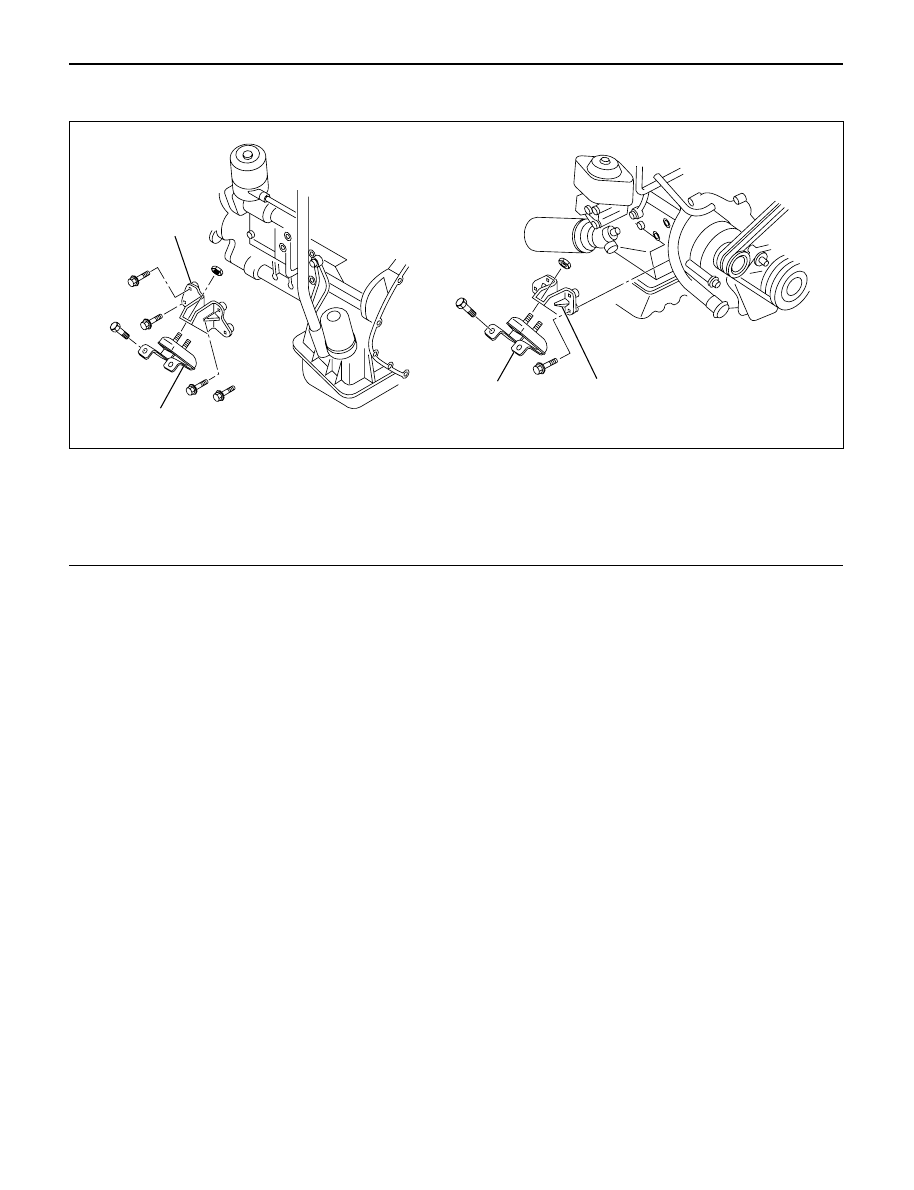

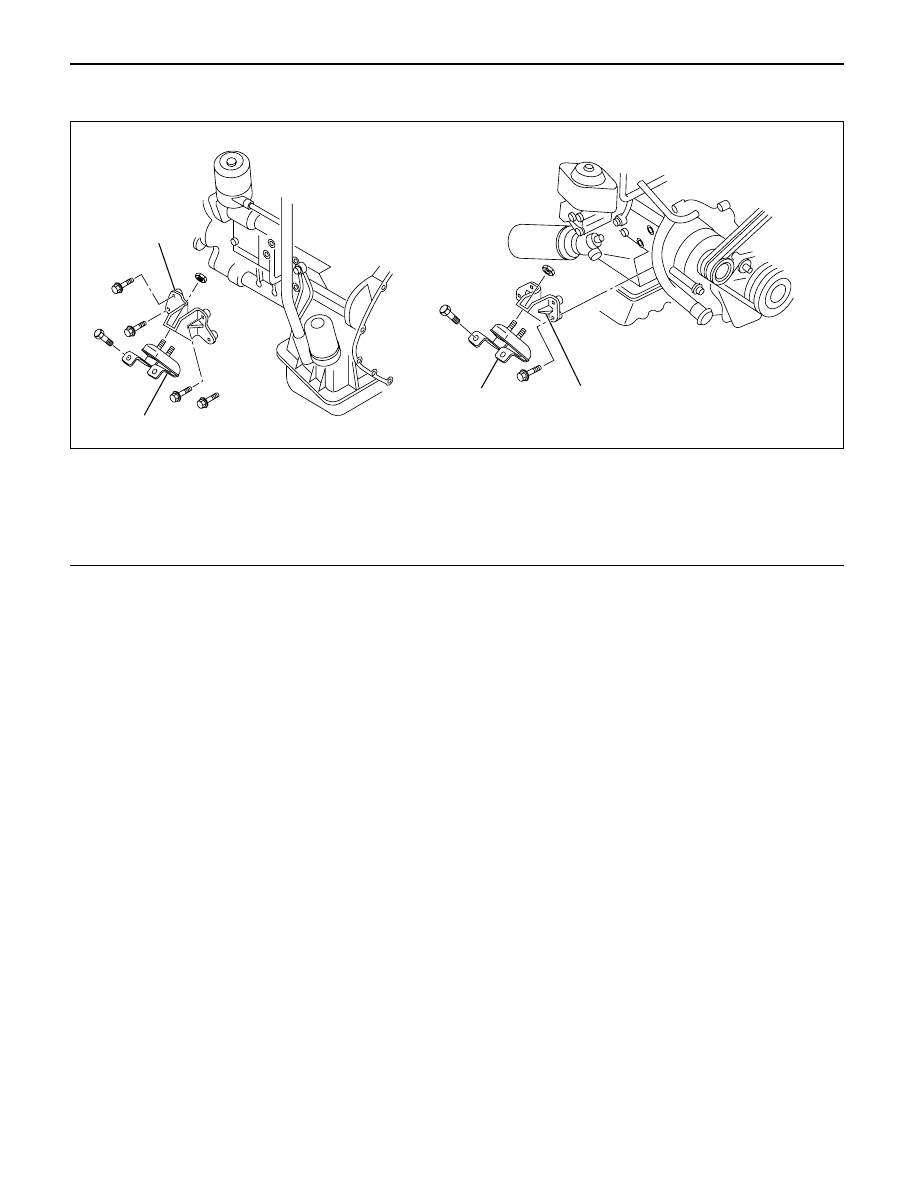

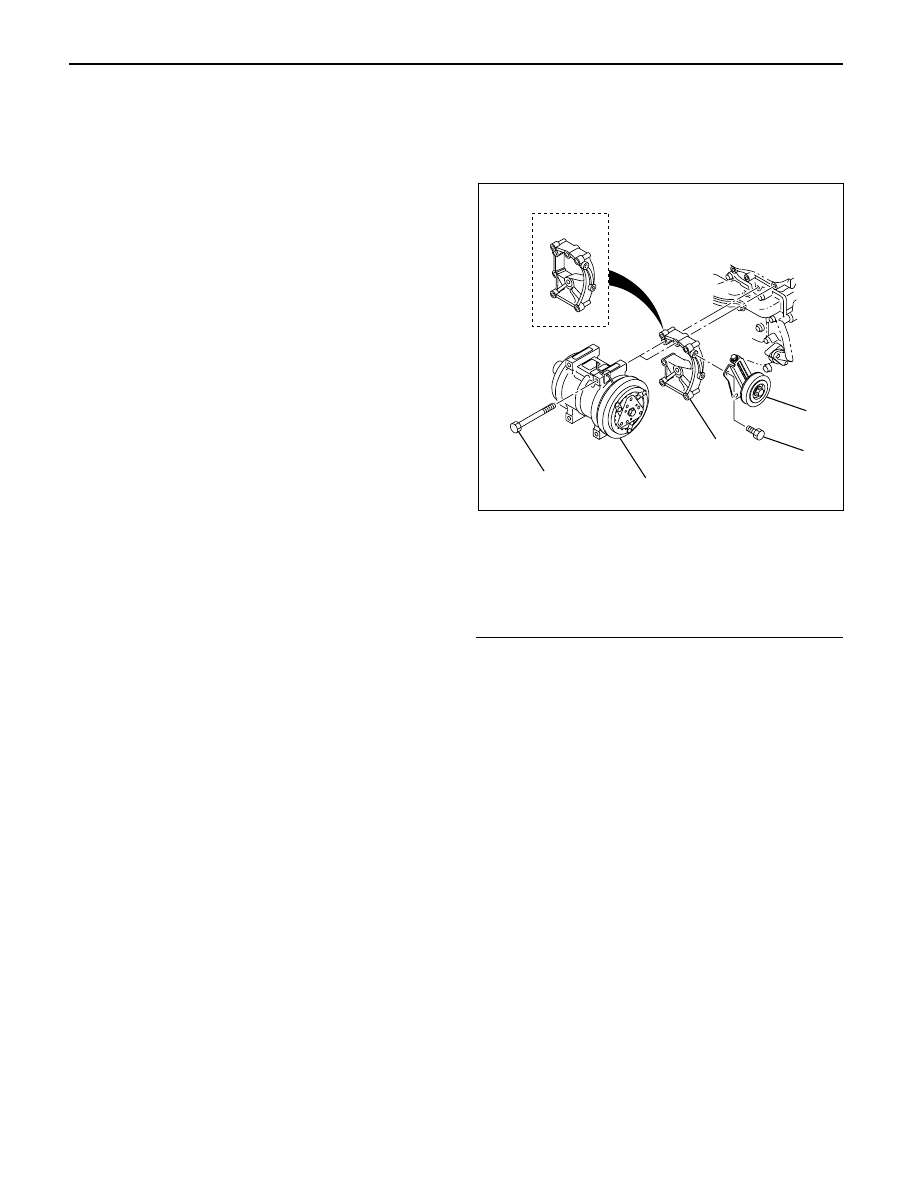

6A – 28 ENGINE MECHANICAL ENGINE ASSEMBLY For General Export For Europe F06R200004 REMOVAL 1. Remove battery. engine hood. 4. Radiator Hose 1) Disconnect upper and lower hoses from engine side. 5. Fan Shroud 1) Disengage clips and remove upper and lower fan shrouds. 6. Cooling Fan Assembly 1) Remove cooling fan assembly fixing nuts, cooling fan assembly. 7. Radiator Assembly 1) Remove bracket and radiator assembly. 8. Air Cleaner Cover & Air Duct 1) Refer to “Intercooler” in this manual. 10. Engine Ground Cable 1) Disconnect ground cable from A/C compressor bracket. 11. AC Generator Harness 1) Disconnect B terminal and harness connector from AC generator. 12. A/C Compressor Assembly 1) Disconnect magnetic clutch harness connector. side of compressor). 3) Remove fixing bolts (upper and front lower side of compressor) and set A/C compressor |
