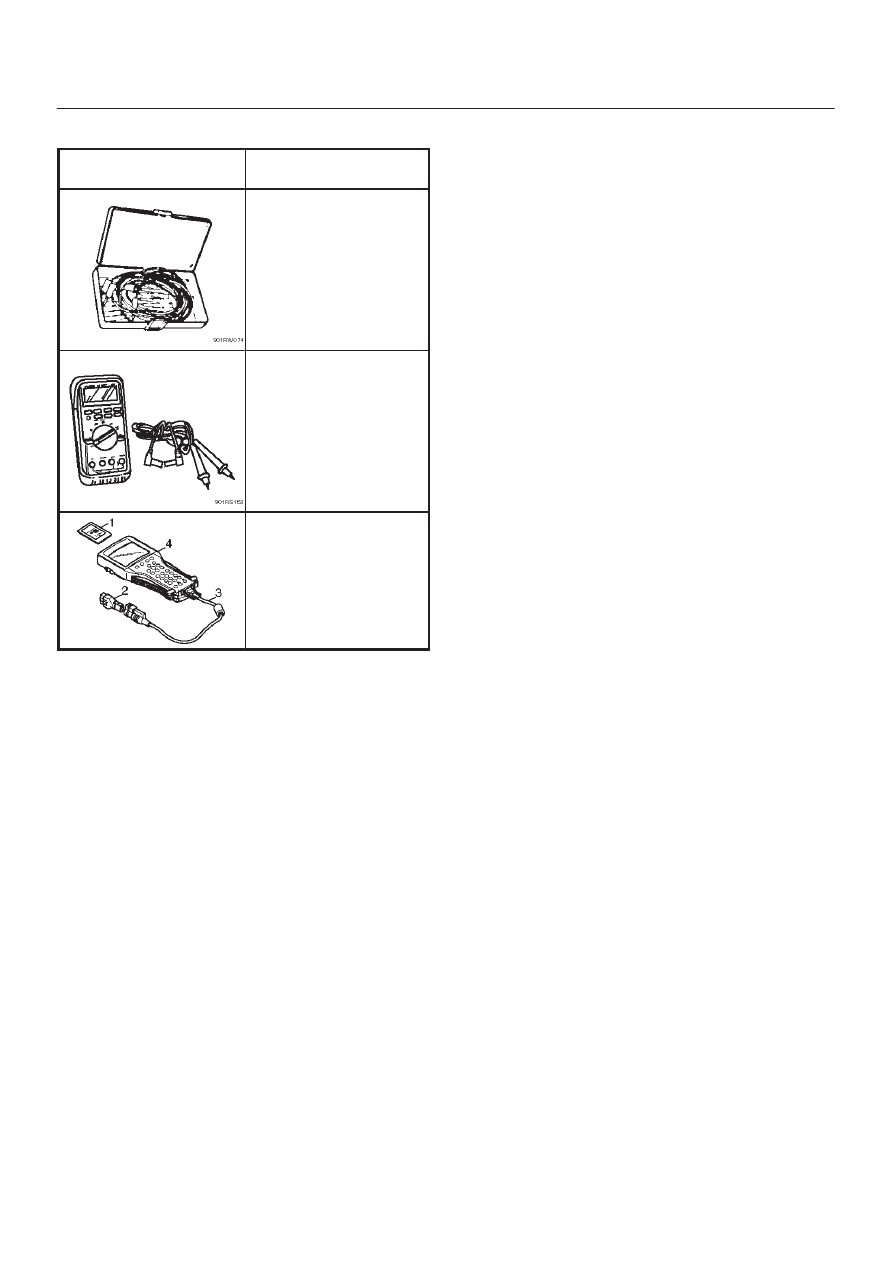

5A–60 BRAKE CONTROL SYSTEM Chart C-2 Transmission Input Inspection Procedure Step Action Yes No 1 1. Turn the key off. Is there continuity between EHCU connector terminals 6 and 15 Shorted switch harness. Repair switch or harness. Go to Step 6 Go to Step 2 2 Is the vehicle an A/T model? Go to Step 3 Go to Step 5 3 Turn the key on and measure voltage between EHCU connector Is there less than 6V when the gear position is L, and R(Battery Go to Step 5 Transmission SW trouble. Disconnected harness. Repair SW and harness. Go to Step 6 4 Turn the key on and measure the voltage between EHCU Is there more than 9.6V when the gear position is 1, 2, R(Battery Go to Step 5 Transmission SW trouble. Disconnected harness. Repair SW and harness. Go to Step 6 5 Measure the voltage between EHCU connector terminals 6 and Is there 6.6 to 9.0V when the gear position is 3, 4, 5 and N(M/T) or Go to Step 6 Transmission SW trouble. Disconnected harness. Repair SW and harness. Go to Step 6 6 1. Reconnect all components and ensure all components are properly mounted. 2. Clear diagnostic trouble code. Was this step finished? Repeat the “Basic diagnostic flow chart.” Go to Step 6 |
