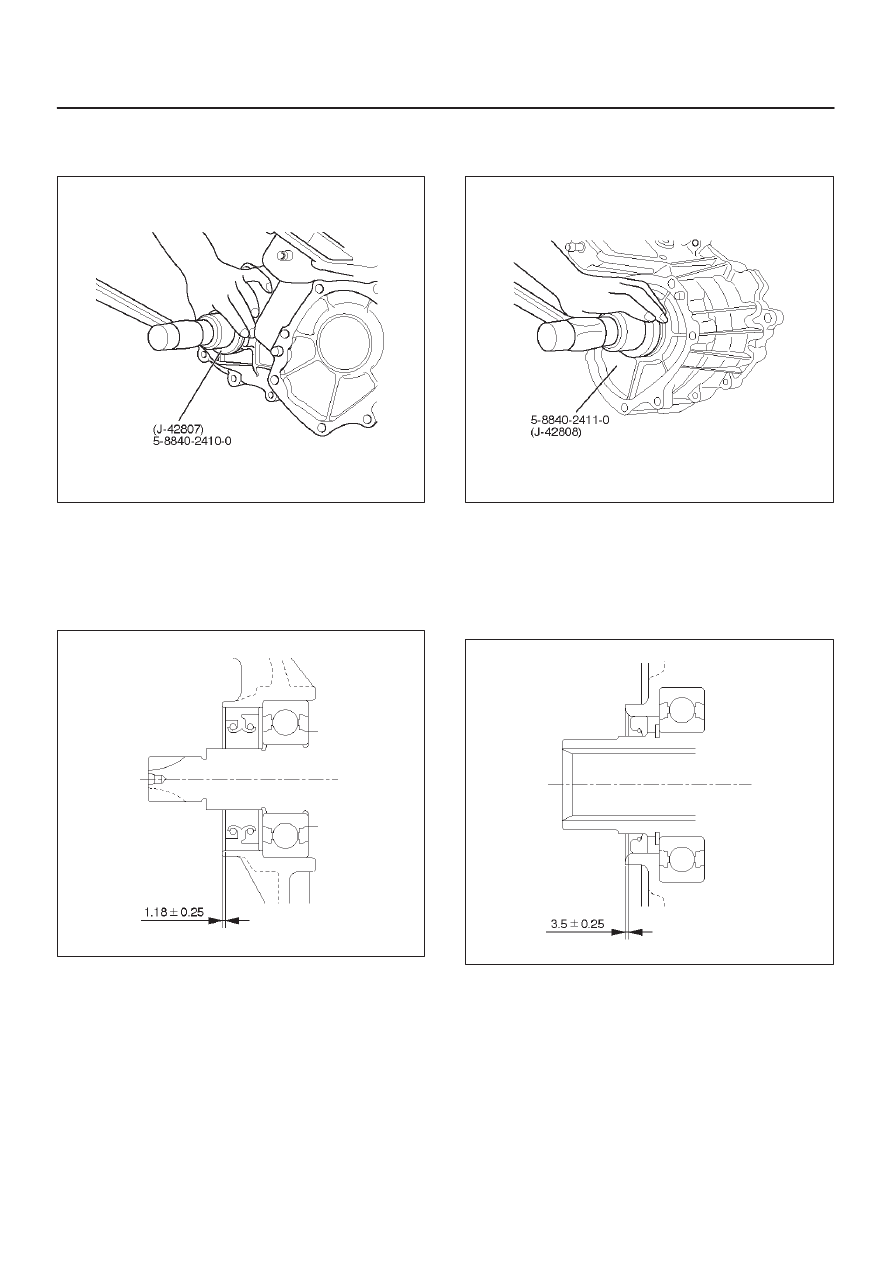

4D2–31 TRANSFER CASE (TOD) 3. Using the front output shaft oil seal installer 5-8840-2410-0 (J-42807), install the oil seal to the 261RW053 Front Output Shaft Oil Seal Distance between the transfer case end and oil seal. NOTE: When installing the oil seal to the specified Distance : 0.93 — 1.43mm (0.037 — 0.056 in) A04RW003 4. Using the input shaft (main) oil seal installer 5-8840-2411-0 (J-42808), install the oil seal to the 261RW055 Input Shaft Oil Seal Distance between the transfer case end and oil seal. NOTE: When installing the oil seal to the specified Distance : 3.25 — 3.75mm (0.13 — 0.15 in) A04RW002 |
