SEATS 8G–21

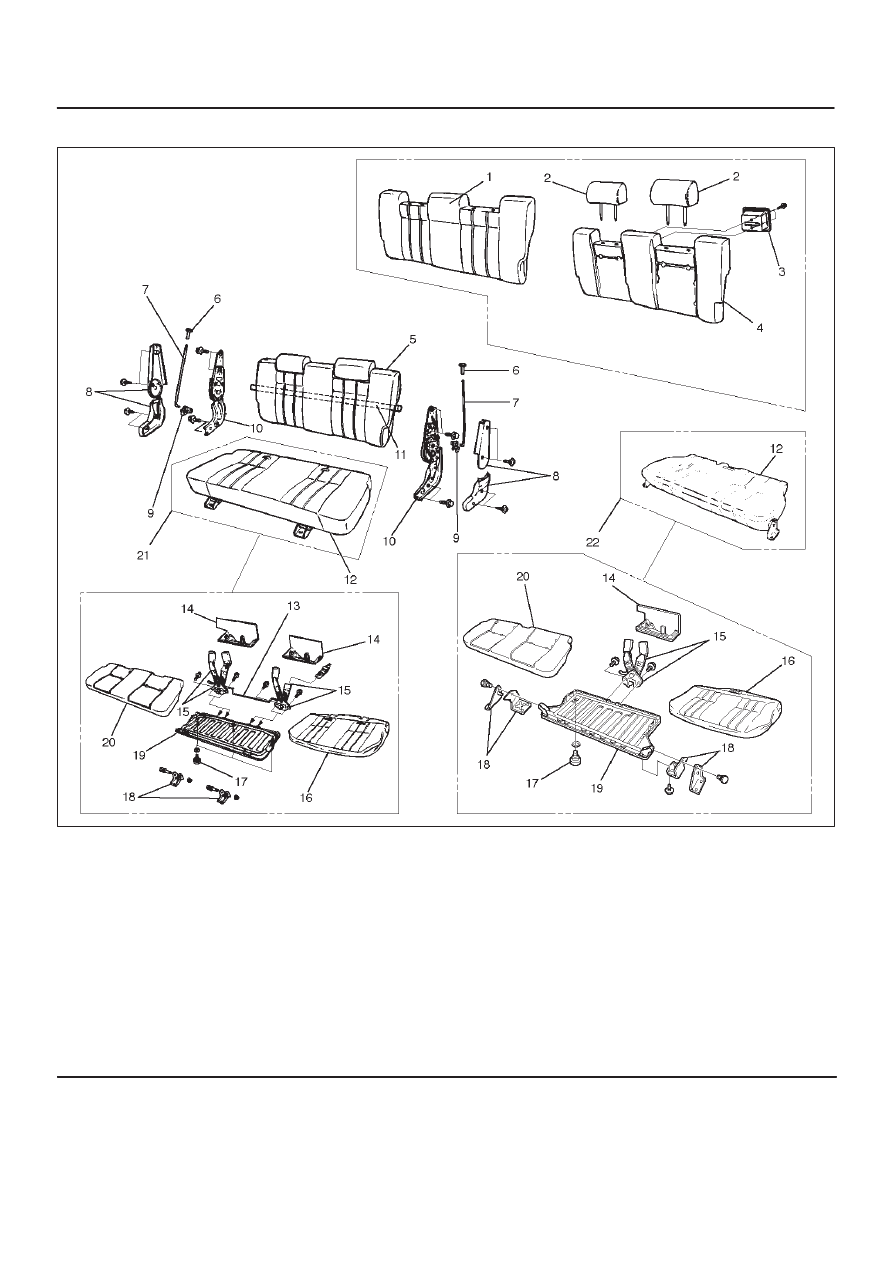

Disassembled View (Bench Type)

755RW033

Legend

(1) Trim Cover
(2) Pillow Assembly
(3) Band Hook Cover
(4) Pad & Frame Assembly
(5) Seat Back Assembly
(6) Release Knob
(7) Release Rod
(8) Device Cover
(9) Linkage Bush

(10) Reclining Device

(11) Connecting Shaft

(12) Seat Cushion Assembly
(13) Connecting Link
(14) Seat Lock Cover
(15) Rear Seat Belt Buckle and Lock Assembly
(16) Trim Cover
(17) Stopper Rubber
(18) Mounting Bracket
(19) Frame Assembly
(20) Pad Assembly
(21) L·W·B
(22) S·W·B

8G–22 SEATS

Disassembly (Bench Type)

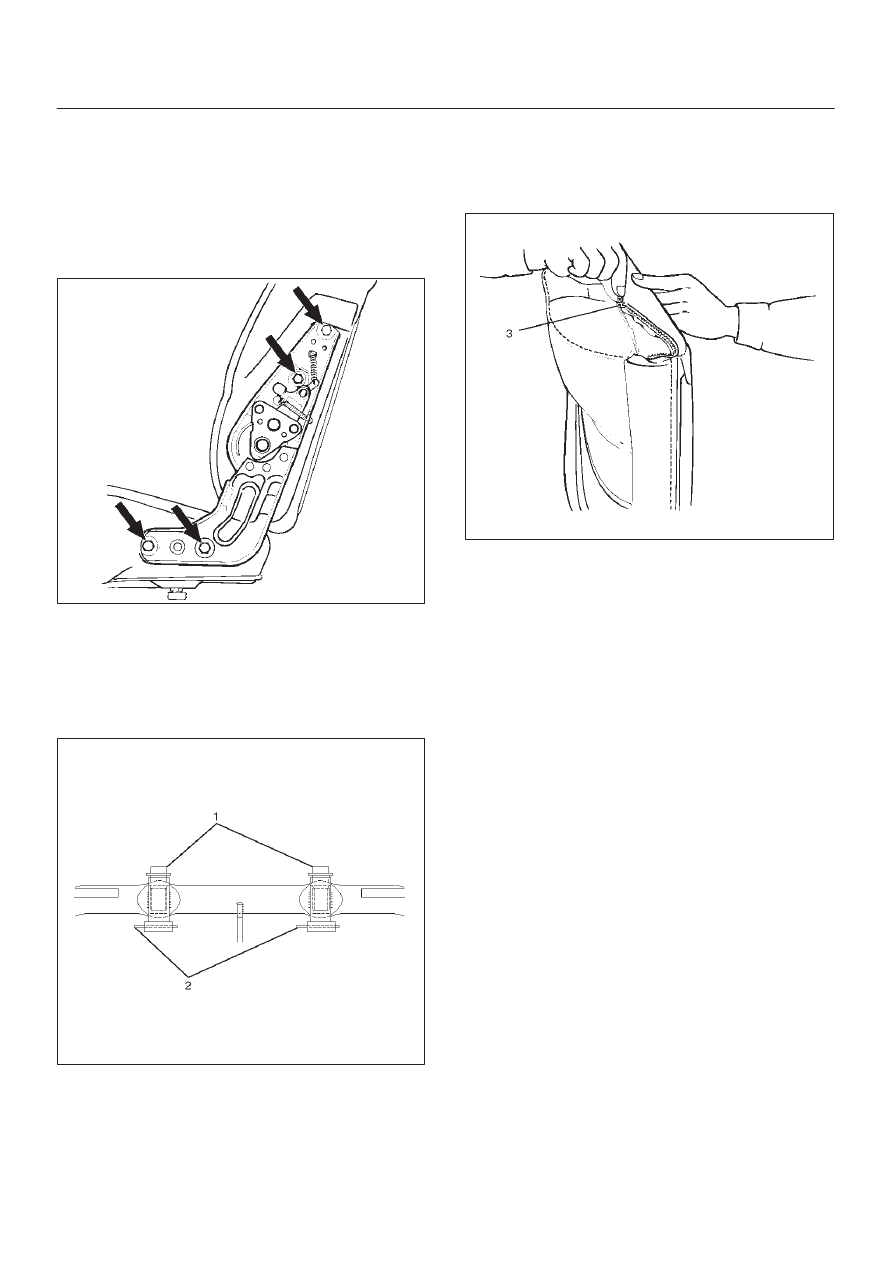

1. Remove the device cover.
2. Remove the release knob.

D

Turn the knob to the counterclockwise to remove it.

3. Remove the release rod.

D

Disconnect the rod from the linkage bush.

4. Remove the reclining device.

755RS004

5. Remove the connecting shaft.
6. Remove the seat back assembly.
7. Remove the band hook cover.
8. Remove the pillow assembly.

D

Refer to the Disassembly (Split Type) in this
section.

755RS017

9. Remove the trim cover.

D

Open the fastener(3), and with close attention paid
to the hog rings and wire which connect the trim
cover and the pad and frame assembly, remove the
trim cover as you turn it up.

750RW011

10. Remove the pad & frame assembly.

11. Remove the seat cushion assembly.

12. Remove the seat lock cover.
13. Remove the rear seat belt buckle and lock assembly.
14. Remove the mounting bracket.
15. Remove the trim cover.

D

Remove the hog rings and pull the trim cover out
from the frame assembly groove.

D

With close attention paid to the hog rings and the
wire which connect the trim cover and the pad and
frame assembly, remove the trim cover while
turning it up.

16. Remove the frame assembly.
17. Remove the pad assembly.
18. Remove the stopper rubber.

SEATS 8G–23

Reassembly (Bench Type)

To reassemble,  follow the disassembly steps in the
reverse order, noting the following point.

1. Tighten the reclining device fixing bolts to the

specified torque.

Torque: 27 N·m (2.8kg·m/20 lb ft)

2. Loosen the rubber stopper lock nut(1) and adjust the

stopper rubber(3) so there is no clearance between
the bottom of the stopper and the carpet(2), while
ensuring the rear seat is firmly locked.
Tighten the lock nut securely.

755RS005

Third Seat Assembly

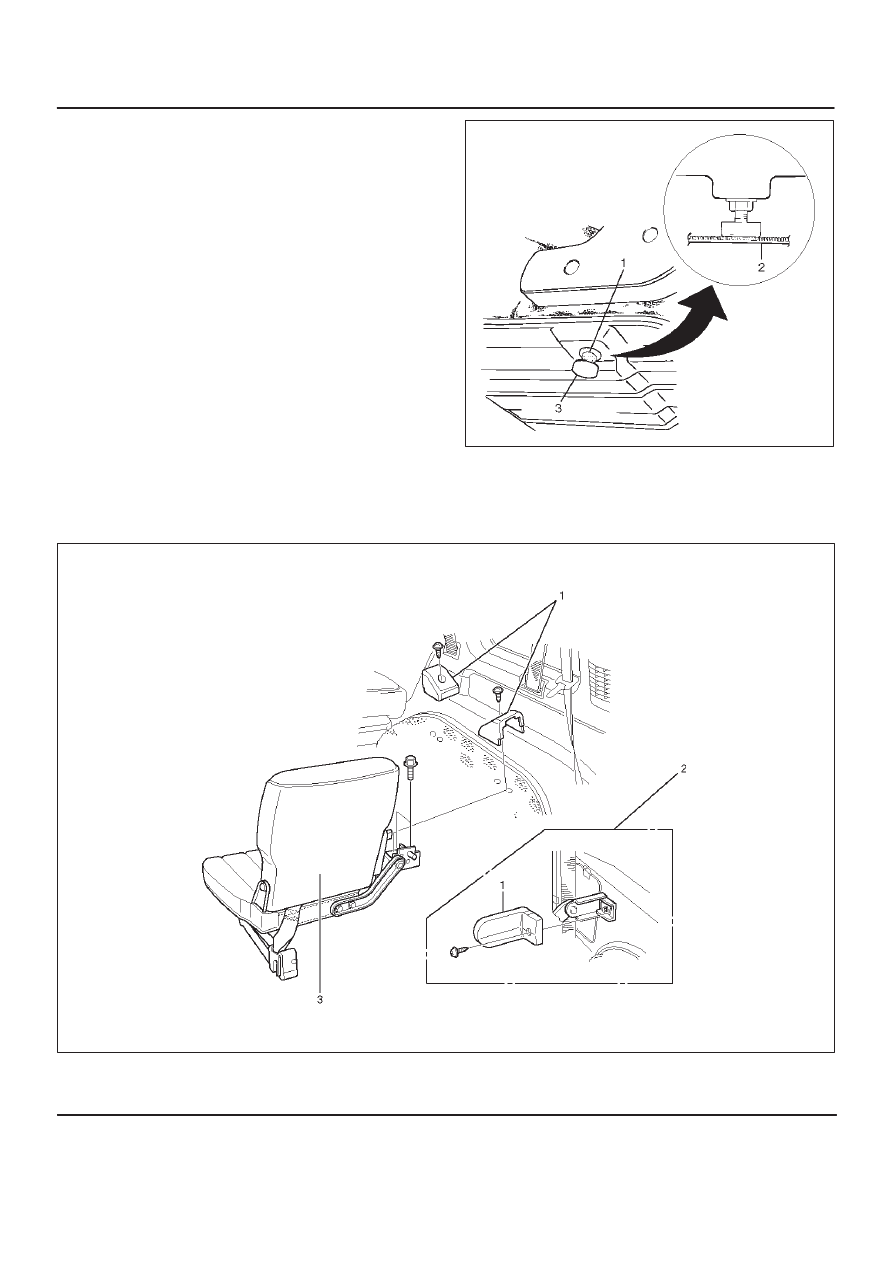

Parts Location

755RW034

Legend

(1) Cover

(2) Rear Side of LH
(3) Third Seat Assembly

Removal

1. Disconnect the battery ground cable.

2. Remove the cover.
3. Remove the third seat assembly.

8G–24 SEATS

Installation

To reassemble, follow the disassembly steps in the
reverse order, noting the following point.

1. Tighten the reclining device fixing bolts to the

specified torque.

Torque: 19 N·m (1.9kg·m/14 lb ft)

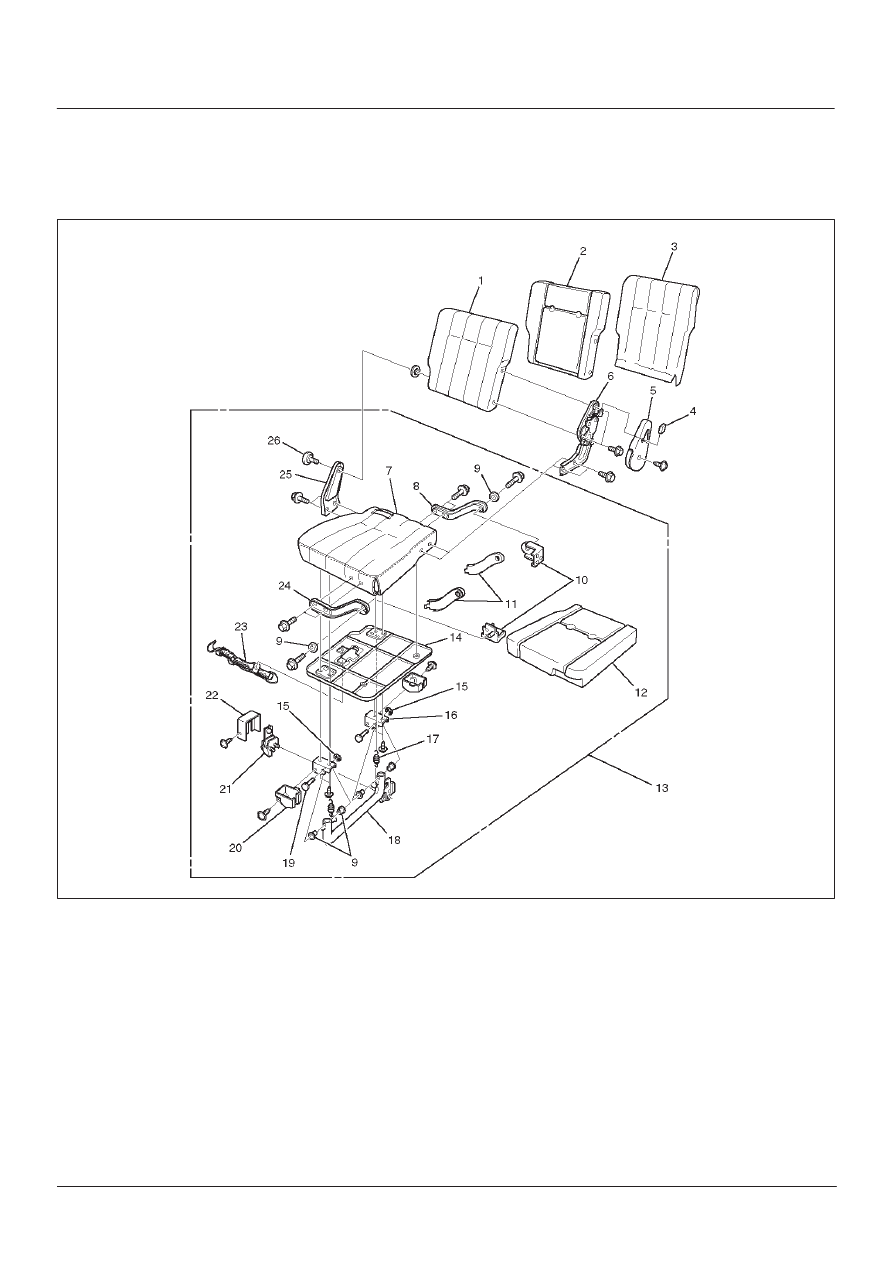

Disassembled View

755RW035

Legend

(1) Seat Back Assembly
(2) Pad & Frame Assembly
(3) Trim Cover
(4) Hinge Knob
(5) Hinge Cover
(6) Hinge Assembly
(7) Trim Cover
(8) Arm Bracket
(9) Bush

(10) Bracket

(11) Arm Bracket Cover

(12) Pad & Frame Assembly
(13) Seat Cushion Assembly

(14) Board Assembly
(15) E–Ring
(16) Cam Bracket
(17) Tension Spring
(18) Leg Pipe Assembly
(19) Hing Pin
(20) Lock Cover
(21) Floor Lock Assembly
(22) Lock Cover
(23) Band Assembly
(24) Arm Bracket
(25) Free Hinge
(26) Free Hinge Bolt
