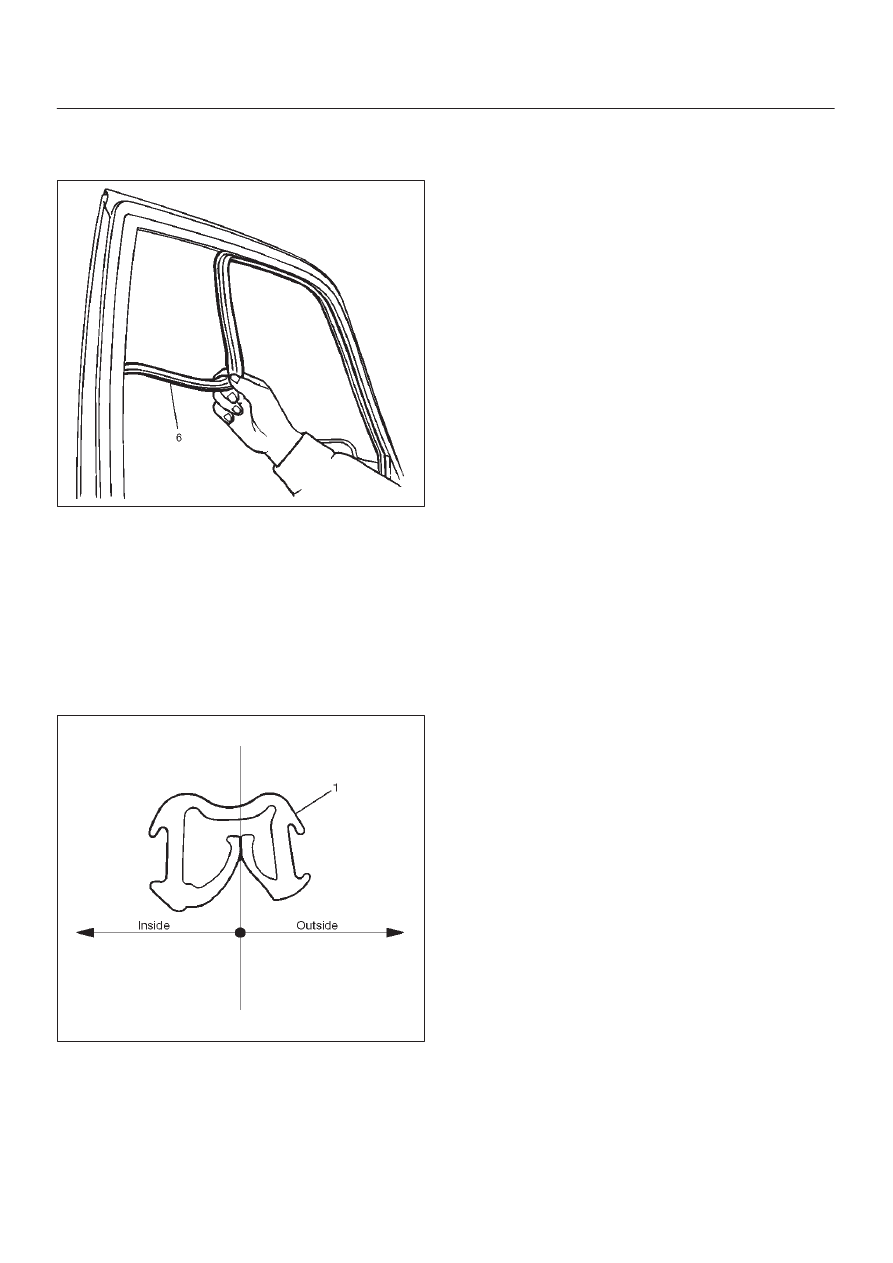

8F–60 BODY STRUCTURE 7. Remove glass run. D Pull the glass run (6) out from the door frame 631RS007 8. Remove rear guide rail. Installation To install, follow the removal steps in the reverse order, 1. Apply soap and water to the door frame groove. Insert the glass run (1) to the door frame from the A corner in A10RS023 2. Set the glass into the door panel with the front side of the glass lowered and insert the rear side of the glass 3. Tighten the window regulator and the glass fixing bolts and nuts to the specified torque. Torque : 8 N • m (0.8kg·m/69 lb in) 4. Check to see of the window regulator operates smoothly and the glass opens and closes properly. |
