CAB AND CHASSIS ELECTRICAL 8-17
Connector

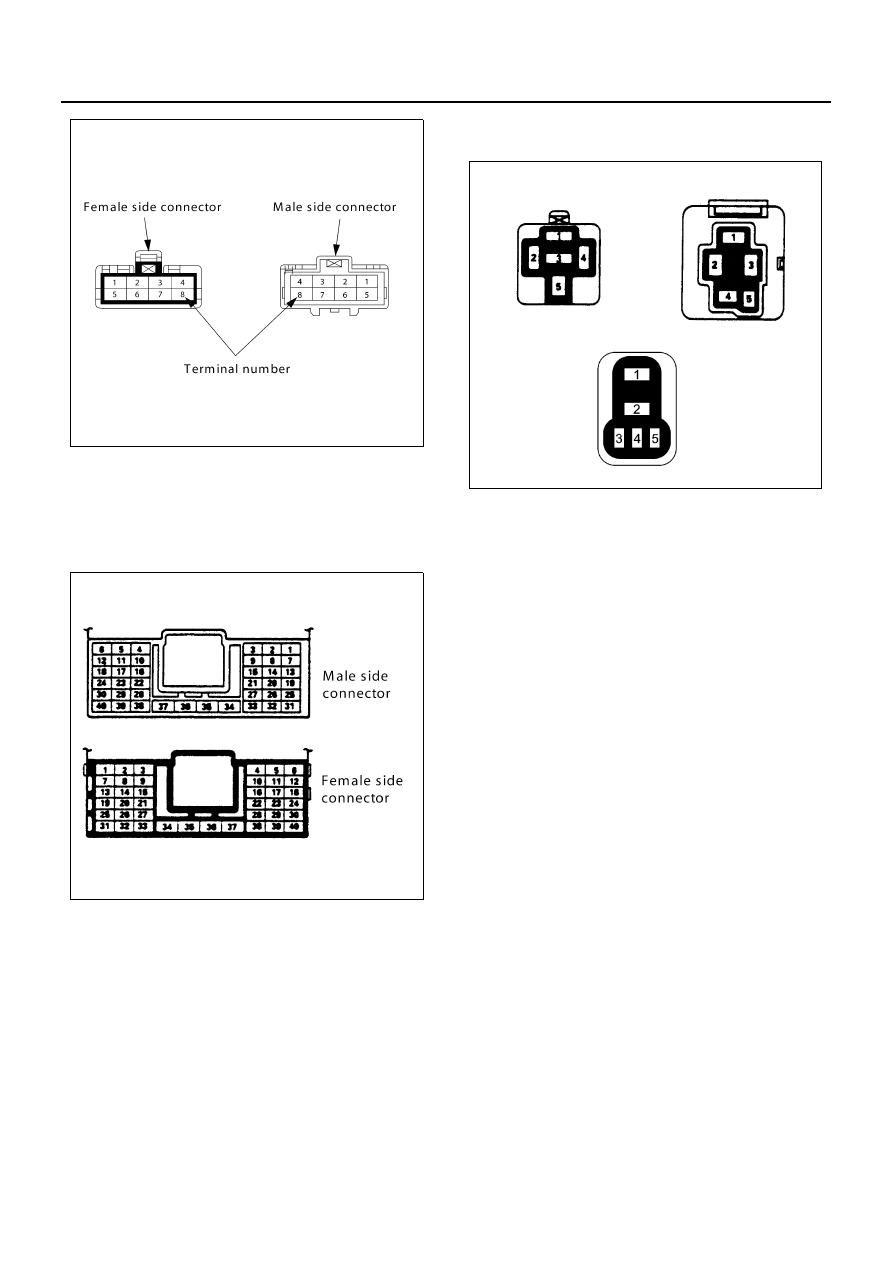

The connector pin shape determines whether the con-
nector is male or female.
The connector housing configuration does not deter-
mine whether a connector is male or female.

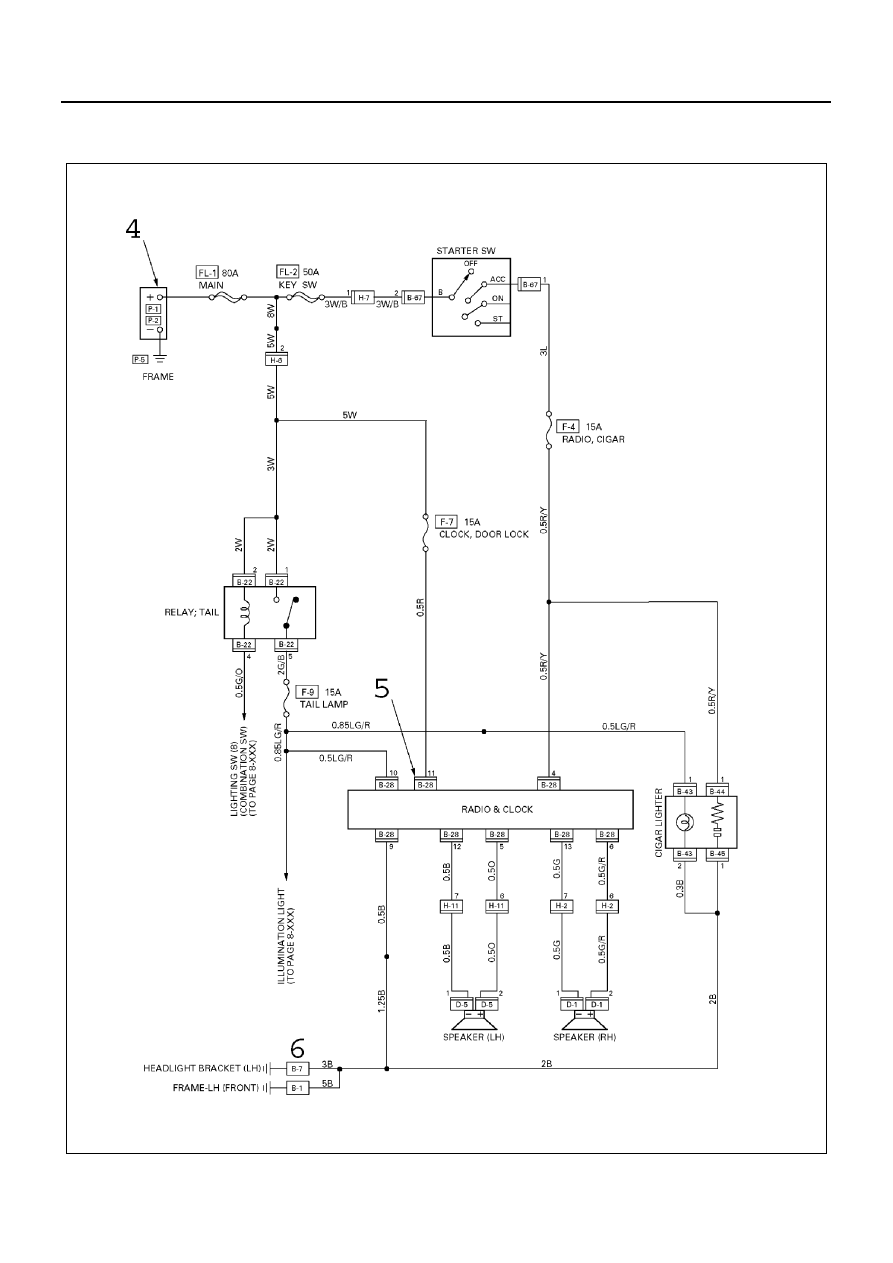

The symbol illustrated in the figure is used as connector,
in the circuit of this section.

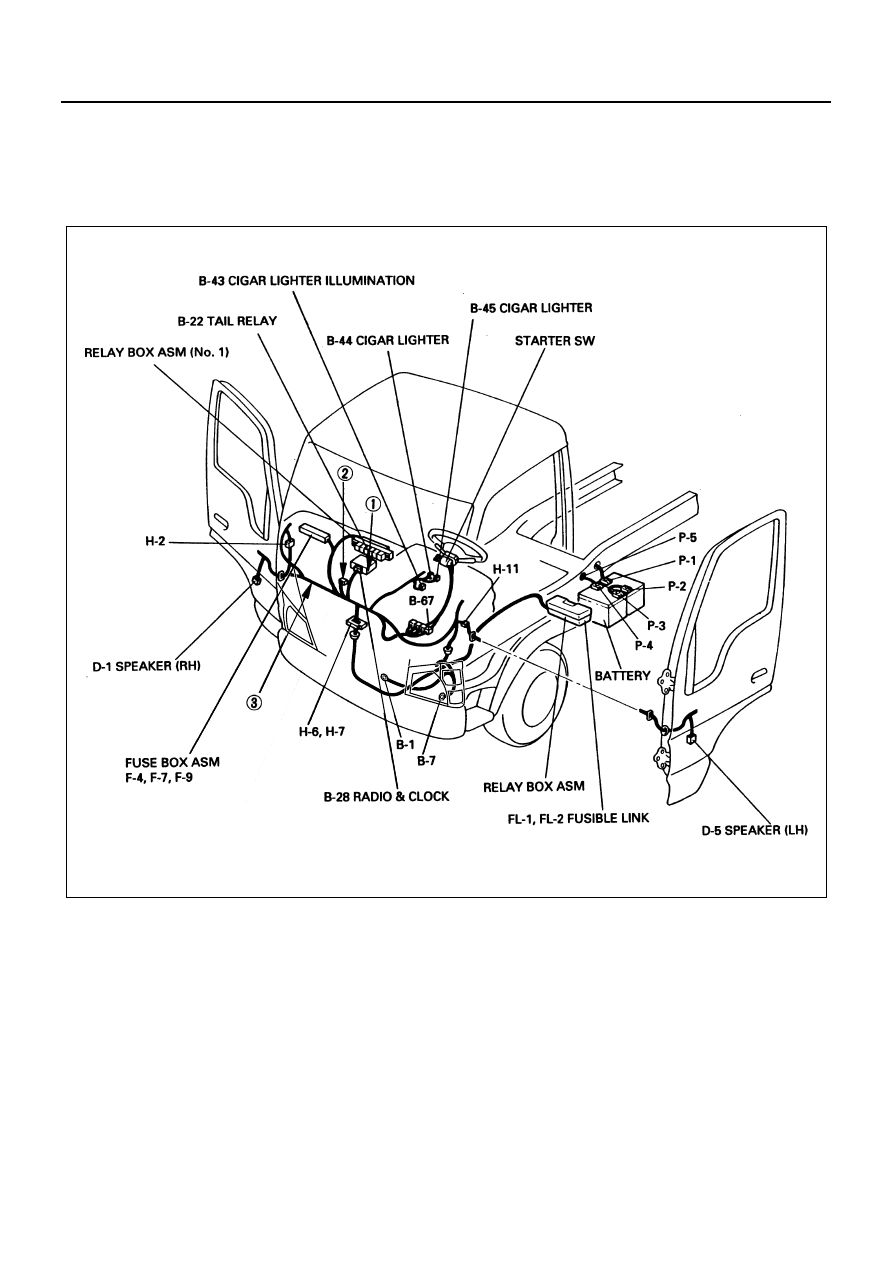

Connector is identified with a number.
The applicable terminal number is shown for each con-
nector.
Connector terminal numbers are clearly shown.
Male side connector terminal numbers are in sequence
from upper right to lower left.
Female side connector terminal numbers are in se-
quence from upper left to lower right.
