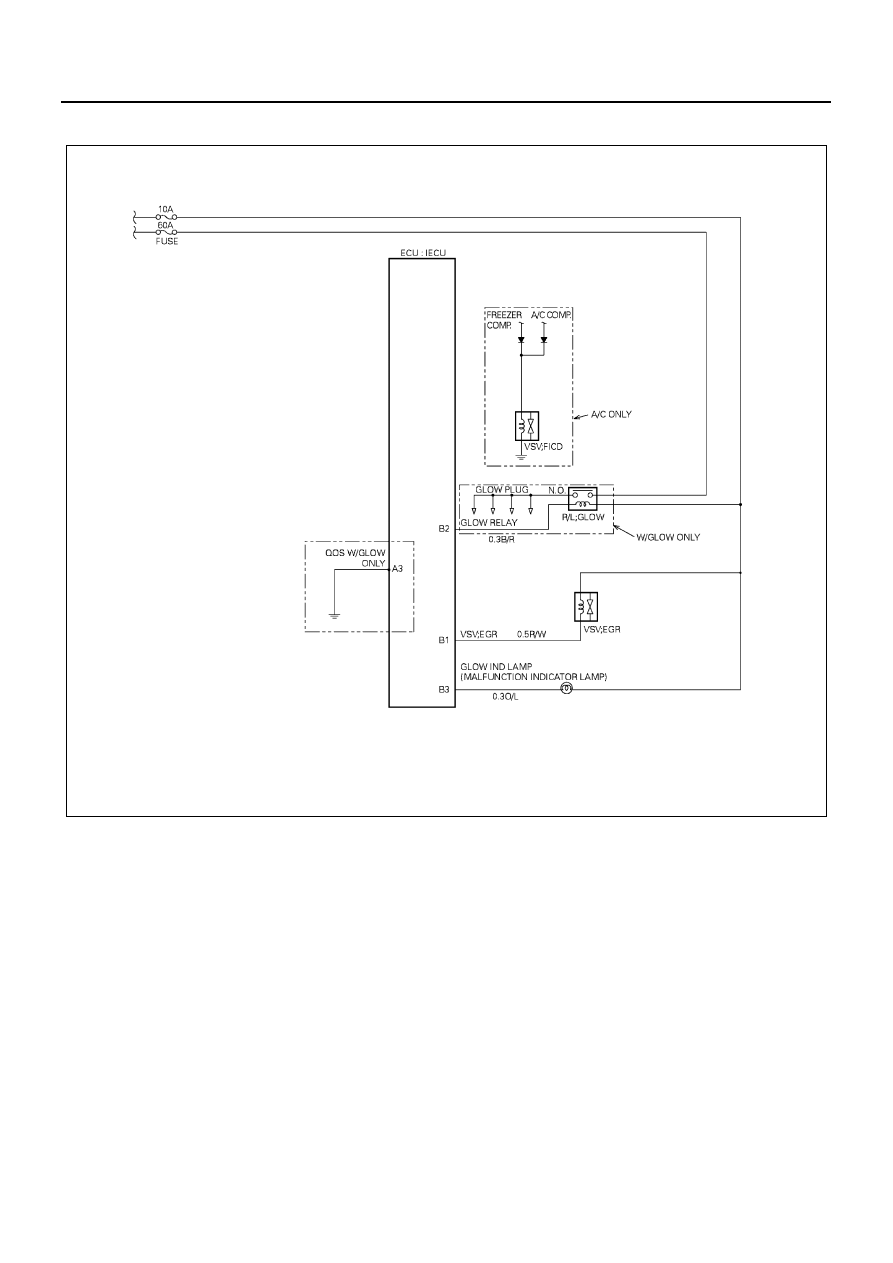

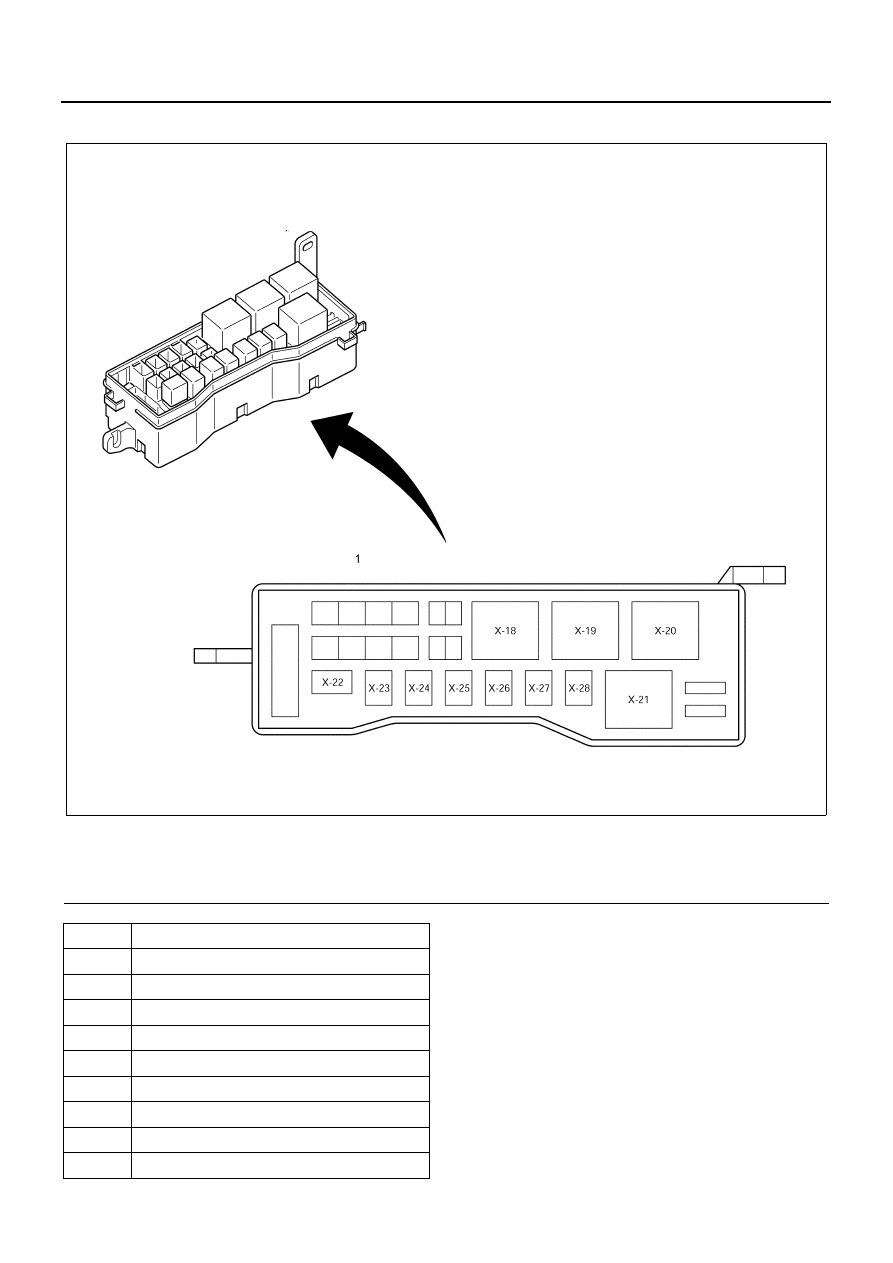

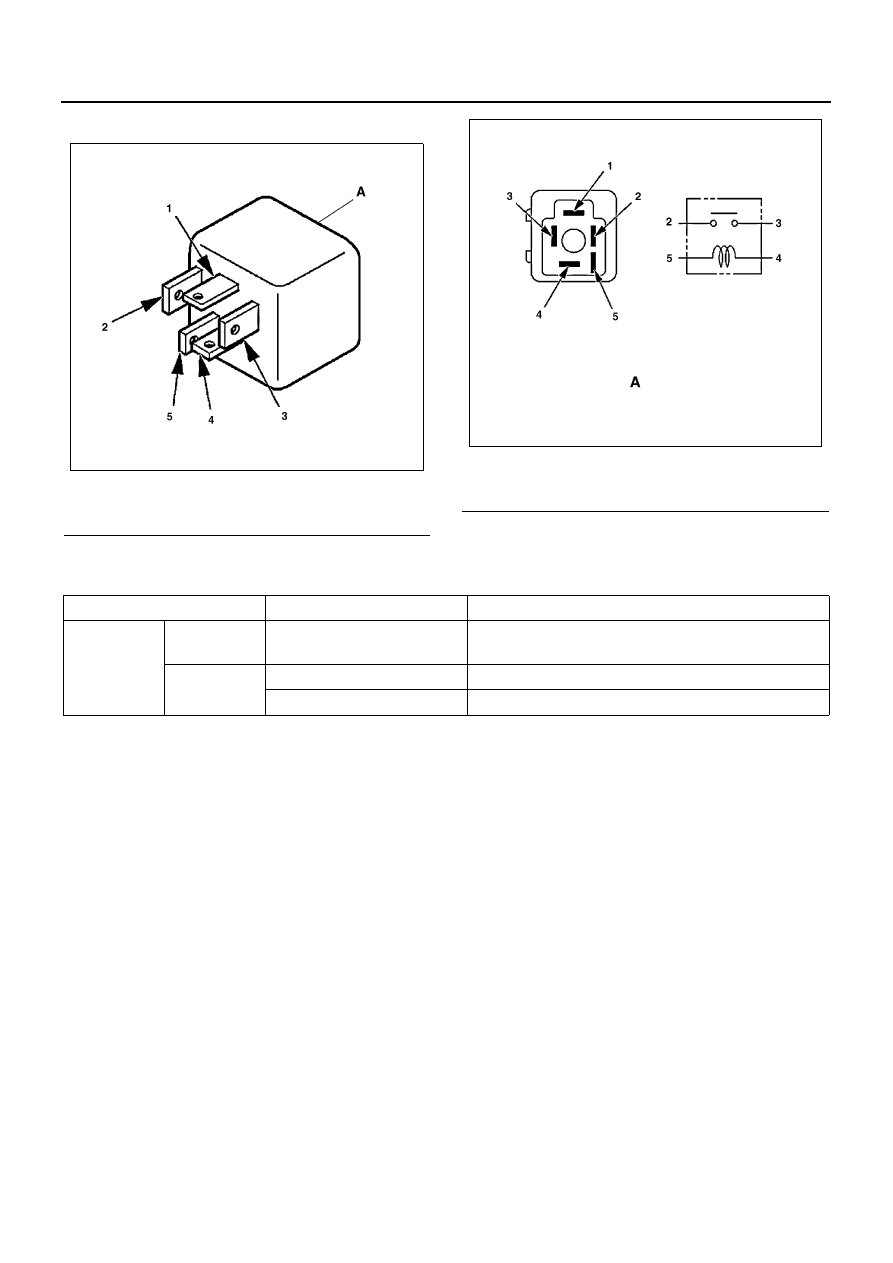

6E-184 EMISSION AND ELECTRICAL DIAGNOSIS Resistance value Notice: Inspection Point Resistance Value (k Ω) Reference Connector Pin No. 2 pin Black 2 ←→ 1 37 to 44 (for 12 volt) 159 to 169 (for 24 volt) SIG ←→ GND 1 ←→ Body ∞ SIG ←→ Body Step Action Value YES NO 1 Was the “Diagnostic system check” per- — Go to diagnostic system check 2 Using the DVM, check the resistance of the Does the DVM read the following Value? 37 — 44 Ω 159 — 169 Ω 3 1. Ignition “OFF”. ECM. 3. Check the short to voltage of VSV circuit between the ECM and VSV connector. 4. Repair if necessary. Has DTC 32 been corrected? — 4 Replace the VSV. Is the action complete? — — 5 Replace the ECM. Is the action complete? — — 6 1. Reconnect all the connectors removed. Does DTC 32 come normal condition? — 7 Is any current trouble other than DTC 32 dis- — Go to trouble code section Trouble code clear |
