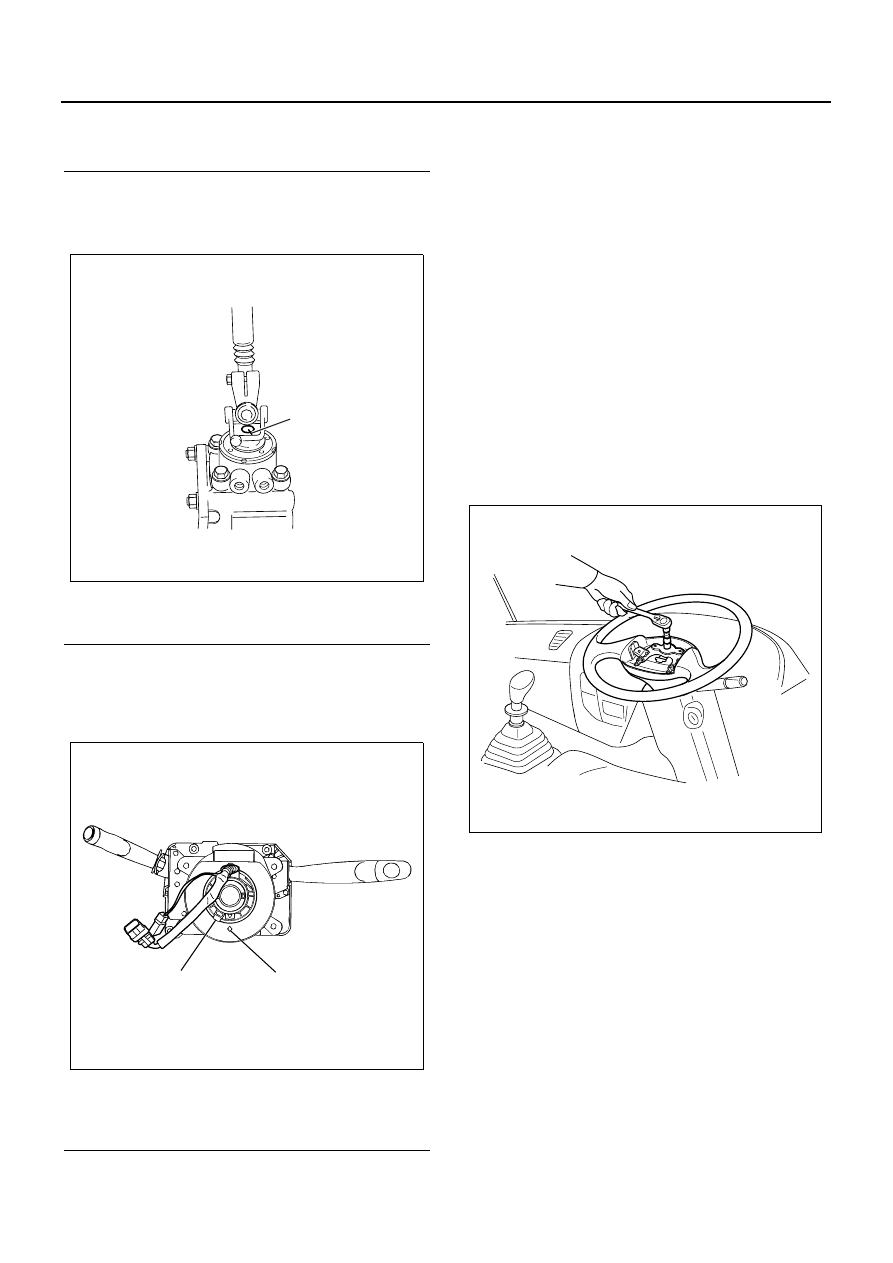

SRS 9B-35 Legend 1. Snap ring 5. Set the steering wheel in the straight position. SRS coil). Legend 1. Alignment mark 7. Rotate the SRS coil clockwise fully and back off it about 4 rotations to align neutral mark. Legend 1. Lock pin Caution: • While rotating the SRS coil clockwise fully, stop ro- tating if resistance is felt. Additional rotation by • More than 3 rotations from neutral point in each di- rection lead to damage on SRS coil. 8. Connect SRS harness connector (yellow) and combination switch harness connector located in 9. Make sure that tires are in the straight position. 10. While checking the engagement in canceller of flasher, install steering wheel straight and align the 11. Tighten the mounting nut which installs steering wheel to the specified torque. Tighten: ± 6.8 N⋅m (4.3 ± 0.7 kg⋅m / 31.0 ± 5.0 lb⋅ft) 12. For new combination switch (including SRS coil) with lock pin, pull the lock pin in front to bend. 13. Put the harness through the harness through hole and assembly the cover. 14. Connect the 2-pole connector (yellow) and horn harness located in the back of airbag assembly. 15. Secure the connector and harness. bolt to the specified torque. Tighten: ± 2.0 N⋅m (0.8 ± 0.2 kg⋅m / 5.9 ± 1.5 lb⋅ft) 1 N9A0061E 1 2 N9A0053E N9A0050E |
