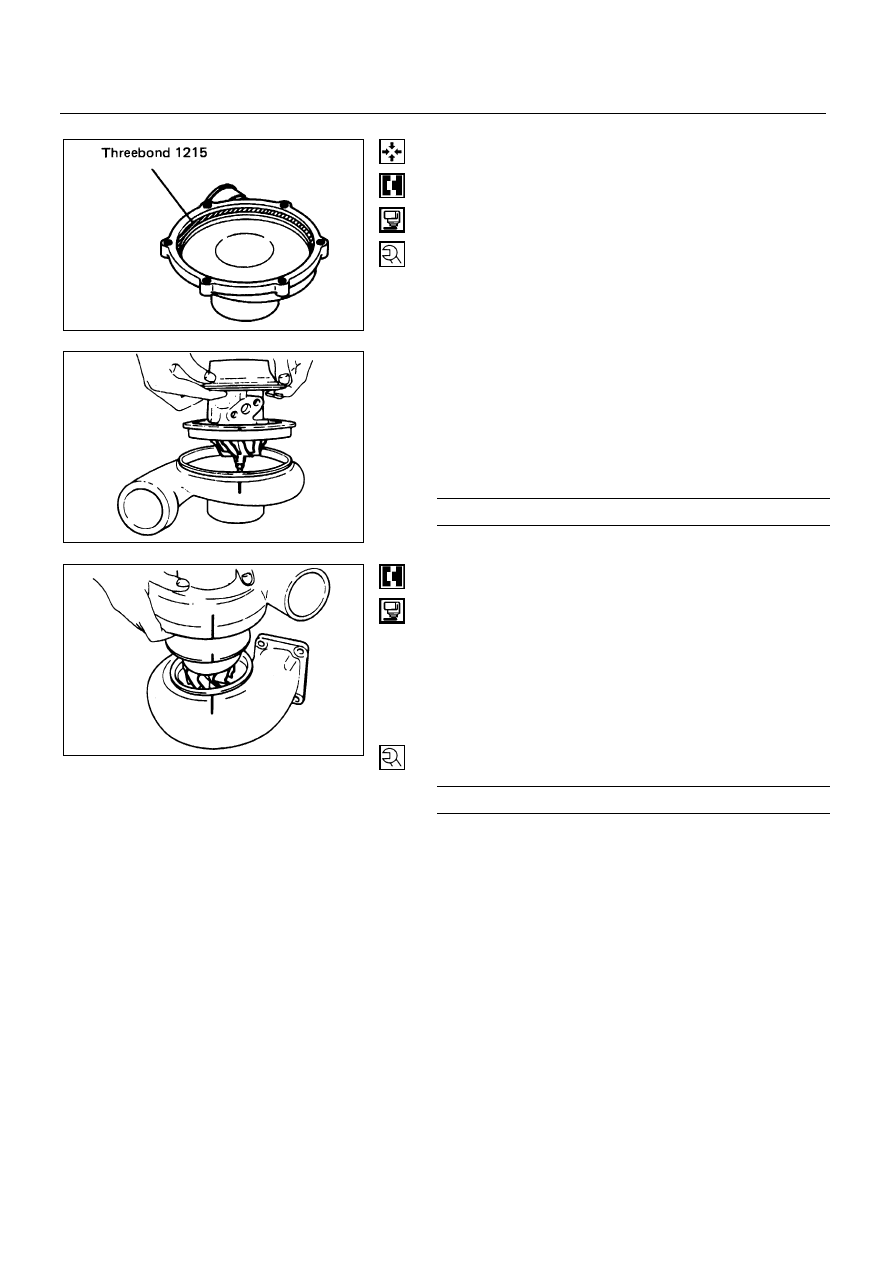

6G – 10 TURBOCHARGER Reassembly Steps 1. Center Housing and Rotating Assembly 2. Compressor Housing 3. Bolt 1) Apply Threebond 1215 or equivalent to flange surface of compressor housing shown in the illustration. 2) Align the setting marks (applied at disassembly) on the center housing and rotating assembly and the 3) Apply and anti-seizing agent (LOCTITE ANTISEIZE LUBRICANT or the equivalent) to the new bolt 4) Install the new bolts to the compressor housing. N∙m (kg∙m/lb∙ft)
4.7 (0.5/3.5)
4. Turbine Housing 5. Lock Plate and Bolt 1) Align the setting marks (applied at disassembly) on the center housing and rotating assembly and the turbine 2) Apply and anti-seizing agent (LOCTITE ANTISEIZE LUBRICANT or the equivalent) to the bolt. 3) Tighten the bolt to the specified torque. N∙m (kg∙m/lb∙ft)
28.0 (2.85/20.6)
4) Check that the rotating assembly turns smoothly. 6G-10-3.tif 6G-10-1.tif 6G-10-2.tif |
