Isuzu engine 4j series. Manual - part 73





6C - 36  ENGINE FUEL

13. Air Intake Duct

Connect the air intake duct and tighten clip securely.

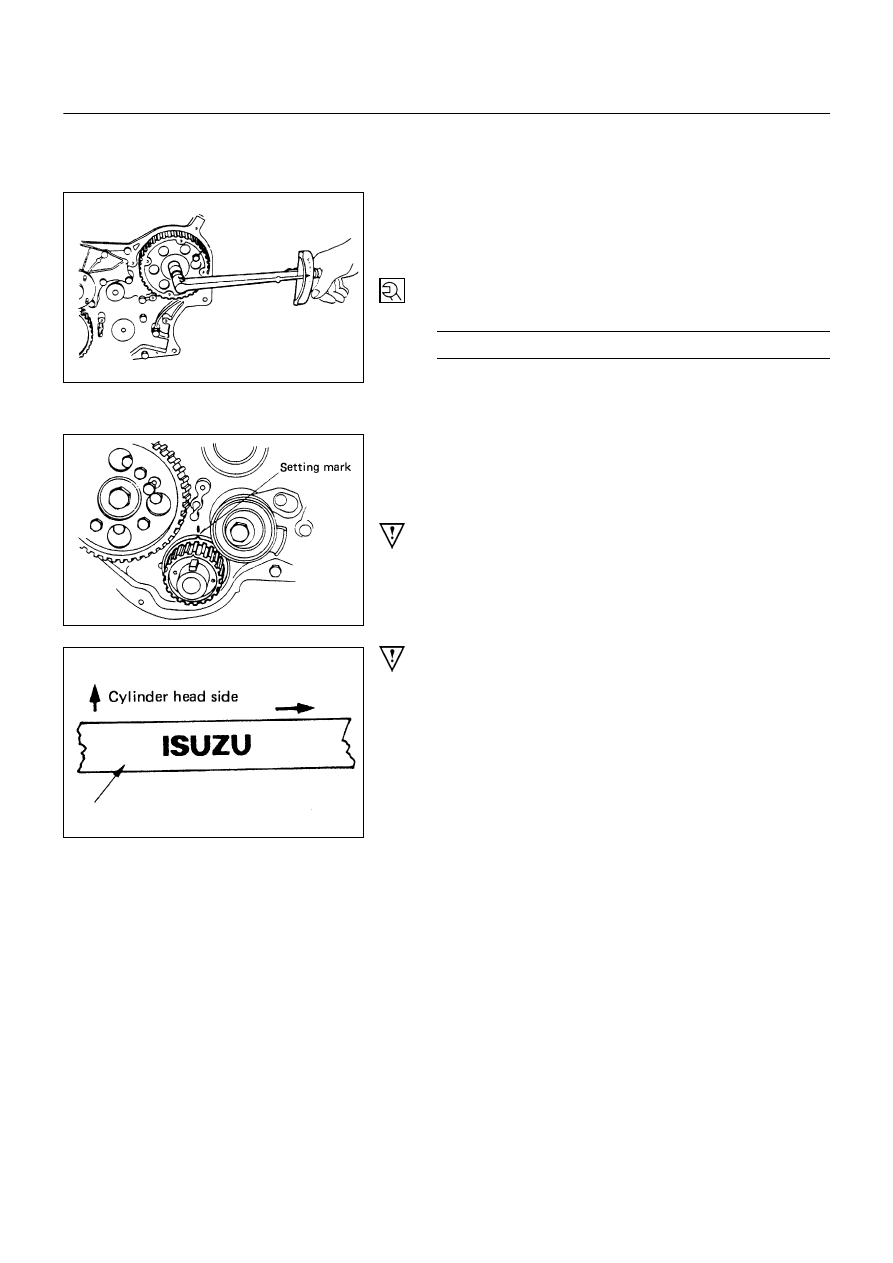

12. Injection Pump Timing Pulley

Align the timing pulley with the pump shaft key.

Install the stopper bolt to the timing pulley.
This will prevent the timing pulley from moving.

Tighten the timing pulley nut to the specified torque.

Injection Pump Timing Pulley Nut Torque N∙m (Kg∙m/lb∙ft)



64 (6.5/47)



Remove the stopper bolt from the injection timing
pulley.

11. Timing Belt

When removing the belt, make sure the marks on the
bolt fixed camshaft, injection pulley and crankshaft
timing pulley are set to each other.

CAUTION

Do not turn crankshaft because otherwise piston and
valve will interfere with each other.

CAUTION

For accurate mounting, be sure to mount the belt in
the direction that letters on the belt are readable.

6C-35-1.tif

6C-35-2.tif

6C-35-3.tif

ENGINE FUEL  6C - 37

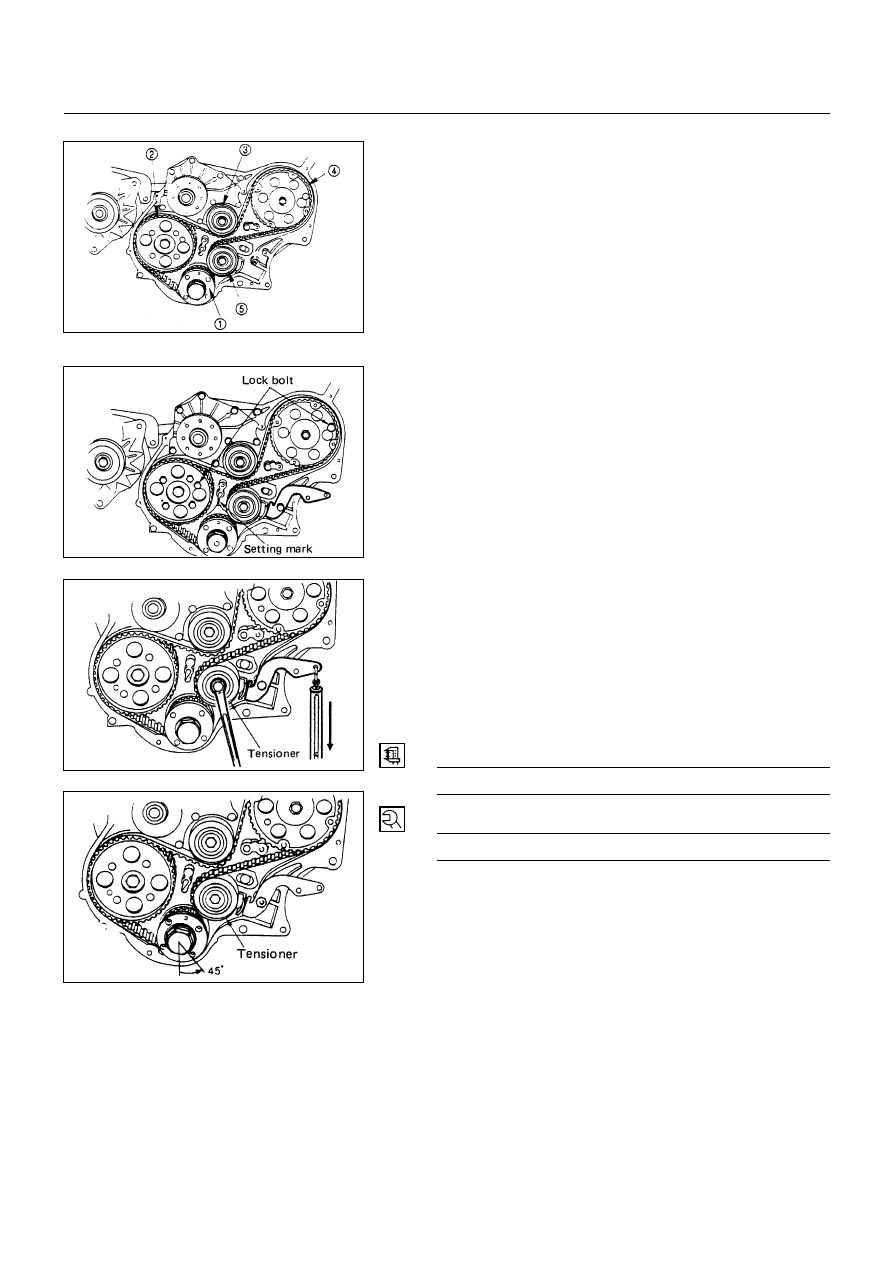

Mount new timing belt on pulleys in the following steps.
Crankshaft timing pulley

!

 camshaft

Timing pulley.

"

 Idle pulley

#

 Injection

Pump pulley

$

 tensioner

%

Set the belt on crankshaft timing pulley and hold with
one hand.

Stretch and pass the belt round each pulley with the
other hand.

After passing it round injection pump pulley,
install tensioner while taking care not to slacken the
belt.

CAUTION

On completion of belt passing, make sure that the
setting mark on crankshaft timing pulley is set.

If not set, reset the mark and repeat the belt passing.

Remove tension adjust, lever mounting bolt, and
loosen the fulcrum bolt to such extent that the lever is
movable.

Hung a spring balance from the end hole of tension
adjust lever, and with the balance pulled down with 88
N (9Kg/20 lb)., loosen once the, tensioner mounting
bolt and there retighten it.

Turn the crankshaft by 45° counterclockwise to shift
belt slackness on the tensioner.

Again hand the spring balance from the end hole of
tension adjust lever and pull it down with the specified
force.  Under this condition, loosen tensioner mounting
bolt to absorb belt slackness and retighten is to
specified torque.

Belt Tension

N (Kg/lb)



98 ~ 118 (10 ~ 12/22 ~ 26)



Bolt Torque

N∙m (Kg∙m/lb∙ft)



76 (7.8/56)



Fix the tension adjust lever.

6C-36-1.tif

6C-36-2.tif

6C-36-3.tif

6C-36-4.tif

6C - 38  ENGINE FUEL

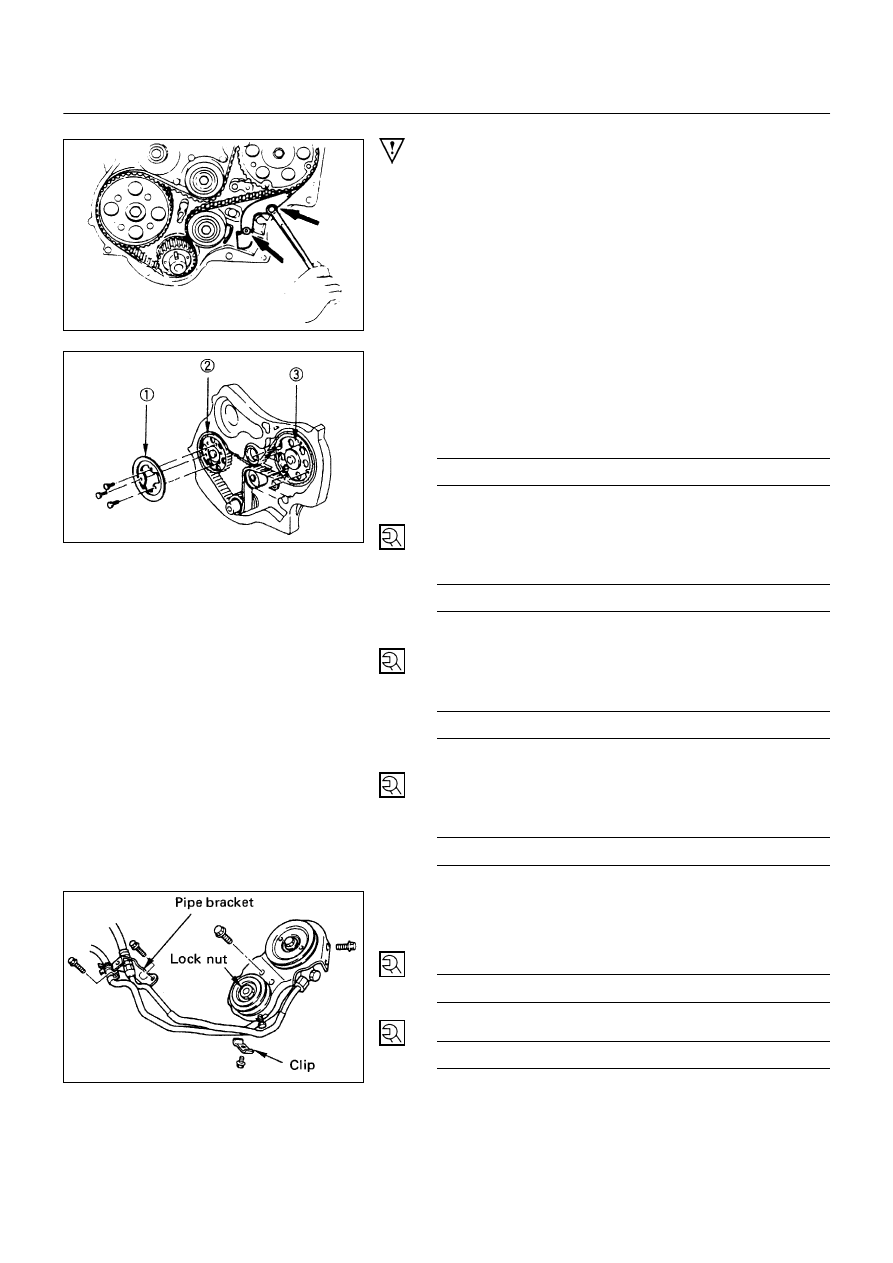

CAUTION

In case where the timing belt has been replaced with
the actuation of warning light, put off the light with
change over switch on the reverse side of meter.

Refer to Chassis Electrical in Seetion 8 .

Tighten the tension adjusting lever nut and bolt.

10. Flange; Camshaft Pulley

Install the timing pulley flange

!

 to the camshaft

"

.

Tighten the timing pulley flange bolts to the specified
torque.

N∙m (Kg∙m/lb ft)



19 (1.9/14)



9. Timing Pulley Lower Cover

Install timing pulley lower cover and tighten bolt to the
specified torque.

N∙m (Kg∙m/lb in)



8 (0.8/69)



8. Timing Pulley Upper Cover

Install timing pulley upper cover and tighten bolt to the
specified torque.

N∙m (Kg∙m/lb in)



8 (0.8/69)



7. Crankshaft Damper Pulley

Install crankshaft damper pulley and tighten bolt to the
specified torque.

N∙m (Kg∙m/lb ft)



19 (1.9/14)



6. Power Steering Pump & Bracket Assembly (P/S Model)

Install the pipe bracket, clip and tighten bolts to the
specified torque.

Pipe bracket bolts

N∙m (Kg∙m/lb ft)



19 (1.9/14)



Pipe clip bolts

N∙m (Kg∙m/lb ft)



10 (1.0/7)



6C-37-1.tif

6C-37-2.tif

6C-37-3.tif

ENGINE FUEL  6C - 39

Install the Power Steering pump & bracket assembly.

10M bolts

N∙m (Kg∙m/lb ft)



40 (4.1/30)



8M bolts

N∙m (Kg∙m/lb ft)



19 (1.9/14)



Lock nut

N∙m (Kg∙m/lb ft)



27 (2.8/20)



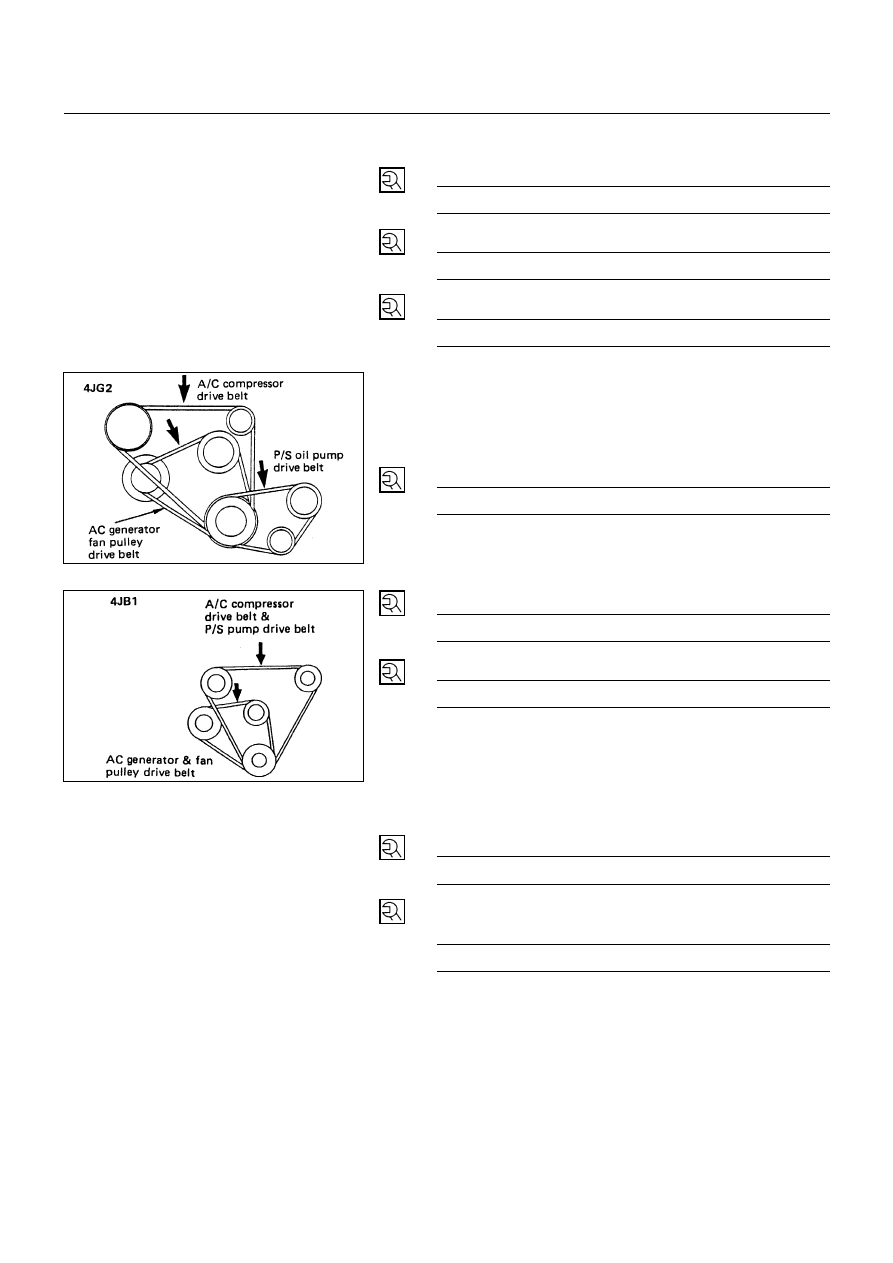

5. AC Generator Drive Belt

Install AC generator drive belt and adjust belt tension.

Depress the drive belt mid-portion with a 98N (10 kg/
22 lb) force.

Drive Belt Deflection

mm (in)



8 (0.31) - 10 (0.39)



Install fixing bolt and tighten bolts to the specified
torque.

Generator fixing Bolt

N∙m (Kg∙m/lb ft)



40 (4.1/30)



Adjust Plate Fixing Bolt

N∙m (Kg∙m/lb ft)



19 (1.9/14)



4. A/C Compressor Drive Belt (A/C Model)

Install A/C compressor drive belt and adjust belt
tension.

Depress the drive belt mid-portion with a 98N (10
kg/22lb) force.

Drive Belt Deflection

mm (in)



8 (0.31) - 10 (0.39)



Tighten the idler lock nut to the specified torque.

N∙m (Kg∙m/lb ft)



27 (2.8/20)



6C-38-1.tif

6C-38-2.tif
