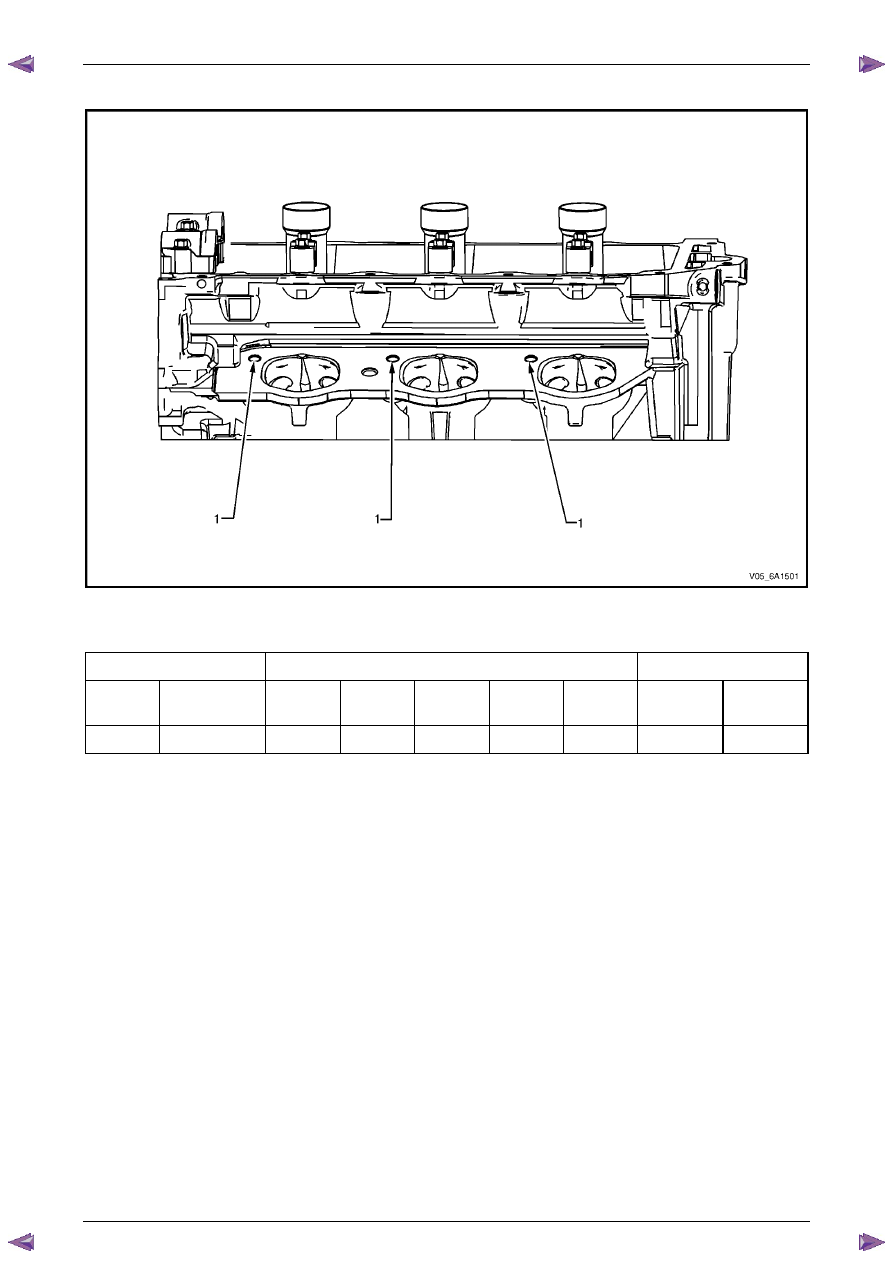

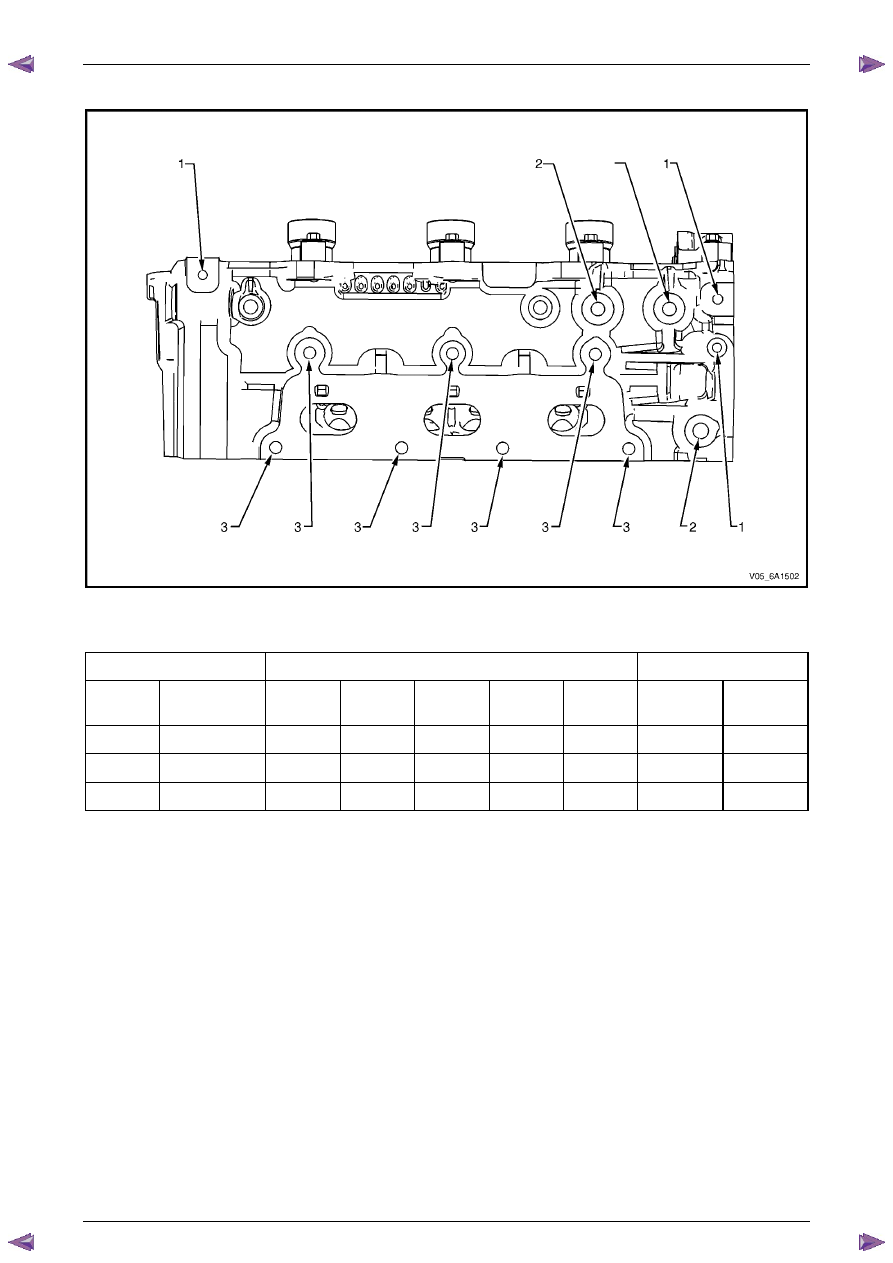

Engine Mechanical – V6 Page 6A1–327

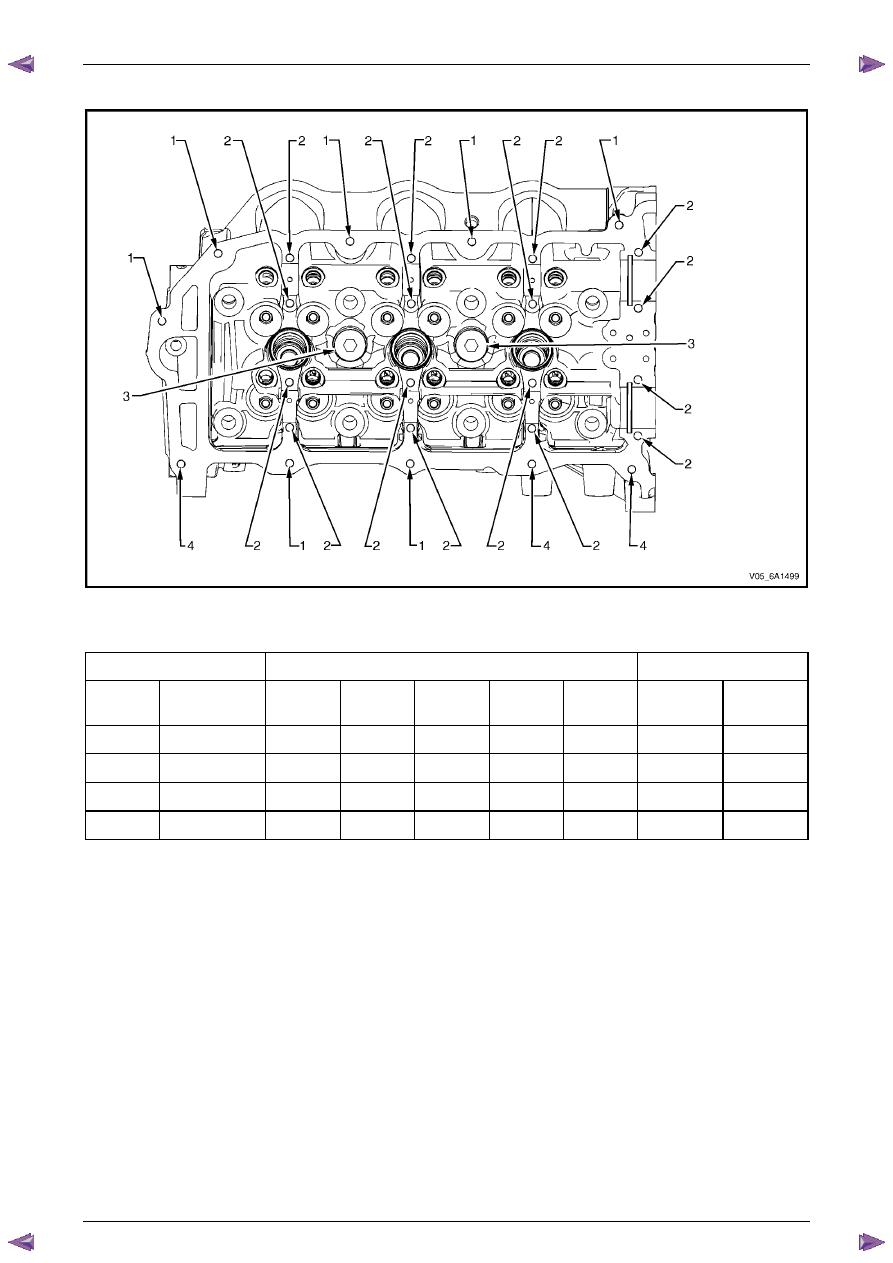

Page 6A1–327 Right-hand Cylinder Head Camshaft Cover Face

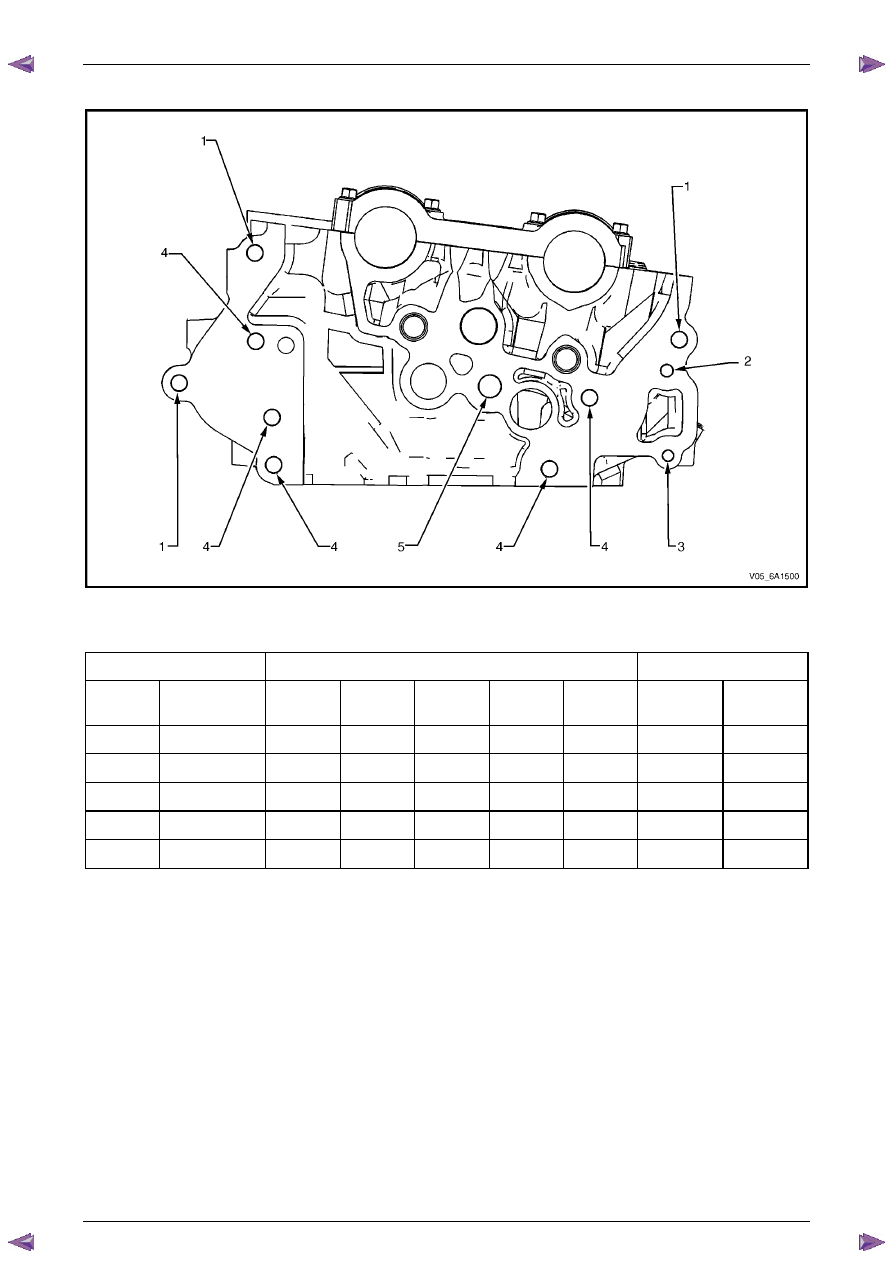

Figure 6A1 – 609 Legend Hole Tool Number J 42385 Max. Depth in mm Number Thread Size Drill Counter- bore Tap Driver Insert Drill Tap
1 M6 x 1.0 201 202 203 204 205 Thru Thru 2 M6 x 1.0 701 n/a 203 204 205 28.5 24.0 3 M20 x 1.5 715 716 717 718 719 25.0 17.0 4 M6 x 1.0 201 202 203 204 205 22.5 18.0
|
