Engine Mechanical – V6

Page 6A1–299



Page 6A1–299

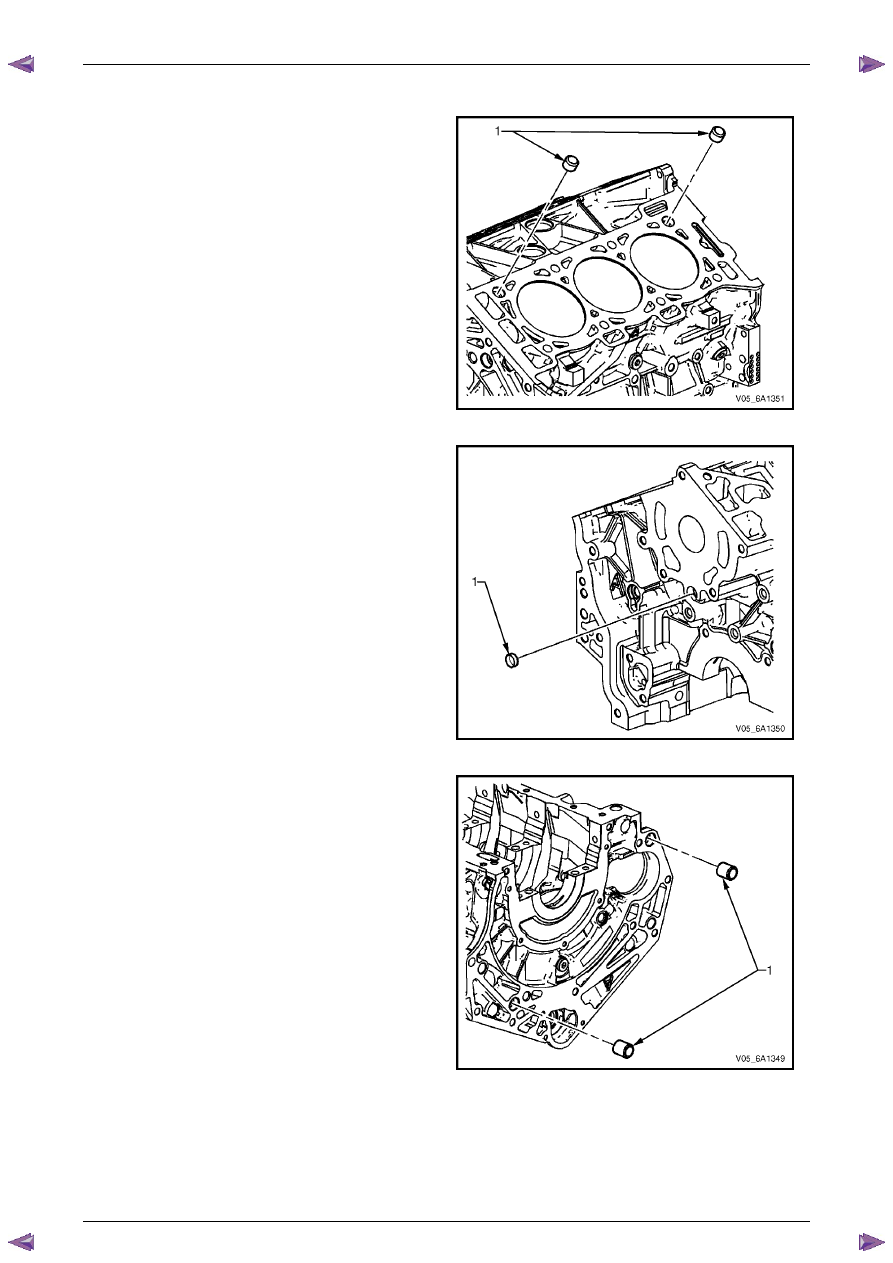

Reassemble

1

Install the cylinder block-to-cylinder head alignment
dowels (1).



Figure 6A1 – 540

2

Install a new front oil gallery expansion plug (1).



Figure 6A1 – 541

3

Install the cylinder block-to-transmission alignment
dowels (1).



Figure 6A1 – 542

Engine Mechanical – V6

Page 6A1–300



Page 6A1–300

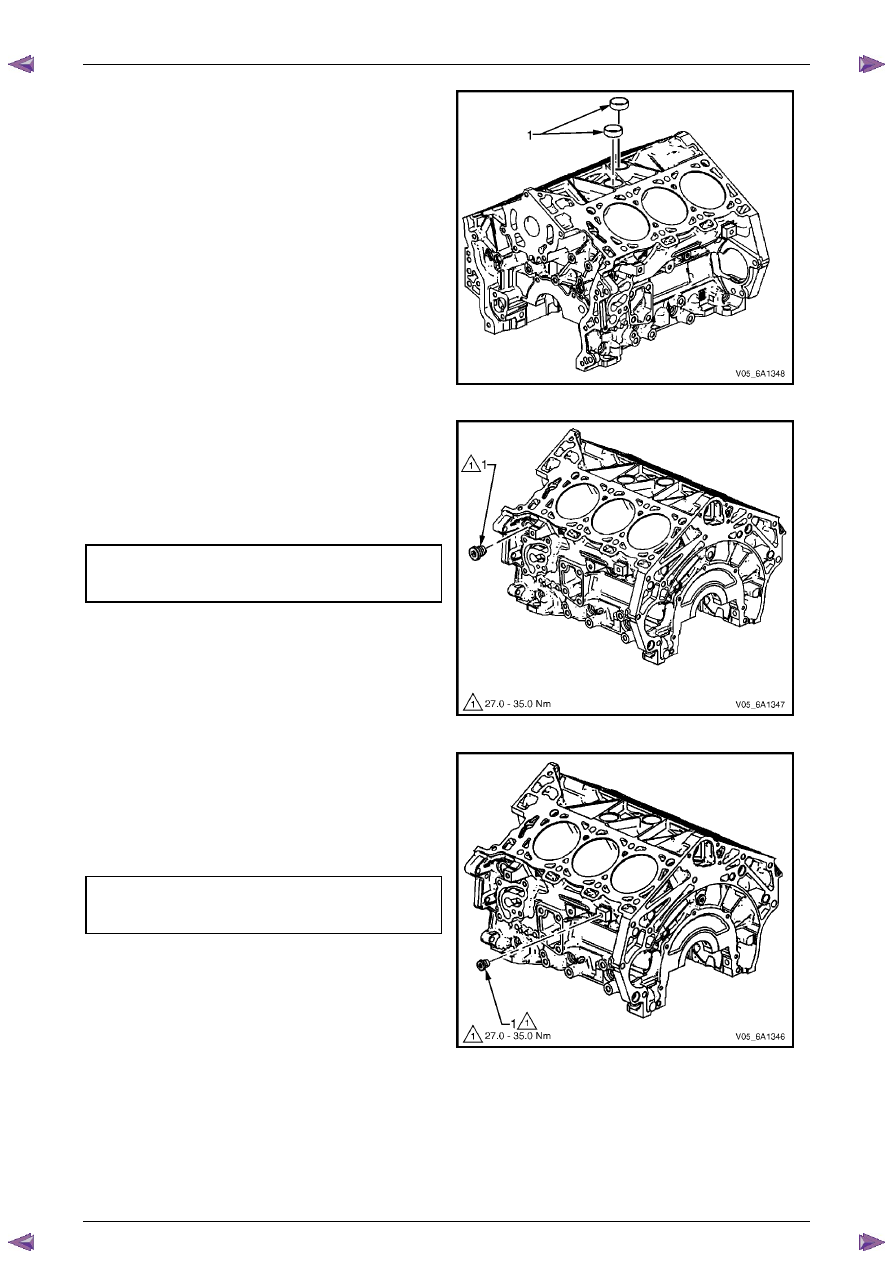

4

Place RTV sealant on new coolant expansion plugs
(1) and install the new coolant expansion plugs.



Figure 6A1 – 543

5

Install the left-hand side M20 oil gallery threaded plug
(1) and tighten to the correct torque specification.









Left-hand side M20 cylinder block
oil gallery threaded plug
torque specification .................................27.0 – 35.0 Nm



Figure 6A1 – 544

6

Install the left-hand side M14 coolant drain threaded
plug (1) and tighten to the correct torque specification.









Left-hand side M14 cylinder block
coolant drain threaded plug
torque specification .................................27.0 – 35.0 Nm



Figure 6A1 – 545

Engine Mechanical – V6

Page 6A1–301



Page 6A1–301

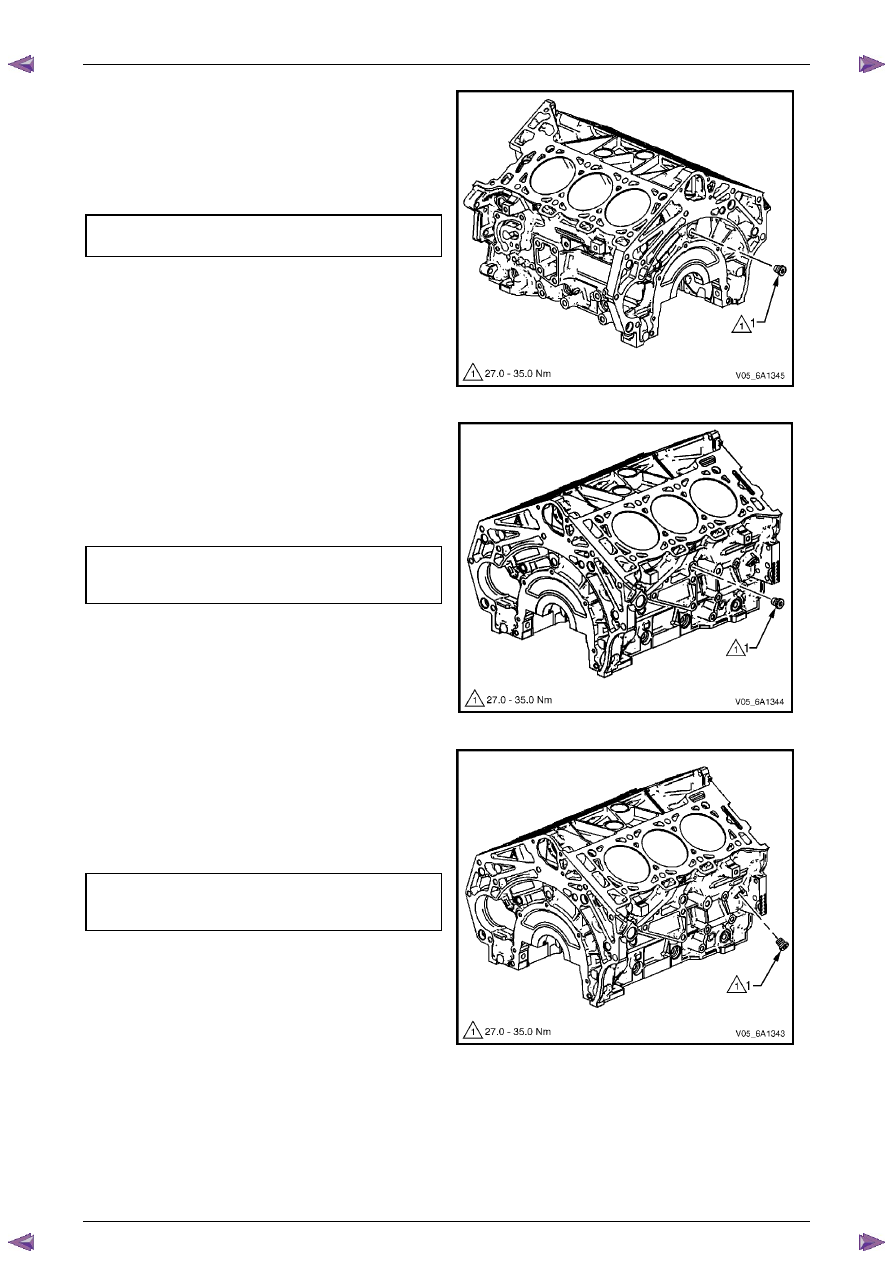

7

Install the M14 rear oil gallery threaded plug (1) and
tighten to the correct torque specification.









M14 cylinder block rear oil gallery
threaded plug torque specification ..........27.0 – 35.0 Nm





Figure 6A1 – 546

8

Install the right-hand side M14 coolant drain threaded
plug (1) and tighten to the correct torque specification.









Right-hand side M14 cylinder block
coolant drain threaded plug
torque specification .................................27.0 – 35.0 Nm





Figure 6A1 – 547

9

Install the right-hand side M14 oil gallery threaded
plug (1) and tighten to the correct torque specification.









Right-hand side M14 cylinder block
oil gallery threaded plug
torque specification .................................27.0 – 35.0 Nm





Figure 6A1 – 548

Engine Mechanical – V6

Page 6A1–302



Page 6A1–302

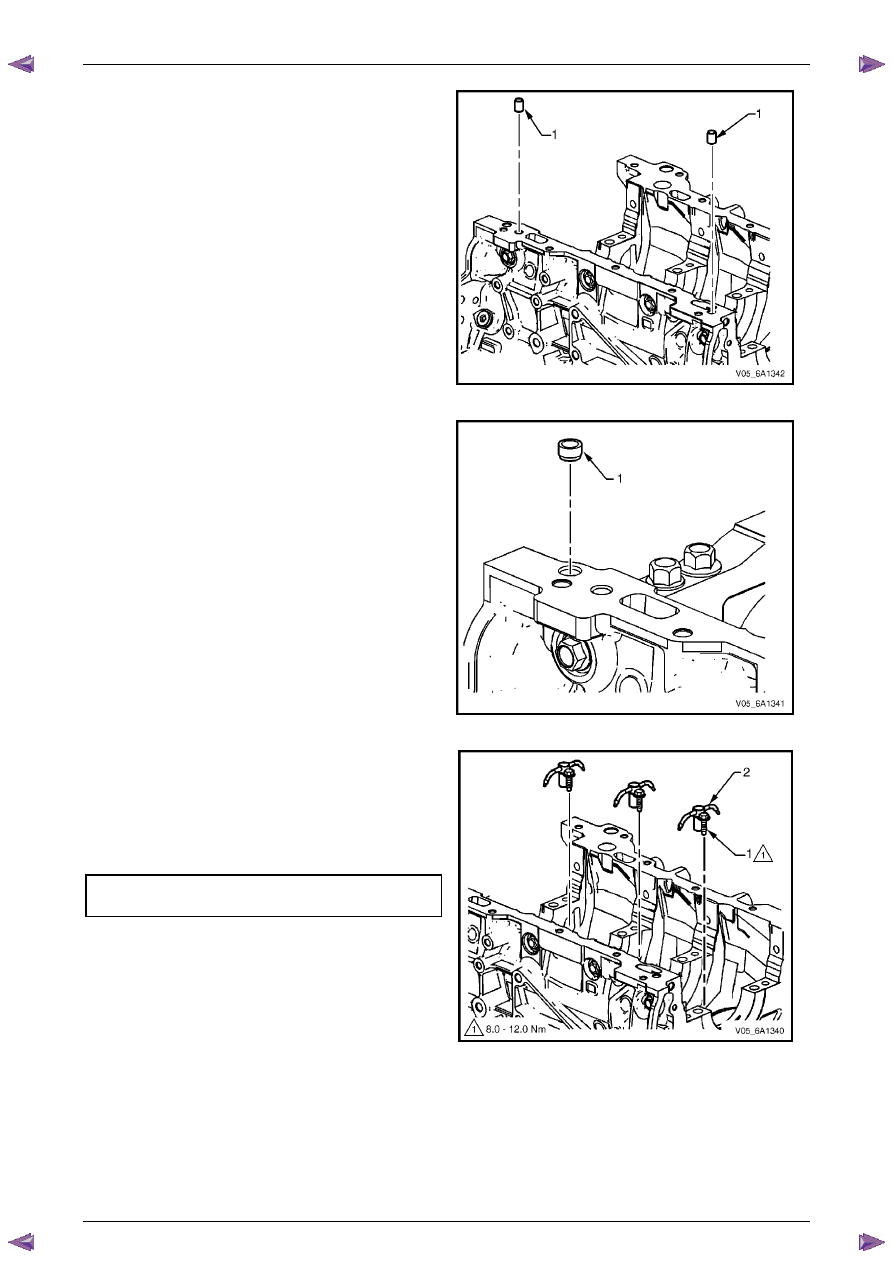

10

Install the cylinder block-to-oil pan alignment
dowels (1).





Figure 6A1 – 549

11

Install the new right-hand front oil pan rail oil gallery
expansion plug (1).





Figure 6A1 – 550

12

Install the oil jet (2), three places.

13

Install the oil jet attaching bolt (1), three places and
tighten to the correct torque specification.







Oil jet attaching bolt
torque specification ...................................8.0 – 12.0 Nm





Figure 6A1 – 551
