Engine Mechanical – V6

Page 6A1–127



Page 6A1–127

Left-hand Secondary Timing Chain Shoe

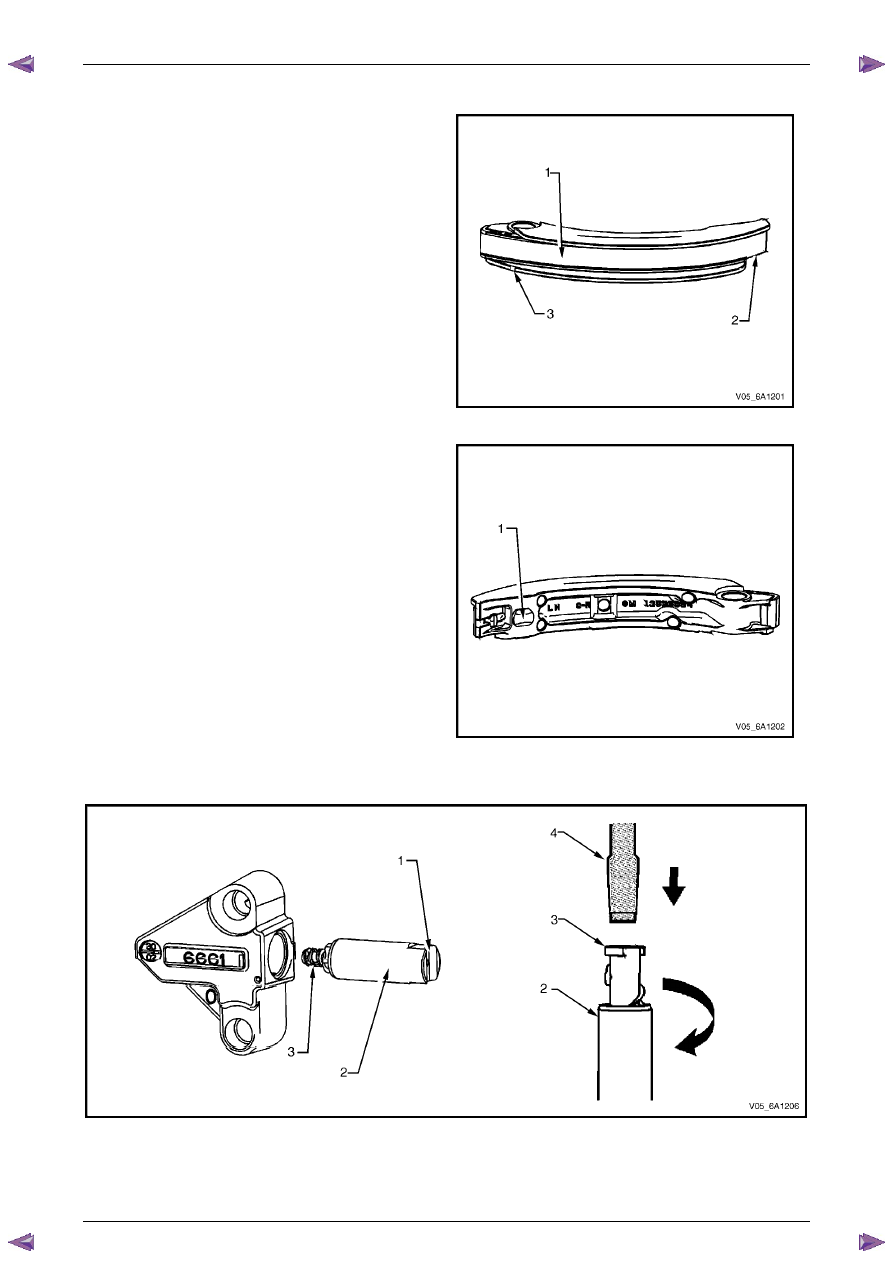

Inspect the front of the left-hand secondary timing
chain shoe for the following:
•

worn shoe surface (1),

•

cracked or broken shoe surface (2), and

•

cracked or damaged shoe (3).



Figure 6A1 – 137

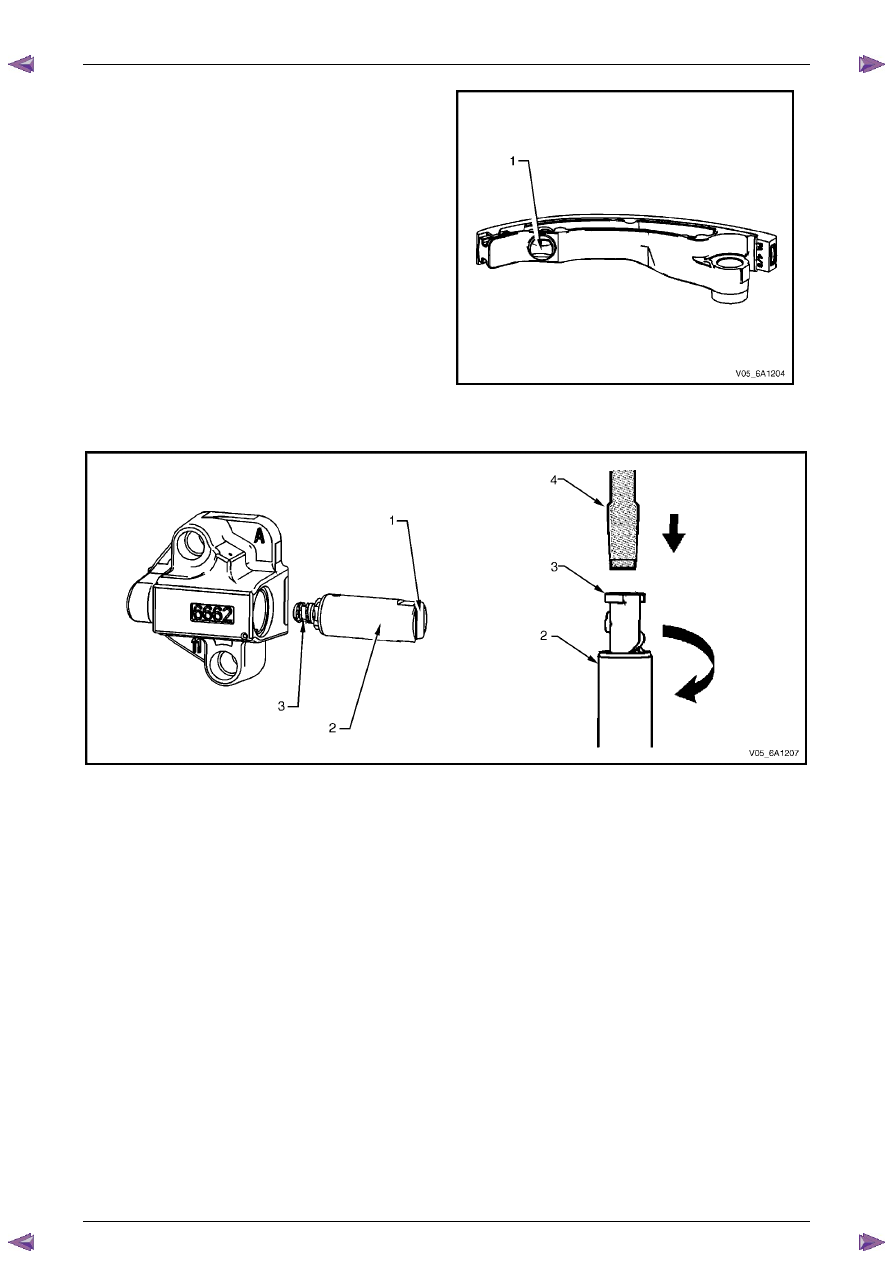

Inspect the back of the shoe for a damaged, worn or
missing timing chain tensioner contact pad (1).

Replace a damaged shoe as required.





Figure 6A1 – 138

Left-hand Secondary Timing Chain Tensioner



Figure 6A1 – 139

Inspect the left-hand secondary timing chain tensioner for damaged plunger-to-shoe contact surface (1), refer to
Figure 6A1 – 137.

Engine Mechanical – V6

Page 6A1–128



Page 6A1–128

Inspect the tensioner for locked or binding tensioner shaft (2). Reset the plunger (3) and ensure the tensioner shaft
moves freely in and out of the body of the tensioner.

N O T E

To reset the tensioner, use a suitably sized flat
blade screwdriver or Tool No. J 45027 (4) to wind
the plunger in a clockwise direction, into the
tensioner shaft.

Replace a damaged tensioner as required.

Right-hand Secondary Timing Chain Guide

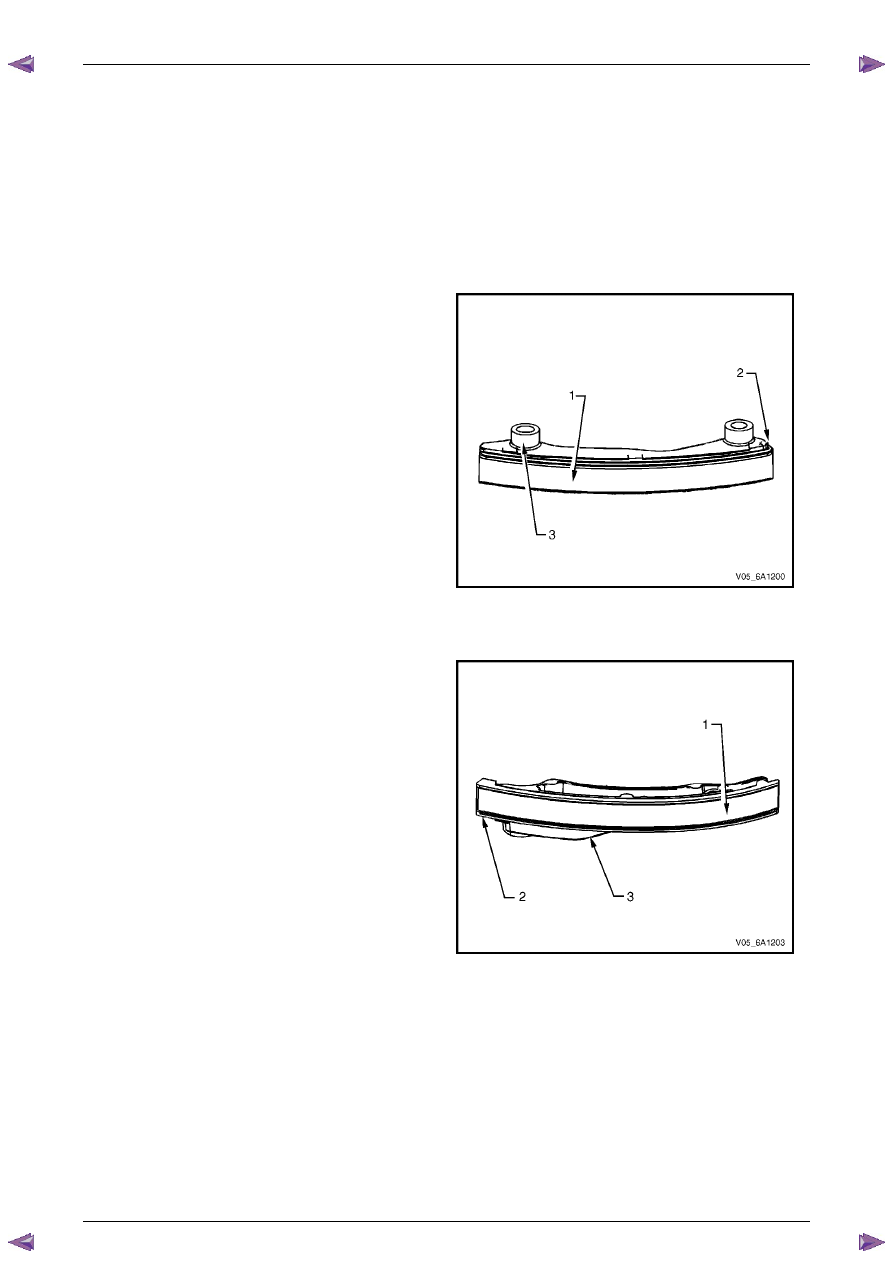

Inspect the right-hand secondary timing chain guide
for the following:
•

worn guide surface (1),

•

cracked or broken guide surface (2), and

•

cracked or damaged guide base (3).

Replace a damaged guide as required.





Figure 6A1 – 140

Right-hand Secondary Timing Chain Shoe

Inspect the front of the right-hand secondary timing
chain shoe for the following:
•

worn shoe surface (1),

•

cracked or broken shoe surface (2), and

•

cracked or damaged shoe (3).





Figure 6A1 – 141

Engine Mechanical – V6

Page 6A1–129



Page 6A1–129

Inspect the back of the shoe for a damaged, worn or
missing timing chain tensioner contact pad (1).



Replace a damaged shoe as required.



Figure 6A1 – 142

Right-hand Secondary Timing Chain Tensioner



Figure 6A1 – 143

Inspect the right-hand secondary timing chain tensioner for damaged plunger-to-shoe contact surface (1), refer to
Figure 6A1 – 141.

N O T E

To reset the tensioner, use a suitably sized flat
blade screwdriver or Tool No. J 45027 (4) to wind
the plunger in a clockwise direction, into the
tensioner shaft.

Inspect the tensioner for a locked or binding tensioner shaft (2). Reset the plunger (3) and ensure the tensioner
shaft moves freely in and out of the body of the tensioner.

Replace a damaged tensioner as required.

Engine Mechanical – V6

Page 6A1–130



Page 6A1–130

Reinstall

Left-hand Secondary Timing Chain Components – Excluding MY06 Update

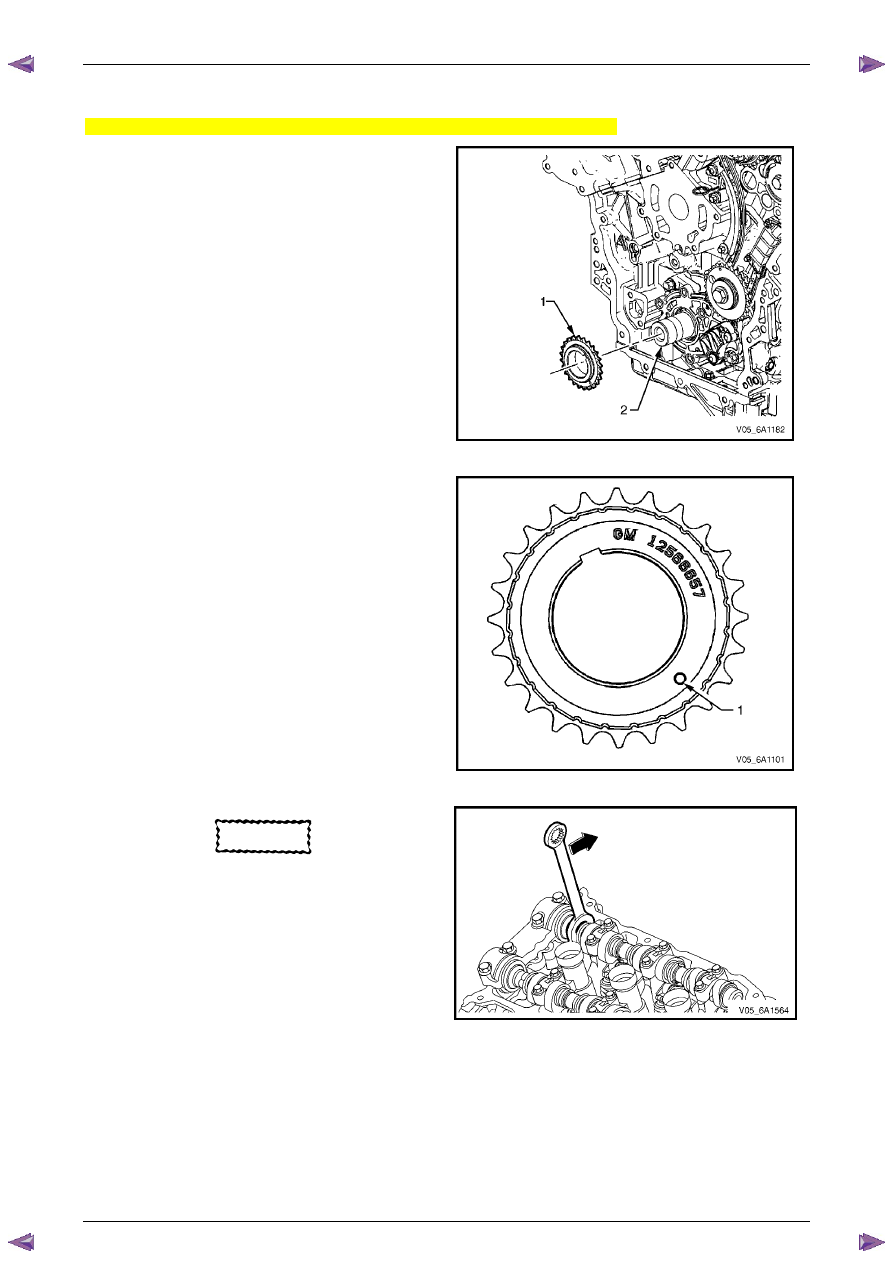

Install the crankshaft sprocket (1) onto the
crankshaft (2) by aligning the keyway to the key on
the crankshaft.

Slide the crankshaft sprocket on the crankshaft until
the crankshaft sprocket contacts the step in the
crankshaft.





Figure 6A1 – 144

N O T E

Ensure that the crankshaft sprocket is installed
with the timing mark (1) visible.



Figure 6A1 – 145

CAUTION



In order to install Tool No. EN 46105 onto the
camshafts, rotate the camshafts in an anti-
clockwise direction. There should be no
need to rotate the camshaft more than 45
degrees.



Figure 6A1 – 146
