1 General

Information

The HFV6 engine features a closed vee, deep skirt die cast aluminium cylinder block with cast iron cylinder liners,
internally balanced crankcase, full length water jackets and six bolt main bearing caps.

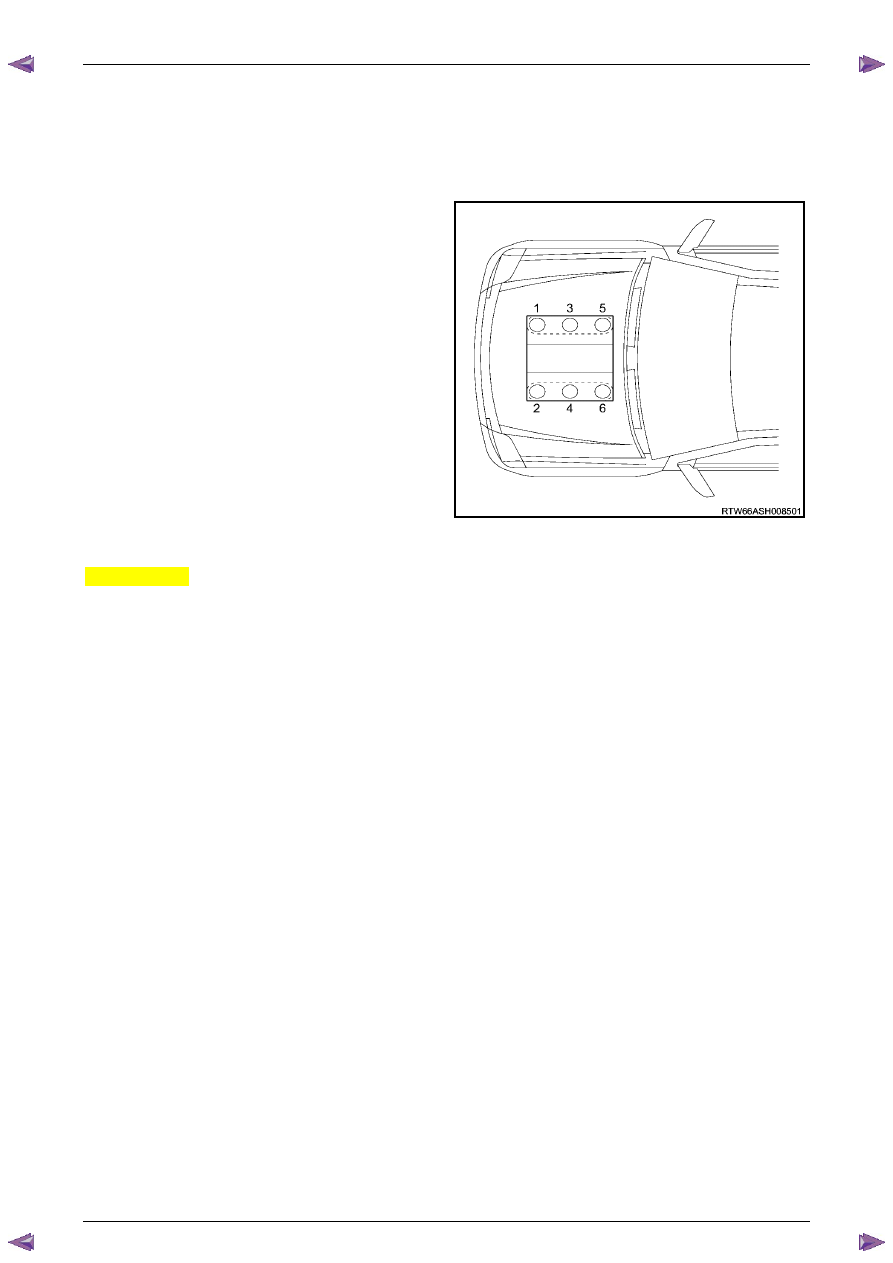

The cylinders are arranged in two banks of three with a 60 degree included angle between the two banks.

The right-hand bank of cylinders consists of number 1-3-5
cylinders and the left-hand bank of cylinders consists of
number 2-4-6.

The engine firing order is 1-2-3-4-5-6.

Each aluminium cylinder head is fitted with hardened valve
seats and four valves per cylinder: two intake and two
exhaust.

The valves are operated by two camshafts (DOHC) per
cylinder bank, one each for intake and exhaust valves.

The crankshaft is manufactured from forged steel. A reluctor
wheel is pressed in place onto the rear of the crankshaft for
the crankshaft position sensor.

The connecting rods are manufactured from powdered
metal and the rod cap is separated during the manufacturing
process using the fractured method. This creates a stronger,
visually seamless rod to cap union.

Figure 6A1 – 1

MY06 Update

Throughout this Section, reference is made to 'MY06 Update' or 'Excluding MY06 Update'.

Vehicles manufactured post 14th March 2007 are fitted with an updated version of the HFV6 engine. This engine
features a different timing chain, and as a result different sprocket teeth. This change also introduces the use of a new
special tool to assist in the serviceability of replacing the engine timing components.

All service procedures and descriptions specific to this update variation are qualified as 'MY06 Update'.



1.1

 WARNING, CAUTION and NOTES

This Section contains various WARNINGS, CAUTIONS and NOTE statements that you must observe carefully to reduce
the risk of death or injury during service, repair procedures or vehicle operation. Incorrect service or repair procedures
may damage the vehicle or cause operational faults. WARNINGS, CAUTION and NOTE statements are not exhaustive.
HOLDEN LTD can not possibly warn of all the potentially hazardous consequences of failure to follow these instructions.

Definition of WARNING, CAUTION and NOTE Statements

Diagnosis and repair procedures in this Section contain both general and specific WARNING, CAUTION and NOTE
statements. HOLDEN LTD is dedicated to the presentation of service information that helps the technician to diagnose
and repair the systems necessary for proper operation of the vehicle. Certain procedures may present a hazard to the
technician if they are not followed in the recommended manner. WARNING, CAUTION and NOTE statements are
designed to help prevent these hazards from occurring, but not all hazards can be foreseen.

WARNING defined

A WARNING statement immediately precedes an operating procedure or maintenance practice which, if not correctly
followed, could result in death or injury. A WARNING statement alerts you to take necessary action or not to take a
prohibited action. If a WARNING statement is ignored, the following consequences may occur:
•

Death or injury to the technician or other personnel working on the vehicle,

•

Death or injury to other people in or near the workplace area, and / or

•

Death or injury to the driver / or passenger(s) of the vehicle or other people, if the vehicle has been improperly
repaired.

CAUTION defined

A CAUTION statement immediately precedes an operating procedure or maintenance practice which, if not correctly
followed, could result in damage to or destruction of equipment, or corruption of data. If a CAUTION statement is
ignored, the following consequences may occur:
•

Damage to the vehicle,

•

Unnecessary vehicle repairs or component replacement,

Engine Mechanical – V6

Page 6A1–9



Page 6A1–9

•

Faulty operation or performance of any system or component being repaired,

•

Damage to any system or components which depend on the proper operation of the system or component being
repaired,

•

Faulty operation or performance of any systems or components which depend on the proper operation or
performance of the system or component under repair,

•

Damage to fasteners, basic tools or special tools and / or

•

Leakage of coolant, lubricant or other vital fluids.

NOTE defined

A NOTE statement immediately precedes or follows an operating procedure, maintenance practice or condition that
requires highlighting. A NOTE statement also emphasises necessary characteristics of a diagnostic or repair procedure.
A NOTE statement is designed to:
•

Clarify a procedure,

•

Present additional information for accomplishing a procedure,

•

Give insight into the reasons for performing a procedure in the recommended manner, and / or

Present information that gives the technician the benefit of past experience in accomplishing a procedure with greater
ease.



Engine Mechanical – V6

Page 6A1–10



Page 6A1–10

1.2 Engine

Components

Major Component Assemblies

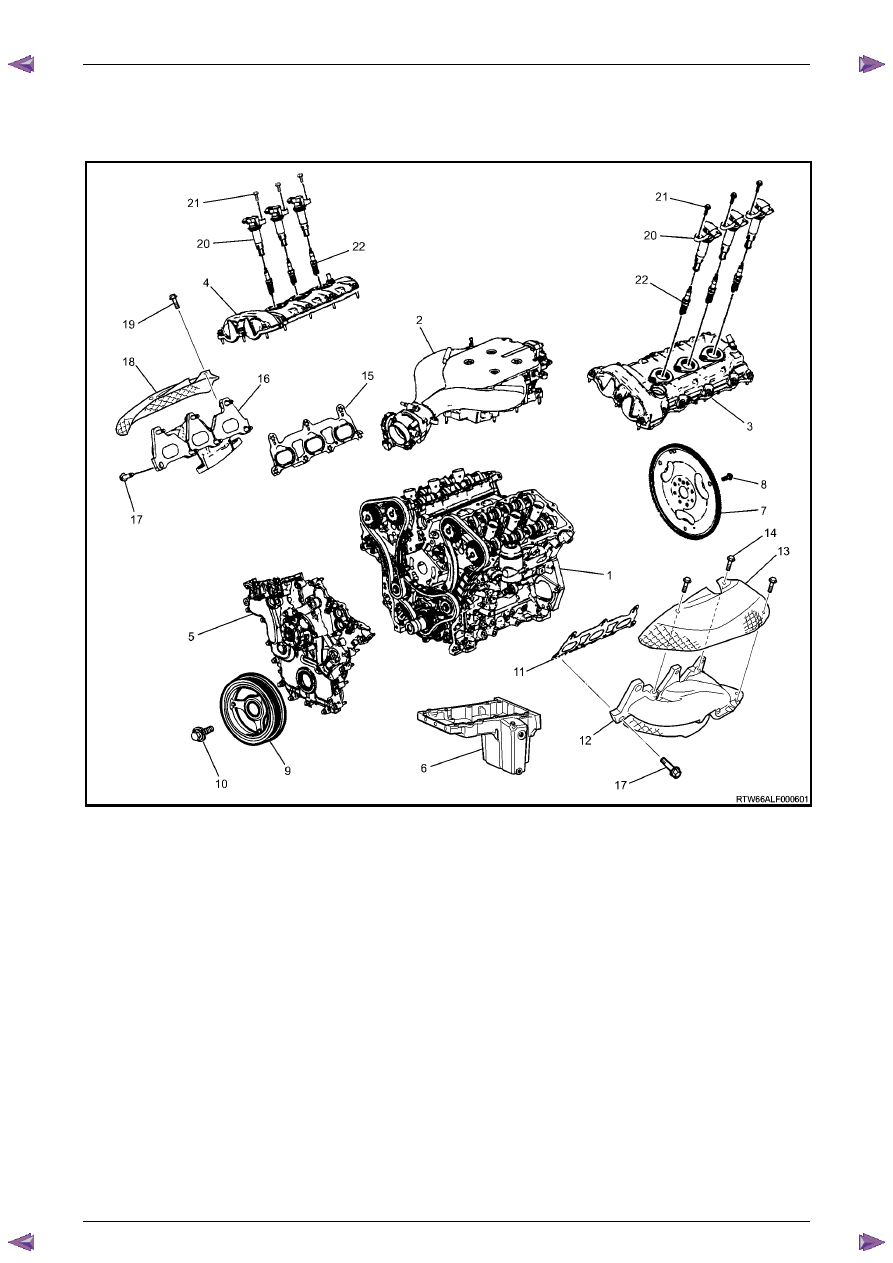

Figure 6A1 – 2

Legend

1 Engine

Assembly

2

Intake Manifold Assembly

3

Camshaft Cover Assembly, Left-hand

4

Camshaft Cover Assembly, Right-hand

5

Engine Front Cover Assembly

6

Oil Pan Assembly

7 Engine

Flywheel

8

Engine Flywheel Bolt

9 Crankshaft

Balancer

10

Crankshaft Balancer Bolt

11

Exhaust Manifold Gasket, Left-hand

12

Exhaust Manifold, Left-hand

13

Exhaust Manifold Heat Shield, Left-hand

14

Exhaust Manifold Heat Shield Bolt, Left-hand

15

Exhaust Manifold Gasket, Right-hand

16

Exhaust Manifold, Right-hand

17

Cylinder Head Exhaust Manifold Bolt

18

Exhaust Manifold Heat Shield, Right-hand

19

Exhaust Manifold Heat Shield Bolt, Right-hand

20

Ignition Coil Assembly

21

Ignition Coil Assembly Bolt

22 Spark

Plug
