Engine Mechanical – V6

Page 6A1–193



Figure 6A1 – 338

50

Unplug the connector from the oil level sensor (1).

51

Remove the attaching bolt (2) holding the ground
cable to the engine block.



Figure 6A1 – 339

52

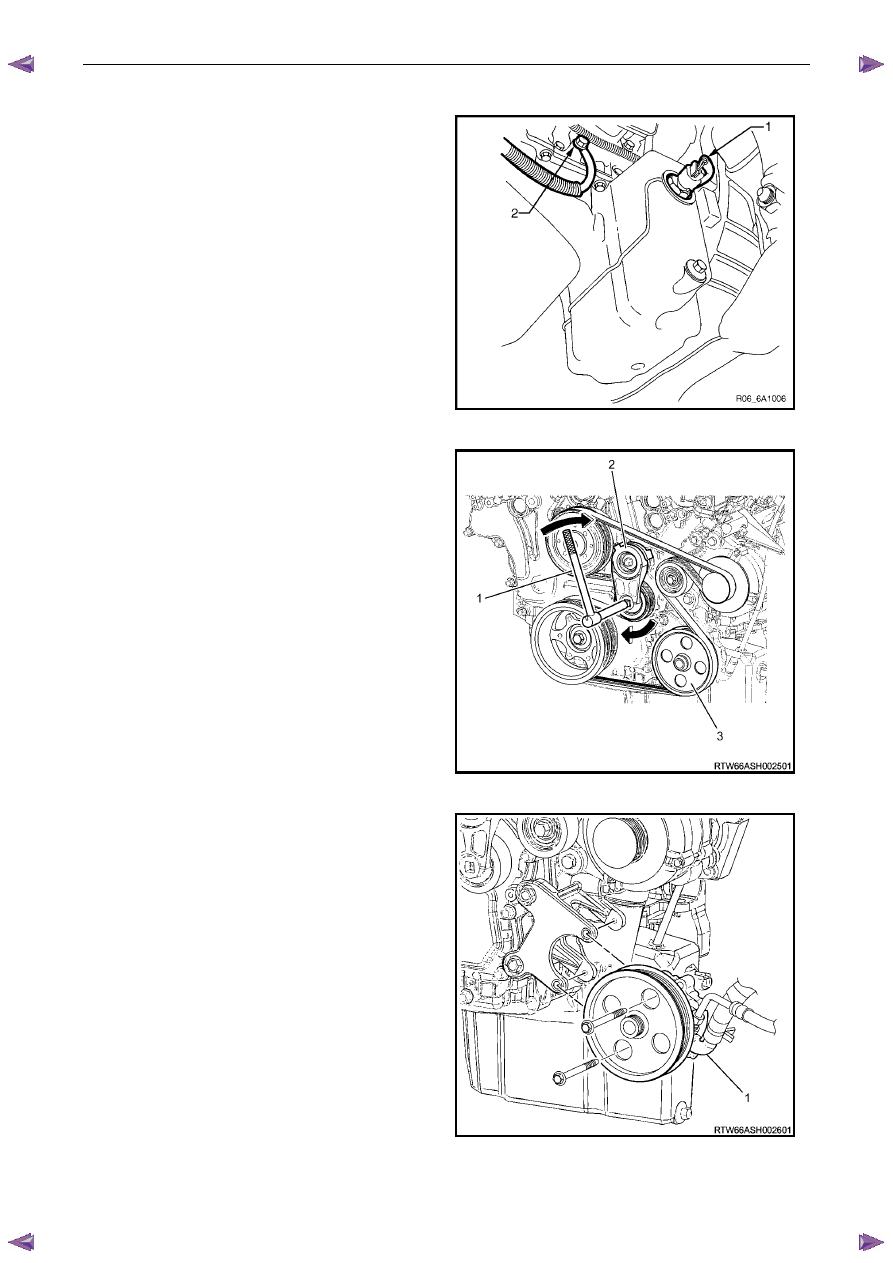

Remove the accessory drive belt using a socket
wrench (1), to reduce tension rotate the drive belt
tensioner (2) clockwise, then while holding the
tensioner in the reduced tension position, remove the
accessory drive belt (3).



Figure 6A1 – 340

53

Remove the power steering pump bolts (two places),
remove the pump (1) from the mounting bracket and
disconnect the power steering hoses (two places)
from the pump body.



N O T E

Plug the open ends of the power steering hoses
to prevent the ingress of contaminants.

Figure 6A1 – 341

Engine Mechanical – V6

Page 6A1–194



54

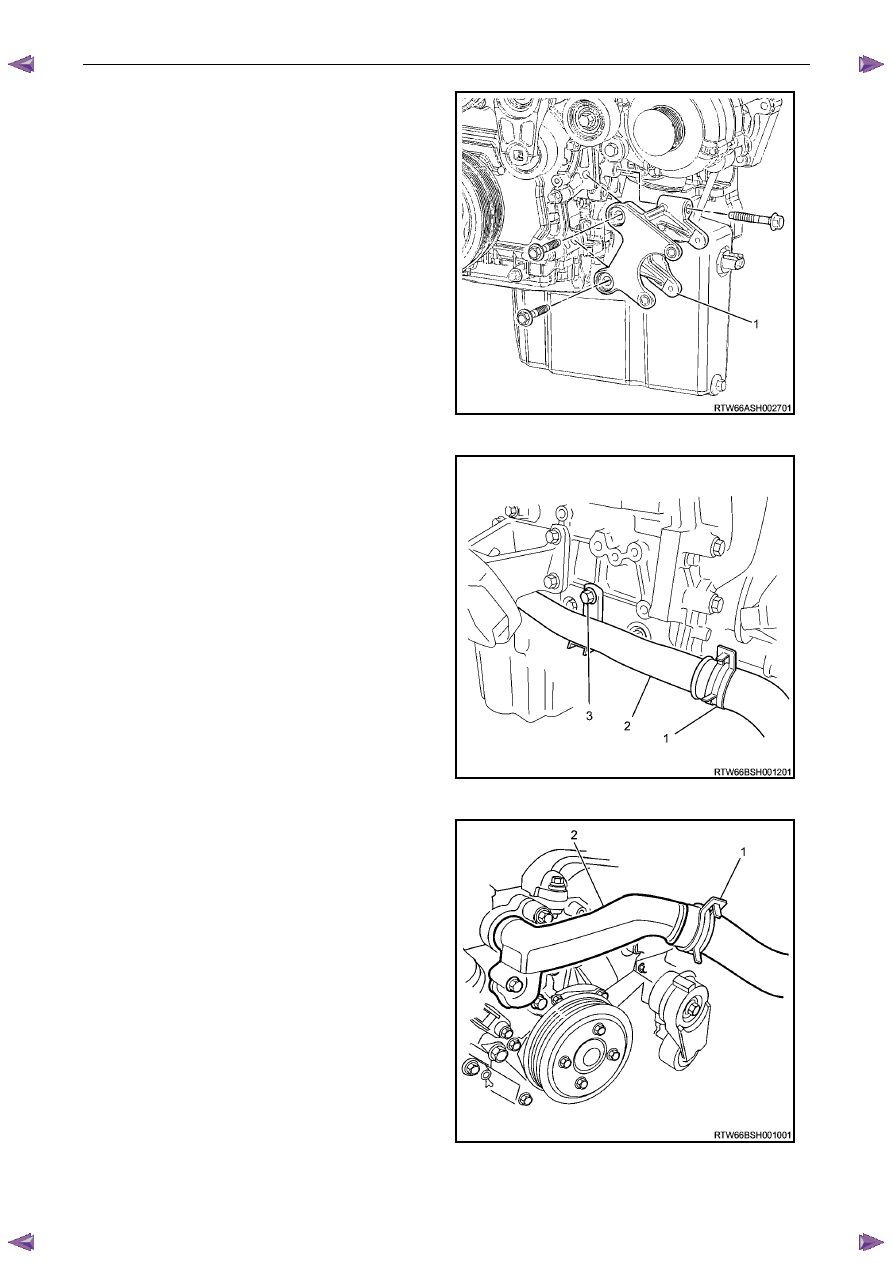

Remove the power steering pump bracket mounting
bolts (three places) then remove the pump bracket
(1).

Figure 6A1 – 342

55

Release the lower radiator hose clamp (1) and
remove the lower hose from the coolant pipe (2).

Figure 6A1 – 343

56

Release the upper radiator hose clamp (1) and
remove the upper hose from the coolant pipe (2).

Figure 6A1 – 344

Engine Mechanical – V6

Page 6A1–195



57

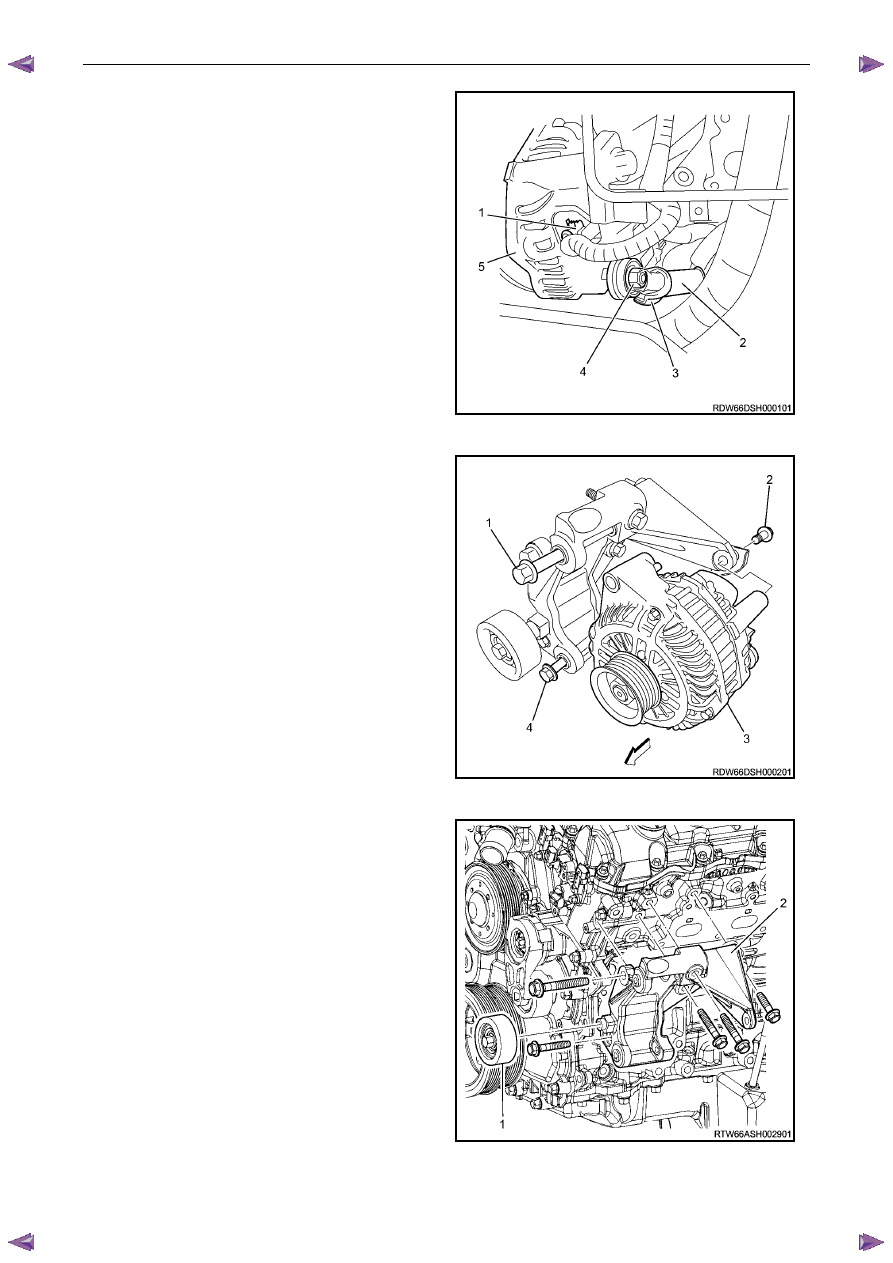

Unclip and remove the generator wiring harness
connector (1), Remove battery connection attaching
nut (4), and remove the battery harness cable (2)
from the connection stud.



Figure 6A1 – 345

58

Remove the generator attaching bolts (1, 2, and 4)
three places, then remove the generator (3) from the
mounting bracket.

Figure 6A1 – 346

59

Remove the idler pulley attaching bolt and remove the
idler pulley (1).

60

Remove the generator bracket attaching bolts, five
places, and remove the generator mounting bracket
(2).

Figure 6A1 – 347

Engine Mechanical – V6

Page 6A1–196



61

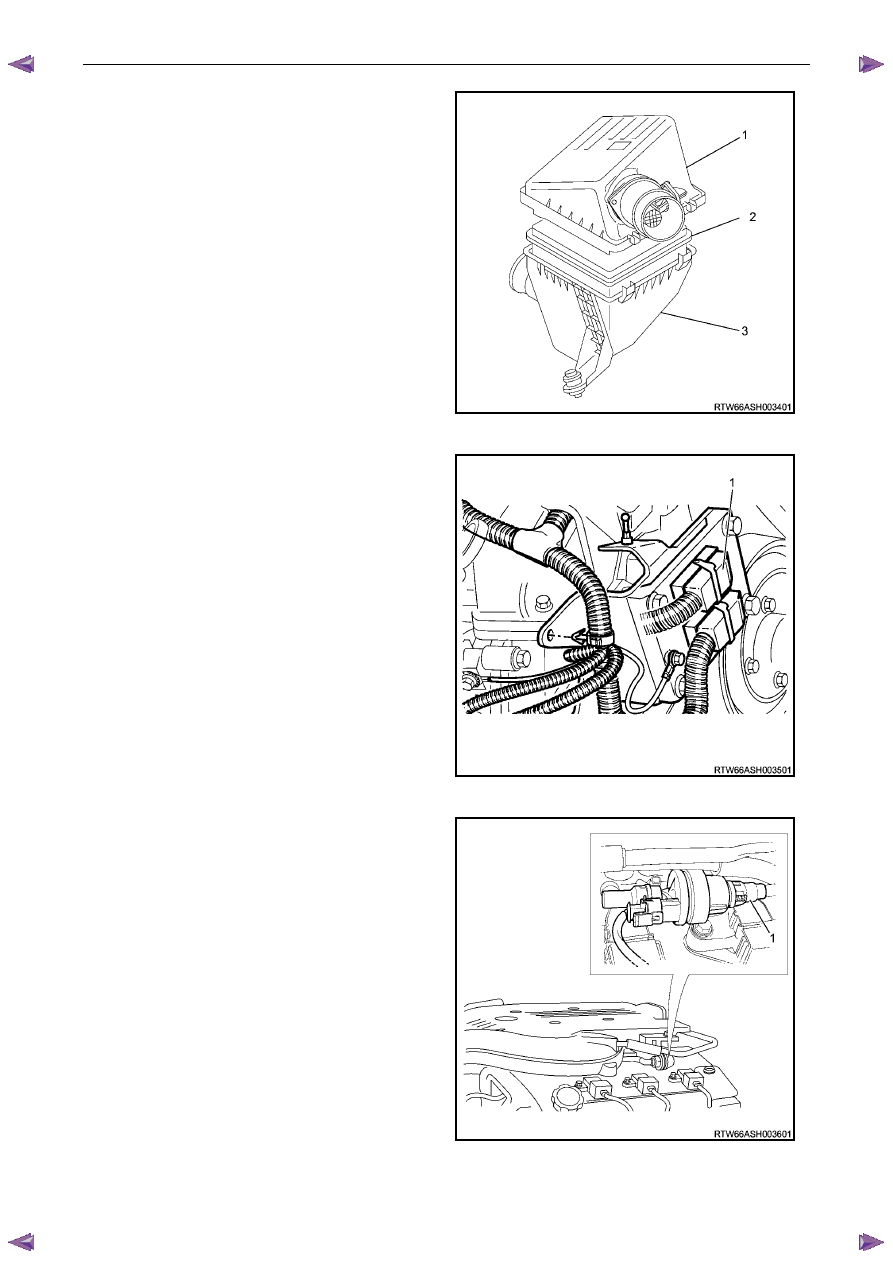

Remove the air cleaner cover assembly including the
MAF sensor assembly (1).

62

Remove the air cleaner filter (2) from the air cleaner
body assembly (3).

Figure 6A1 – 348

63

Disconnect the ECM connectors (1).

Figure 6A1 – 349

64

Disconnect the canister hose (1).

Figure 6A1 – 350
