Engine Mechanical – V6

Page 6A1–5



Camshaft Visual Inspection............................................................................................................................ 150



Camshaft Measurement ................................................................................................................................. 151



Reinstall .............................................................................................................................................................. 153



Right-hand Side.............................................................................................................................................. 153



Left-hand Side ................................................................................................................................................ 155



3.20



Rocker Arm......................................................................................................................................................... 158



Remove ............................................................................................................................................................... 158



Clean and Inspect .............................................................................................................................................. 158



Reinstall .............................................................................................................................................................. 159



3.21



Stationary Hydraulic Lash Adjuster ................................................................................................................. 160



Remove ............................................................................................................................................................... 160



Clean and Inspect .............................................................................................................................................. 160



Reinstall .............................................................................................................................................................. 161



3.22



Cylinder Head Assembly................................................................................................................................... 161



Remove ............................................................................................................................................................... 161



Right-hand Side (Bank 1) Cylinder Head ....................................................................................................... 161



Left-hand Side (Bank 2) Cylinder Head.......................................................................................................... 162



Disassemble ....................................................................................................................................................... 163



Clean ................................................................................................................................................................... 166



Inspect ................................................................................................................................................................ 167



Visual Inspection ............................................................................................................................................ 167



Cylinder Head Measurement.......................................................................................................................... 167



Valve Spring Inspection and Measurement.................................................................................................... 169



Valve and Seat Grinding ................................................................................................................................ 170



Assemble ............................................................................................................................................................ 174



Reinstall .............................................................................................................................................................. 177



Right-hand Side (Bank 1) Cylinder Head ....................................................................................................... 177



Left-hand Side (Bank 2) Cylinder Head.......................................................................................................... 178



3.23



Engine Mounts and Brackets............................................................................................................................ 181



Remove.......................................................................................................................................................... 181



Engine Mount Location ..................................................................................................................................... 182



Inspect ................................................................................................................................................................ 182



Reinstall .............................................................................................................................................................. 183



4



Major Service Operations ..................................................................................................................184



4.1



Engine Removal ................................................................................................................................................. 184



Remove.......................................................................................................................................................... 185



Disassemble................................................................................................................................................... 197



Reassemble ................................................................................................................................................... 198



Reinstall ......................................................................................................................................................... 198



4.2



Oil Pan and Oil Pump Suction Pipe Assembly ................................................................................................ 198



Remove.......................................................................................................................................................... 198



Disassemble................................................................................................................................................... 200



Clean.............................................................................................................................................................. 200



Inspect............................................................................................................................................................ 201



Reassemble ................................................................................................................................................... 201



Reinstall ......................................................................................................................................................... 202



4.3



Flexplate Assembly ........................................................................................................................................... 203



Remove ............................................................................................................................................................... 203



Clean ................................................................................................................................................................... 204



Inspect ................................................................................................................................................................ 204



Reinstall .............................................................................................................................................................. 205



4.4



Crankshaft Rear Seal and Plate Assembly ...................................................................................................... 205



Remove ............................................................................................................................................................... 205



Reinstall .............................................................................................................................................................. 207



4.5



Pistons, Pins, Rings, Connecting Rods and Big-end Bearings ..................................................................... 208



Remove ............................................................................................................................................................... 208



Disassemble ....................................................................................................................................................... 211



Clean and Inspect .............................................................................................................................................. 212



Engine Mechanical – V6

Page 6A1–6



Piston Cleaning Procedure............................................................................................................................. 212



Piston Inspection Procedure .......................................................................................................................... 213



Piston Measurement ...................................................................................................................................... 213



Piston Ring Measurement .............................................................................................................................. 214



Connecting Rod Cleaning Procedure ............................................................................................................. 215



Connecting Rod Visual Inspection Procedure ................................................................................................ 215



Connecting Rod Measurement Procedure ..................................................................................................... 216



Reassemble ........................................................................................................................................................ 217



Piston and Piston Pin ..................................................................................................................................... 217



Piston Ring..................................................................................................................................................... 218



Connecting Rod Bearing ................................................................................................................................ 219



Reinstall .............................................................................................................................................................. 220



Piston Connecting Rod and Connecting Rod Bearing Installation.................................................................. 220



Connecting Rod Bearing Clearance Measurement Procedure....................................................................... 221



Connecting Rod Final Assembly Procedure................................................................................................... 222



4.6



Crankshaft and Main Bearings ......................................................................................................................... 223



Crankshaft End Play Measurement .................................................................................................................. 223



Remove ............................................................................................................................................................... 223



Crankshaft Bearing......................................................................................................................................... 225



Clean and Inspect .............................................................................................................................................. 225



Crankshaft and Main Bearing Cleaning.......................................................................................................... 225



Crankshaft and Main Bearing Visual Inspection ............................................................................................. 226



Crankshaft Main Bearing Inspection............................................................................................................... 227



Crankshaft Measurement ............................................................................................................................... 228



Reinstall .............................................................................................................................................................. 230



Crankshaft Bearing Installation Procedure ..................................................................................................... 230



Crankshaft Main Bearing Clearance Measurement........................................................................................ 231



Crankshaft Final Installation Procedure.......................................................................................................... 233



4.7



Cylinder Block.................................................................................................................................................... 234



Disassemble ....................................................................................................................................................... 234



Clean ................................................................................................................................................................... 238



Inspect ................................................................................................................................................................ 239



Visual Inspection ............................................................................................................................................ 239



Measuring Cylinder Bore Diameter ................................................................................................................ 239



Measuring Cylinder Bore Taper...................................................................................................................... 239



Measuring Cylinder Bore Out-of-Round ......................................................................................................... 239



Deck Flatness Inspection ............................................................................................................................... 240



Reassemble ........................................................................................................................................................ 240



4.8



Thread Repairs................................................................................................................................................... 244



General Information........................................................................................................................................... 244



General Thread Repair....................................................................................................................................... 246



Main Bearing Cap Bolt Hole Thread Repair ..................................................................................................... 251



Cylinder Head Bolt Hole Thread Repair ........................................................................................................... 257



4.9



Thread Repair Specifications............................................................................................................................ 263



Left-hand Cylinder Head Camshaft Cover Face .............................................................................................. 263



Left-hand Cylinder Head Front Face ................................................................................................................ 264



Left-hand Cylinder Head Intake Face ............................................................................................................... 265



Left-hand Cylinder Head Exhaust Face............................................................................................................ 266



Left-hand Cylinder Head Rear Face ................................................................................................................. 267



Right-hand Cylinder Head Camshaft Cover Face ........................................................................................... 268



Right-hand Cylinder Head Front Face.............................................................................................................. 269



Right-hand Cylinder Head Intake Face............................................................................................................. 270



Right-hand Cylinder Head Exhaust Face ......................................................................................................... 271



Right-hand Cylinder Head Rear Face ............................................................................................................... 272



Engine Block Front ............................................................................................................................................ 273



Engine Block Left-hand Side ............................................................................................................................ 274



Engine Block Right-hand Side.......................................................................................................................... 275



Engine Block Rear ............................................................................................................................................. 276



Engine Block Bottom......................................................................................................................................... 277



Engine Block Left-hand Deck Face .................................................................................................................. 278



Engine Mechanical – V6

Page 6A1–7



Engine Block Right-hand Deck Face................................................................................................................ 279



Engine Front Cover............................................................................................................................................ 280



Upper Intake Manifold Top ................................................................................................................................ 281



Upper Intake Manifold Front ............................................................................................................................. 282



Upper Intake Manifold Rear............................................................................................................................... 283



Lower Intake Manifold Top................................................................................................................................ 284



Oil Pan Front ...................................................................................................................................................... 285



Oil Pan Rear........................................................................................................................................................ 286



Oil Pan Bottom ................................................................................................................................................... 287



5



Specifications .....................................................................................................................................288



6



Torque Wrench Specifications..........................................................................................................292



7



Special Tools ......................................................................................................................................294



Engine Mechanical – V6

Page 6A1–8



1 General

Information

The HFV6 engine features a closed vee, deep skirt die cast aluminium cylinder block with cast iron cylinder liners,
internally balanced crankcase, full length water jackets and six bolt main bearing caps.

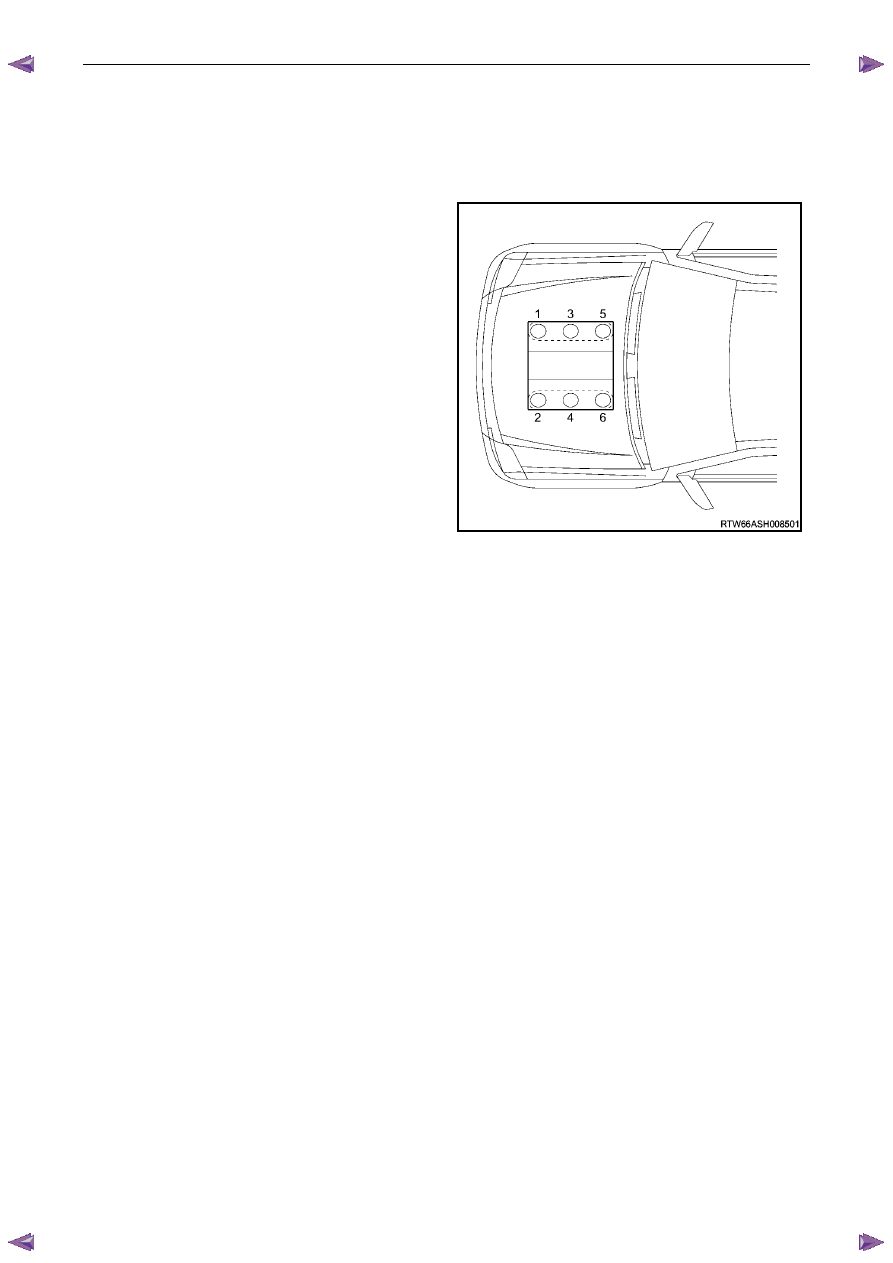

The cylinders are arranged in two banks of three with a 60 degree included angle between the two banks.

The right-hand bank of cylinders consists of number 1-3-5
cylinders and the left-hand bank of cylinders consists of
number 2-4-6.

The engine firing order is 1-2-3-4-5-6.

Each aluminium cylinder head is fitted with hardened valve
seats and four valves per cylinder: two intake and two
exhaust.

The valves are operated by two camshafts (DOHC) per
cylinder bank, one each for intake and exhaust valves.

The crankshaft is manufactured from forged steel. A reluctor
wheel is pressed in place onto the rear of the crankshaft for
the crankshaft position sensor.

The connecting rods are manufactured from powdered
metal and the rod cap is separated during the manufacturing
process using the fractured method. This creates a stronger,
visually seamless rod to cap union.

Figure 6A1 – 1

1.1

 WARNING, CAUTION and NOTES

This Section contains various WARNINGS, CAUTIONS and NOTE statements that you must observe carefully to reduce
the risk of death or injury during service, repair procedures or vehicle operation. Incorrect service or repair procedures
may damage the vehicle or cause operational faults. WARNINGS, CAUTION and NOTE statements are not exhaustive.
HOLDEN LTD can not possibly warn of all the potentially hazardous consequences of failure to follow these instructions.

Definition of WARNING, CAUTION and NOTE Statements



Diagnosis and repair procedures in this Section contain both general and specific WARNING, CAUTION and NOTE
statements. HOLDEN LTD is dedicated to the presentation of service information that helps the technician to diagnose
and repair the systems necessary for proper operation of the vehicle. Certain procedures may present a hazard to the
technician if they are not followed in the recommended manner. WARNING, CAUTION and NOTE statements are
designed to help prevent these hazards from occurring, but not all hazards can be foreseen.

WARNING defined

A WARNING statement immediately precedes an operating procedure or maintenance practice which, if not correctly
followed, could result in death or injury. A WARNING statement alerts you to take necessary action or not to take a
prohibited action. If a WARNING statement is ignored, the following consequences may occur:
•

Death or injury to the technician or other personnel working on the vehicle,

•

Death or injury to other people in or near the workplace area, and / or

•

Death or injury to the driver / or passenger(s) of the vehicle or other people, if the vehicle has been improperly
repaired.

CAUTION defined

A CAUTION statement immediately precedes an operating procedure or maintenance practice which, if not correctly
followed, could result in damage to or destruction of equipment, or corruption of data. If a CAUTION statement is ignored,
the following consequences may occur:
•

Damage to the vehicle,

•

Unnecessary vehicle repairs or component replacement,

•

Faulty operation or performance of any system or component being repaired,

•

Damage to any system or components which depend on the proper operation of the system or component being
repaired,















Content   ..  619  620  621  622   ..
