ENGINE SPEED CONTROL SYSTEM (C24SE)  6H

SECTION 6H

ENGINE SPEED CONTROL SYSTEM (C24SE)

TABLE OF CONTENTS












Sevice Precaution ............................................................................................................ 6H- 1

PAGE

Accelerator Pedal Control Cable....................................................................................  6H- 2

Removal ...........................................................................................................................  6H- 2

Inspection ........................................................................................................................  6H- 3

Installation ........................................................................................................................  6H- 3





ENGINE SPEED CONTROL SYSTEM (C24SE)  6H-1

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING, REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS SYSTEM
REPAIRS.







CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or
other corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.

6H-2  ENGINE SPEED CONTROL SYSTEM (C24SE)

Accelerator Pedal Control Cable

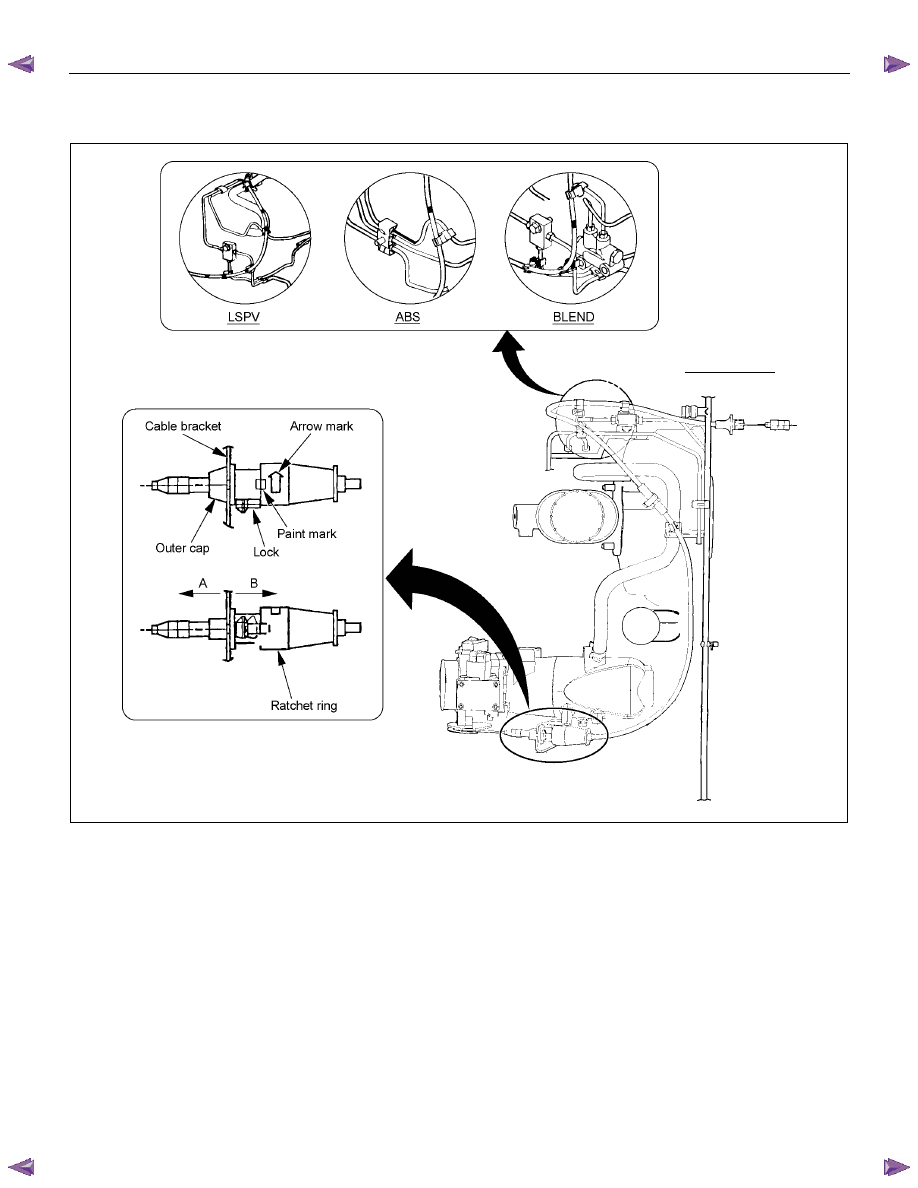

RHD MODEL



RTW46HLF000501



Removal

1.  Disconnect the accelerator control cable from the

accelerator pedal and dash panel.

2.  Remove the cable clips.

3.  Remove the accelerator control cable from

accelerator control cable bracket.

1)  Slide the lock in direction A

2)  Rotate the ratchet ring in indirection an arrow

90

°.







4.  Remove the accelerator control cable from the

throttle.

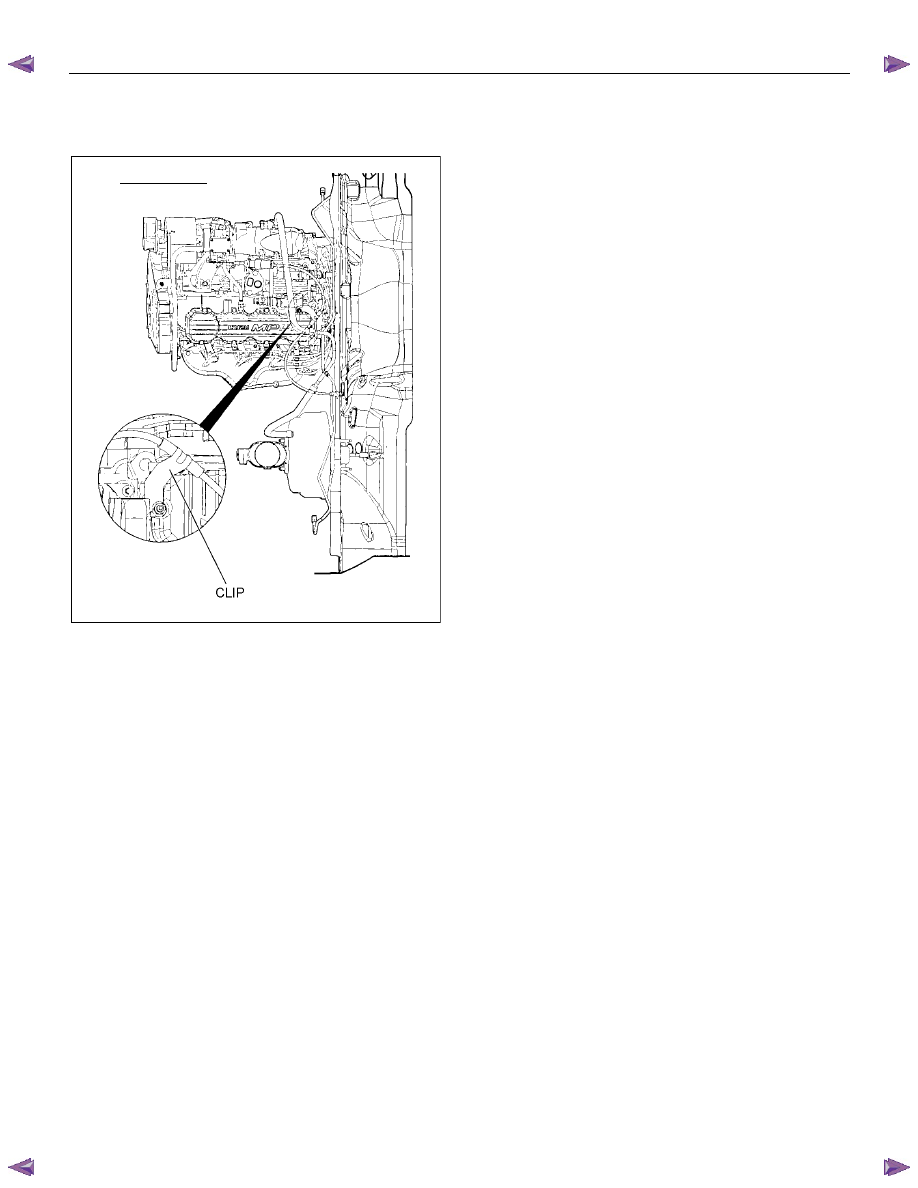

LHD MODEL

RTW46AMH000101



Inspection

Check the following items and replace the control
cable if any abnormality is found.

•  The control cable should move smoothly.
•  The control cable should not be bent or kinked.
•  The control cable should not be damage or

corrosion.

Installation

1.  Install the accelerator control cable to accelerator

control pedal dash panel.

2.  Install the accelerator control cable to throttle.



Attach T-END and inner cable to throttle cam of

engine.

3.  Install accelerator control cable to accelerator

bracket.

1)  Rotate the ratchet ring in direction an arrow 90

°

until both white marking are aligned.

2)  Confirm marking of outer cap must be upper

side.

3)  Slider the lock in direction B.

4)  Confirm ratchet ring is locked.





ENGINE SPEED CONTROL SYSTEM (C24SE)  6H-3
