6E–26

ENGINE DRIVEABILITY AND EMISSIONS

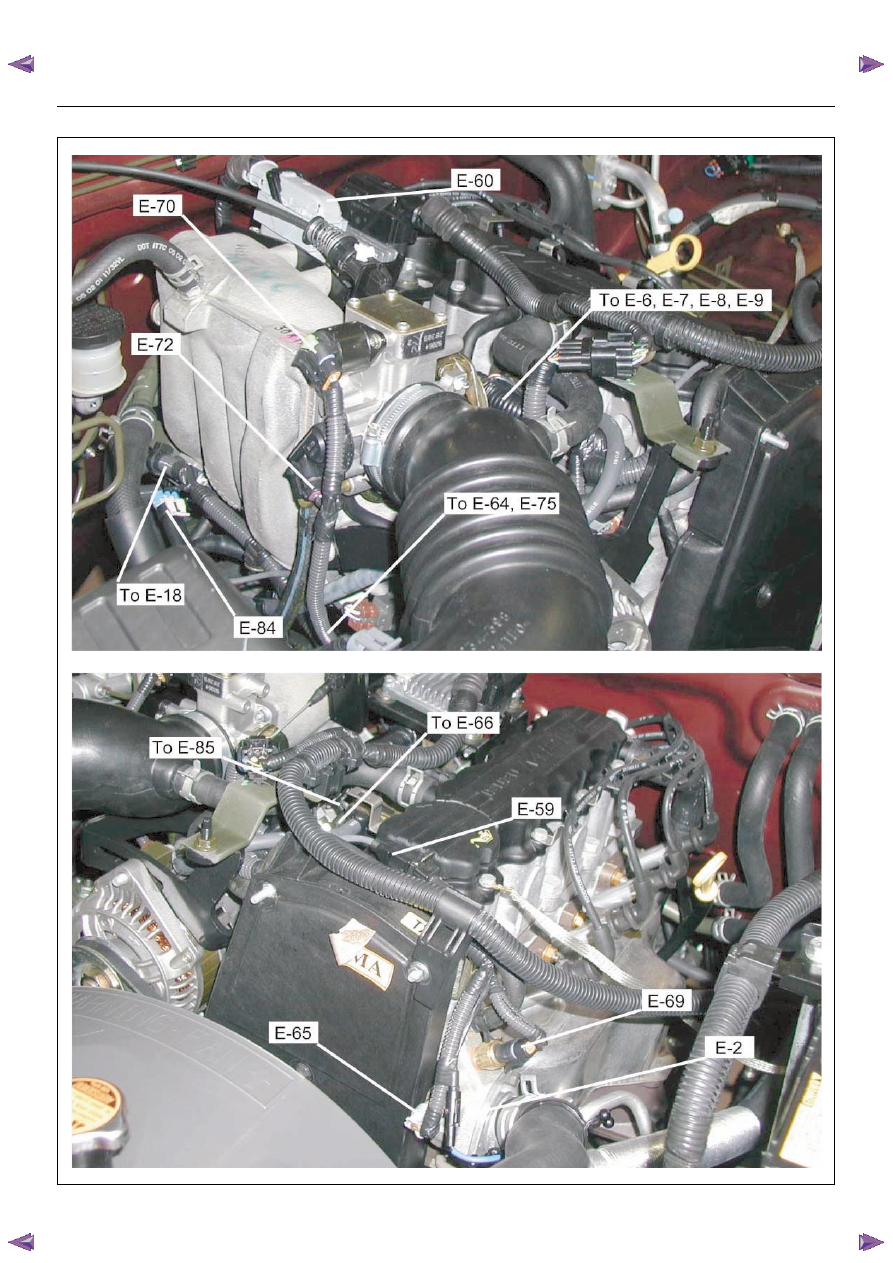

ENGINE DRIVEABILITY AND EMISSIONS

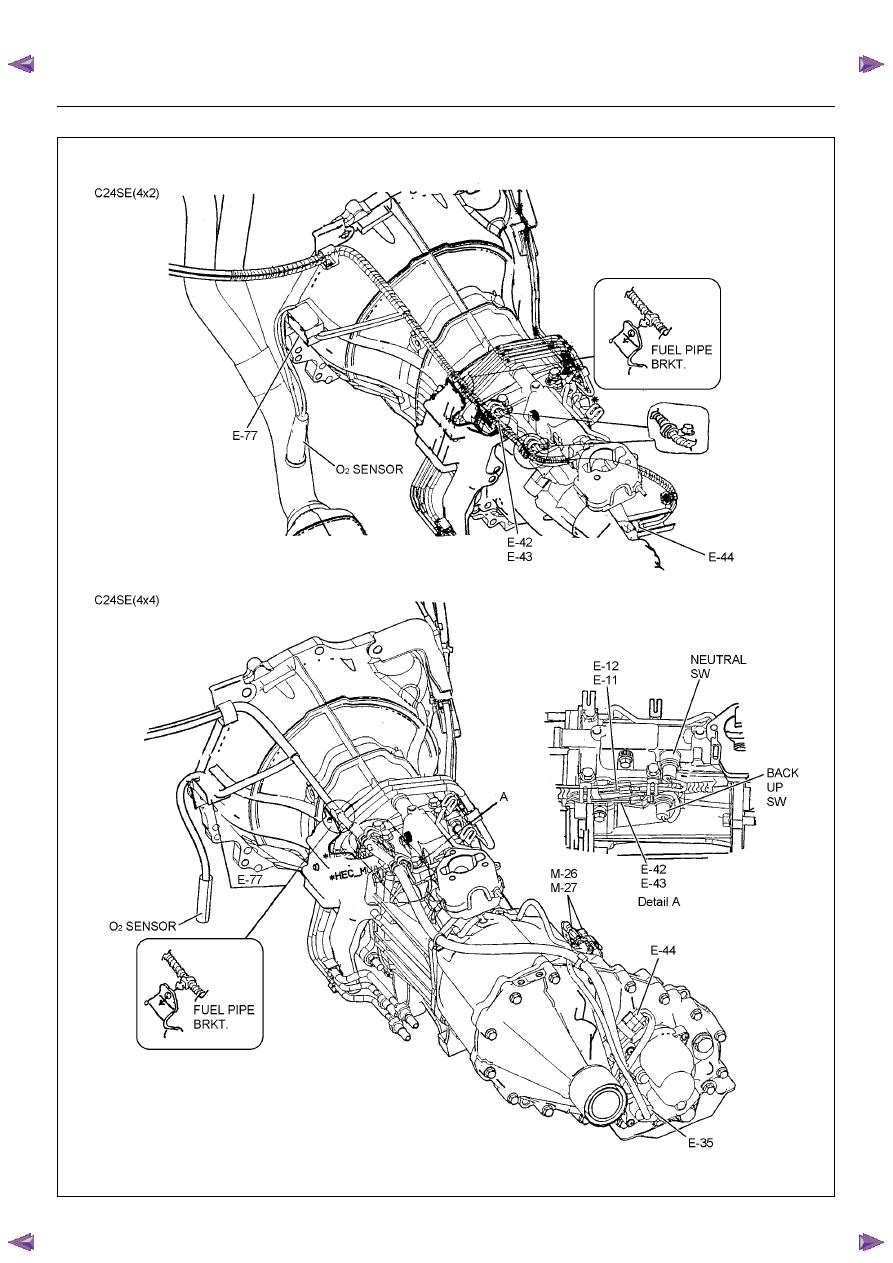

6E–27

6E–28

ENGINE DRIVEABILITY AND EMISSIONS

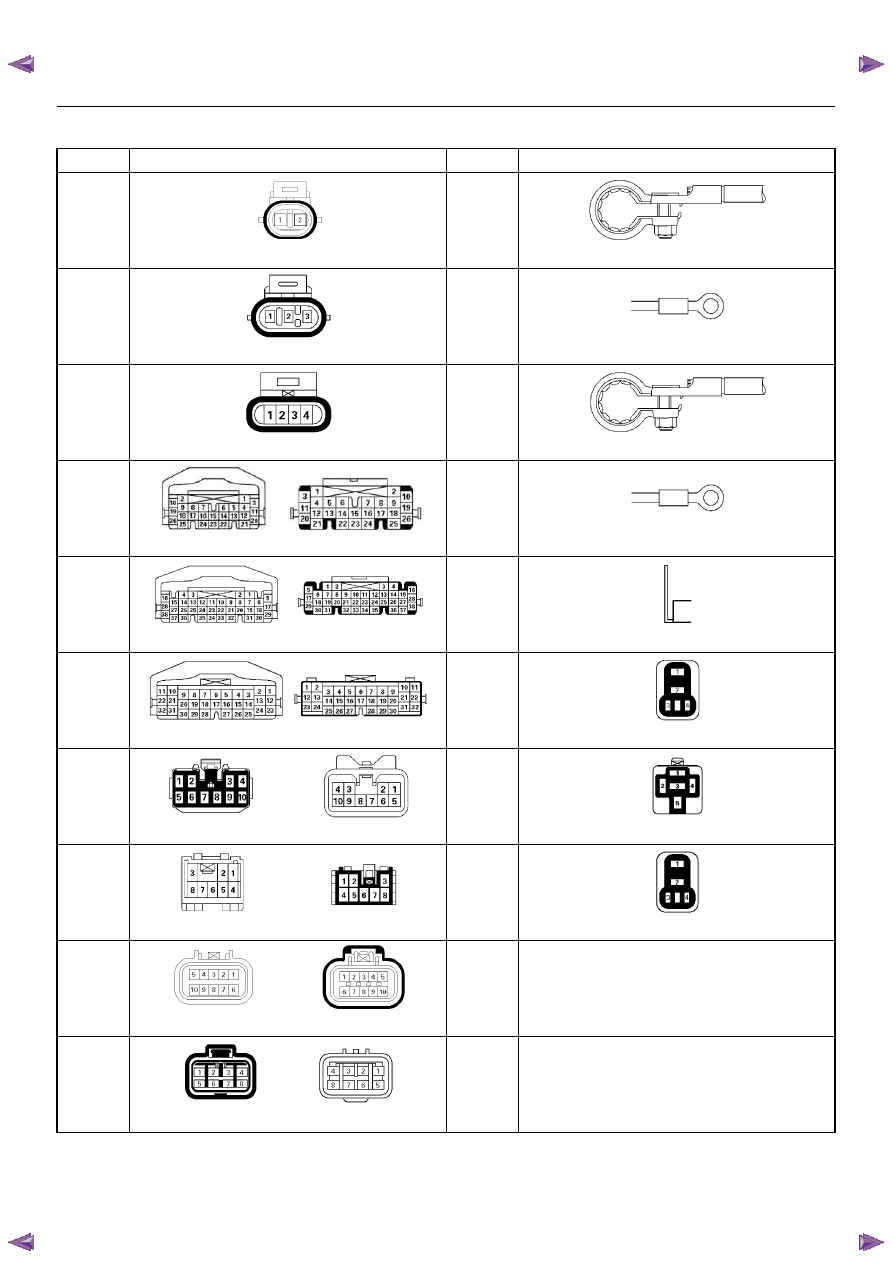

CONNECTOR LIST

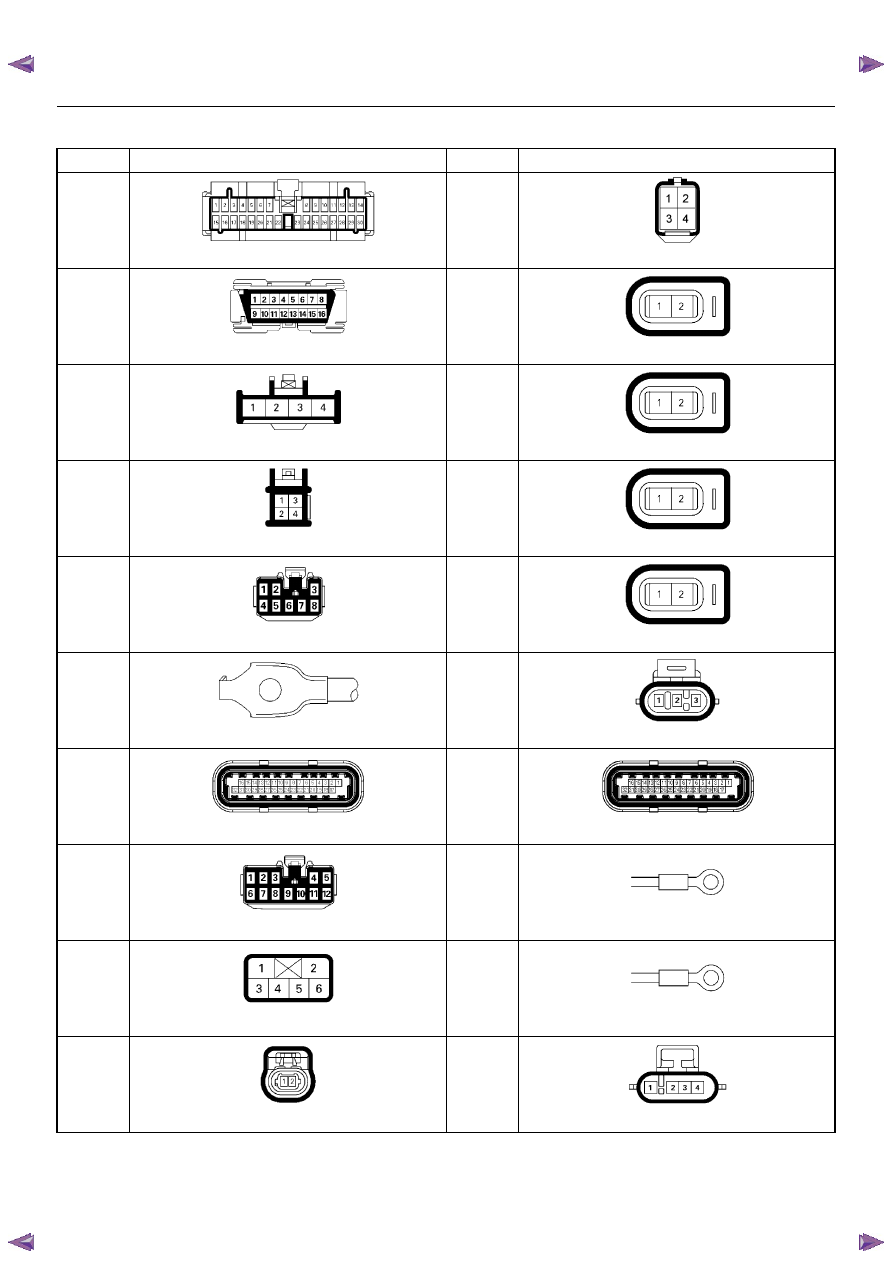

No.

Connector face

No.

Connector face

B-24

Green

Meter-B

C-122

CO Adjuster

B-58

Black

Check connector

E-6

Fuel injector

B-62

White

Ignition switch (IGSUB : G1)

E-7

Fuel injector

B-63

White

Ignition switch (IGSUB : G2)

E-8

Fuel injector

B-68

Immobilizer

E-9

Fuel injector

C-2

Silver

Engine room-RH ground

E-18

Ignition coil

C-56

ECM

E-60

ECM

C-107

White

J/B E2

E-72

Engine earth-A

C-108

White

J/B E1

E-74

Engine earth-B

C-121

IAT sensor

E-77

O

2

 sensor

ENGINE DRIVEABILITY AND EMISSIONS

6E–29

No.

Connector face

No.

Connector face

E-84

Knock sensor

P-1

Silver

Battery (+)

E-85

MAP sensor

P-2

Silver

Relay & Fuse box

F-2

White

Fuel pump & sensor

P-5

Silver

Battery (-)

H-4

White

Engine room ~ Mission

P-6

Silver

Body earth (Ground)

H-6

White

Engine room ~ INST

P-10

Silver

Engine ground

H-7

White

Engine room ~ INST

X-2

Black

Relay; Fuel pump

H-9

Blue

Engine room ~ Chassis

X-11

Black

Relay; Heater

H-18

White

Engine room ~ INST

X-14

Black

Relay; A/C Compressor

H-31

Engine room ~ Mission

H-34

Engine ~ Engine room
