6E–10

ENGINE DRIVEABILITY AND EMISSIONS

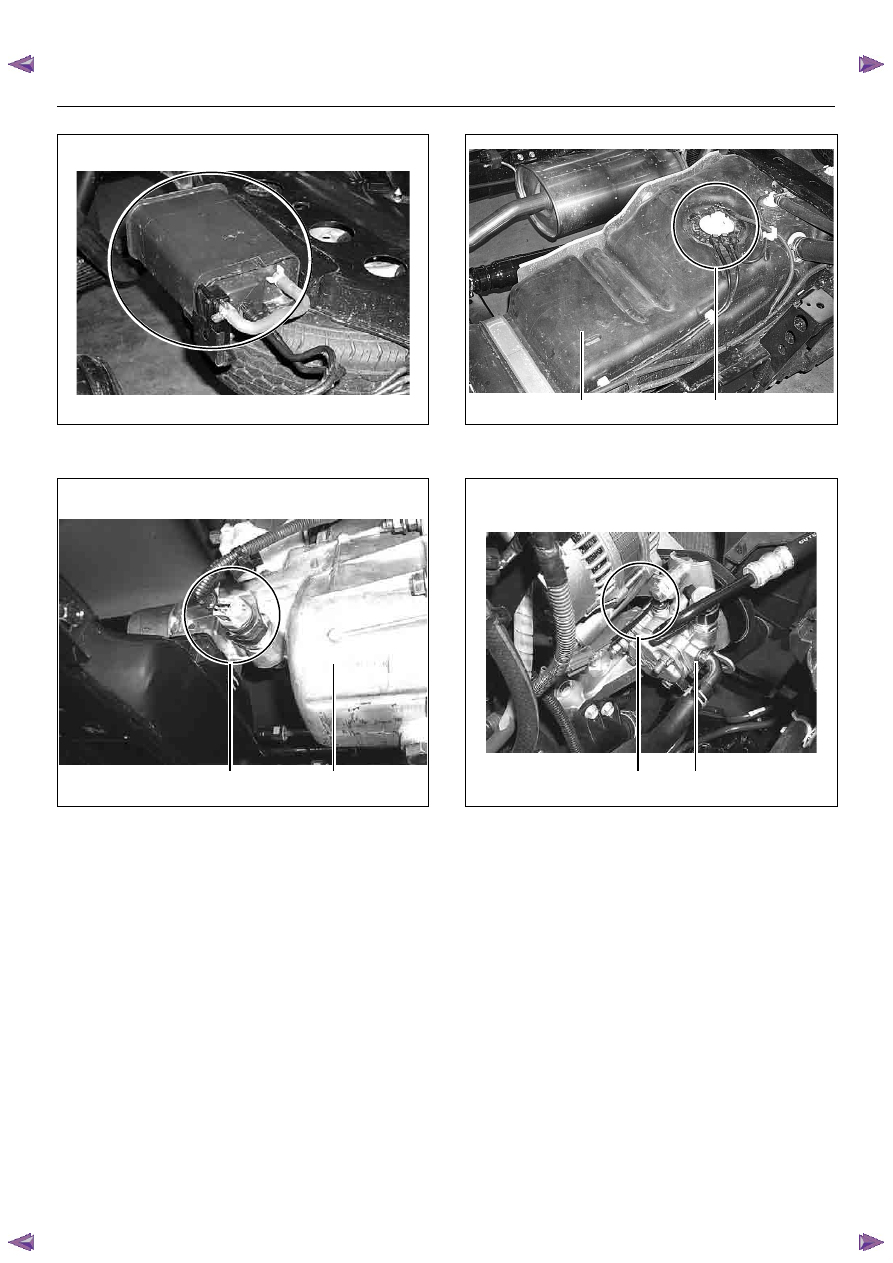

(1) Canister

(1)
(2)

Fuel Tank
Fuel Pump

2

1

(1)
(2)

Vehicle Speed Sensor (VSS)
Transmission Assembly

1

2

(1)
(2)

Power Steering Pressure Switch
Power Steering Oil Pump Assembly

1

2

ENGINE DRIVEABILITY AND EMISSIONS

6E–11

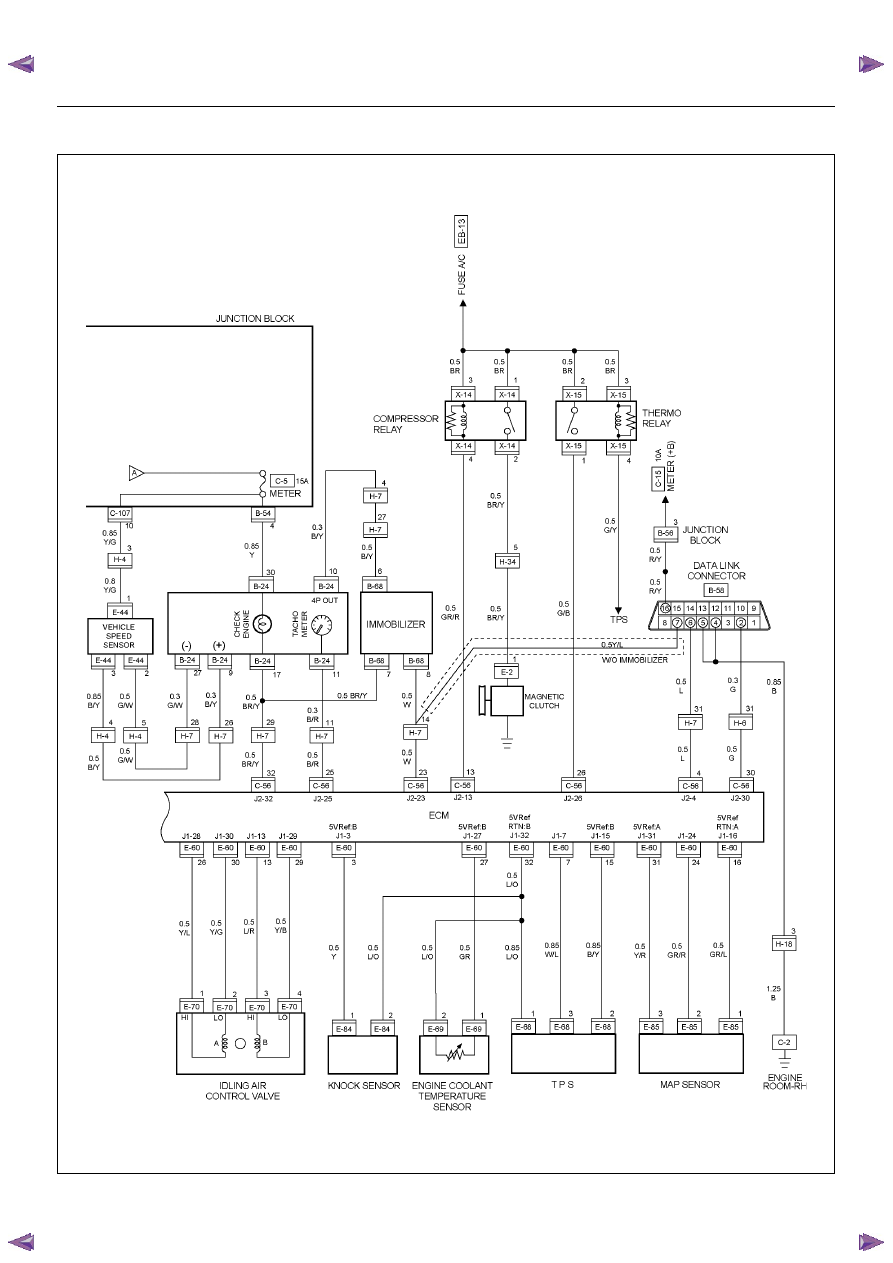

ECM Circuit Diagram (1/2)

6E–12

ENGINE DRIVEABILITY AND EMISSIONS

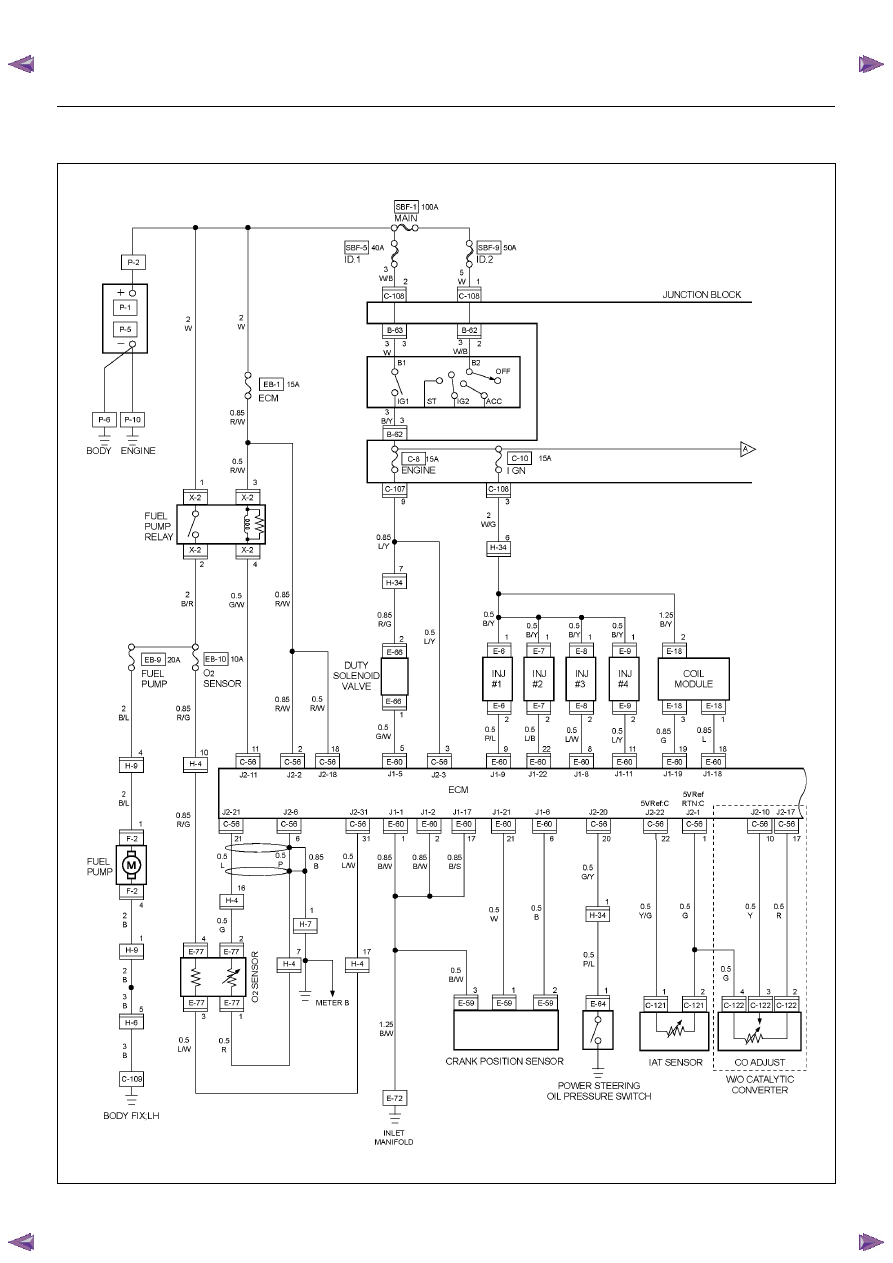

ECM Circuit Diagram (2/2)

ENGINE DRIVEABILITY AND EMISSIONS

6E–13

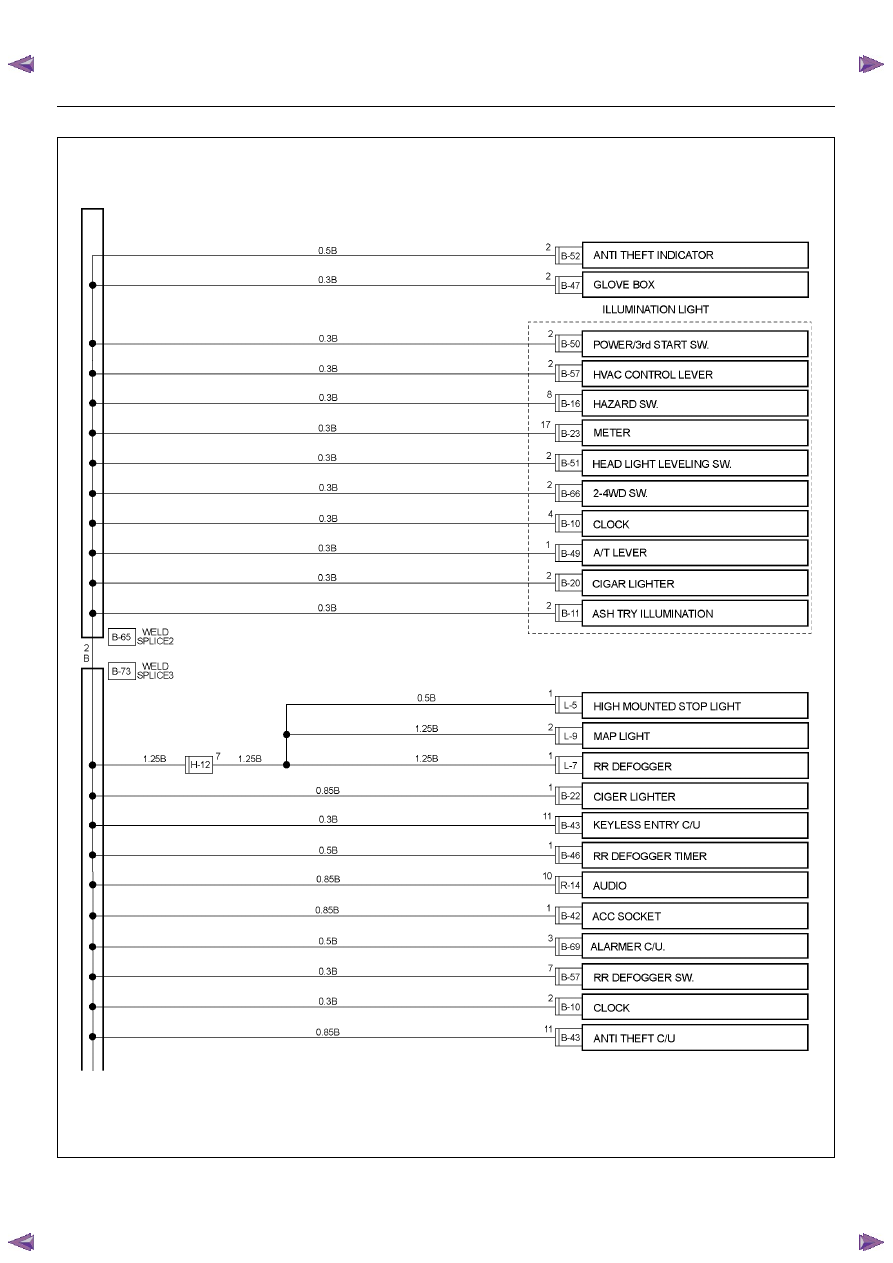

GROUND POINT CHART - LHD GENERAL EXPORT (1/4)
