Isuzu KB P190. Manual - part 537





IGNITION SYSTEM  6D2-5

Main Data and Specifications

General Specifications

Ignition System



Ignition Form

Electronic Ignition System (El system) with Crankshaft angle Sensor

Spark Plug



Type

No. of Coils and Type

Coil Location

Torque

Electronic Spark Control

2 Solid State

Engine-mounted

20 N

⋅m (2.0 kgf⋅m)



SECTION 6D3

STARTING AND CHARGING SYSTEM

TABLE OF CONTENTS

PAGE

Starting System ..............................................................................................................  6D3- 2

General Description .......................................................................................................  6D3- 2

Service Precaution .........................................................................................................  6D3- 2

Diagnosis ........................................................................................................................  6D3- 2

Starter..............................................................................................................................  6D3- 3

Removal ......................................................................................................................  6D3- 3

Installation..................................................................................................................  6D3- 3

Disassembled View ...................................................................................................  6D3- 4

Inspection and Repair ...............................................................................................  6D3- 5

Characteristic Test ....................................................................................................  6D3- 6

Charging System ............................................................................................................  6D3- 7

General Description .......................................................................................................  6D3- 7

General On-Vehicle Inspection .....................................................................................  6D3- 8

Generator ........................................................................................................................  6D3- 8

Removal ......................................................................................................................  6D3- 8

Inspection...................................................................................................................  6D3- 8

Installation..................................................................................................................  6D3- 9

Diagnosis ........................................................................................................................  6D3-12

Disassembly...............................................................................................................  6D3-13

Clean ...........................................................................................................................  6D3-14

Inspection...................................................................................................................  6D3-14

Reassembly................................................................................................................  6D3-18

Inspection...................................................................................................................  6D3-19

Technical Data ................................................................................................................  6D3-21



STARTING AND CHARGING SYSTEM  6D3-1

6D3-2  STARTING AND CHARGING SYSTEM







Starting System

General Description

Cranking Circuit

The cranking system consists of a battery, starter, starter
switch, starter relay, etc. These main components are
connected.

Starter

The cranking system employs a magnetic type reduction
starter in which the motor shaft is also used as a pinion shaft.
When the starter switch is turned on, the contacts of magnetic
switch are closed, and the armature rotates. At the same time,
the plunger is attracted, and the pinion is pushed forward by
the shift lever to mesh with the ring gear.
Then, the ring gear runs to start the engine. When the engine
starts and the starter switch is turned off, the plunger returns,
the pinion is disengaged from the ring gear, and the armature
stops rotation. When the engine speed is higher than the
pinion, the pinion idles, so that the armature is not driven.









Service Precaution

CAUTION:
Always use the correct fastener in the proper location.
When you replace a fastener, use ONLY the exact part
number for that application. ISUZU will call out those
fasteners that require a replacement after removal. ISUZU
will also call out the fasteners that require thread lockers
or thread sealant. UNLESS OTHERWISE SPECIFIED, do
not use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or fastener
joint interfaces. Generally, such coatings adversely affect
the fastener torque and the joint clamping force, and may
damage the fastener. When you install fasteners, use the
correct tightening sequence and specifications. Following
these instructions can help you avoid damage to parts
and systems.



Diagnosis

Condition Possible

cause Correction

Starter does not run

Charging failure

Repair charging system



Battery Failure

Replace Battery



Terminal connection failure

Repair or replace terminal connector

and/or wiring harness



Starter switch failure

Repair or replace starter switch



Starter failure

Repair or replace starter



STARTING AND CHARGING SYSTEM  6D3-3







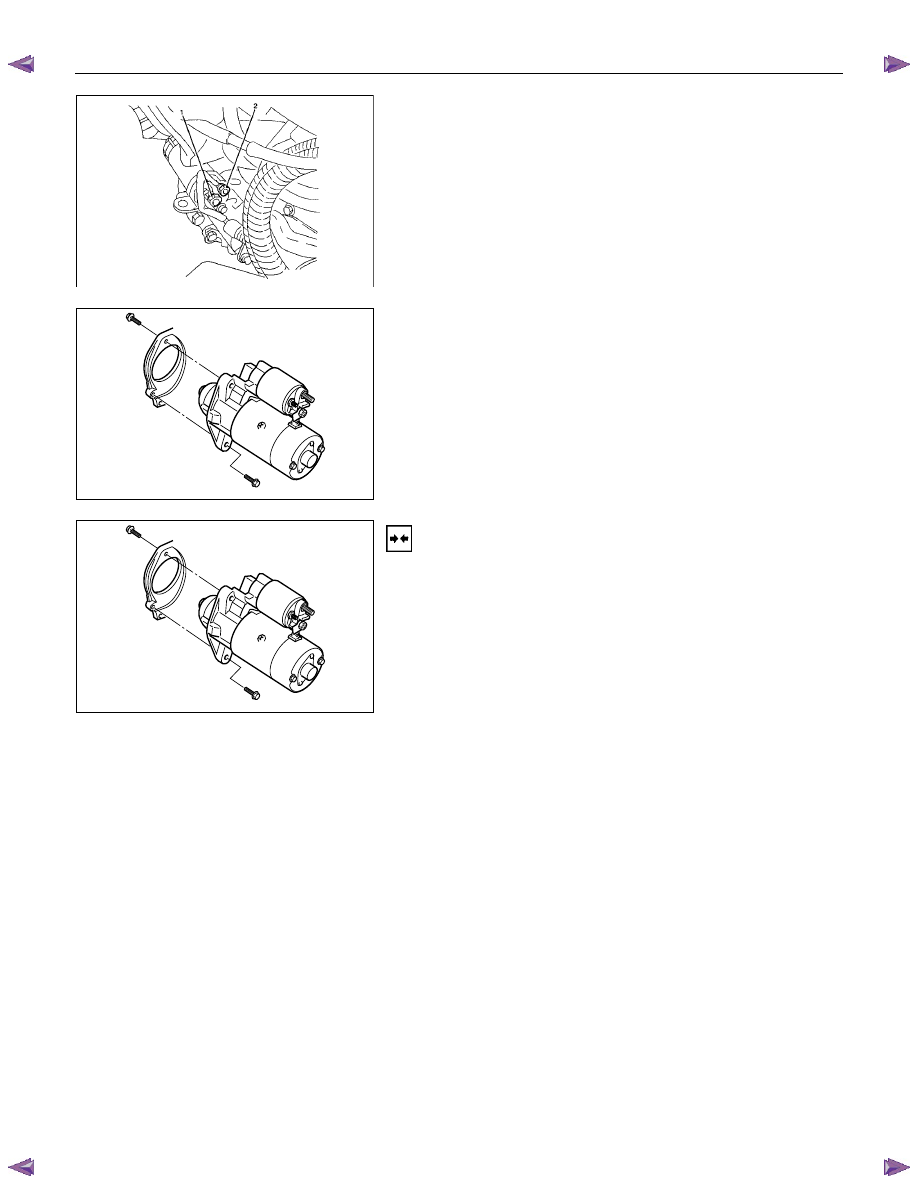

Starter

Removal

1.  Remove the battery ground cable.

2.  Remove harness connectors (1) and (2).







3.  Remove bolts from starter.





Installation

1.  Install starter assembly.

2.  Install mounting bolts and tighten bolts to specified torque.



Torque: 51 N

⋅⋅⋅⋅m (5.2 kgf⋅⋅⋅⋅m)

3. Connect harness.

4.  Reconnect the battery ground cable.
