6A-74 ENGINE MECHANICAL (C24SE)









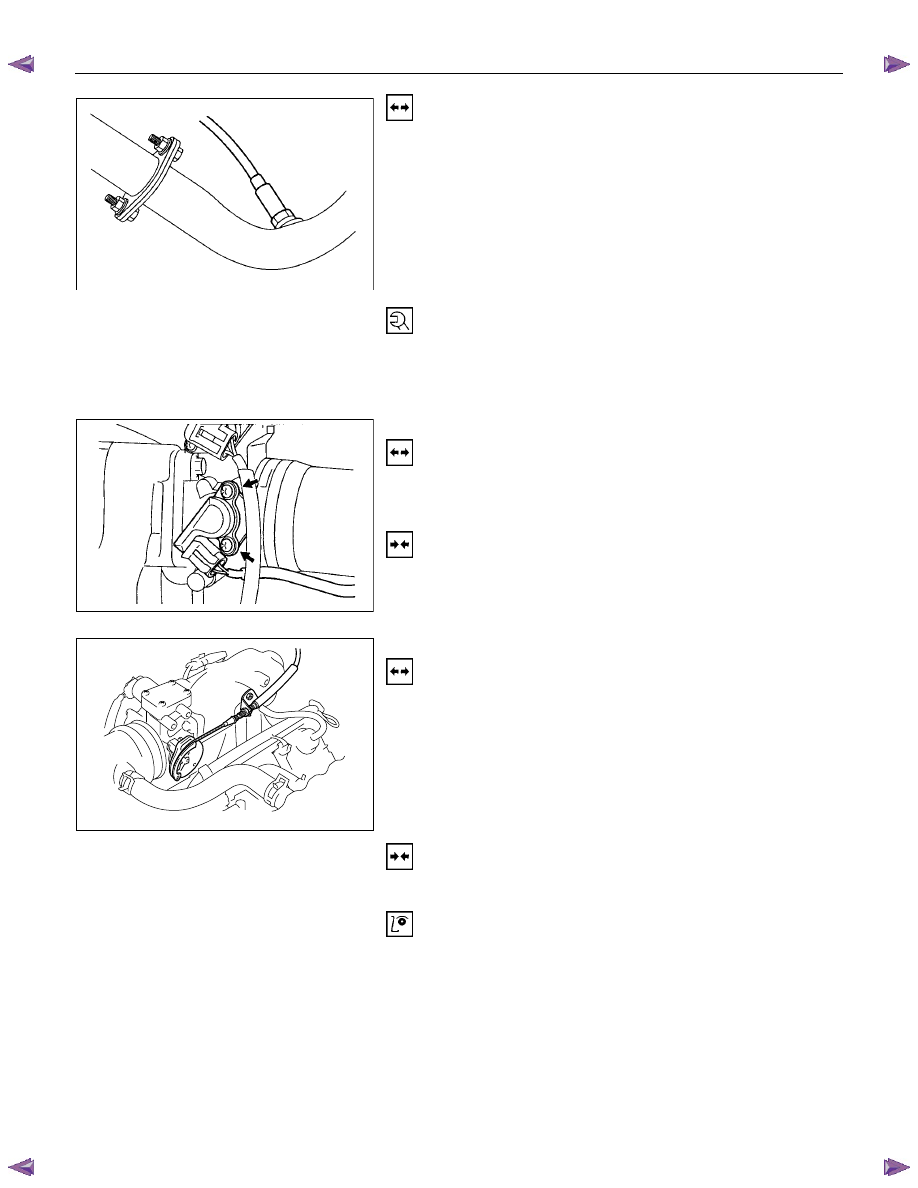

Oxygen Sensor (If applicable)

Removal

  1.  Remove wiring harness plug.

  2.  Remove oxygen sensor from the front exhaust pipe.





Tighten (Torque)

Oxygen sensor in exhaust pipe - 30 N

⋅m (3.1 kgf⋅m)


















Throttle Valve Position Sensor

Removal

  1.  Remove wiring harness connector.

  2.  Remove throttle valve position sensor.



Installation

  1.  Install throttle valve position sensor.

  2.  Install wiring harness connector.







Accelerator Pedal and Cable

Removal

  1.  Remove pad stopper from pedal stop bolt.











Installation

  1.  Install pad stopper.



Inspection

Ensure that accelerator pedal is fully in idle position and

accelerator level at engine is in closed position.



Pull outer sleeve of accelerator cable towards pedal and check

that clip on sleeve is in slot nearest to grommet.



Reposition clip if necessary, and check that full throttle and idle

positions are obtained at engine lever.



ENGINE MECHANICAL (C24SE) 6A-75





RTW46JSH000101













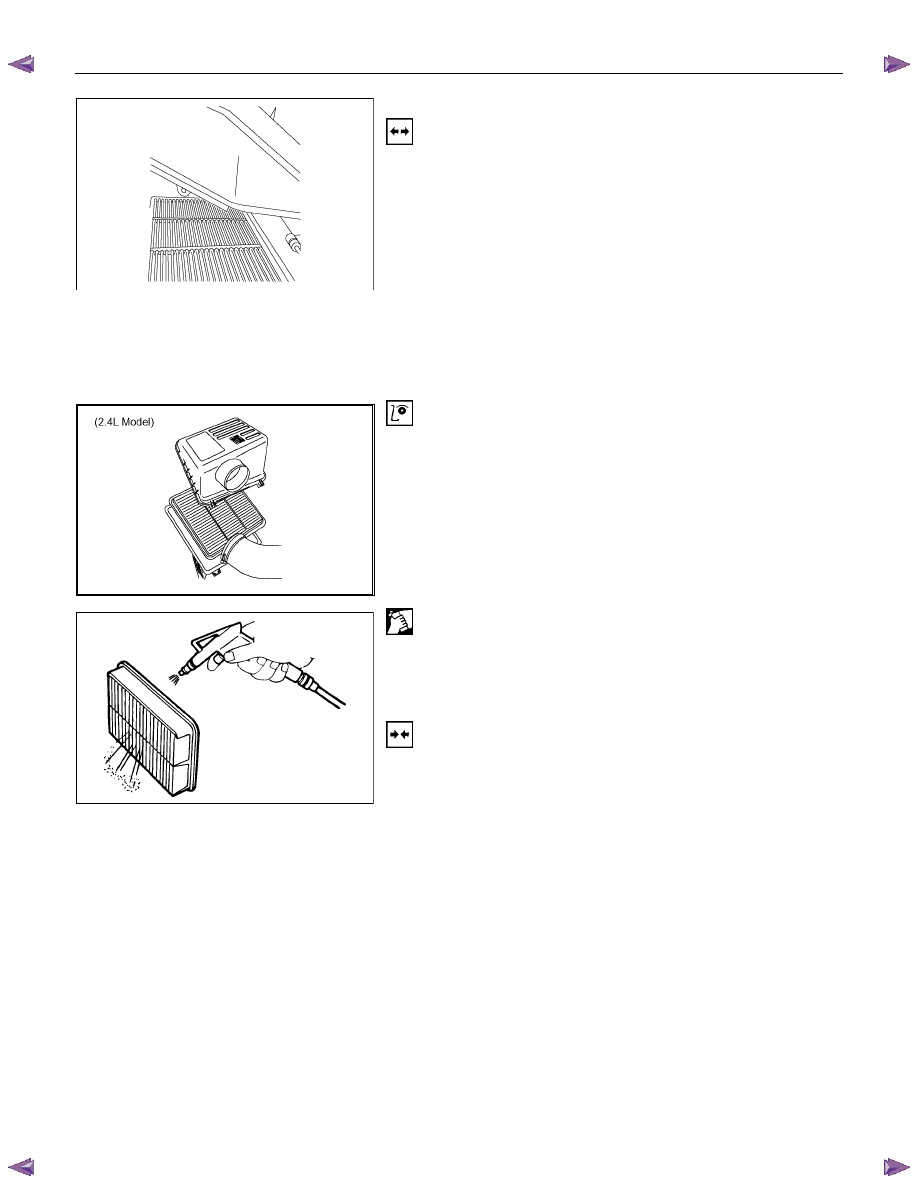

Air Cleaner Filter

NOTE:
The air cleaner filter is not damaged with the edge of the air
cleaner housing.


Removal

(2.4L)

  1.  Remove air cleaner cover and air cleaner element.

  2.  Remove air intake nose.

  3.  Remove lower air cleaner.

  4.  Remove mud guard.

  5.  Remove front fender cover.

  6.  Remove outside air intake duct.





Inspection

Check the air cleaner filter for damage or dust clogging.
Replace if it is damaged, or clean if it is clogged.








130RW002







Cleaning Method

Tap the air cleaner filter gently so as not to damage the paper
filter, or clean the element by blowing with compressed air of
about 490 kPa (71 psi) from the clean side if it is extremely
dirty.


Installation

 (2.4L)

  1.  Install outside air intake duct.

  2.  Install front fender cover.

  3.  Install mud guard.

  4.  Install lower air cleaner.

  5.  Install air intake hose.

  6.  Install air cleaner element and air cleaner cover.



6A-76 ENGINE MECHANICAL (C24SE)




















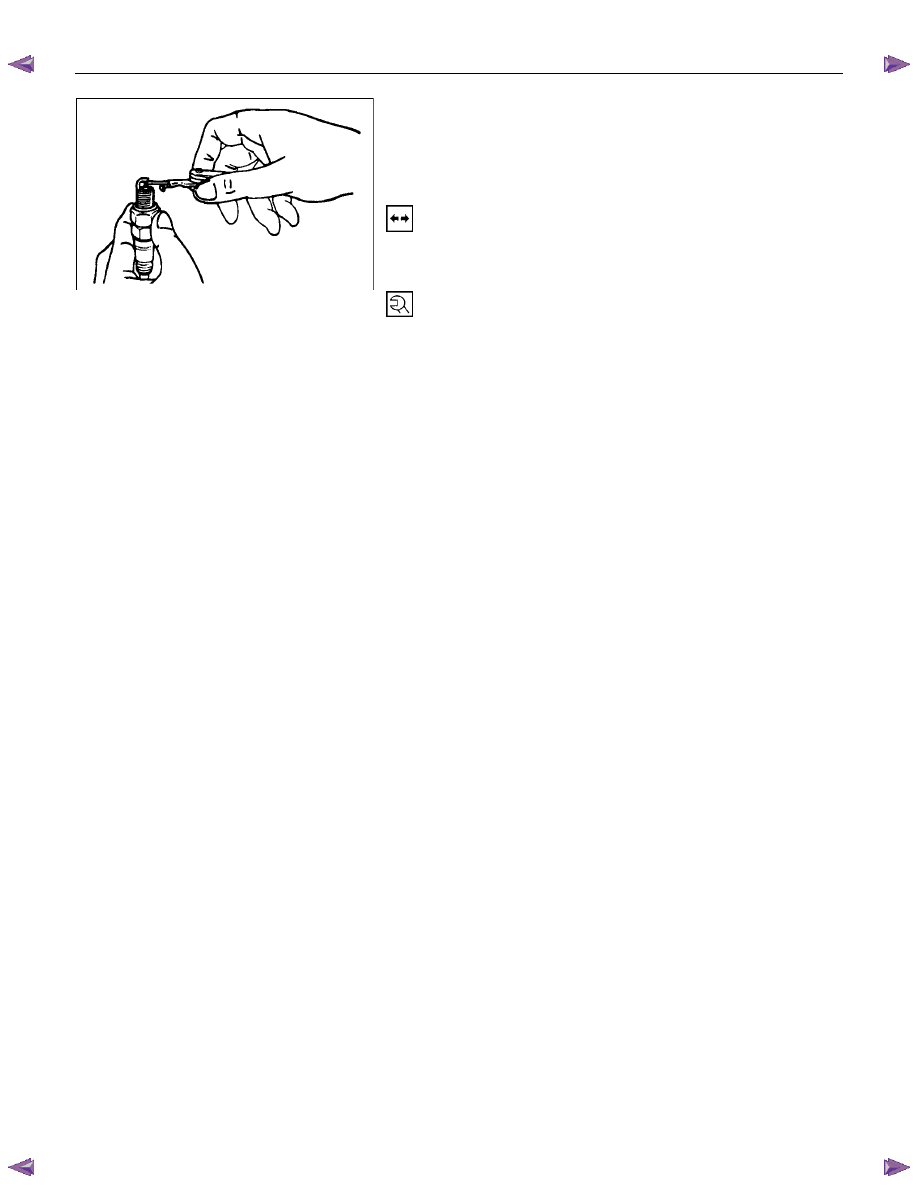

Spark Plug Thread

Recondition

Ream thread and recut using commercially available spark

plug thread drill (observe manufacturer's instructions).



Removal

Remove thread bush on spark plug. (dimensions (A) =

17mm/0.67in.)



Tighten (Torque)

Spark plug with thread bush into cylinder head - 25N

⋅m (2.5

kgf

⋅m) - use.





ENGINE MECHANICAL (C24SE) 6A-77

TECHNICAL DATA

SOHC Gasoline Engine C24SE






Engine Oil Viscosity

The following engine oils can be used:
A = single-grade oils
B = multigrade oils
C = easy run oils
depending on the outside temperature.


Engine Oil Quality

It is important that the following API and CCMC classes are
used:




Engines

Single and multigrade oils

Easy run oils

Petrol

API-SF/CC, SF/CD, SG/CC,

SG/CD, CCMC/G4

API-SF/CC, SF/CD, SG/CD

CCMC-G5/PD2










Important!

CD engine oils designed by manufacturers specially for diesel

engines are not suitable for petrol engines, unless a sufficient

performance class for petrol engines (e.g. API-SF/CCMC-G4)

is also indicated.



Disposal.

Observe the relevant national regulations when disposing of

used oil.







Engine Oil Filling Quantities



Engine Model

Initial filling

(litres)

Filling quantity

with filter change*

(litres)

MIN to MAX

(litres)

2.4L 4.80  4.25

1.00



*Up to mark "MAX" on oil dipstick










Oil Pump

Backlash

0.1 to 0.2mm

Gaps in gears opposite housing  0.03 to 0.1mm

Oil pressure at idle speed

Engine at operating

temperature (>70

°C oil and

approx. 80

°C coolant)



450 - 500 kpa

Oil drain plug

M14

× 1.5
