ENGINE ELECTRICAL   6D – 27







RTW46DSH003701



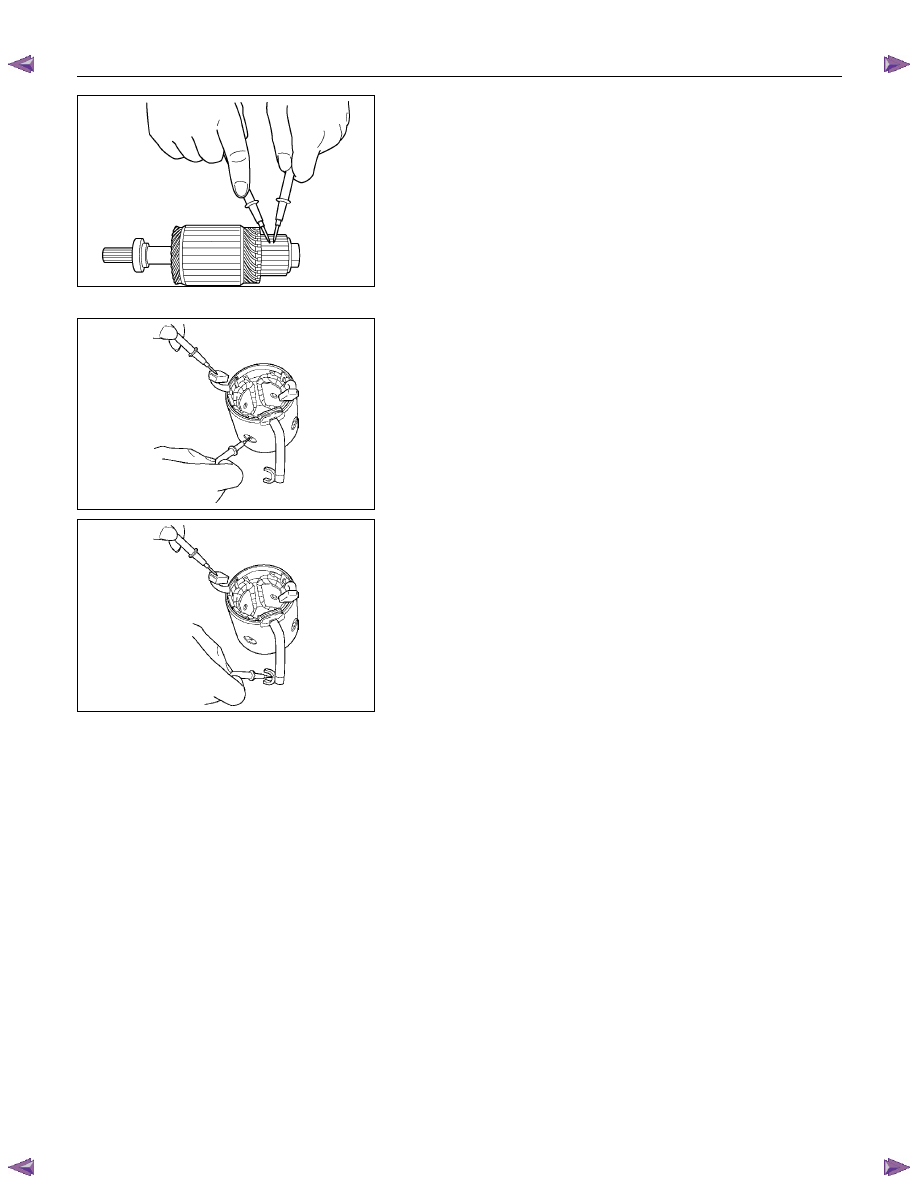

6.  Use the circuit tester to check the armature for

continuity.

1

Hold the circuit tester probes against two
commutator segments.

2

Repear Step 1 at different segments of the
armature core.



There should be continuity between all segments of
the commutator.
If there is not, the armature must be replaced.









RTW46DSH003801



YOKE

1.  Use a circuit tester to check the field winding ground.

1

Hold one circuit tester probe against the field
winding end or brush.

2

Hold the other circuit tester probe against the bare
surface of the yoke body.



There should be no continuity.
If there is continuity, the field coil is grounded.
The yoke must be replaced.







RTW46DSH003901



2.  Use the circuit tester to check the field winding

continuity.

1

Hold one circuit tester probe against the “M”
terminal lead wire.

2

Hold the other circuit tester probe against the field
winding brush.



There should be continuity.
If there is no continuity, the yoke must be replaced.



6D – 28  ENGINE ELECTRICAL

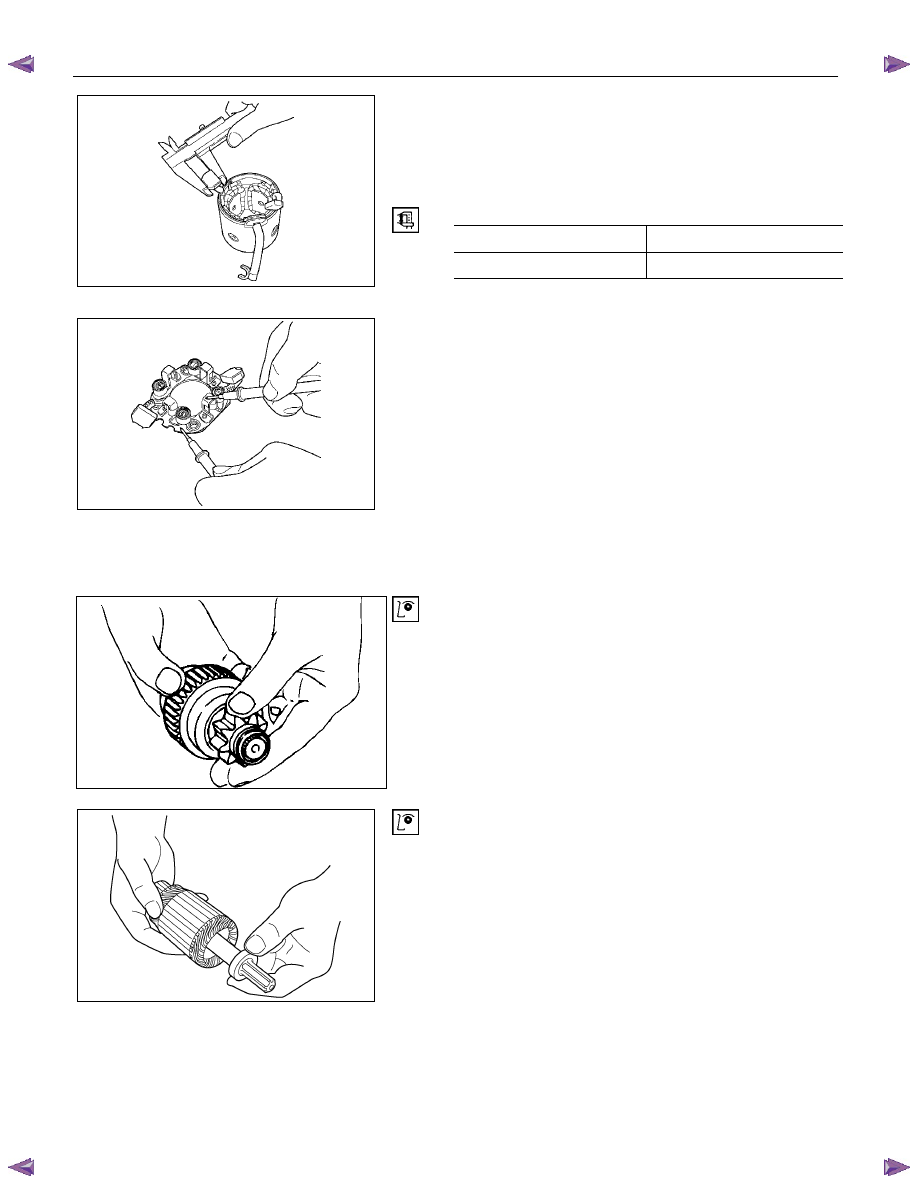

BRUSH AND BRUSH HOLDER

1.  Use a vernier caliper to measure the brush length (four

brushes).
Replace the brushes as a set if one or more of the
brush lengths is less than the specified limit.

Brush Length

mm (in)

Standard Limit

15 (0.59)

12 (0.47)







RTW46DSH004001







































RTW46DSH004101



2.  Use a circuit tester to check the brush holder

insulation.
Touch one probe to the holder plate and the other
probe to the positive brush holder.
There should be no continuity.






3.  Inspect the brushes for excessive wear.

If the negative brushes have excessive wear, the
entire brush holder assembly must be replaced.
If the positive brushes have excessive wear, the entire
yoke must be replaced.



OVERRUNNING CLUTCH

1.  Inspect the overrunning clutch gear teeth for

excessive wear and damage.
Replace the overrunning clutch if necessary.

2.  Rotate the pinion clockwise.

It should turn smoothly.

3.  Try to rotate the pinion in the opposite direction.

The pinion should lock.

065RY00035











RTW46DSH004401

BEARING

Inspect the bearings for excessive wear and damage.
Replace the bearings if necessary.



ENGINE ELECTRICAL   6D – 29

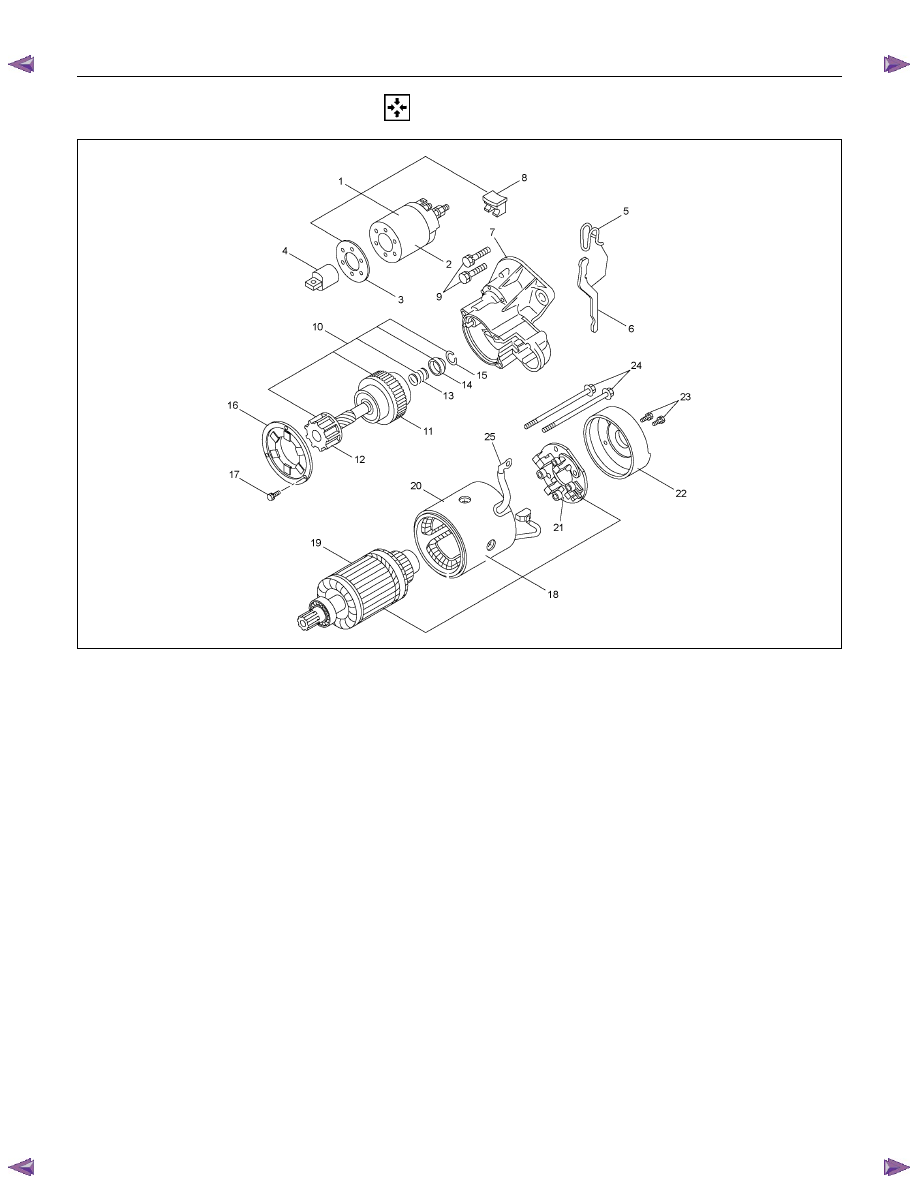

  REASSEMBLY







RTW46DLF000601





Reassembly Steps







   1.  Magnetic switch assembly





14.

Pinion stopper

   2.  Magnetic switch





15.

Pinion stopper clip

   3.  Dust cover





16.

Bearing retainer

   4.  Plunger



17.

Bolt

   5.  Torsion spring





18.

Motor assembly

   6.  Shift lever





19.

Armature

   7.  Gear case





20.

Yoke

   8.  Dust cover





21.

Brush holder

   9.  Bolt



22.

Rear

cover

  10.  Pinion assembly





23.

Screw

  11.  Clutch



24.

Through

bolt

  12.  Pinion shaft





25.

Lead wire

  13.  Rerurn spring











6D – 30  ENGINE ELECTRICAL







RTW46DSH005601

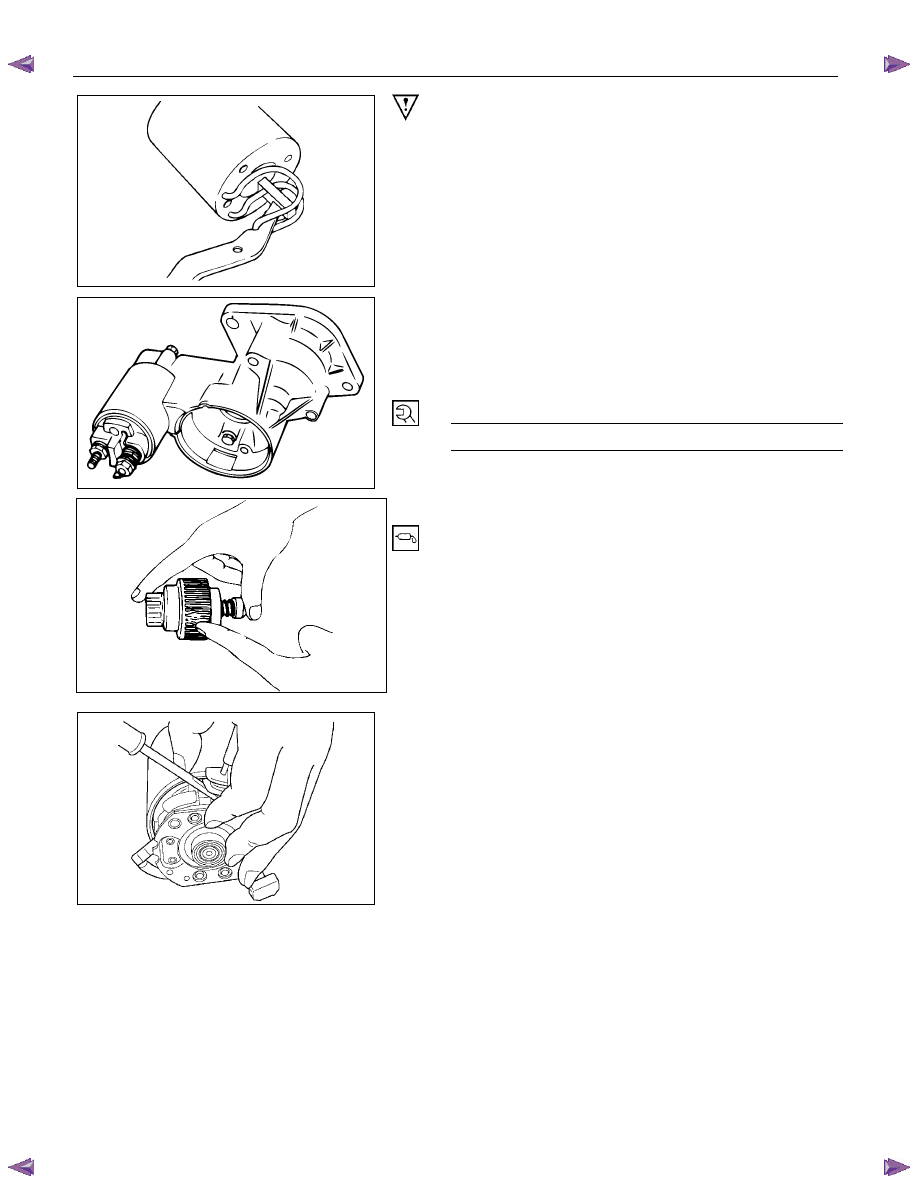

Important Operations

1.  Magnetic Switch Assembly

1.  Attach the torsion spring to the hole in the magnetic

switch as illustrated.

2.  Insert the shift lever into the plunger hole of the

magnetic switch.







RTW46DSH005701

























7. Gear

Case

3,8. Dust  Cover

1.  Install the magnetic switch assembly in the gear case.
2.  Install the dust cover.


Dust Cover Bolt Torque

N

⋅m (kg⋅m/lb⋅ft)

8 (0.8/5.4)









10. Pinion Assembly

Apply a coat of grease to the reduction gear and install the
pinion assembly to the armature shaft.

065RY00041











RTW46DSH004501



21. Brush Holders

1.  Install the brushes into the brush holder with raising

the spring end of the brush spring.
Take care not to damage the commutator face.

2.  Install the brush holder with aligning the peripheries of

the yoke and the brush holder.
