Oil seal

The oil seal must be replaced with a new one whenever
the alternator is disassembled.











Oil Seal Replacement

1.  Push the old oil seal from the rear bracket outside

holes.

2.  Use the insertion tool to press the new oil seal into

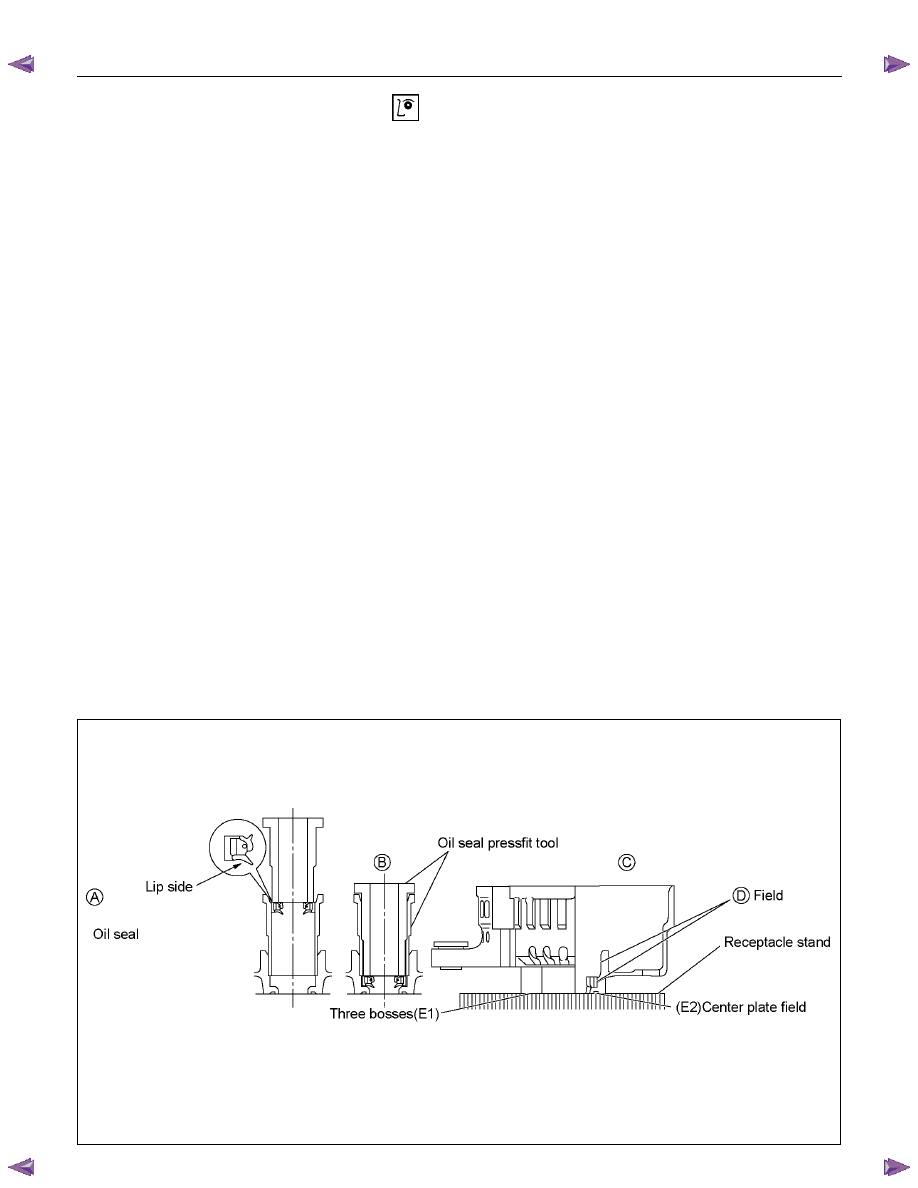

place. Follow the procedure shown in Figures A, B, C
and D.
࡮  Position the oil seal beneath the shaft and the

guide lip.

࡮  Position the cradle against the rear cover bosses

(3 points) so that the E1 and E2 surfaces fit into
the cradle. Take care not to damage the E1 and
E2 surfaces.

࡮  After completing the procedure, carefully check the

oil seal seating. Be absolutely sure that the seal is
evenly inserted (no warp) and level with the
surrounding surfaces.

Caution
࡮

࡮

࡮

࡮  Be sure that no foreign material enters the space

between the oil seal and the rotor shaft surfaces
during the installation procedure.

࡮

࡮

࡮

࡮  Take care not to damage the D surface.
࡮

࡮

࡮

࡮  Under no circumstances may the original oil seal

be reused.

࡮

࡮

࡮

࡮  The oil seal must be perfectly flat after being

pressed into place. If the oil seal is tilted, there will
be oil leakage.

















RTW46DSF000101

6D – 16  ENGINE ELECTRICAL







RTW46DSH000901





































Vacuum Pump

Vacuum Pump Disassembly

1.  Remove the center plate from the vacuum pump

housing.

2.  Remove the vacuum pump rotor and the vanes from

the housing.




Inspection

Vacuum Pump Housing and Center Plate

Inspect the vacuum pump housing and the center plate for
excessive wear, abrasion, and scoring.
If any of these conditions are present, the vacuum pump
housing and center plate must be replaced.












Vane

Inspect the vanes for excessive wear and damage.
Replace all four vanes if either of these conditions are
present.
Never replace only one vane.




Rotor

1.  Inspect the rotor for excessive wear, abrasion, and

scoring.
Pay particular attention to the internal spline.
Replace the rotor if any of these conditions are
present.

2.  Inspect the generator rotor shaft splines for backlash.

Replace the rotor if backlash is present.













RTW46DSH005201



Check Value

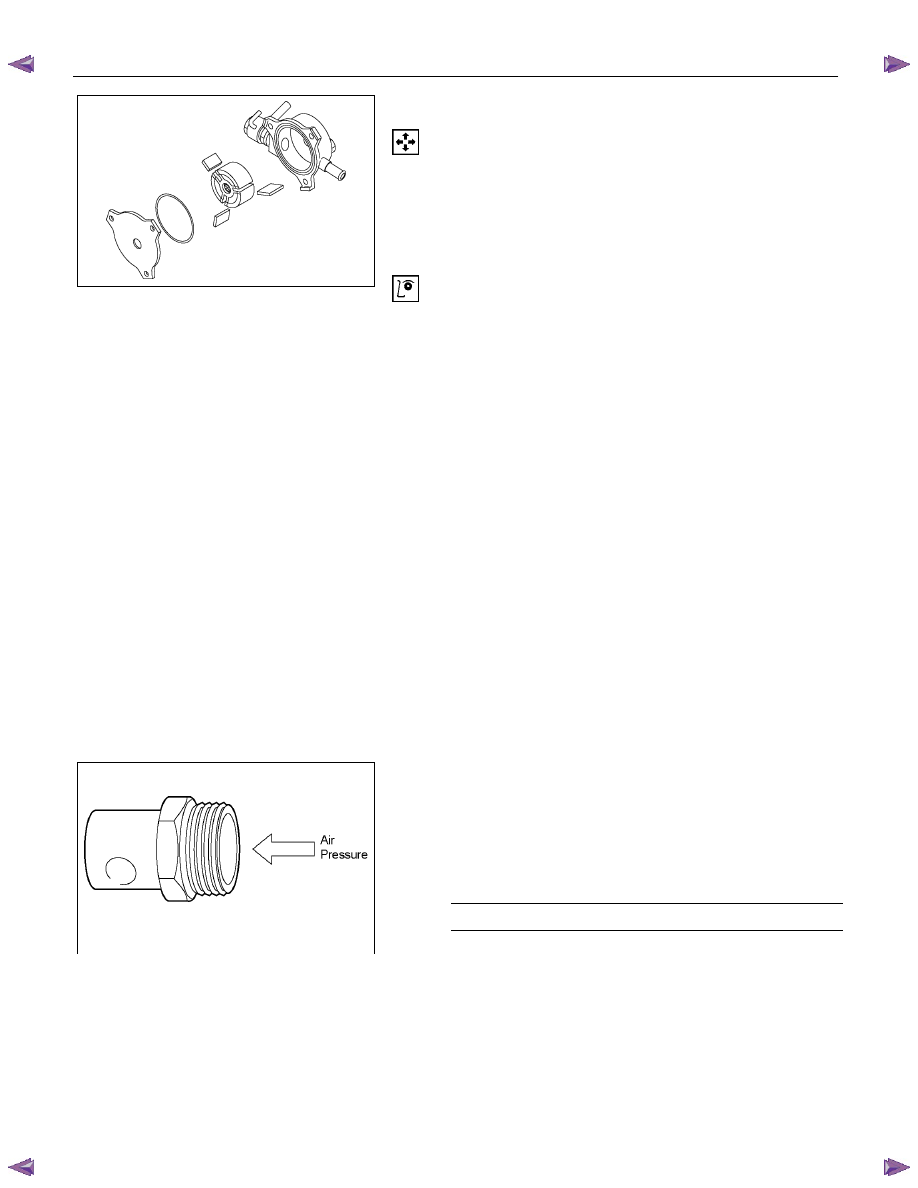

1.  Carefully force the valve from the “B” side as shown in

the illustration.
The valve must move smoothly.
If it does not, the check valve must be replaced.

2.  Apply compressed air to the “A” side.
Air Pressure

kPa  (kg/cm

2

/psi)

98 - 490 (1-5/14 – 71)



Check for air leakage from the check valve.
If there is air leakage, the valve must be replaced.

ENGINE ELECTRICAL   6D – 17







RTW46DSH001801

Vacuum Pump Reassembly

1.  Install the vanes to the rotor slits.

The rounded side of the vanes must be facing the
rotor housing.









RTW46DSH001901



2.  Install the rotor with the concave side facing the center

plate.







RTW46DSH002001

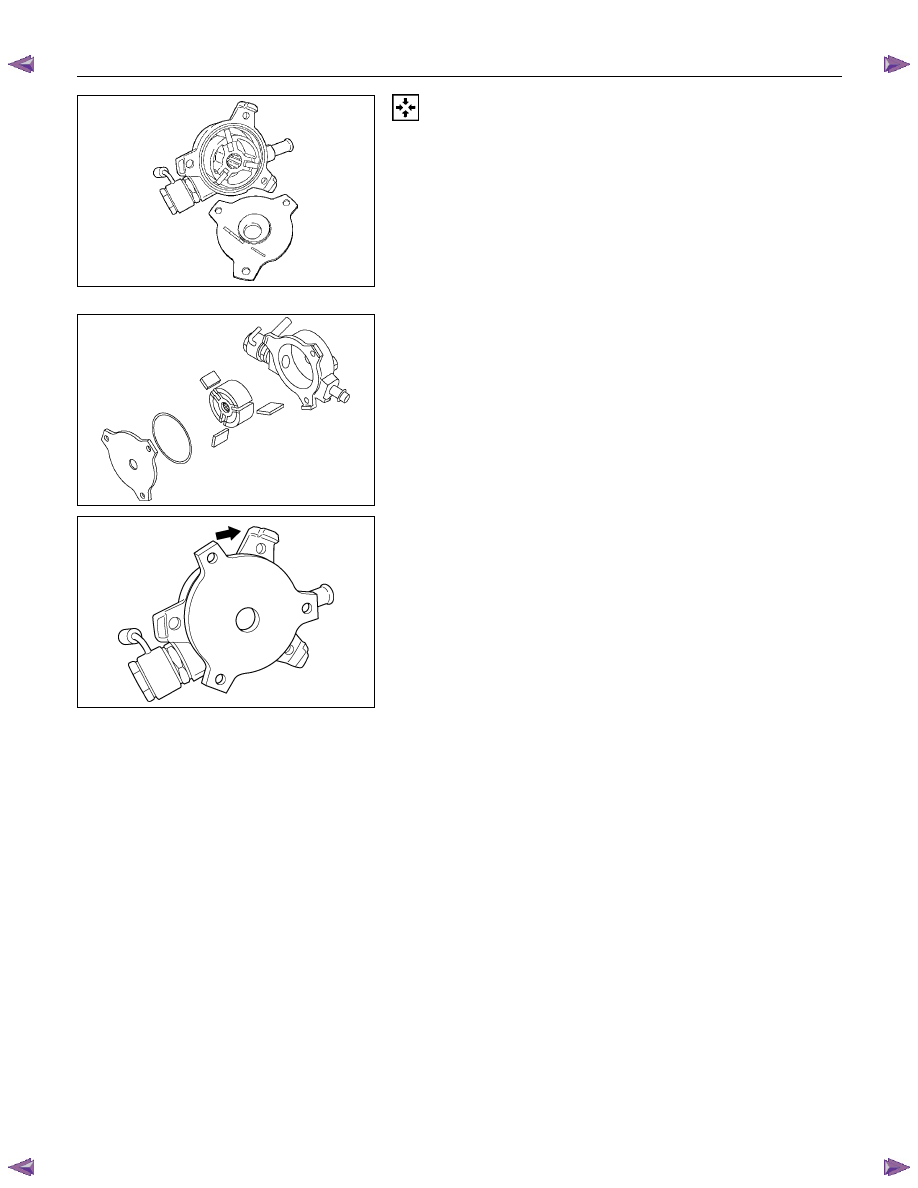

3.  Install the center plate to the rotor housing.

Be sure to use a new O-ring.



6D – 18  ENGINE ELECTRICAL

  REASSEMBLY









RTW46DLF000501

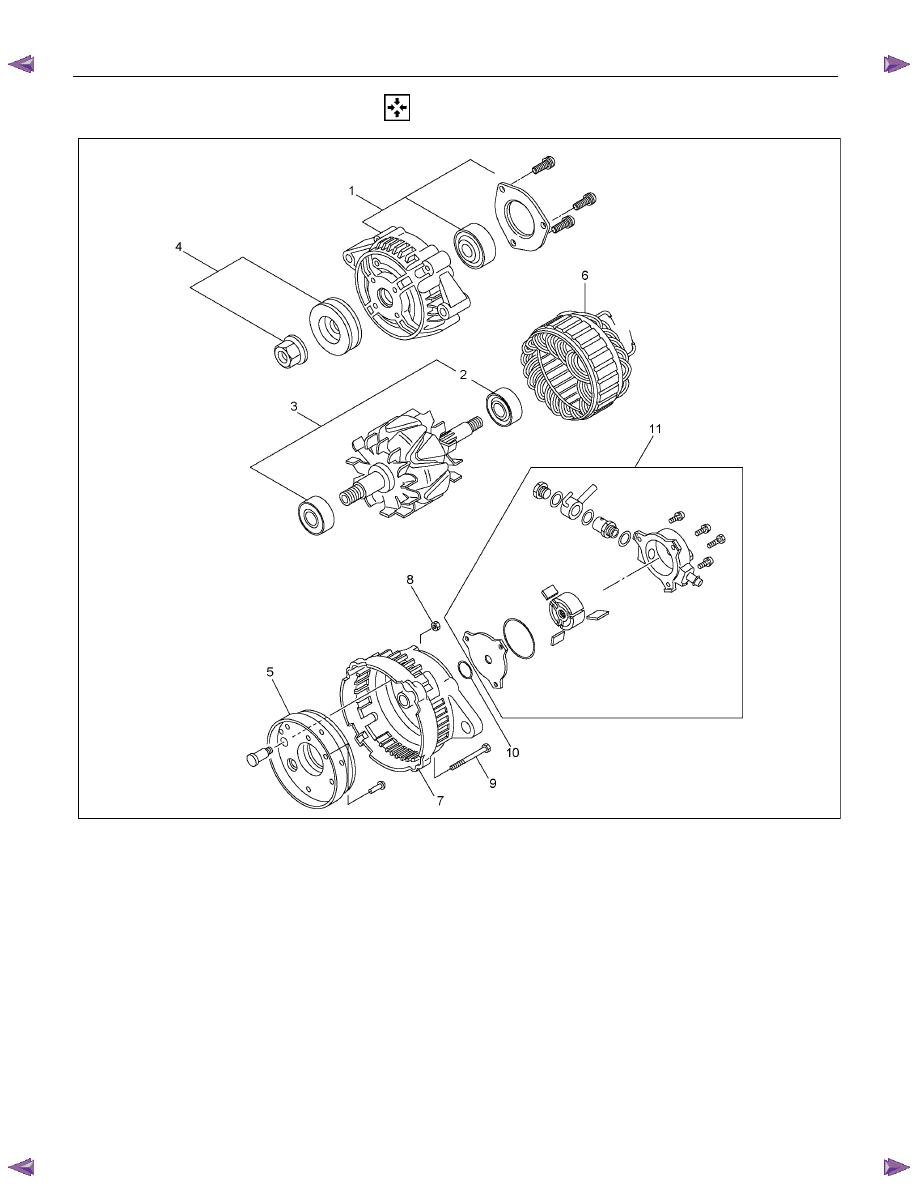

Reassembly Step







   1.  Front cover







   2.  Rear rotor bearing







   3.  Rotor Assembly







   4.  Pulley





   5.  Rectifier Assembly







   6.  Stator Assembly







   7.  Rear cover







   8.  B Terminal nuts







   9.  Through bolt







  10.  O-ring





  11.  Vacuum pump
